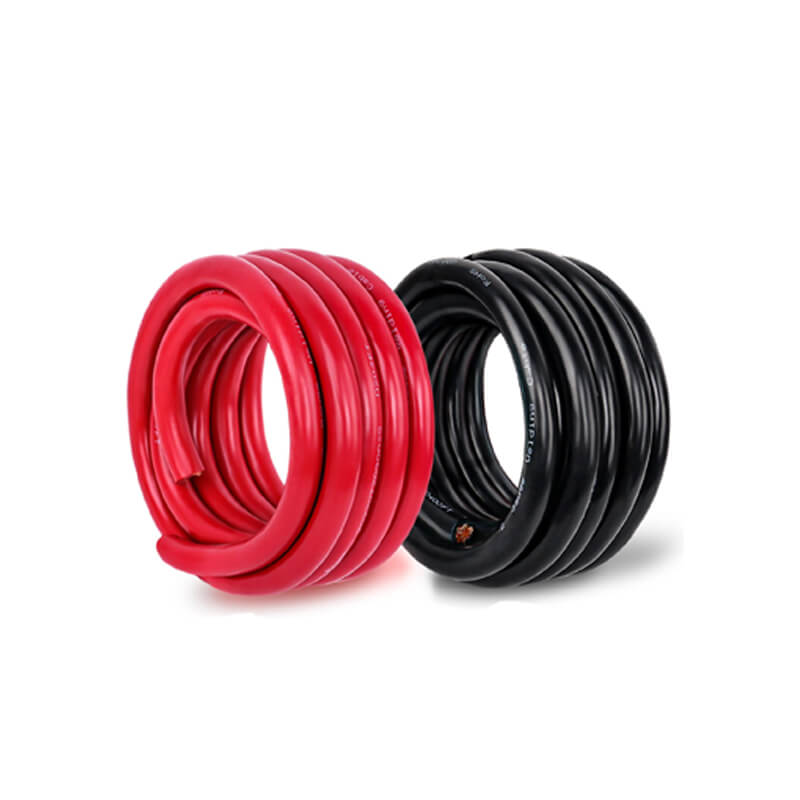

Silicone Insulation Welding Cable
Conductor：
Bare Copper
Insulation：
Silicone
Rated Voltage：
600V
Standard：
UL、CSA、IEC、EN
Temperature Range：
-60°C to +200°C
Description
Download
Conductor
Bare Copper
Insulation
silicone
No. of Conductor
Single core
Temperature Rating
-60°C to +200°C
silicone welding cable
Silicone insulation welding cables remain flexible under both high and low temperature conditions, resisting hardening or cracking. Simultaneously, the cable exhibits excellent resistance to aging, ozone, UV radiation, and chemical corrosion, allowing for long-term stable operation in oily, humid, and complex industrial environments.
flex welding cable
Silicone welding cables possess excellent high-temperature resistance, with a long-term operating temperature range of -60°C to +200°C, and even higher short-term temperature resistance, suitable for the high-heat environments encountered during welding.

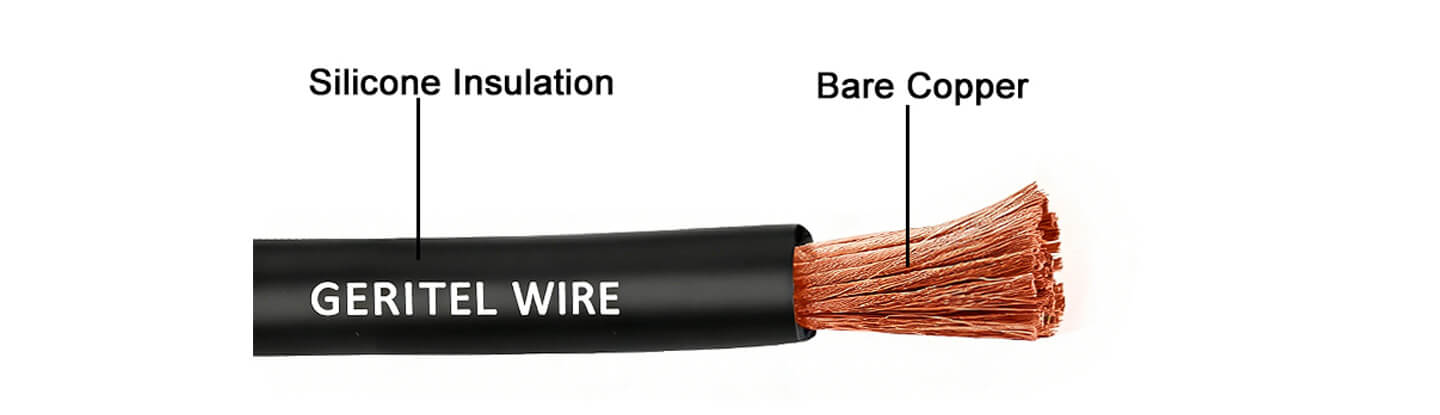

Conductors ：Bare Copper
Rated Voltage Uo/U (Um) ：600V
Insulated：Silicone
Standard：UL、CSA、IEC、EN
Temperature range : -60°C to +200°C
Advantages of silicone Welding Cable

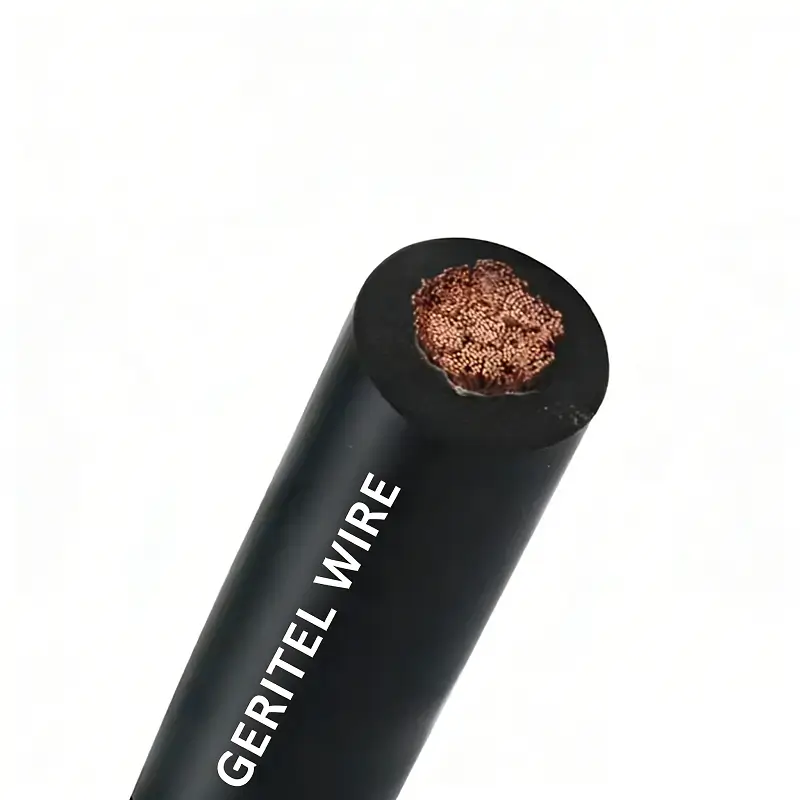

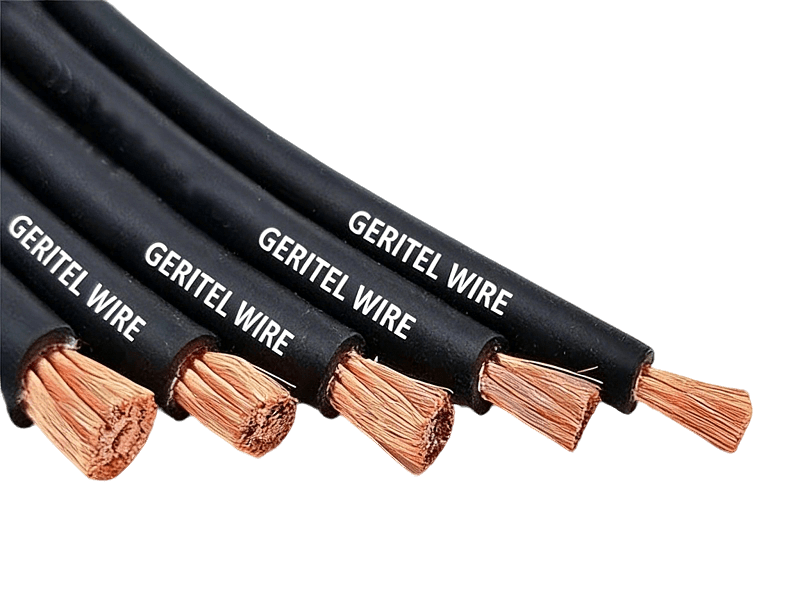

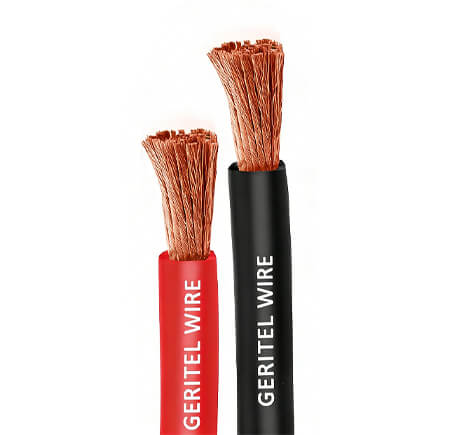

Silicone welding cables are typically made of multi-strand ultra-fine oxygen-free copper conductors, offering high conductor flexibility and stable conductivity, suitable for frequent movement and bending. The insulation layer uses high-quality silicone rubber material, manufactured through a special formula and extrusion process, resulting in a uniform, stable thickness, and tight coverage of the conductor.
| Conductor | Insulator | Electrical Characteristics | Maximum Current | Package | ||||
| Size | No.& Nominal / Diameter of Wire | Section | Diameter | Insulator Thick | Over Diameter | Conductor Resistance | Ampere | |
| awg | mm | mm2 | mm | mm | mm | km | A | Meter/Roll |
| 0 | 19000/0.08mm | 95.5 | 12.73 | 2.64 | 18 | 0.18 | 955 | 50 |
| 1 | 15000/0.008mm | 75 | 11.3 | 2.3 | 15.5 | 0.45 | 840 | 50 |
| 2 | 100000/0.008mm | 50 | 9.24 | 2.4 | 14 | 0.63 | 630 | 50 |
| 3 | 6700/0.008mm | 33.7 | 7.73 | 2.6 | 13 | 0.89 | 500 | 50 |
| 4 | 5000/0.008mm | 25 | 6.53 | 2.4 | 11 | 1.25 | 400 | 50 |
| 6 | 3200/0.008mm | 16 | 5.23 | 1.65 | 8.5 | 1.9 | 300 | 100 |
| 7 | 2400/0.008mm | 12 | 4.53 | 1.35 | 7.2 | 2.6 | 240 | 100 |
| 8 | 1650/0.008mm | 8.3 | 3.75 | 1.5 | 6.3 | 3.7 | 190 | 100 |
| 10 | 1050/0.008mm | 5.3 | 3 | 1.3 | 5.45 | 6.3 | 140 | 100 |
| 11 | 750/0.008mm | 3.8 | 2.53 | 1.2 | 5 | 8.3 | 1.05 | 100 |
| 12 | 680/0.008mm | 3.4 | 2.41 | 1 | 4.5 | 9.8 | 88 | 100 |
| 13 | 500/0.008mm | 2.5 | 2.07 | 1 | 4 | 12.5 | 70 | 100 |
| 14 | 400/0.008mm | 2 | 1.85 | 0.9 | 3.5 | 15.6 | 55 | 200 |
| 15 | 300/0.008mm | 1.5 | 1.6 | 0.8 | 3.2 | 20.8 | 42 | 200 |
| 16 | 252/0.008mm | 1.27 | 1.47 | 0.75 | 3 | 24.4 | 35 | 200 |
| 17 | 210/0.008mm | 1 | 1.33 | 0.68 | 2.7 | 29.8 | 30 | 200 |
| 18 | 150/0.008mm | 0.75 | 1.33 | 0.55 | 2.3 | 39.5 | 22 | 200 |
| 20 | 100/0.008mm | 0.5 | 0.92 | 0.45 | 1.8 | 62.5 | 13 | 400 |
| 22 | 60/0.008mm | 0.3 | 0.72 | 0.45 | 1.7 | 88.6 | 8 | 400 |
| 24 | 40/0.008mm | 0.2 | 0.58 | 0.5 | 1.6 | 97.6 | 5 | 400 |
| 26 | 30/0.008mm | 0.16 | 0.51 | 0.5 | 1.5 | 123 | 3.5 | 400 |
| 28 | 16/0.008mm | 0.08 | 0.37 | 0.4 | 1.2 | 227.2 | 1.25 | 1500 |
| 30 | 11/0.008mm | 0.055 | 0.31 | 0.3 | 0.8 | 331 | 0.8 | 2500 |
Certification
Welding cables have passed international certifications. The cable adheres to a strict quality control system. Its silicone insulation material undergoes high-temperature resistance, aging resistance, flame retardancy, and electrical performance testing, meeting the requirements of mainstream international standards such as UL, CSA, IEC, and EN, making it suitable for the Americas, Asia, Europe, Australia, and other international markets.
Ultra-Flexible
Temperature Resistance
Aging Resistant
Flame Retardant
APPLICATIONS
Silicone welding cable is widely used in various welding equipment, such as manual arc welding machines, inverter welding machines, and automated welding systems, as a welding clamp cable or grounding return line. With its high flexibility and high-temperature resistance, this cable is particularly suitable for high-intensity welding scenarios such as heavy industry, steel structure processing, shipyards, automotive manufacturing, and metal processing workshops.
Welding Machine
Silicone welding cables are commonly used for connecting welding clamps and grounding circuits in manual arc welding machines or inverter welding machines. They offer high current transmission while maintaining flexibility and heat resistance.

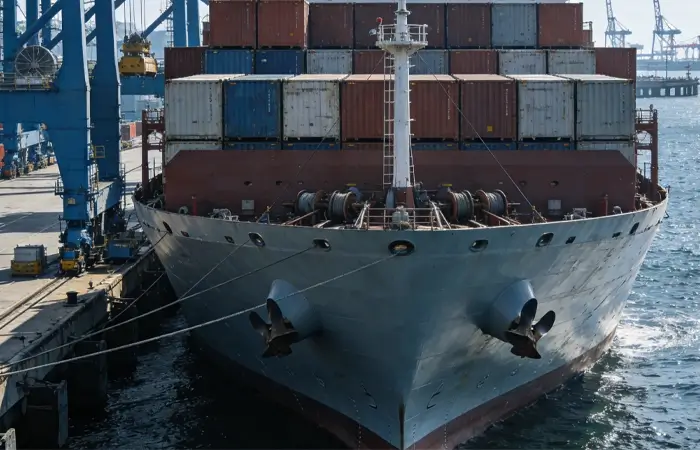

Shipbuilding Welding
Used for welding steel structures in shipyards, they are resistant to oil, salt spray, and mechanical abrasion, ensuring stable welding operations in humid or complex environments.

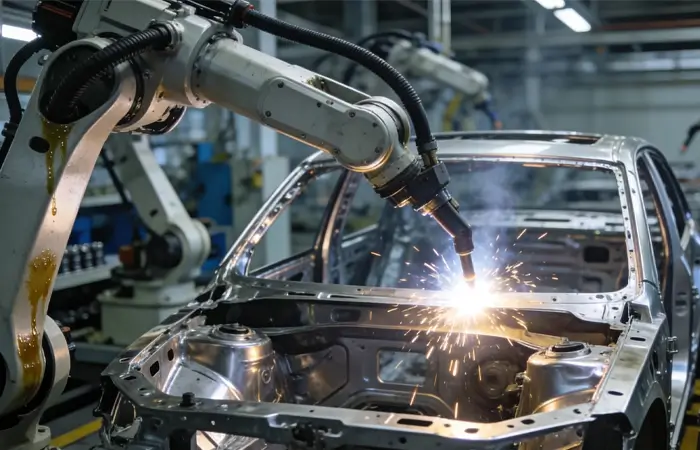

Automotive Assembly Welding
In welding automotive bodies or components, silicone welding cables can withstand high temperatures, high currents, and frequent movement, ensuring a safe and reliable welding process.

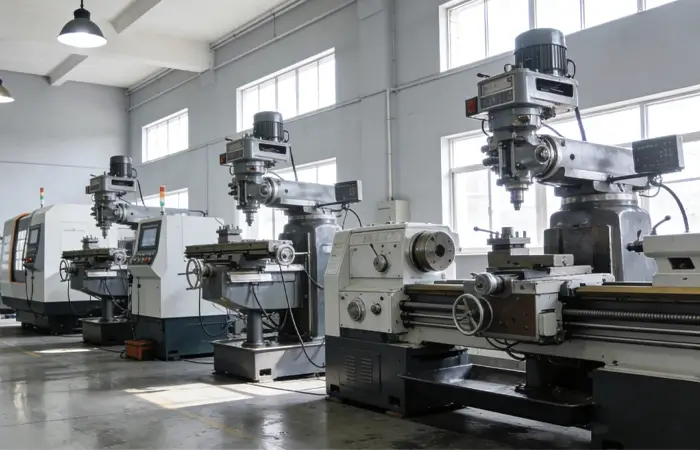

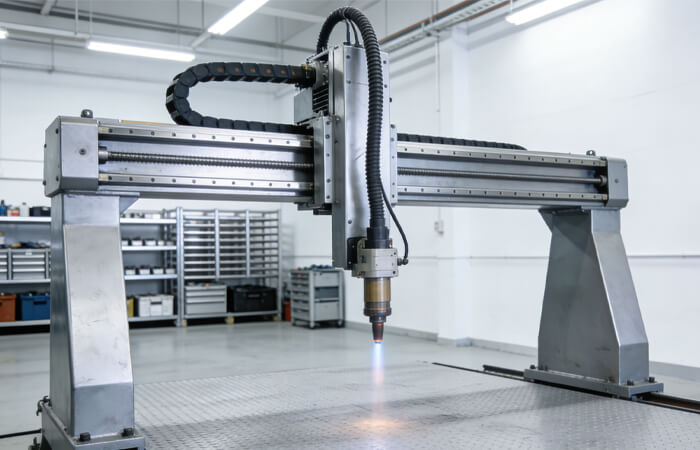

Industrial Equipment
Used in high-intensity welding applications such as steel processing plants and machinery manufacturing workshops, these cables are wear-resistant and high-temperature resistant, suitable for long-term, frequent use.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire & cable manufacturer.
Packaging Information
Welding cables are typically packaged in coils, either plastic reel or wooden reel.
Coiled
Plastic Reel
Wooden Reel
