H01N2-D Rubber Welding Cable
Conductor：
Bare Copper
Insulation：
PET
Sheath：
Rubber
Rated Voltage：
450V /750
Standard：
IEC 60245
Temperature Range：
-10°C to 70°C
Description
Download
Conductor
Bare Copper
Insulation & Sheath
PET Insulation & Rubber Sheath
No. of Conductor
Single core
Temperature Rating
-40°C to +85°C
welding cable
H01N2-D rubber welding cable is manufactured using high-quality rubber materials and highly conductive copper conductors, possessing excellent electrical and mechanical properties. The cable exhibits superior flexibility and bending resistance, maintaining stable current transmission performance even in welding environments involving frequent movement and repeated bending.
super flex welding cable
H01N2-D cable is widely used in various arc welding equipment and welding power supply systems, and is particularly suitable as a connecting cable between the welding machine and the welding clamp.
Conductors ：Bare Copper
Rated Voltage Uo/U (Um) ：100V
Insulation & Sheath：PET Insulation & Rubber Sheath
Standard：EN 50525-2-81,EN 60228
Temperature range : -40°C to +85°C
Advantages of Copper Welding Cable

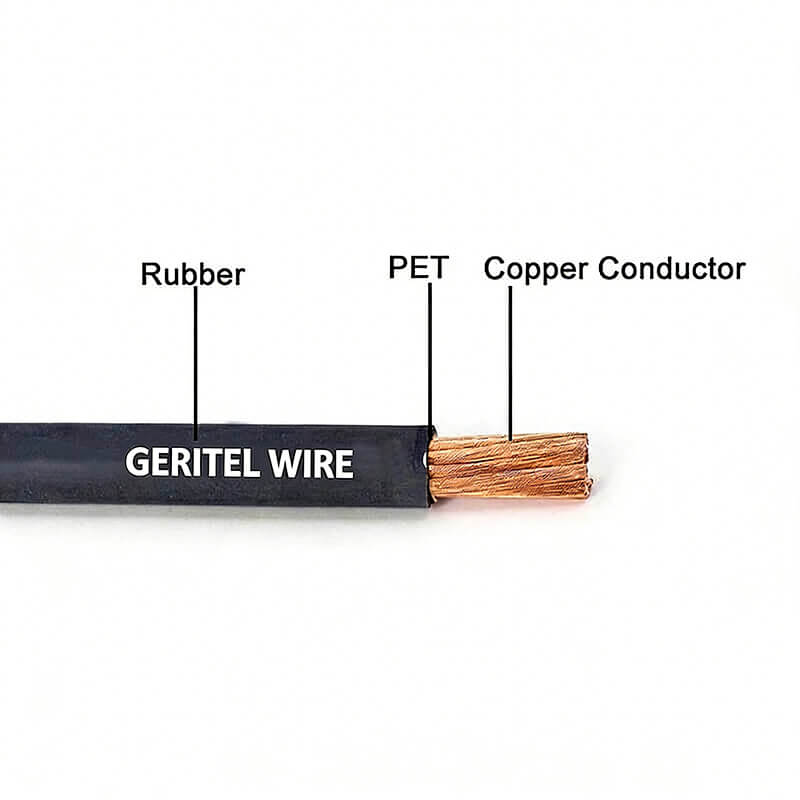

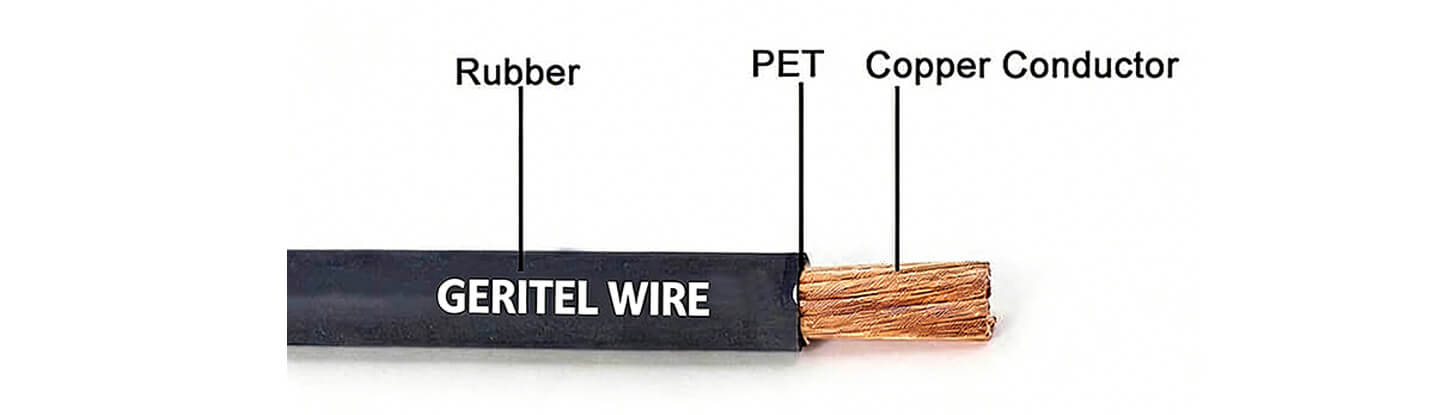

H01N2-D rubber welding cable utilizes a multi-strand ultra-fine stranded high-purity copper conductor structure. The conductors are typically tin-plated copper or annealed bare copper, offering low resistance and excellent conductivity. The internal insulation layer uses a special rubber compound to tightly encapsulate the conductor, providing excellent electrical insulation and mechanical protection. The outer sheath is also made of wear-resistant rubber material, resulting in a compact and robust overall structure that effectively protects against external mechanical impacts, tension, and environmental corrosion.
| NO.OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 |
NOMINAL THICKNESS OF INSULATION mm |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
MAXIMUM DIAMETER OF WIRES IN CONDUCTOR mm |
MAXIMUM RESISTANCE OF CONDUCTOR AT 20℃ ohms/km Plain Wires |
| 1 | 10 | 2 | 9 | 146 | 0.21 | 1.91 |
| 1 | 16 | 2 | 10 | 204 | 0.21 | 1.21 |
| 1 | 25 | 2 | 11.5 | 290 | 0.21 | 0.78 |
| 1 | 35 | 2 | 12.5 | 384 | 0.21 | 0.554 |
| 1 | 50 | 2.2 | 14.5 | 535 | 0.21 | 0.386 |
| 1 | 70 | 2.4 | 16.5 | 716 | 0.21 | 0.272 |
| 1 | 95 | 2.6 | 18.5 | 943 | 0.21 | 0.206 |
| 1 | 120 | 2.8 | 20.5 | 1235 | 0.51 | 0.161 |
| 1 | 150 | 3 | 23 | 1556 | 0.51 | 0.129 |
Certification
H01N2-D rubber welding cable has obtained multiple international certifications and generally complies with specifications such as EN 50525-2-81 / DIN VDE 0285-525-2-81, making it suitable for low-voltage, high-current welding applications.
Flexibility
Temperature Resistance
Weather Resistance
UL3135/UL3239/VW-1
APPLICATIONS
Welding cables are commonly used in industrial manufacturing, steel structure processing, shipbuilding, automotive repair, construction sites, and metal processing workshops.
Industrial ARC Welding
H01N2-D rubber welding cable is widely used in manual arc welding equipment in factories and manufacturing workshops as a connecting cable between the welding machine and the welding torch.

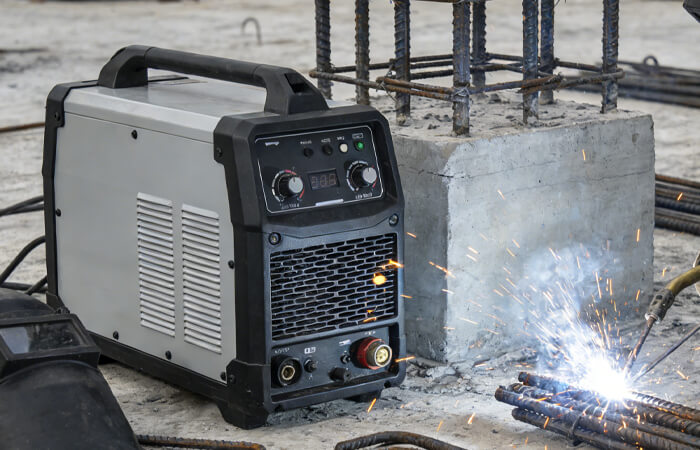

Portable Welding Machines
On construction sites, welding machines often need to be moved, and the cables are frequently bent. The highly flexible rubber structure of H01N2-D effectively adapts to complex working conditions, reducing the risk of core breakage.
Automotive
In automotive repair workshops, space is limited, and welding cables need to be frequently dragged and coiled. H01N2-D is soft and easy to handle, helping to improve welding efficiency and safety.
Rail Transit
In railway, subway, or large equipment maintenance, the welding environment is complex. The H01N2-D rubber sheath effectively protects against mechanical impact and environmental corrosion.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire & cable manufacturer. We possess a mature and complete production system, independently handling every step from copper wire drawing, stranding, and extrusion to finished product testing. We provide global customers with stable quality wires and cables and reliable cable solutions.
Packaging Information
welding cables are typically packaged in coils, either plastic reel or wooden reel. The specific packaging method depends on the cable's size and length.
Coiled
Plastic Reel
Wooden Reel
