PVC Super Flex Welding Cable
Conductor：
bare copper
Insulation：
PVC
Rated Voltage：
450V /750
Standard：
IEC 60245
Temperature Range：
-10°C to 70°C
Description
Download
Conductor
Bare Copper
Insulation
PVC
No. of Conductor
Single core
Temperature Rating
-10°C to 70°C

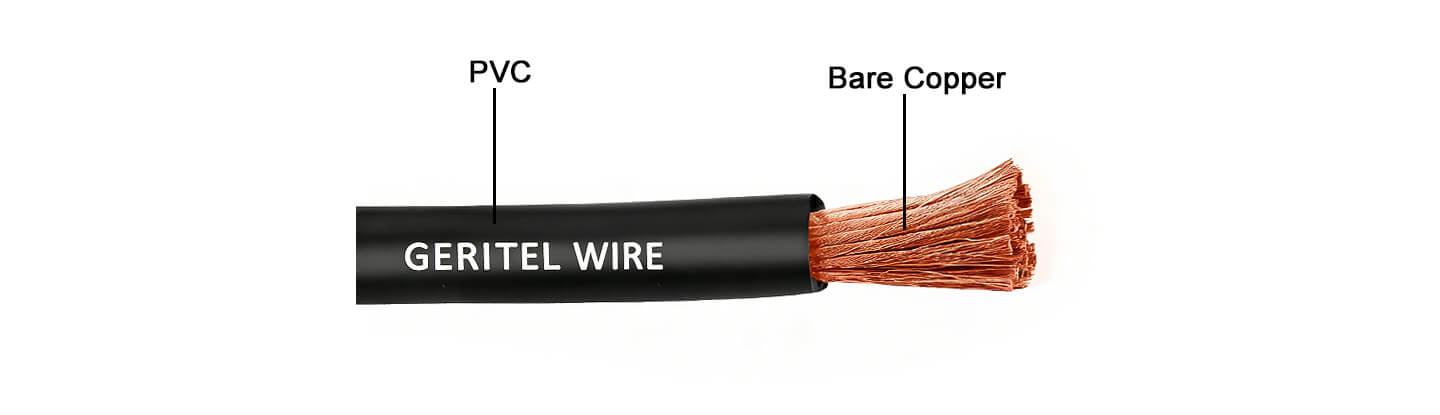

welding cable
Welding cables are typically rated at 600V and have a temperature range of -20°C to +90°C. The PVC insulation provides not only superior electrical insulation but also resistance to oil, acids, alkalis, and moisture commonly found in industrial environments.

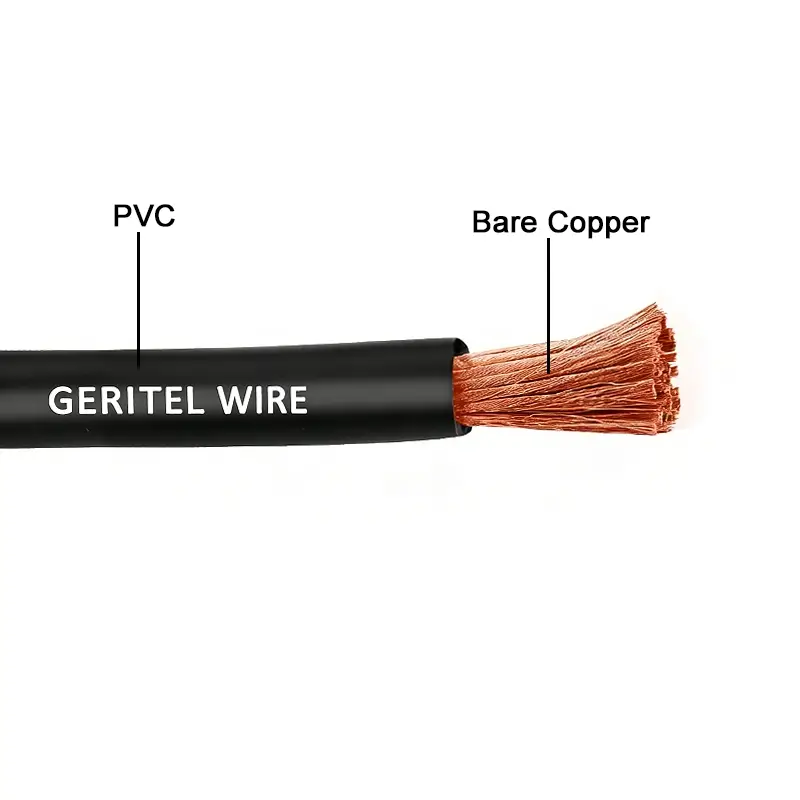

super flex welding cable
Welding cables are widely used in high-intensity environments such as welding operations, industrial manufacturing, construction sites, and ship repair.
Conductors ：Bare Copper
Rated Voltage Uo/U (Um) ：450/750V
Insulated：PVC
Standard：IEC 60245
Temperature range : -10°C to 70°C
Advantages of Copper Welding Cable
Welding cables utilize highly flexible multi-strand copper conductors, exhibiting minimal resistance during high-current transmission while maintaining excellent flexibility for frequent movement and bending. The conductors are encased in high-quality PVC insulation, resisting oil, chemicals, abrasion, and mechanical shock; some models also feature an additional PVC sheath for enhanced durability.
| Formation (no x mm2 ) |
Approx. Conductor (mm) |
Average Insulation Thickness (mm) |
Max. External (mm) |
Max. electrical resistance at 20℃ | Approx.cable weight (KG/KM) |
Current rating in pipe in air at 30℃ (A) |
| 1x1.5 | 1.5 | 0.7 | 3.4 | 13.3 | 20 | 16 |
| 1x2.5 | 2 | 0.8 | 4.1 | 7.98 | 31 | 20 |
| 1x4 | 2.5 | 0.8 | 4.8 | 4.95 | 45 | 25 |
| 1x6 | 3 | 0.8 | 5.3 | 3.3 | 65 | 36 |
| 1x10 | 4 | 1 | 6.8 | 1.91 | 109 | 50 |
| 1x16 | 5 | 1 | 8.1 | 1.21 | 163 | 68 |
| 1x25 | 6.2 | 1.2 | 10.2 | 0.78 | 251 | 89 |
| 1x35 | 7.4 | 1.2 | 11.7 | 0.554 | 347 | 110 |
| 1x50 | 8.9 | 1.4 | 13.9 | 0.386 | 493 | 134 |
| 1x70 | 10.5 | 1.4 | 16 | 0.272 | 680 | 171 |
| 1x95 | 12.2 | 1.6 | 18.2 | 0.206 | 910 | 207 |
| 1x120 | 13.8 | 1.6 | 20.2 | 0.161 | 1140 | 239 |
| 1x150 | 15.4 | 1.8 | 22.5 | 0.129 | 1420 | 275 |
| 1x180 | 16.9 | 2 | 24.9 | 0.106 | 1730 | 314 |
| 1x240 | 19.5 | 2.2 | 28.4 | 0.0801 | 2270 | 369 |
Certification
Welding cables have passed multiple international certification tests, including flame retardancy, oil resistance, chemical corrosion resistance, and mechanical performance tests. Certified cables operate stably in high-temperature, humid, and complex industrial environments.
Flexibility
Temperature Resistance
Weather Resistance
UL3135/UL3239/VW-1
APPLICATIONS
Welding cables can connect welding machines to electrodes, transmitting high currents for stable welding results. They are also suitable for temporary or mobile power connections, powering heavy machinery, and industrial applications requiring frequent movement and bending.
Industrial Welding Machines
PVC welding cables are widely used to connect arc welding machines and welding clamps, providing stable high-current transmission and ensuring continuous and safe welding processes. They are suitable for use in factories and production lines.
Construction
On construction sites, PVC welding cables are used for steel structure welding and equipment installation. Their abrasion-resistant and oil-resistant properties make them suitable for complex and frequently moving construction environments.
Marine
PVC welding cables are suitable for welding operations in shipyards. They can withstand humid environments and mechanical abrasion, ensuring reliable power supply during hull welding and electrical maintenance.
Heavy Machinery
In the manufacturing of heavy machinery, PVC welding cables are used to power high-power welding equipment, meeting the requirements for high-current transmission and long-term use.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire & cable manufacturer. We possess a mature and complete production system, independently handling every step from copper wire drawing, stranding, and extrusion to finished product testing. We provide global customers with stable quality wires and cables and reliable cable solutions.
Packaging Information
Welding cables are typically packaged in coils, either plastic reel or wooden reel. The specific packaging method depends on the cable's size and length.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
