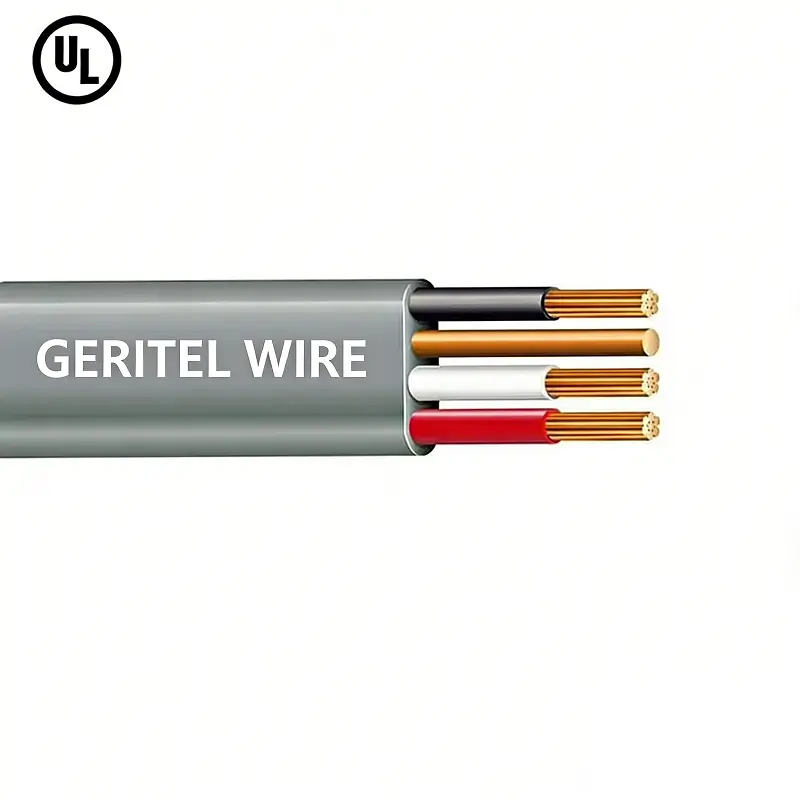

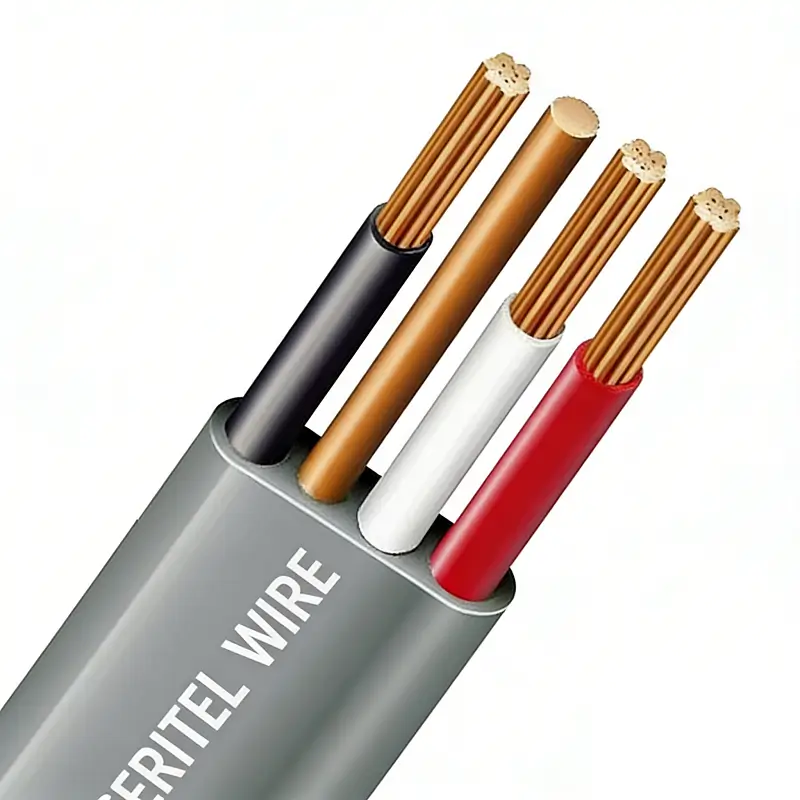

UF-B Underground Feeder Cable
Conductor ：
Pure Copper
Insulation：
PVC
Jacket：
NYLON
Outer Jacket：
PVC
Rated Voltage：
600V
Standard：
UL83, UL493, CUL
Description
Download

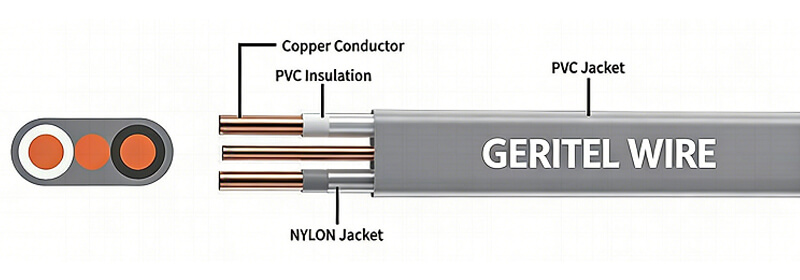

Conductor
Copper Conductor
Insulation and Sheath
PVC & PVC
No. of Conductor
Three Conductor / Four Conductor
Temperature Rating
90°C(wet/dry)

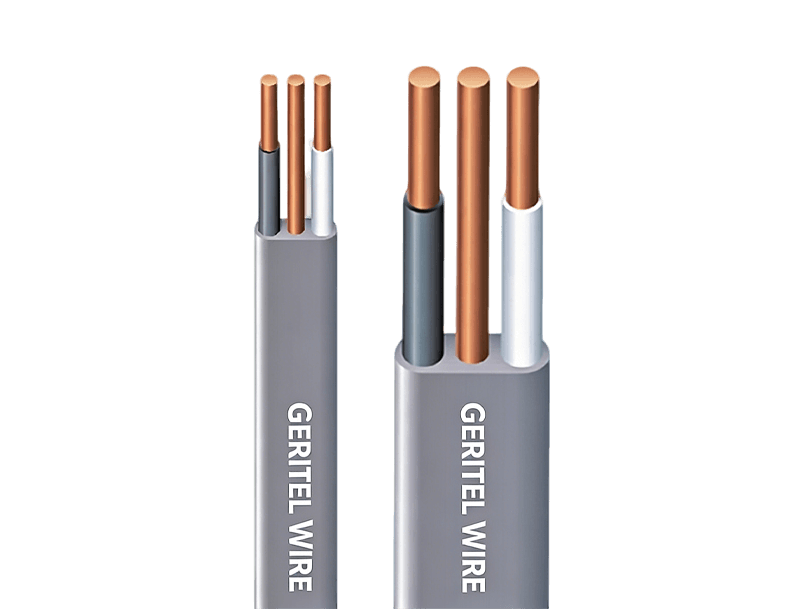

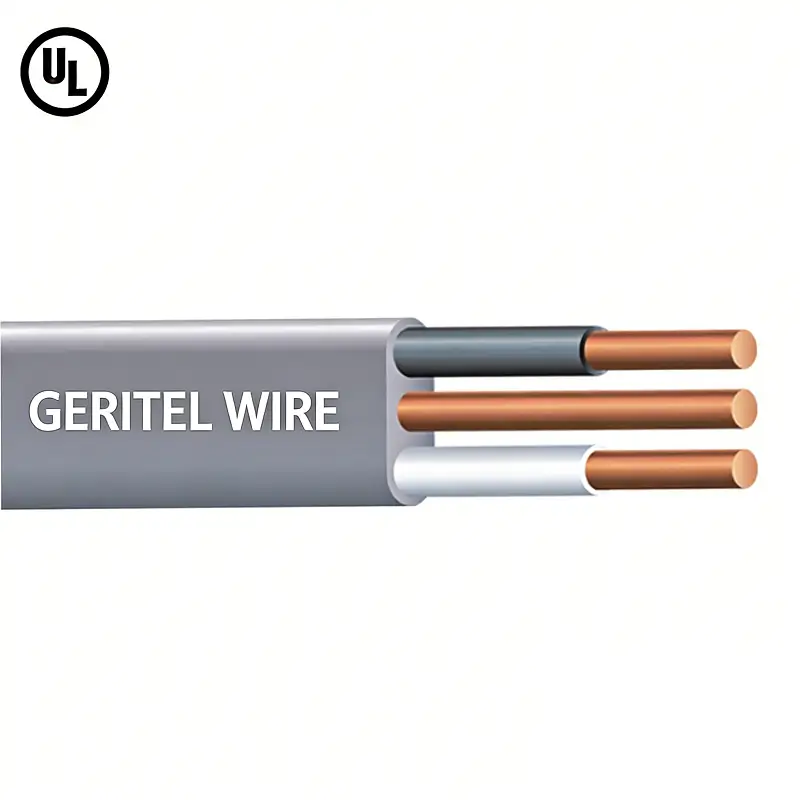

UF-B wire
UF-B is a non-metallic sheathed cable designed for underground feeder and branch circuits. It typically consists of copper conductors and a gray PVC outer sheath, and is rated for 600 V. Unlike ordinary indoor non-metallic sheathed cables, UF-B can be directly buried or used in wet environments without the need for additional conduit protection when laid outdoors. It also meets NEC specifications for direct burial and non-metallic sheathed cable installations.

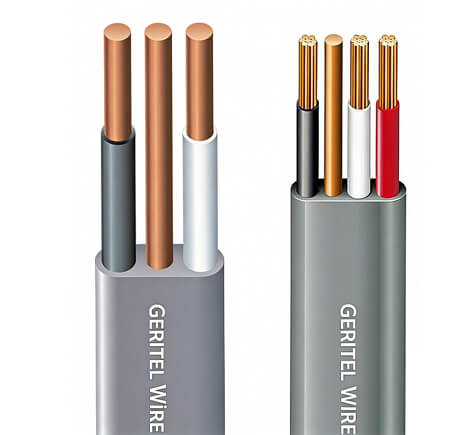

uF - b wire
According to NEC standards, UF-B cable is permitted for use in dry, wet, or even corrosive environments, with a maximum conductor temperature of 90 °C (although current carrying capacity is limited by the 60 °C rating).
Copper Conductors
Rated Voltage Uo/U (Um) : 600V
PVC Insulated and PVC Sheath
UL83 , UL493 Standards
Suitable for dry and wet
Temperature range
90℃（Current carrying capacity 60℃）
Advantages of UF-B wire
The main advantage of UF-B cable lies in its ability to be directly buried and used outdoors. The gray PVC jacket offers excellent resistance to sunlight, moisture, and soil corrosion, eliminating the need for conduit and saving on engineering costs and construction time. Furthermore, UF-B can also be used as a branch circuit in dry or damp indoor environments, is compatible with standard building wires, and is a reliable choice for powering outdoor lighting, pumps, and other equipment.
| Conductor | Insulation Thickness (mils) | Ground Wire | Approx.Cable Dimension (mils) | Approx.Net wt. per 1000'(lbs.) | Allowable Ampacity + | |||
| Size (AWG or kcmil) | No.of conductors | No.of strands | Size (AWG ) | No.of strands | ||||
| TWO CONDUCTOR | ||||||||
| 14 | 1 | 19 | 30 | 14 | 1 | 423x168 | 70 | 15 |
| 12 | 1 | 19 | 30 | 12 | 1 | 463x183 | 95 | 20 |
| 12 | 1 | 19 | 30 | Without Ground | 386x183 | 70 | 20 | |
| 10 | 1 | 24 | 30 | 10 | 1 | 518x215 | 138 | 30 |
| 8 | 7 | 35 | 45 | 10 | 1 | 678x302 | 222 | 40 |
| 6 | 7 | 35 | 45 | 10 | 1 | 770x338 | 303 | 55 |
| THREE CONDUCTOR | ||||||||
| 14 | 1 | 19 | 30 | 14 | 1 | 581x168 | 95 | 15 |
| 12 | 1 | 19 | 30 | 12 | 1 | 626x183 | 129 | 20 |
| 12 | 1 | 19 | 30 | Without Ground | 581x183 | 107 | 20 | |
| 10 | 1 | 24 | 30 | 10 | 1 | 727x215 | 191 | 30 |
| 8 | 7 | 35 | 45 | 10 | 1 | 1059x319 | 344 | 40 |
| 6 | 7 | 35 | 45 | 10 | 1 | 1223x361 | 478 | 55 |
Certification
UF-B cables are certified to UL 83, UL 493, UL 1581, and UL 2556 standards. The certified cable structure and performance are suitable for direct burial and branch circuit applications, and the certification verifies the cable's reliability in terms of aging, abrasion resistance, and resistance to environmental stress.
Thermal stability
Corrosion resistant
Moisture-resistant
UL Certified
APPLICATIONS
UF-B cable is widely used for supplying power from existing buildings to outdoor equipment or auxiliary structures, such as power lines for outdoor lighting poles, irrigation pump stations, sewage pumps, and electric gates. It can also be directly buried in the ground for use as an underground feeder cable. It is also suitable for conventional branch circuit wiring inside residential or agricultural buildings, especially when the working environment may be damp or wet.

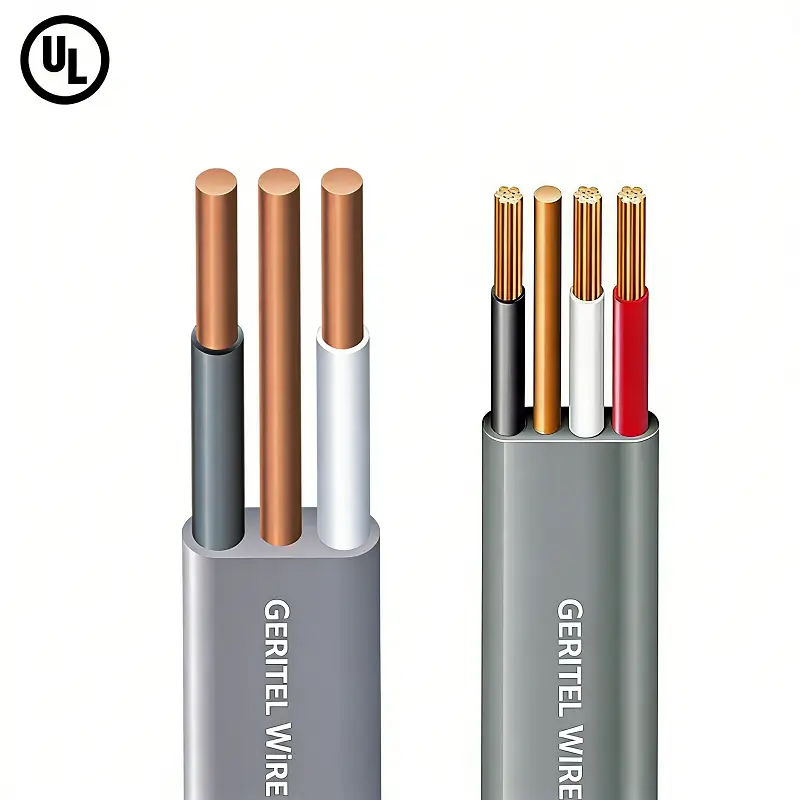

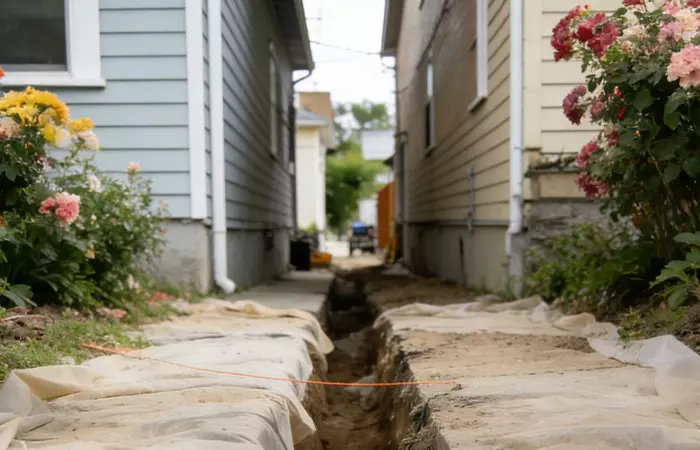

Buried Directly
UF-B can also be used for garden sheds, storage rooms, tool sheds, and other outdoor independent structures. The cable can be directly buried in the soil (at the depth required by NEC standards) without the need for additional PVC or metal conduits.
Outdoor Lighting
UF-B cable is ideal for fixed wiring applications exposed to outdoor environments for extended periods. Its insulation completely encases the conductor, providing protection against moisture and rainwater penetration, and it can withstand temperature variations and UV radiation.
Agricultural
In agricultural and rural power supply in the Americas, UF-B offers long-distance power delivery, is easy to install, and is used frequently. It can be applied to farm lighting systems, barn power supply, irrigation system power, and more.

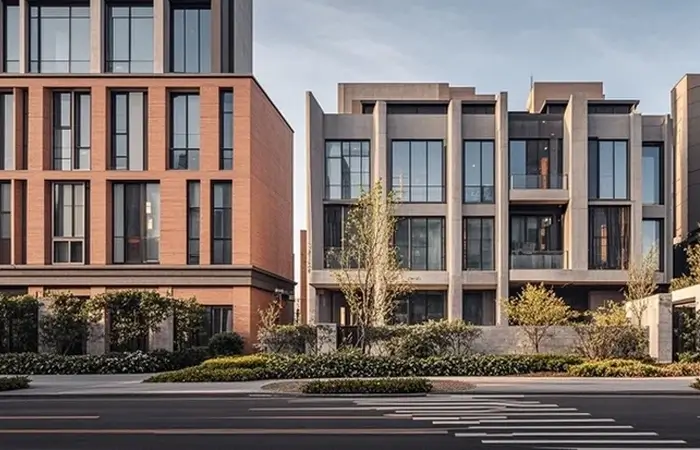

Residential
UF-B cable is widely used in residential branch circuits. Its solid copper conductors and fully encapsulated thermoplastic insulation provide reliable electrical performance and long-term protection against damage from moisture, soil contact, and environmental stress.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional UL wire manufacturer. We provide a complete service process, from product selection and technical consultation to customized production and after-sales support. Regardless of project size, our customers receive professional guidance and quick responses at every stage, helping to ensure the successful completion of their projects.
Packaging Information
UF-B cables are packaged in three ways: coiled, on a plastic reel, or on a tin-plated steel reel. Custom packaging is also available.

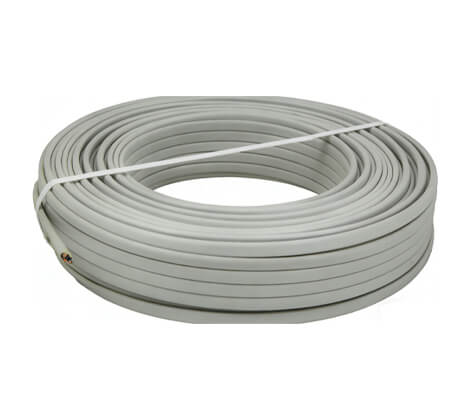

Packaged in Rolls

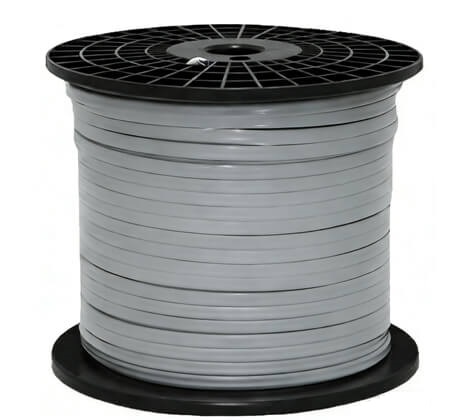

Plastic Reel

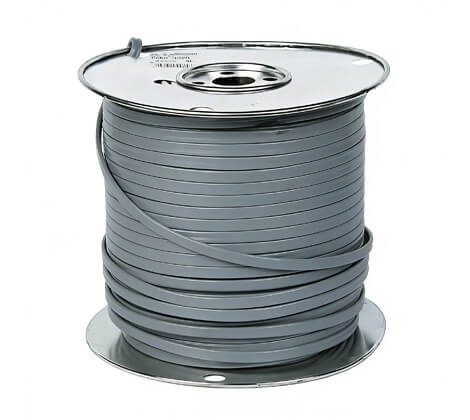

Tin-Plate Reel
