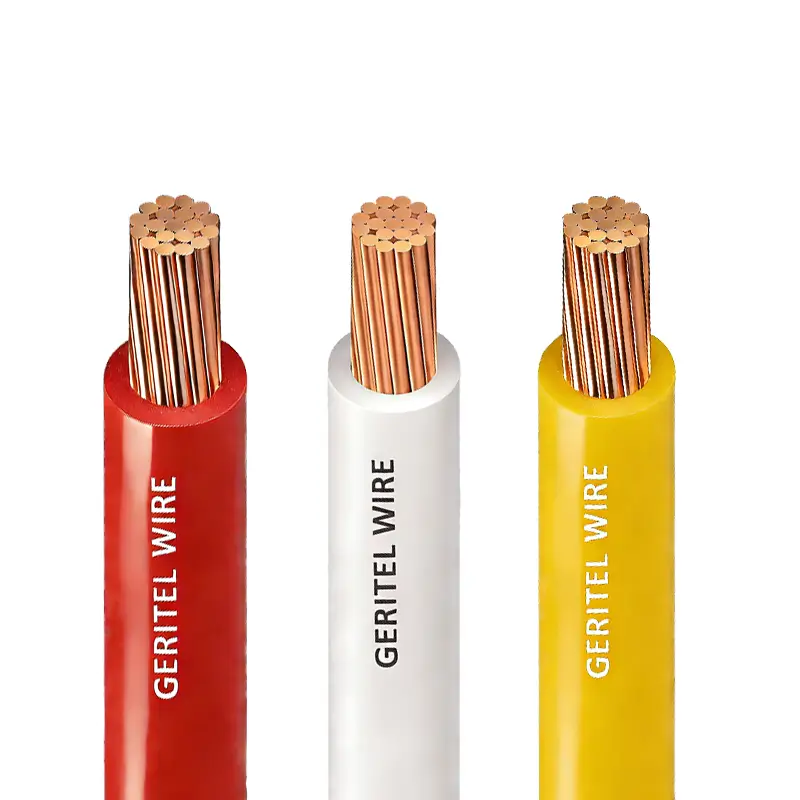

UL83 Thermoplastic Wire TW Cable
Conductor：
Copper Single Conductor
Insulation：
PVC thermoplastic material
Rated Voltage：
600V
Standard：
UL 83
Temperature Rating：
-25 °C to 75 °C(wet/dry)
Description
Download
Copper Conductor
Copper Conductors
Insulation
PVC Thermoplastic Material
No. of Conductor
Single Core
Temperature Rating
−10 °C to 60 °C(Wet/Dry)
TW wire
TW wire is a type of thermoplastic insulated wire certified to UL standards, commonly used in general power, lighting, and building wiring applications. TW is part of the UL 83 standard and is often found alongside THW as a common type of single-conductor wire.
TW wire
TW wire uses solid or stranded annealed copper conductors and PVC insulation, and can operate safely in wet/dry environments from -10 °C to 60 °C.
Copper Conductors
Rated Voltage Uo/U (Um) : 600V
Insulated : PVC thermoplastic material
Standards : UL83
Suitable for Wet/Dry Locations
Temperature range : −10 °C to 60 °C(wet/dry)
Advantages of cable
TW wire is both water-resistant and usable in general dry environments. The material is moisture-resistant and adaptable to common installation stresses. The overall structure is reliable and easy to construct, conforming to standards such as ASTM, NEC, and CALTRANS.
| Size AWG |
Strands No./OD. (mm) |
PVC Insulation Average Thickness (mm) |
Approx O.D. (mm) |
Max.DC Resistance (20℃,Ω/km) （Bare Copper） |
Max.DC Resistance (20℃,Ω/km) (Tinned copper) |
Approx. Weight (kg/km) |
| 14 | 7/0.62 | 0.76 | 3.46 | 8.62 | 8.96 | 28.87 |
| 12 | 7/0.77 | 0.76 | 3.91 | 5.43 | 5.64 | 40.92 |
| 10 | 7/0.98 | 0.76 | 4.54 | 3.41 | 3.55 | 61.56 |
| 8 | 7/1.23 | 1.14 | 6.09 | 2.14 | 2.23 | 102.22 |
| 6 | 7/1.56 | 1.52 | 7.88 | 1.355 | 1.40 | 167.21 |
| 4 | 7/1.96 | 1.52 | 9.08 | 0.848 | 0.882 | 246.22 |
| 2 | 7/2.47 | 1.52 | 10.61 | 0.534 | 0.555 | 370.13 |
| 1/0 | 19/1.89 | 2.03 | 13.71 | 0.335 | 0.349 | 596.20 |
| 2/0 | 19/2.13 | 2.03 | 14.91 | 0.266 | 0.276 | 738.54 |
| 3/0 | 19/2.39 | 2.03 | 16.21 | 0.211 | 0.219 | 910.35 |
| 4/0 | 19/2.68 | 2.03 | 17.66 | 0.167 | 0.172 | 1123.59 |
| 250 | 37/2.09 | 2.41 | 19.69 | 0.142 | 0.147 | 1349.99 |
| 300 | 37/2.29 | 2.41 | 21.09 | 0.118 | 0.122 | 1597.21 |
| 350 | 37/2.47 | 2.41 | 22.35 | 0.101 | 0.105 | 1837.76 |
| 400 | 37/2.64 | 2.41 | 23.54 | 0.0885 | 0.0911 | 2080.63 |
| 500 | 37/2.95 | 2.41 | 25.71 | 0.0709 | 0.0729 | 2562.77 |
| 750 | 61/2.82 | 2.79 | 31.24 | 0.0472 | 0.0486 | 3836.33 |
| 1000 | 61/3.25 | 2.79 | 35.11 | 0.0354 | 0.0364 | 5023.15 |
Certification
TW wires is UL certified with E545145. This certification covers tests on conductors, PVC insulation heat resistance, water resistance, etc., and is an important qualification for TW wires as a safe and reliable general-purpose wiring material in North American building power distribution systems.
Moisture resistance
Thermoplastic insulation
Mechanical strength and ductility
UL Certified
APPLICATIONS
TW wire is widely used in residential, commercial, and industrial power distribution, including power lines, grounding, and lighting circuits. It can also be safely used in damp pipes, distribution boxes, and general building wiring scenarios, making it suitable for a variety of low-voltage applications.
Industrial Plant
In industrial plants, TW wires can be used for control circuits, auxiliary power supplies, and equipment power, especially in areas where high temperatures are not required, such as general power outlets, lighting circuits, or inside control cabinets. Their PVC insulation maintains stable performance even under humid conditions, making them suitable for most industrial power distribution scenarios.
Commercial Building
In commercial buildings, TW wire is used for lighting circuits, power branches, and power supply for air conditioning and equipment sockets. Installed in conduits, cable trays, ceilings, and distribution boxes, it provides reliable low-voltage power to various commercial electrical loads. TW's water resistance meets the specifications for damp areas in commercial spaces.
Residential Building
TW wires are commonly used in residential wiring for branch circuits, lighting circuits, and socket power supply, and are suitable for installation in conduits, cable trays, or walls. They can be used in both damp and dry spaces, such as kitchens, basements, or garages for lighting and socket circuits. Their moisture-resistant PVC insulation is ideal for these basic building wiring applications.
Pipes and Cable Trays
TW electrical wires are suitable for running through metal conduits, cable trays, and other passageways within buildings for power distribution across rooms or floors. Due to their flexibility and moisture resistance, they are easy to install within conduits and meet NEC/UL standards.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional UL wire manufacturer. We offer customized cable services to meet the diverse needs of our clients. Whether it's voltage rating, conductor specifications, insulation materials, or length and color, we can produce cables according to customer requirements. This helps our clients achieve more efficient and lower-cost cabling solutions.
Packaging Information
THW wire is typically supplied in three packaging forms: coiled, plastic reels, and wooden reels. The specific type depends on the cable size and dimensions.
Coiled
Plastic Reel
Large Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
