TSJ-N Flexible Cable
Conductor ：
Class 5, annealed soft fine wires
Insulation：
105°C PVC + Nylon
Jacket：
PVC (BLACK)
Rated Voltage：
600V
Temperature range ：
105℃
Standard：
UL62 & UL83
Description
Download
Conductor
Class 5, annealed soft fine wires
Insulation and Sheath
105°C PVC + Nylon & PVC (BLACK)

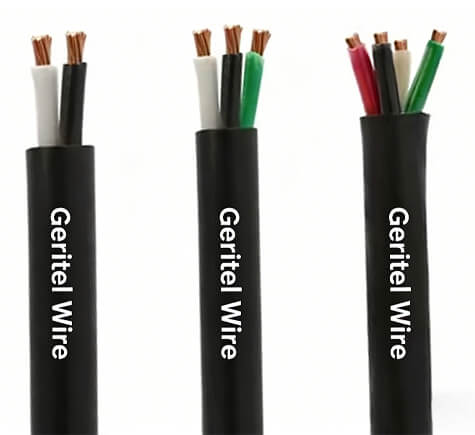

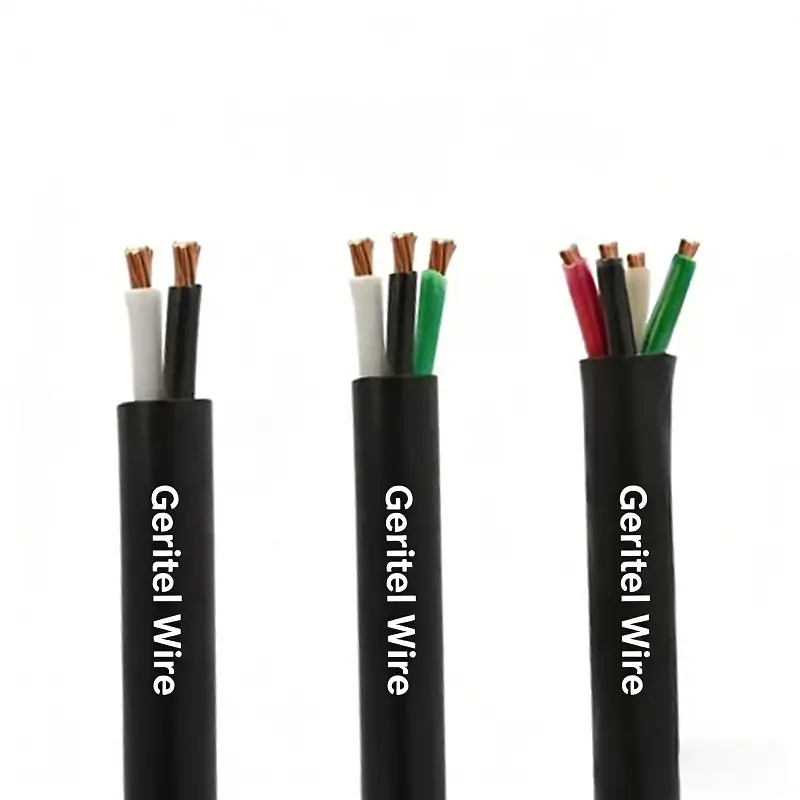

No. of Conductor
2 cores: black, white
3 cores: black, white, green
4 cores: black, white, red, green
Temperature Rating
105°C

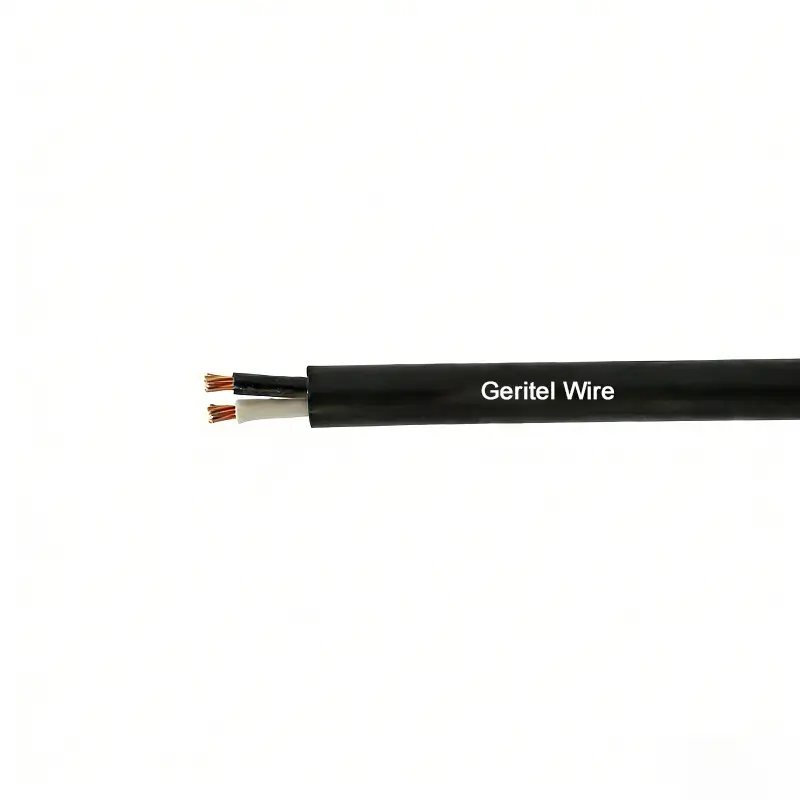

TSJ-N Cable

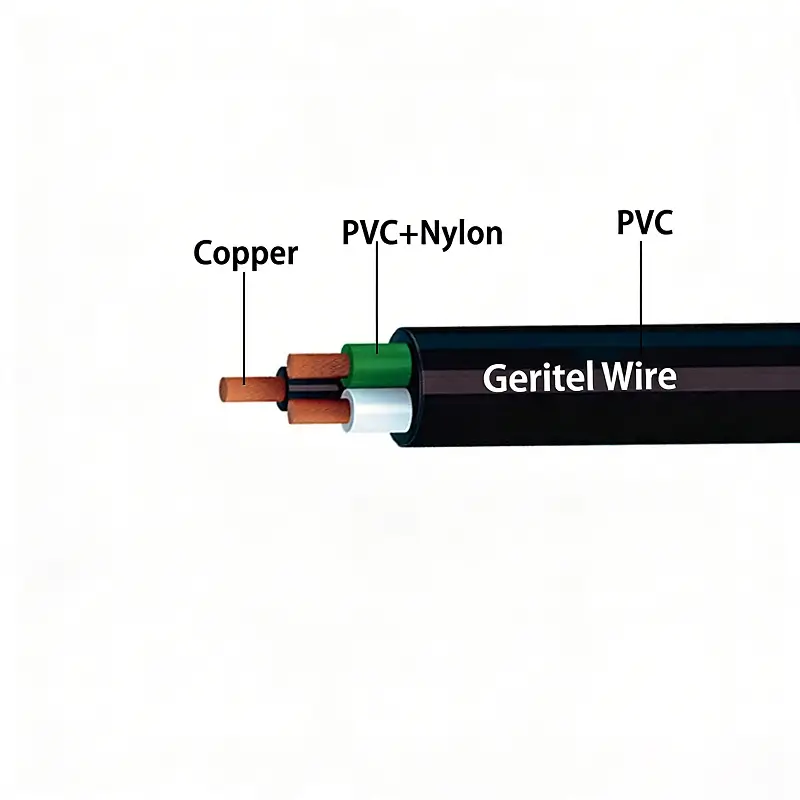

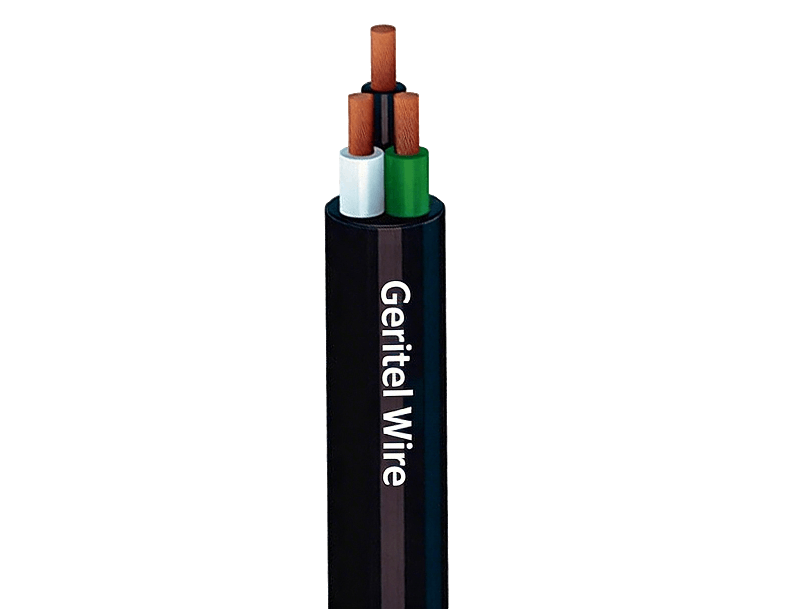

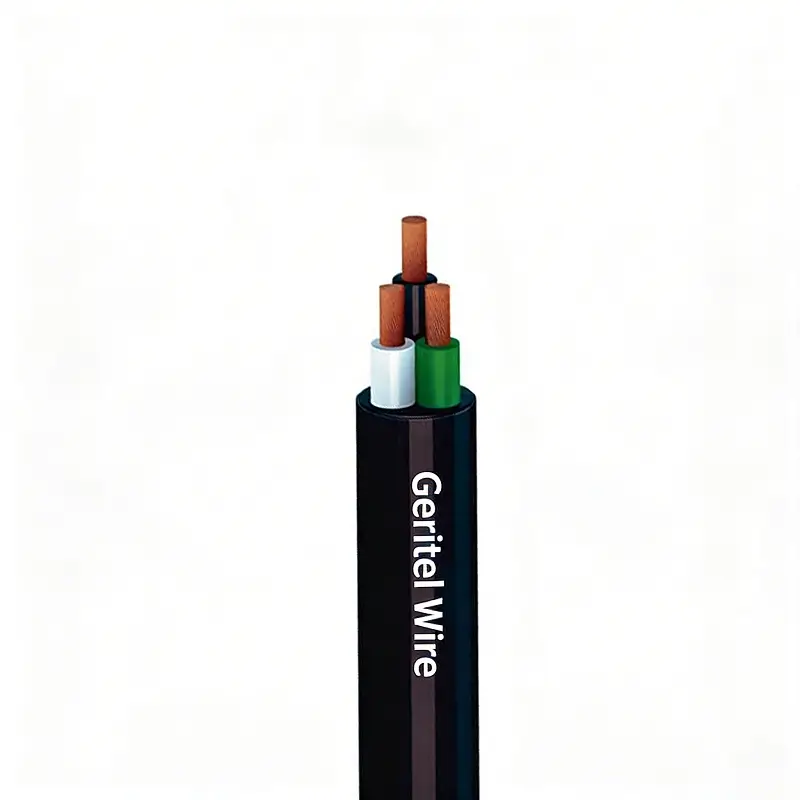

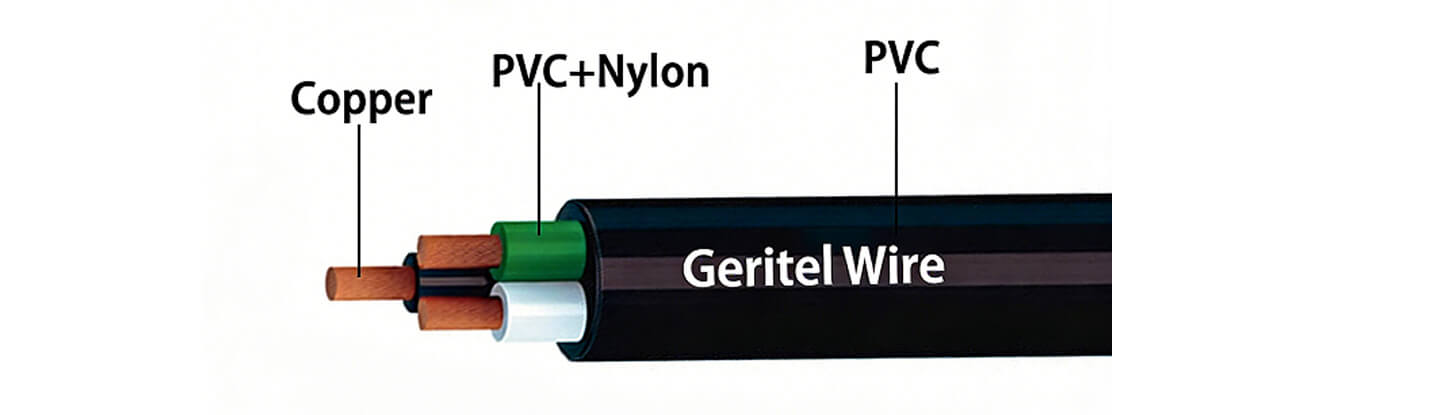

TSJ-N Cable is a multi-core flexible power cable consisting of multi-strand annealed copper flexible conductors, a PVC thermoplastic insulation layer, and a weather-resistant black PVC outer sheath, with a Nylon layer to enhance abrasion resistance. This cable supports 2, 3, and 4-core configurations, with conductor colors distinguished by the number of cores.
TSJ-N Cable
TSJ-N is typically used inside equipment or in protected environments, primarily for internal wiring in household appliances, wiring within industrial control cabinets and distribution boxes.
Conductors：Class 5, annealed soft fine wires
Rated Voltage Uo/U (Um) : 600V
Insulated & ：105°C PVC + Nylon
Jacket： PVC (BLACK)
Standards ： UL62 & UL83
Temperature range ：105℃
Advantages of TSJ-N Cable
The advantages of TSJ-N Cable lie in its superior flexibility and durability: the multi-strand soft copper conductors withstand repeated bending, facilitating conduit installation and mobile device connections; the Nylon layer and PVC outer sheath enhance resistance to abrasion, chemical corrosion, and UV radiation, ensuring stable performance in various environments. The multi-core color coding provides clear information, improving installation efficiency and reducing wiring errors, making it cost-effective for portable power supplies and field applications.
| Construction | Cross Section Area | Number of Strands | Extemal Cover Thickness | Aproximate Total Diameter | Aproximate Total Weight | ||
| AWG/MCM | mm² | in | mm | in | mm | kg/km | |
| 2x20 | 0.52 | 7 | 0.03 | 0.76 | 0.225 | 5.72 | 38 |
| 2x18 | 0.82 | 10 | 0.03 | 0.76 | 0.25 | 6.35 | 48 |
| 2x16 | 1.31 | 16 | 0.03 | 0.76 | 0.275 | 6.99 | 63 |
| 2x14 | 2.08 | 26 | 0.03 | 0.76 | 0.315 | 8 | 86 |
| 2x12 | 3.31 | 41 | 0.045 | 1.14 | 0.38 | 9.65 | 134 |
| 2x10 | 5.26 | 65 | 0.06 | 1.52 | 0.48 | 12.19 | 217 |
| 2x8 | 8.37 | 105 | 0.06 | 1.52 | 0.59 | 14.99 | 336 |
| 2x6 | 13.3 | 168 | 0.06 | 1.52 | 0.69 | 17.53 | 475 |
| 3x18 | 0.82 | 10 | 0.03 | 0.76 | 0.265 | 6.73 | 58 |
| 3x16 | 1.31 | 16 | 0.03 | 0.76 | 0.29 | 7.37 | 78 |
| 3x14 | 2.08 | 26 | 0.03 | 0.76 | 0.33 | 8.38 | 108 |
| 3x12 | 3.31 | 41 | 0.045 | 1.14 | 0.4 | 10.16 | 168 |
| 3x10 | 5.26 | 65 | 0.06 | 1.52 | 0.5 | 12.7 | 272 |
| 3x8 | 8.37 | 105 | 0.06 | 1.52 | 0.63 | 16 | 424 |
| 3x6 | 13.3 | 168 | 0.06 | 1.52 | 0.7 | 17.78 | 609 |
| 4x18 | 0.82 | 10 | 0.03 | 0.76 | 0.285 | 7.24 | 70 |
| 4x16 | 1.31 | 16 | 0.03 | 0.76 | 0.32 | 8.13 | 96 |
| 4x14 | 2.08 | 26 | 0.03 | 0.76 | 0.36 | 9.14 | 134 |
| 4x12 | 3.31 | 41 | 0.045 | 1.14 | 0.44 | 11.18 | 209 |
| 4x10 | 5.26 | 65 | 0.06 | 1.52 | 0.54 | 13.72 | 337 |
| 4x8 | 8.37 | 105 | 0.06 | 1.52 | 0.68 | 17.27 | 528 |
| 4x6 | 13.3 | 168 | 0.06 | 1.52 | 0.775 | 19.69 | 765 |
Certification
TSJ-N cable is UL certified, designed and manufactured according to UL standards, and has passed rigorous UL certification testing, meeting the core safety and reliability requirements for internal equipment wiring. The cable undergoes comprehensive UL evaluation of its electrical performance, heat resistance, flame retardancy, and mechanical strength in key areas such as conductor structure, PVC insulation, and nylon outer sheath.
Flexibility
Wear Resistance
Oil And Chemical Resistance
UL62 & UL83
APPLICATIONS
TSJ-N cable is usually used for light-load mobile power supply cabling and equipment connections, such as portable lighting, hand tools, and extension cords for power devices. It is suitable for temporary power connections in industrial sites, construction sites, commercial, and residential environments.

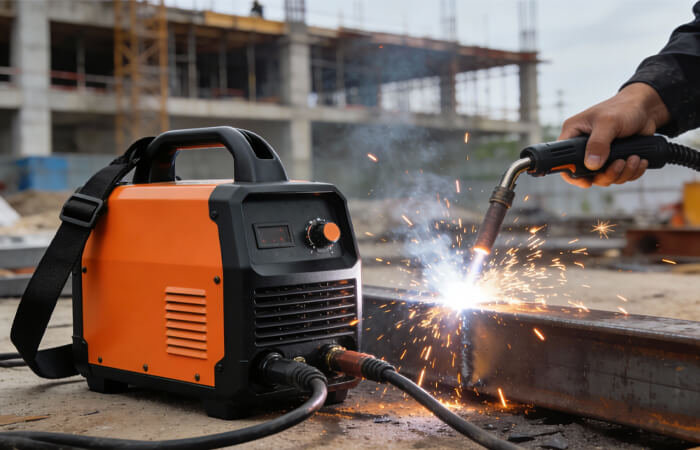

Portable Power Tools
For power connection of handheld or portable power tools, the cable is flexible and wear-resistant, suitable for frequent movement and repeated bending.
Industrial Sites
Suitable for temporary power connections in factories and construction sites, its oil-resistant and wear-resistant structure can cope with complex operating environments.
Lighting
It is used for powering mobile lighting fixtures and emergency lighting systems, offering good flexibility and convenient wiring and storage.
Protected Outdoor Applications
It can be used for powering outdoor equipment under conditions where there is no direct burial or long-term exposure to sunlight, and has a certain degree of weather resistance and anti-aging ability.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional UL wire manufacturer. With over 30 years of experience in cable manufacturing, we possess advanced production equipment and a rigorous quality control system. Greater Wire's UL wires are industry-leading in conductor design, insulation temperature resistance, flexibility, and corrosion resistance. Through continuous research and development and technological optimization, we ensure that every UL wire meets North American and international electrical standards.
Packaging Information
TSJ-N cable is commonly packaged in coils, on wooden reel, or on large wooden reel. Custom packaging is also available.

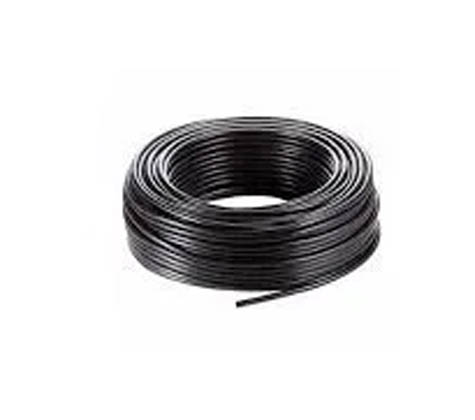

Coiled
Wooden Reel

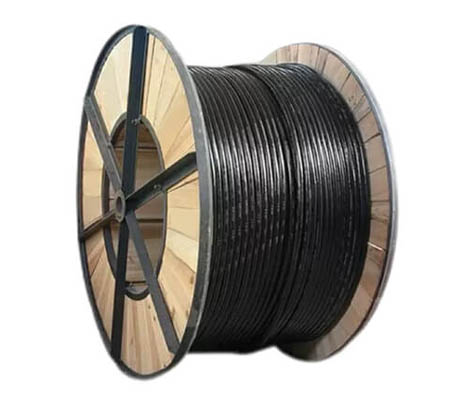

Large Wooden Reel
