Stranded Electrical THWN / THWN-2 Wire
Conductor ：
Stranded soft drawn copper conductor.
Insulation：
Heat resistant PVC
Outer sheath：
Nylon
Rated Voltage：
600V
Standard：
UL 83
Certification：
UL
：
Description
Download
Conductor
Solid or Stranded Copper Conductors
Insulation and Sheath
PVC Insulation and Nylon Sheath
No. of Conductor
Single Core
Temperature Rating
90°C

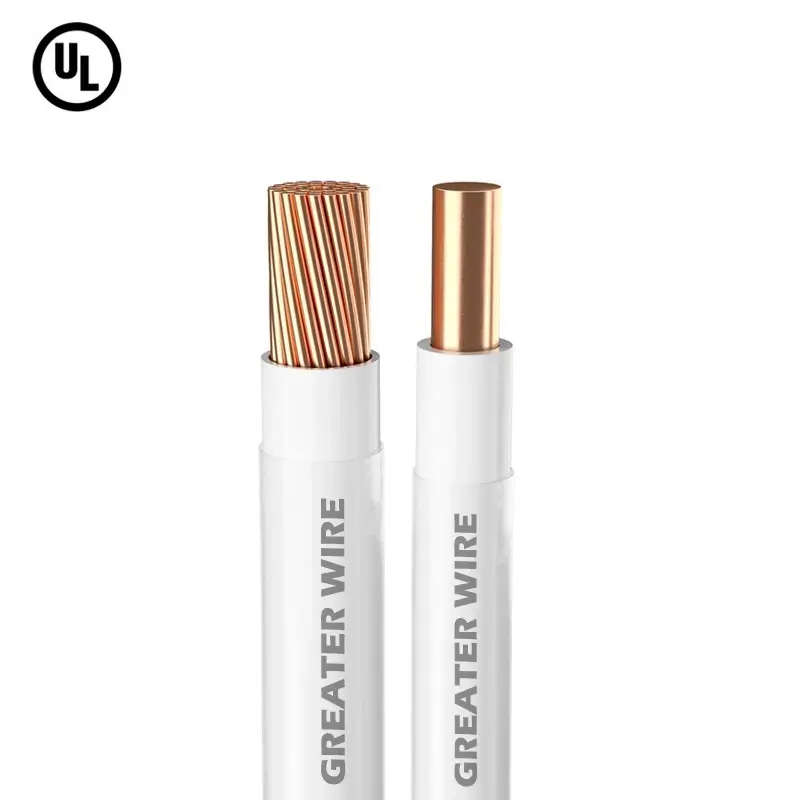

THWN / THWN-2 Cable
THWN (Thermoplastic Heat and Water-resistant Nylon-coated) is a commonly used copper conductor wire with thermoplastic insulation, heat and water resistance, and a nylon sheath. THWN wires are widely used globally, including in tropical regions like the Philippines, and are particularly suitable for power distribution systems in challenging environments such as those with high humidity and high temperatures.
THHN THWN wire
THWN and THWN-2 wires are widely used in service lines, feeders, and branch circuits of commercial, industrial, and residential electrical systems, especially suitable for installations in damp or wet environments.
Copper Conductors
Rated Voltage Uo/U (Um) 600V
PVC Insulated and Nylon Sheath
UL83 Standards
Both for Dry and Wet Environments
Temperature Range 90℃
Advantages of THWN wire
THWN wires are typically made of high-quality, high-purity stranded copper wire, offering excellent conductivity and mechanical properties. The insulation is made of PVC (polyvinyl chloride) thermoplastic material, providing good insulation performance. The surface is coated with a layer of nylon material to improve abrasion resistance, chemical resistance, and water resistance.
| Conductor | Insulation Thickness (mils) | Jacket Thickness (mils) | Nominal 0.D.(mils) | Approx.Net Wt.Per 1000'(lbs.) | Allowable Ampacities+ | |||
| Size (AWG or kcmil) | No.of strands | 60℃ | 75℃ | 90℃ | ||||
| 14* | 1 | 15 | 4 | 102 | 15 | 15 | 15 | 15 |
| 12* | 1 | 15 | 4 | 119 | 23 | 20 | 20 | 20 |
| 10* | 1 | 20 | 4 | 150 | 36 | 30 | 30 | 30 |
| 14* | 19 | 15 | 4 | 109 | 16 | 15 | 15 | 15 |
| 12* | 19 | 15 | 4 | 128 | 24 | 20 | 20 | 20 |
| 10* | 19 | 20 | 4 | 161 | 38 | 30 | 30 | 30 |
| 8 | 19 | 30 | 5 | 213 | 63 | 40 | 50 | 55 |
| 6 | 19 | 30 | 5 | 249 | 95 | 55 | 65 | 75 |
| 4 | 19 | 40 | 6 | 318 | 152 | 70 | 85 | 100 |
| 3 | 19 | 40 | 6 | 346 | 189 | 85 | 100 | 115 |
| 2 | 19 | 40 | 6 | 378 | 234 | 95 | 115 | 130 |
| 1 | 19 | 50 | 7 | 435 | 299 | 110 | 130 | 145 |
| 1/0 | 19 | 50 | 7 | 474 | 372 | 125 | 150 | 170 |
| 2/0 | 19 | 50 | 7 | 518 | 462 | 145 | 175 | 195 |
| 3/0 | 19 | 50 | 7 | 568 | 575 | 165 | 200 | 225 |
| 4/0 | 19 | 50 | 7 | 624 | 718 | 195 | 230 | 260 |
| 250 | 37 | 60 | 8 | 694 | 851 | 215 | 255 | 290 |
| 300 | 37 | 60 | 8 | 747 | 1012 | 240 | 285 | 320 |
| 350 | 37 | 60 | 8 | 797 | 1174 | 260 | 310 | 350 |
| 400 | 37 | 60 | 8 | 842 | 1334 | 280 | 335 | 380 |
| 500 | 37 | 60 | 8 | 926 | 1655 | 320 | 380 | 430 |
| 600 | 61 | 70 | 9 | 1024 | 1987 | 350 | 420 | 475 |
| 750 | 61 | 70 | 9 | 1126 | 2464 | 400 | 475 | 535 |
| 1000 | 61 | 70 | 9 | 1275 | 3257 | 455 | 545 | 615 |
Certification
THWN/THWN-2 wire is UL certified, with certification number E544861. The cable meets North American and international standards for electrical safety, performance stability, and material reliability. UL certification imposes strict requirements on conductor quality, insulation materials, heat resistance, water resistance, and flame retardancy. THWN/THWN-2 has passed tests in both dry and wet environments, maintaining stable electrical performance during long-term operation.
Heat Resistance
Abrasion Resistant
Oil and Gasoline Resistant
UL Certified
APPLICATIONS
THWN / THWN-2 wire is widely used in various low-voltage power distribution and utilization systems in the Philippines, especially suitable for the hot, humid, and rainy tropical environment. These wires are commonly used in power branch circuits, equipment power supply lines, and internal wiring of distribution boxes in commercial buildings, residential areas, industrial plants, and infrastructure projects, and are typically installed in metal or PVC conduits.
Commercial Buildings
THWN/THWN-2 wire is widely used in the indoor power distribution systems of commercial buildings in the Philippines. Installed through metal or PVC conduits, it provides stable power for lighting, outlets, and commercial equipment, adapting to high usage frequency and continuous load operating conditions.
Industrial Plants
In manufacturing plants and
processing workshops, THWN/THWN-2 wire is commonly used for power lines to motors, electrical control cabinets, and production equipment, meeting the requirements of continuous operation and high current loads.
Air Conditioning
Due to the high year-round temperatures in the Philippines, THWN/THWN-2 wire is widely used for power wiring of air conditioning units, fans, and ventilation systems, capable of withstanding the heat generated during equipment operation.
Medical Buildings
In non-critical power systems of hospitals, THWN/THWN-2 wire is used for lighting, outlets, and auxiliary equipment power supply, ensuring good safety and durability even in high-humidity environments.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional Building wire manufacturer. We directly control raw material procurement and production processes, ensuring product quality while effectively controlling costs. This allows us to provide customers with competitive prices and stable delivery times, improving overall supply chain efficiency.
Packaging Information
THWN/THWN-2 wire is typically packaged in coils, small wooden reels, large wooden reels, or cartons. Our packaging reduces external damage, effectively prevents wire twisting, provides stronger structural support, and prevents deformation under heavy pressure.
Small Wooden Reel
Large Wooden Reel
Box Packaging
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
