UL83 Copper TF Cable
Conductor：
Solid or stranded soft drawn single copper conductor
Insulation：
Polyvinyl Chloride (PVc) Lead-Free
Rated Voltage：
600V
Standard：
UL 83
Locations Temperature Rating：
Fixed installation condition: -40 °C to 90 °C；Portable installation conditions: –20 °C to 80 °C
Description
Download
Copper Conductor
Solid or Stranded Soft Drawn Copper Conductor
Insulation
Polyvinyl Chloride (PVC) Lead-Free
No. of Conductor
Single Core
Temperature Rating
Fixed Installation Condition: -40 °C to 90 °C
Portable Installation Conditions: –20 °C to 80 °C

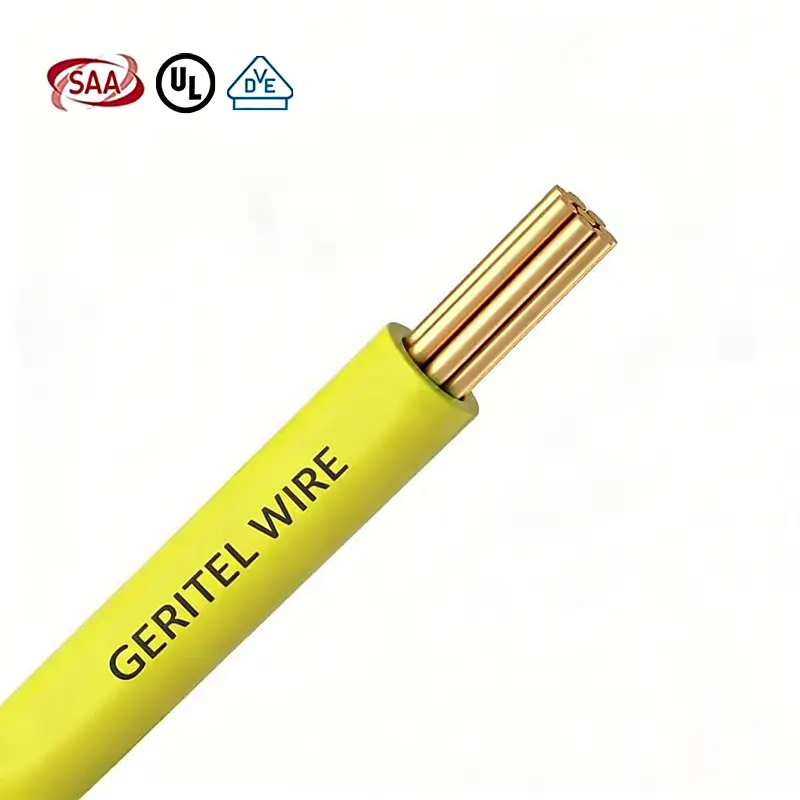

TF wire
TF wire features stable electrical properties and good heat resistance. Its multi-strand copper conductor structure has good conductivity and flexibility, while the lead-free PVC insulation provides reliable insulation protection. It also has certain abrasion resistance, oil resistance, and flame retardant properties.
TF wire
TF wire is designed for internal wiring in industrial equipment and electrical systems, offering reliable performance, easy installation, and suitability for fixed or limited movement applications.
Solid or stranded soft drawn copper conductor
Rated Voltage Uo/U (Um) : 600V
Polyvinyl Chloride (PVc) Lead-Free Insulated
UL83 Standards
Suitable for dry environments
Fixed installation condition: -40 °C to 90 °C
Portable installation conditions: –20 °C to 80 °C
Advantages of TF cable
TF wire is a single-core flexible wire rated at 600V, made of multi-strand stranded copper conductors and lead-free polyvinyl chloride (PVC) insulation.
| Size of Conductor | No.& Nominal Diameter of Wire | Wall Thickness | Approximate Overall Diameter | Cable Nominal Weight | Standard Length | |
| MM | Approximate AWG | MM | MM | MM | KG/KM | METER |
| Solid | ||||||
| Single Conductor | ||||||
| 1.0mm | 18 | 1.024mm | 0.8 | 2.624 | 19.26 | 150 |
| 1.2mm | 16 | 1.291mm | 0.8 | 2.891 | 21.33 | 150 |
| Two Conductors | ||||||
| 1.0mm | 18 | 2x1.024mm | 0.8 | 5.248 | 31.78 | 150 |
| 1.2mm | 16 | 2x1.291mm | 0.8 | 5.782 | 43.52 | 150 |
| Stranded | ||||||
| Single Conductor | ||||||
| 0.75mm2 | 18/7 | 7x0.40mm | 0.8 | 2.8 | 15.58 | 150 |
| 1.25mm2 | 16/7 | 7x0.50mm | 0.8 | 3.1 | 21.33 | 150 |
| Two Conductors | ||||||
| 0.75mm2 | 18/7 | 7x0.40mm | 0.8 | 5.6 | 28.5 | 150 |
| 1.25mm2 | 16/7 | 7x0.50mm | 0.8 | 6.2 | 39.3 | 150 |
Certification
TF wire is UL certified and can operate stably within the specified temperature range, meeting the safety and reliability requirements of the North American market for industrial wiring products.
Oil resistance
Abrasion resistance
Aging resistance
UL Certified
APPLICATIONS
TF wire is widely used in industrial equipment internal wiring, control cabinet and distribution box wiring, automation equipment and mechanical control systems, power supply and control circuit connections, etc. It is suitable for fixed laying or limited mobile use in electrical systems of 600V and below.
Industrial Equipment
TF wire is widely used for electrical connections within various industrial equipment and machinery, such as wiring inside motor control units, frequency converters, power modules, and actuators. Its single-core structure and excellent flexibility allow for orderly wiring within the confined spaces of equipment, ensuring stable transmission of power and control signals.
Control Cabinets
In control cabinets, distribution boxes, and switch boxes, TF wires are commonly used for connections between components such as circuit breakers, relays, contactors, and terminal blocks. TF wires can operate for extended periods at high temperatures, meeting the reliability requirements of control systems.
Automated Equipment
In automated production lines, assembly equipment, and mechanical control systems, TF wire is used to connect control units, sensor interfaces, and actuators. Its multi-strand stranded conductor structure can withstand vibrations and limited bending during equipment operation, making it suitable for discontinuous motion or mildly dynamic environments.
Industrial & Commercial
TF wire is used in other industrial and commercial electrical systems of 600V and below, such as lighting control, equipment auxiliary systems and internal connections of general electrical installations, and is suitable for fixed installation or limited mobile use environments.
