UL44 Standard SIS Cable
Conductor ：
Tin-plated Copper Conductor
Insulation：
XLPE
Rated Voltage：
600V
Temperature range：
90℃
Standard：
UL & CSA
Description
Download
Conductor
Tin-plated Copper Conductor
Insulation
XLPE
No. of Conductor
1 cores
Temperature Rating
90°C

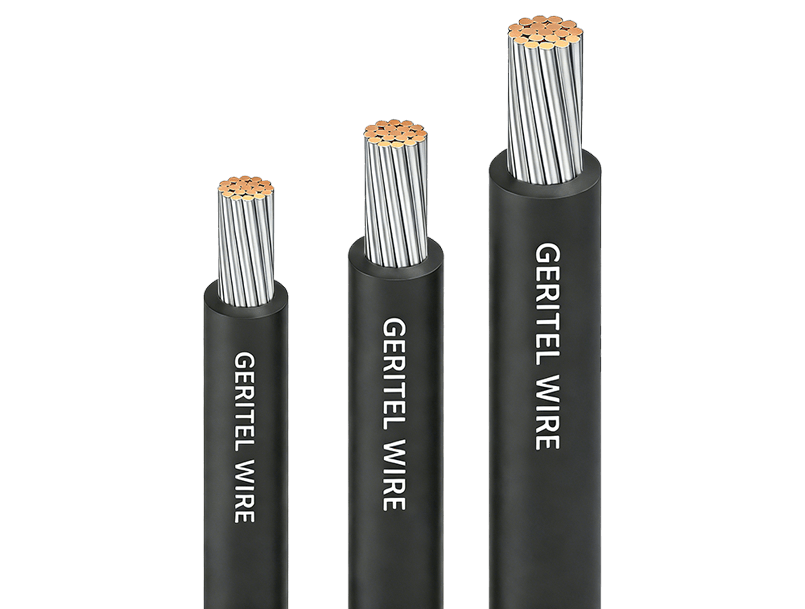

SIS Cable

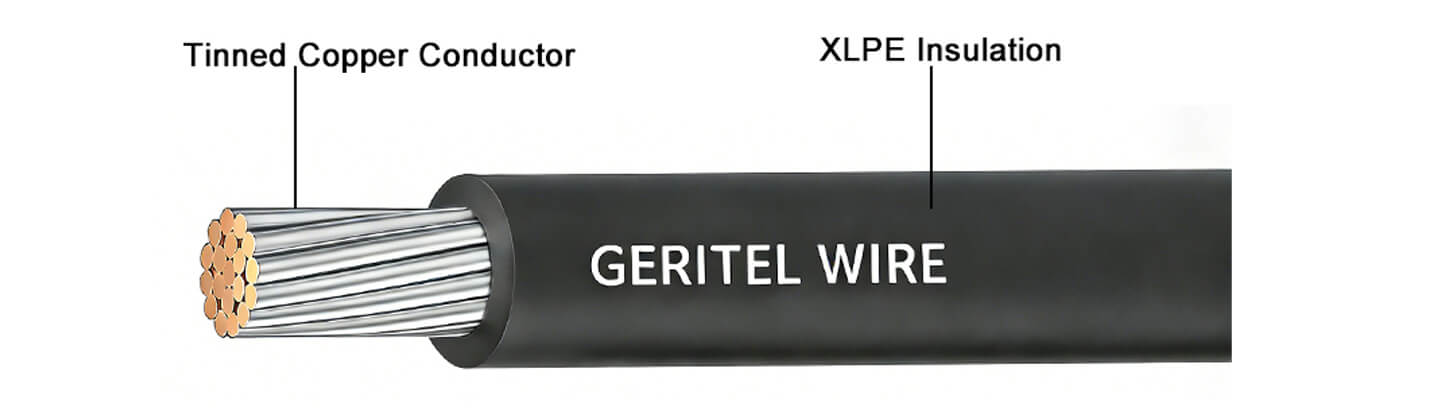

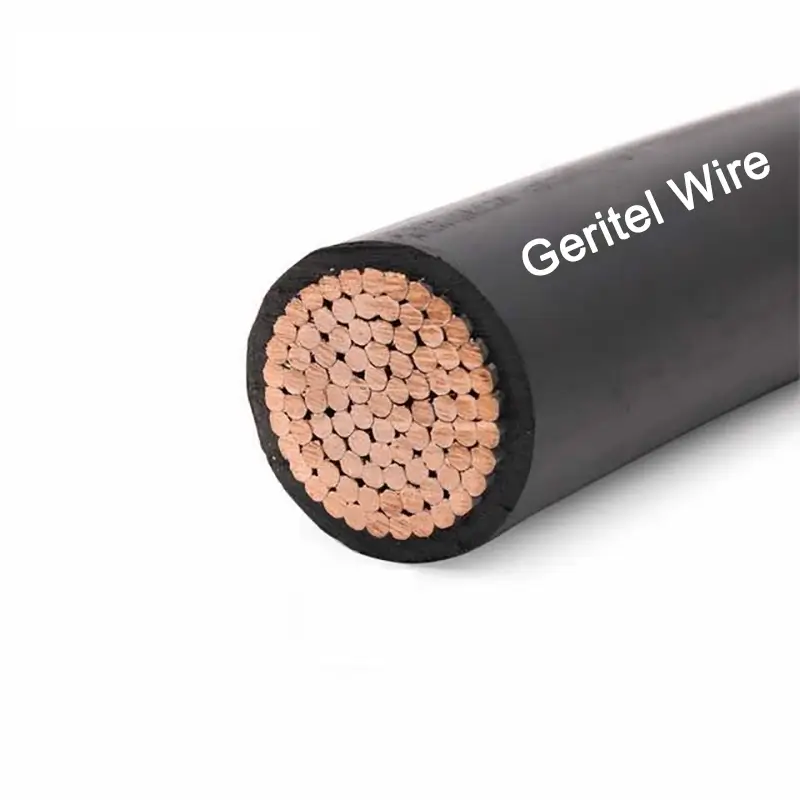

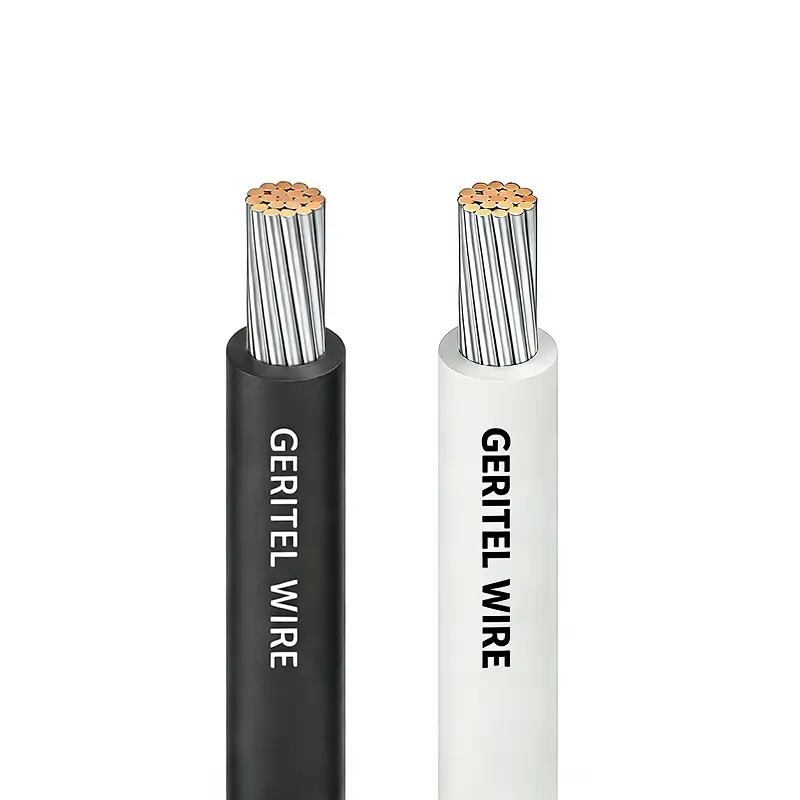

SIS Wire is a high-quality industrial-grade conductor featuring flexible stranded tinned copper conductors and XLPE (cross-linked polyethylene) insulation, suitable for 600 V rated power connections.
SIS Cable
SIS cable can be used in both dry and wet environments according to NEC specifications and is certified to multiple standards including SIS, VW-1, and XHHW-2.
Conductors:Tin-plated Copper Conductor
Rated Voltage Uo/U (Um) : 600V
Insulated : XLPE
Standards : UL & CSA
Temperature range : 90℃
Advantages of SIS wire

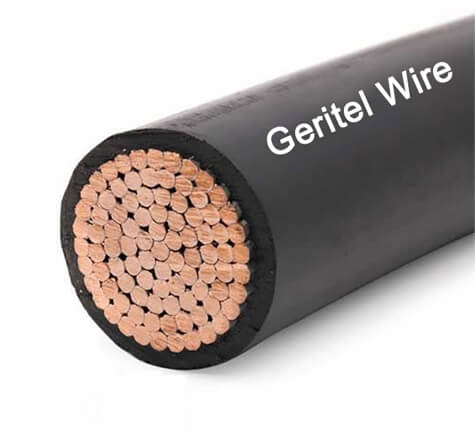

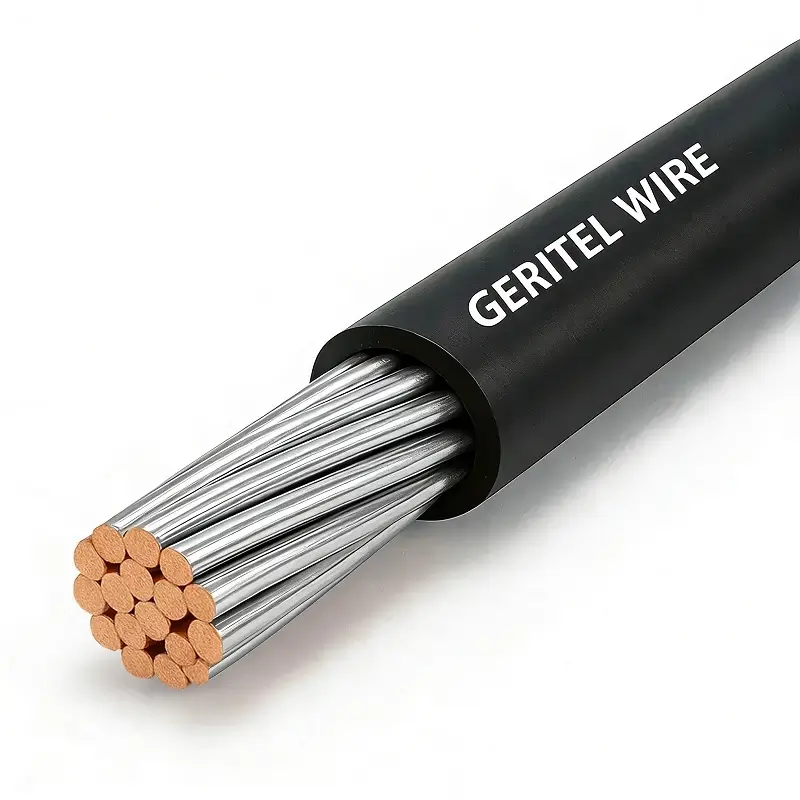

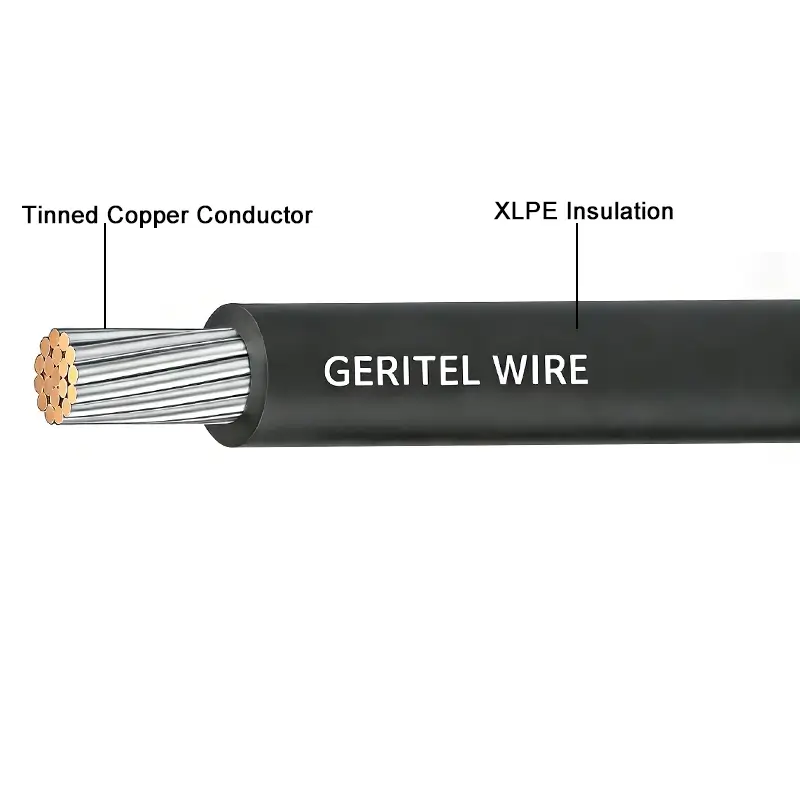

SIS cable uses flexible stranded tin-plated copper conductors, offering excellent conductivity and mechanical flexibility for easy installation and frequent bending. The outer layer is insulated with cross-linked polyethylene (XLPE), stable operation in both dry and humid conditions. It has a rated operating temperature of 90°C and supports a voltage rating of 600 V.
| Conductor | Insulation Thickness (mils) | Nom. OD (mils) | Nominal Total Weight (lbs/1000') | |
| Size (AWG or kcmil) | No. of Strands | |||
| 14 AWG | 41 | 30 | 127 | 18 |
| 12 AWG | 65 | 155 | 28 | |
| 10 AWG | 105 | 170 | 40 | |
| 8 AWG | 133 | 45 | 247 | 71 |
| 6 AWG | 133 | 45 | 294 | 111 |
| 4 AWG | 133 | 45 | 338 | 159 |
| 2 AWG | 133 | 45 | 388 | 241 |
| 1/0 AWG | 1064 | 55 | 485 | 383 |
Certification
SIS cable has passed both UL and CSA certifications, meets North American electrical safety and performance standards, and is suitable for control cabinets, internal equipment wiring, and industrial electrical systems, ensuring safe and reliable use.
Flexibility
Heat Resistance
Wear Resistance
Oil And Chemical Resistance
UL & CSA Certified
APPLICATIONS
SIS cable is usually used for internal electrical connections, such as internal wiring in electrical equipment, control panels, switch cabinets, distribution boxes, and leads for household/industrial appliances. It can also be used as motor leads, terminal blocks, and in other applications requiring high flexibility and environmental resistance.
Internal Wiring Of Control Cabinet
Used for internal connections in industrial control cabinets and power distribution cabinets, the wires are heat-resistant, flexible, and facilitate standardized wiring in compact spaces.
Internal Wiring Of Electrical Equipment
Suitable for internal connections in power supply equipment, control modules, and electrical components, meeting the requirements for stable conductivity and temperature resistance.
Switch And Circuit Breaker Leads
It is commonly used as a lead wire for switches, relays and circuit breakers. It has reliable insulation and is suitable for high-density wiring environments.
Industrial Control System Wiring
Applied to automation and industrial control systems, it complies with UL/CSA standards and is suitable for engineering projects in North America and internationally.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional UL wire manufacturer. We use environmentally friendly materials and high-quality copper conductors, adhering to green manufacturing principles. Every meter of cable is safe, reliable, and environmentally friendly during use. This high standard of material selection gives our UL wire a competitive advantage in both performance and sustainability.
Packaging Information
SIS cable is typically supplied in three packaging forms: coiled, plastic reels, and wooden reels. The specific type depends on the cable size and dimensions.
Coiled
Plastic Reel
Large Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
