300V PLTC / ITC Instrumentation Cable

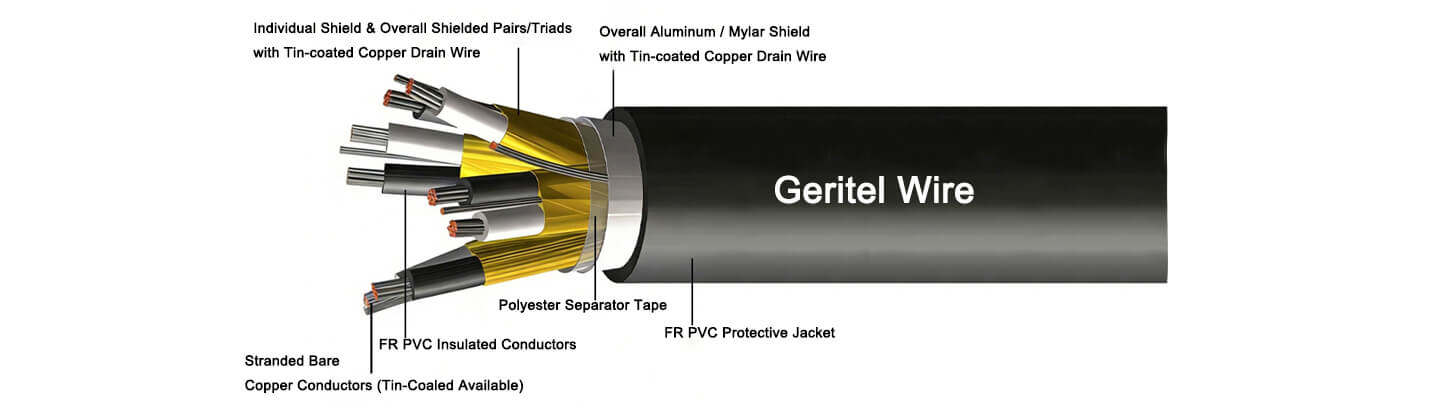

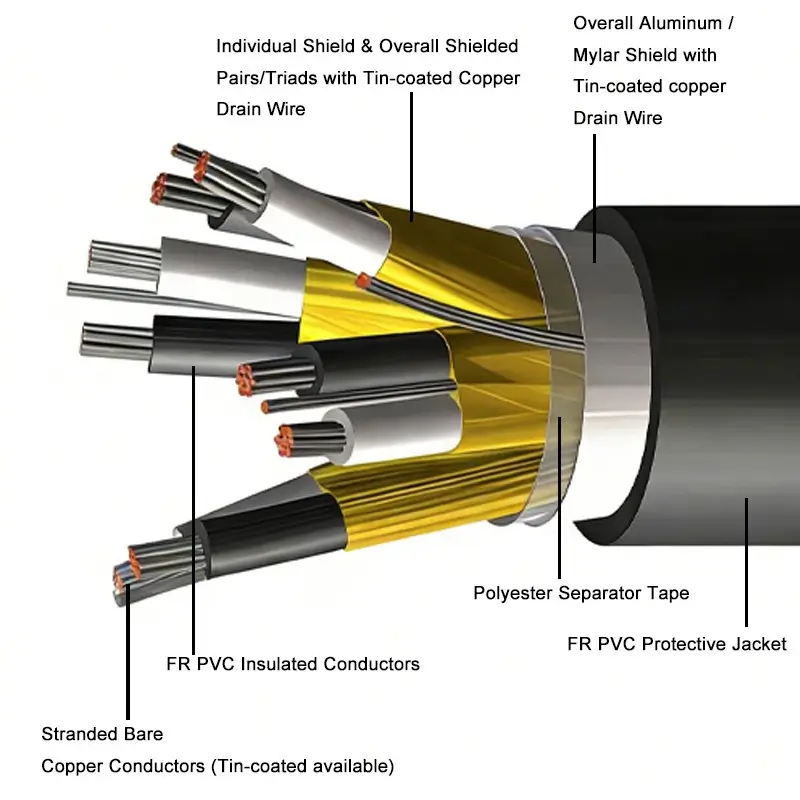

Conductor ：
Stranded Bare Copper Conductors (Tin-Coated Available)
Insulation：
Standard Flame-Retardant PVC
Shielding：
Individual Shield & Overall Shielded Pairs/Triads with Tin-coated Copper Drain Wire
Jacket：
Black flame-retardant PVC outer sheath
Rated Voltage：
300V
Temperature Range：
-40 °C to 90 °C
Description
Download
Conductor
Multi-Strand Bare Copper
Insulation and Sheath
PVC (Polyvinyl Chloride) & PVC
Shielding
ISOS (standard) ; OS (optional)
Temperature Rating
-40 °C to +90 °C

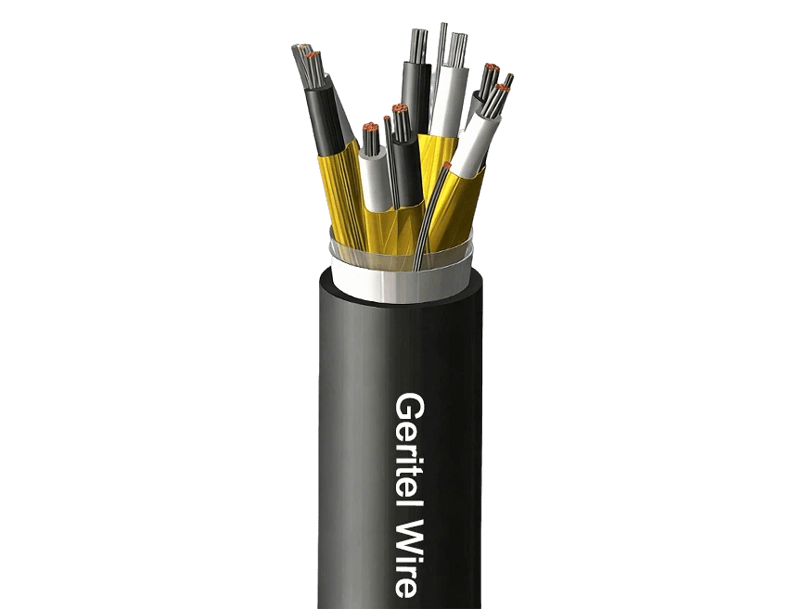

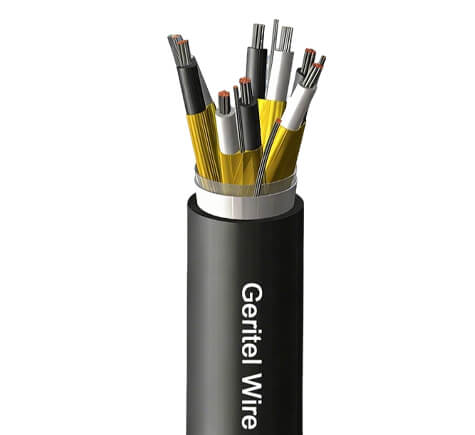

PLTC / ITC Instrumentation Cable
PLTC/ITC unarmored cable construction complies with UL PLTC (Power Limited Tray Cable) and UL ITC (Instrumentation Tray Cable) standards, allowing for safe installation in cable trays, cable ducts, and industrial facilities, meeting the installation requirements of North American NEC for instrumentation and control cables. The unarmored construction makes the cable more flexible and easier to install, while using flame-retardant PVC or optional XLPE insulation and sheath materials.
Instrumentation Cable
PLTC/ITC cables offer excellent heat resistance, environmental resistance, and flame retardancy, making them suitable for long-term reliable operation in various indoor and outdoor industrial environments.
Conductors: Bare Copper
Rated Voltage Uo/U (Um) : 300V
Insulated : PVC (Polyvinyl Chloride)
Standards : UL 13 / UL 83 / UL 1685/FT4 / IEEE 1202/383(70.000BTU/hr) / ICEA T-30-520(70.000BTU/hr)
Outer Jacket : PVC (Polyvinyl Chloride)
Temperature range ：-40 °C to 90 °C
Advantages of PLTC / ITC Cable
Instrumentation cables typically employ a multi-pair or triplet structure, with stranded bare copper or tinned copper conductors. Each pair/triad can be independently shielded, supplemented by an overall shielding layer, effectively reducing electromagnetic interference (EMI) and signal crosstalk, ensuring the stability and accuracy of signal transmission.
| Pairs | |||||
| NUMBER OF PAIRS |
CONDUCTOR SIZE | NOMINAL DIAMETER OVERALL CABLE |
CABLE WEIGHT | MAX PULLING TENSION (PULLING EYE) |
MIN BEND RADIUS (PULL) |
| (AWG/kcmil) | (in/mm) | (lbs/1000ft) (kg/km) | (lb/kg) | (in/mm) | |
| 1 | 16 | 0.267/6.8 | 43/64 | 41/19 | 4.8/122 |
| 2 | 16 | 0.426/10.8 | 104/155 | 82/37 | 7.7/195 |
| 4 | 16 | 0.492/12.5 | 152/226 | 165/75 | 8.9/225 |
| 6 | 16 | 0.586/14.9 | 216/321 | 247/112 | 10.5/268 |
| 8 | 16 | 0.654/16.6 | 283/421 | 330/150 | 11.8/299 |
| 12 | 16 | 0.791 /20.1 | 401/597 | 494/224 | 14.2/362 |
| 16 | 16 | 0.880/22.4 | 508/755 | 659/299 | 15.8/402 |
| 24 | 16 | 1.111 /28.2 | 761/1132 | 989/449 | 20/508 |
| 36 | 16 | 1.276/32.4 | 1076/1601 | 1483/673 | 23/583 |
| 1 | 18 | 0.243/6.2 | 34/51 | 26/12 | 4.4/111 |
| 2 | 18 | 0.366/9.3 | 74/110 | 52/24 | 6.6/167 |
| 4 | 18 | 0.444/11.3 | 118/175 | 104/47 | 8/203 |
| 6 | 18 | 0.525 /13.4 | 166/246 | 156/71 | 9.5/240 |
| 8 | 18 | 0.568/14.4 | 204/303 | 208/94 | 10.2/260 |
| 12 | 18 | 0.707/18.0 | 299/446 | 312/142 | 12.7/323 |
| 16 | 18 | 0.827 /21.0 | 420/625 | 468/212 | 14.9/378 |
| 24 | 18 | 0.987/25.1 | 562/836 | 624/283 | 17.8/451 |
| 36 | 18 | 1.131 /28.7 | 791/1178 | 936/425 | 20.4/517 |
| 1 | 20 | 0.211/5.4 | 26/38 | 16/7 | 3.8/96 |
| 6 | 20 | 0.445 /11.3 | 122/182 | 96/44 | 8/203 |
| 8 | 20 | 0.479 /12.2 | 149/222 | 128/58 | 8.6/219 |
| 12 | 20 | 0.574/14.6 | 209/311 | 192/87 | 10.3/263 |
| 16 | 20 | 0.656/16.7 | 274/407 | 256/116 | 11.8/300 |
| 24 | 20 | 0.803/20.4 | 392/583 | 384/174 | 14.5/367 |
| 36 | 20 | 0.938/23.8 | 567/843 | 576/261 | 16.9/429 |
| Triads | |||||
| NUMBER OF PAIRS |
CONDUCTOR SIZE | NOMINAL DIAMETER OVERALL CABLE |
CABLE WEIGHT | MAX PULLING TENSION (PULLING EYE) |
MIN BEND RADIUS (PULL) |
| (AWG/kcmil) | (in/mm) | (lbs/1000ft) (kg/km) | (lb/kg) | (in/mm) | |
| 1 | 16 | 0.280/7.1 | 54/80 | 62/28 | 5 /128 |
| 2 | 16 | 0.478/12.1 | 134/199 | 124/56 | 8.6/219 |
| 4 | 16 | 0.555/14.1 | 203/302 | 247/112 | 10/254 |
| 6 | 16 | 0.684/17.4 | 304/453 | 371/168 | 12.3 /313 |
| 8 | 16 | 0.741/18.8 | 382/568 | 494/224 | 13.3/339 |
| 12 | 16 | 0.919/23.4 | 563/839 | 742/336 | 16.6/420 |
| 16 | 16 | 1.023/26.0 | 718/1068 | 989/449 | 18.4/468 |
| 24 | 16 | 1.268/32.2 | 1045/1555 | 1483/673 | 22.8/580 |
| 1 | 18 | 0.255/6.5 | 41/61 | 39/18 | 4.6/116 |
| 2 | 18 | 0.433/11.0 | 105/156 | 78/35 | 7.8/198 |
| 4 | 18 | 0.500/12.7 | 153 /227 | 156/71 | 9/229 |
| 6 | 18 | 0.596/15.1 | 217/322 | 234/106 | 10.7/272 |
| 8 | 18 | 0.665/16.9 | 283/422 | 312/142 | 12/304 |
| 12 | 18 | 0.804/20.4 | 402/598 | 468/212 | 14.5/367 |
| 16 | 18 | 0.964/24.5 | 584/869 | 702/318 | 17.3/441 |
| 24 | 18 | 1.128/28.7 | 762/1133 | 936/425 | 20.3/516 |
| 1 | 20 | 0.220/5.6 | 31/46 | 24/11 | 4/101 |
| 2 | 20 | 0.350/8.9 | 71/106 | 48/22 | 6.3/160 |
| 4 | 20 | 0.424/10.8 | 112/166 | 96/44 | 7.6/194 |
| 6 | 20 | 0.500/12.7 | 156/233 | 144/65 | 9/229 |
| 8 | 20 | 0.539/13.7 | 193/288 | 192/87 | 9.7/247 |
| 12 | 20 | 0.670/17.0 | 284/423 | 288/131 | 12.1/306 |
| 16 | 20 | 0.742/18.9 | 359/535 | 384/174 | 13.4/339 |
| 24 | 20 | 0.932/23.7 | 534/795 | 576/261 | 16.8/426 |
Certification
PLTC/ITC unarmored instrumentation cable has received UL certification, demonstrating that it meets the stringent requirements of the North American market for industrial instrumentation cables in terms of structural design, electrical performance, and safety.
Flexibility
Wear Resistance
Aging resistance
BPS Certified
APPLICATIONS
PLTC/ITC unarmored instrumentation cable is a 300V tray-grade signal cable specifically designed for industrial instrumentation and control systems. It is widely used in process control, automation systems, and data and analog signal transmission applications.
Industrial Automation
PLTC/ITC cables are commonly used for signal connections within industrial control panels, such as wiring between PLCs, relays, and sensors. Their low voltage, fire resistance, and oil resistance ensure stable signal transmission and safe panel operation.

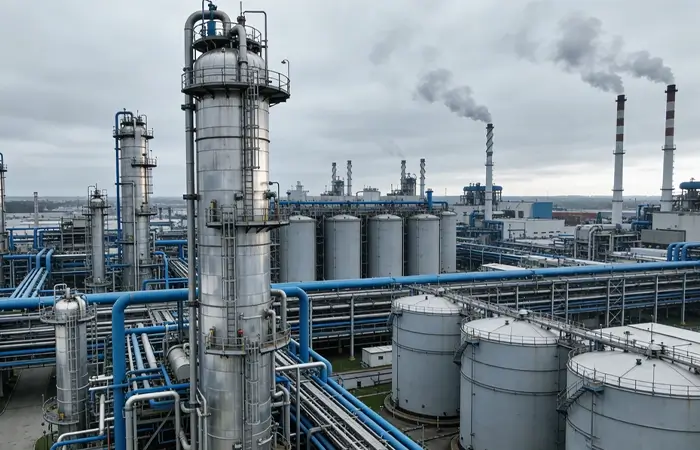

Chemical Plants
PLTC/ITC cables are suitable for transmitting sensor signals such as pressure, temperature, and flow rate in process instrumentation systems in chemical, pharmaceutical, or petrochemical plants, ensuring continuous monitoring .

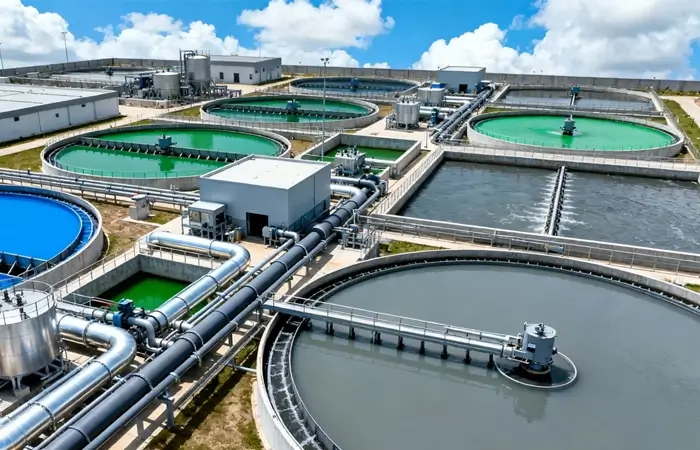

Water Treatment
Water and wastewater treatment plants commonly use PLTC/ITC cables to connect sensors, flow meters, and pump station control systems to achieve automated monitoring and energy-saving operation. Their moisture resistance effectively prevents short circuits.
Mining
Mining environments are complex, with conditions of high humidity, high dust levels, and mechanical abrasion. PLTC/ITC cables, with their fire resistance, oil resistance, abrasion resistance, and moisture resistance, stably transmit signals from various automated equipment and sensors in mining areas.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. We have always focused on the research, development, and production of wires and cables. It has gradually developed from basic wiring products into a comprehensive manufacturing base covering multiple international standards, accumulating profound process experience and industry reputation.
Packaging Information
PLTC / ITC instrumentation cable comes in three standard packaging options: coiled, plastic spool, and wooden spool. Customized packaging is also available.
