Non-Shielded 2.4 kV Single Core MV90 Cable
Conductor ：
Class B Stranded Soft Drawn or Annealed Copper per ASTM B496
Insulation：
EPR-Based Insulation
Jacket：
Sunlight-Resistant PVC or CPE Jacket
Rated Voltage：
Up to 2400 V (2.4 kV) rated
Temperature range ：
90℃
Standard：
UL 1072
Description
Download

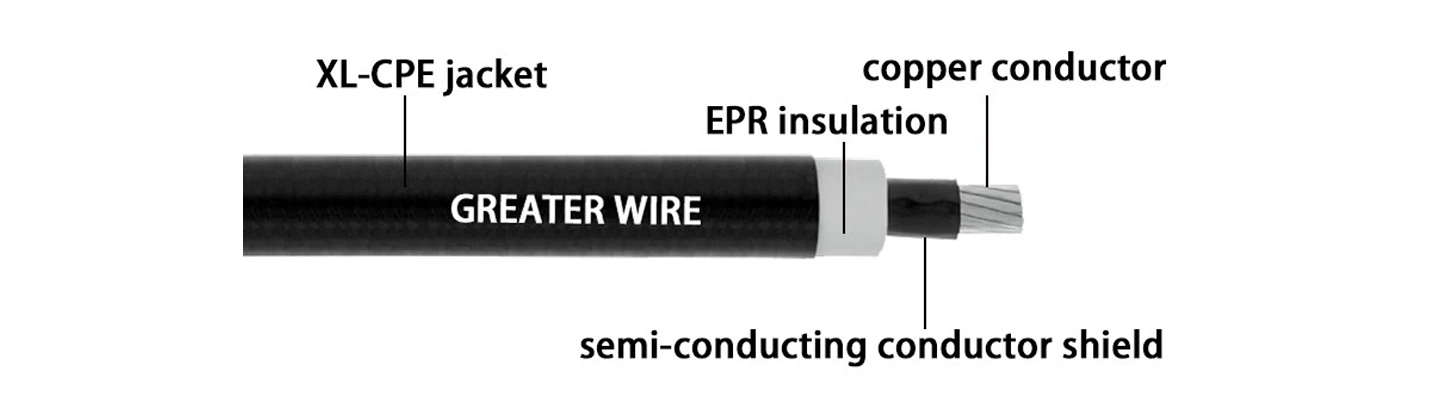

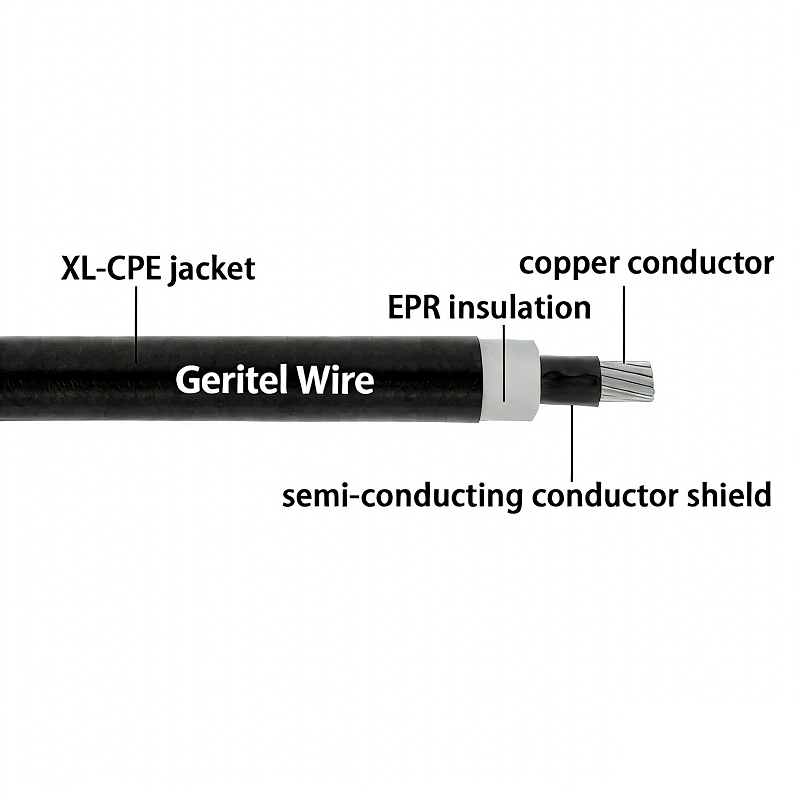

Conductor
One Compact Bare Stranded Copper Conductor
Insulation and Sheath
EPR Insulation & XL-CPE Jacket
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
90°C

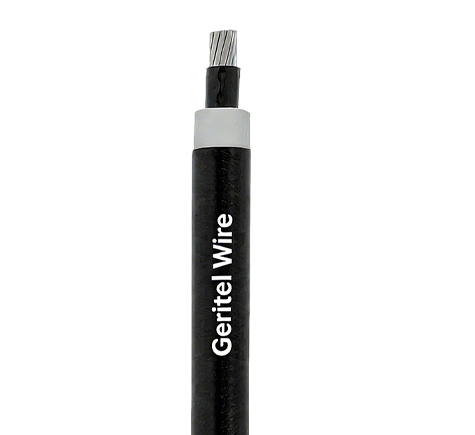

MV90 Cable
Single Conductor 2.4kV Non-Shielded MV 90 cable is a single-conductor cable specifically designed for medium-voltage power distribution, suitable for power systems with rated voltages up to 2400V.

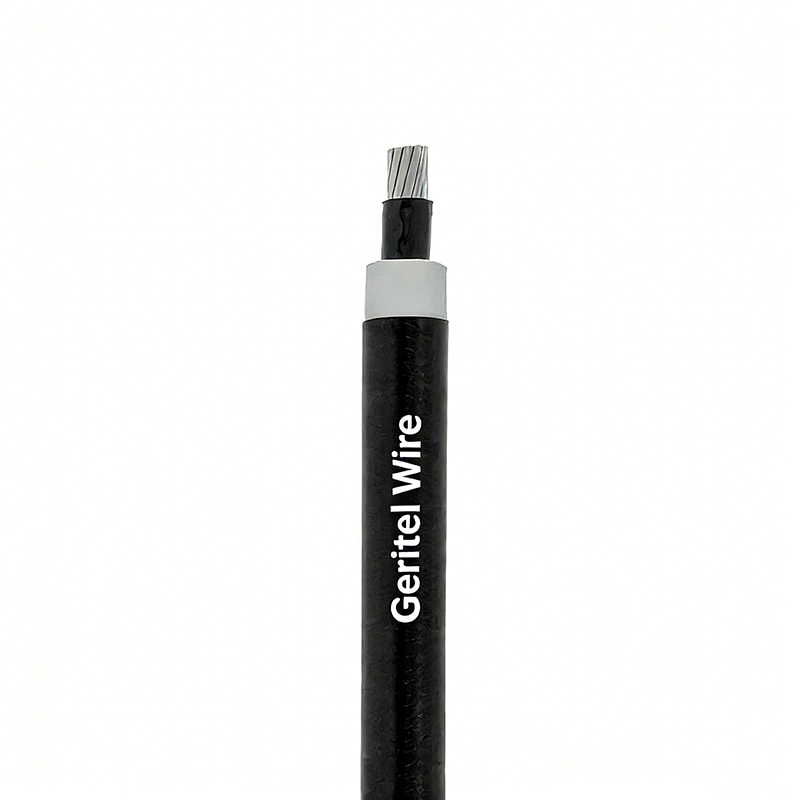

Single Core MV90 Cable
MV 90 single conductor power cable, for up to 2400 V (2.4 kV) applications. It is non-shielded for use in commercial and industrial power distribution systems.
Conductors：Bare Copper
Rated Voltage Uo/U (Um) : 2.4 kV
Insulated & ：EPR
Jacket： XL-CPE
Standards ： UL1072
Temperature range ：90℃
Advantages of MV Cable
MV 90 cable uses a high-quality copper conductor, providing excellent conductivity and mechanical flexibility to meet long-term usage requirements in industrial, commercial, and utility environments. The conductor is covered with a thermosetting EPR insulation layer, offering excellent dielectric and heat resistance, and can operate stably at a continuous operating temperature of 90°C. The cable is encased in a weather-resistant, UV-resistant PVC or CPE outer sheath, enhancing its durability in humid environments or when laid in conduits, cable trays, underground, and outdoor locations.
| Conductor Size (Stranding) | Nominal Insulation (Mils) | Nominal O.D.Over Insulation (Inches) | Jacke Tthickness (Mils) | Approx.Cable O.D. (Inches) | Approx.Net Weight (LBS/1000 FT) |
| 6(7W) | 125 | 0.44 | 80 | 0.62 | 241 |
| 4 (7W) | 125 | 0.49 | 80 | 0.66 | 308 |
| 2 (7W) | 125 | 0.55 | 80 | 0.72 | 408 |
| 1/0 (19W) | 125 | 0.62 | 80 | 0.79 | 562 |
| 2/0 (19W) | 125 | 0.66 | 80 | 0.84 | 666 |
| 4/0 (19W) | 125 | 0.76 | 95 | 0.97 | 983 |
| 250(37W) | 140 | 0.84 | 110 | 1.08 | 1183 |
| 350(37W) | 140 | 0.93 | 110 | 1.17 | 1545 |
| 500(37W) | 140 | 1.06 | 110 | 1.3 | 2077 |
| 750(61W) | 155 | 1.26 | 125 | 1.54 | 3040 |
Certification
MV cable is UL certified. MV-90 cable complies with medium-voltage cable standards such as UL 1072 and ICEA S-96-659 (NEMA WC71) and has passed the UL 1685 vertical tray flame retardancy test, ensuring the cable's safety in fire conditions.
Heat-Resistant
Wear Resistance
Mechanical Strength
UL Certificated
APPLICATIONS
The unshielded structure of MV 90 cable simplifies installation and allows for flexible laying in both dry and humid environments. It is suitable for power transmission in feeders, motor power supplies, transformer connections, and distribution equipment. The Single Conductor 2.4kV Non-Shielded MV-90 cable provides a reliable medium-voltage power distribution solution for industrial and commercial facilities.
Industrial Power
MV medium-voltage cables are widely used in main power feeders in factories and manufacturing facilities, providing stable power transmission under high load conditions to meet the continuous operation and high reliability requirements of industrial power.
Commercial Buildings
In shopping malls, office buildings, and large commercial complexes, medium-voltage cables are used to connect transformers and distribution equipment, ensuring the safe and efficient operation of the power system and compliance with relevant electrical codes.

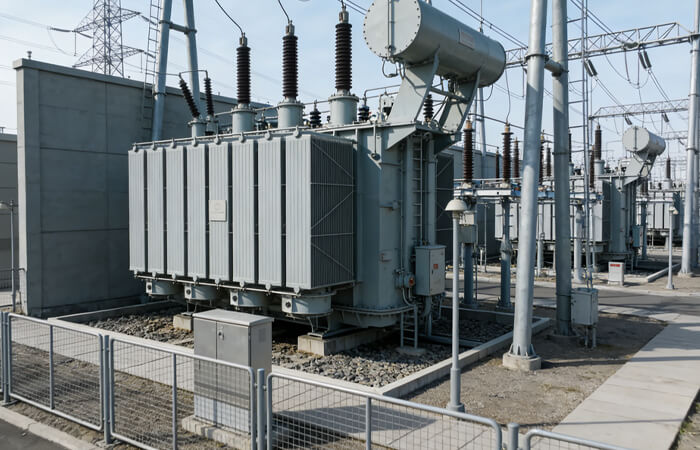

Substations
Medium-voltage cables are commonly used for internal equipment connections and power distribution in substations, possessing excellent voltage withstand and insulation properties to ensure long-term stable operation of the power system.
Electric Machines
MV cables are suitable for powering large motors, pump stations, and compressors, capable of withstanding frequent starts and high current surges, ensuring reliable equipment operation.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional UL wire manufacturer. We are a wire and cable manufacturing factory with over 30 years of manufacturing experience, focusing on the research, development, production, and optimization of wires and cables.
Packaging Information
MV cable is commonly packaged on wooden reel, or on large wooden reel. Custom packaging is also available.
