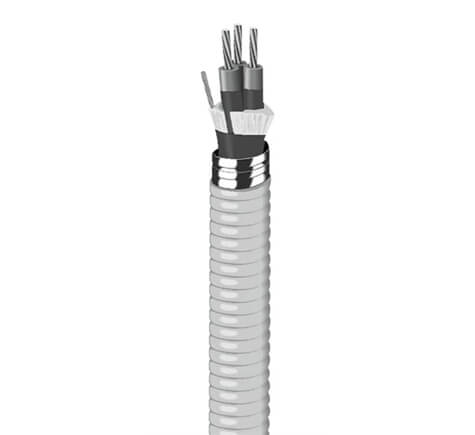

2400V UL Type MC 3 Core MV 90 Cable

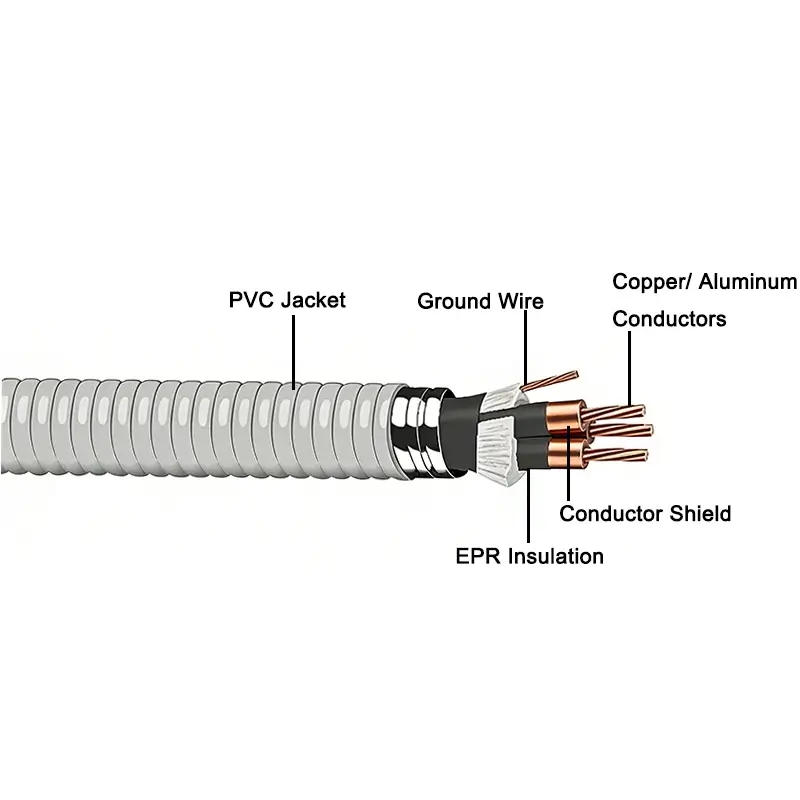

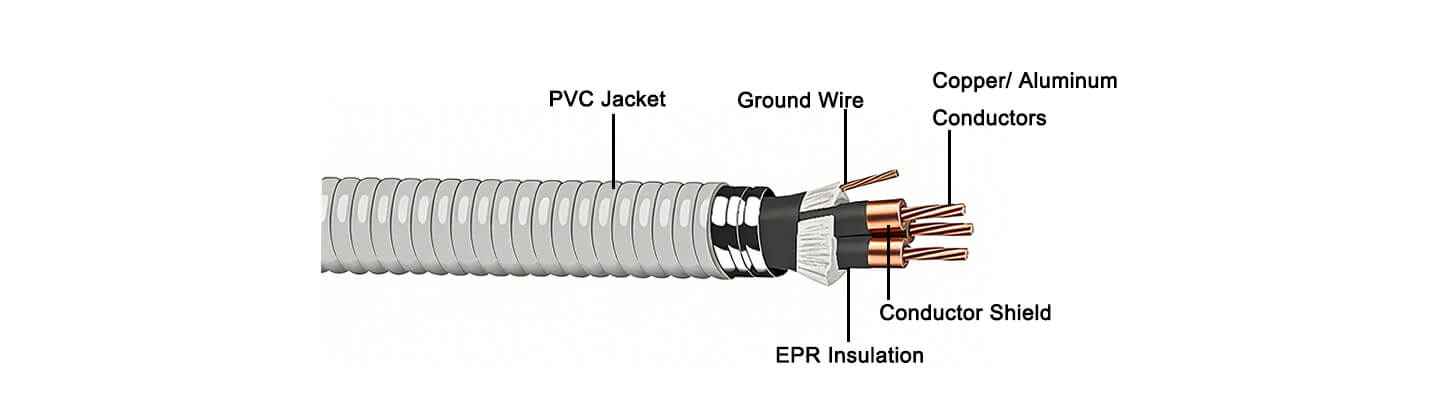

Conductor ：
Three Compact Bare Stranded Copper Conductors
Insulation：
Lead-Free EPR Insulation
Insulation Shield：
Extruded Semi-Conducting Insulation Shield
Ground Wire：
Cabled With Appropriately Sized Bare Copper Ground Wire
Jacket：
Low Friction PVC Jacket
Rated Voltage：
Up to 2400 V (2.4 kV) rated
Temperature range ：
90℃
Standard：
UL 1072
Description
Download
Conductor
Three Compact Bare Stranded Copper Conductors
Insulation and Sheath
Lead-Free EPR Insulation & Low Friction PVC Jacket
No. of Core
Single Core/Three Core
Temperature Rating
105°C

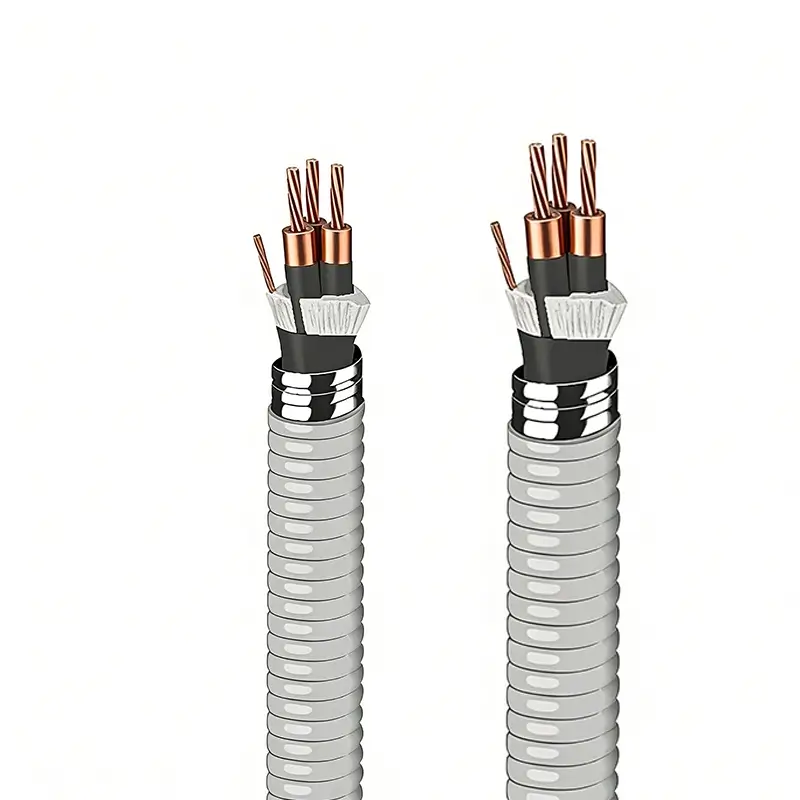

MV90 Cable
2.4kV Type MV 90 EPR insulation non-shielded armored cable with aluminum interlocked armor is a high-performance armored cable specifically for medium-voltage power transmission. Rated at 2.4 kV, it is suitable for industrial, commercial, and utility power distribution systems.

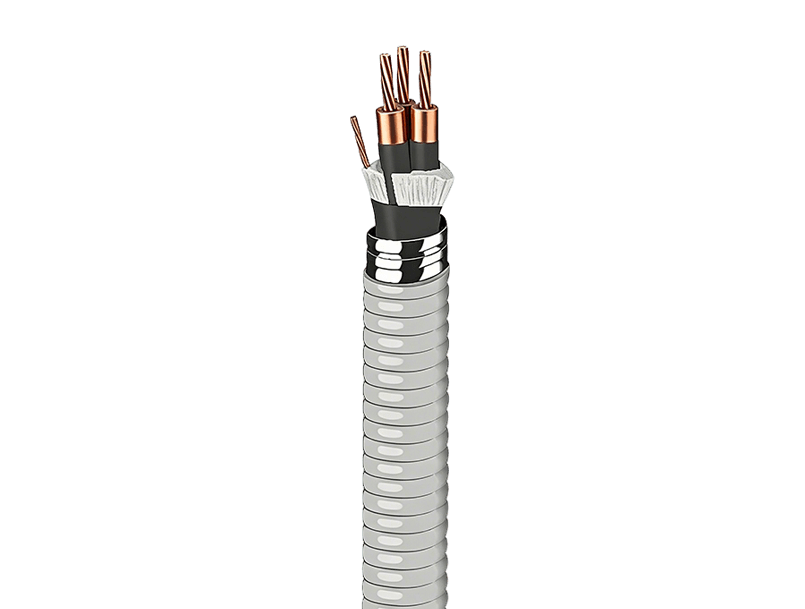

MV 90 Cable
Medium voltage armored power cable rated 2.4 kV, UL Type MV‑90 (Medium Voltage – 90 °C), for robust electrical distribution systems.
Conductors：Bare Copper
Rated Voltage Uo/U (Um) : 2.4 kV
Insulated & ：EPR
Jacket： PVC
Standards ： UL 1072
Temperature range ：105℃
Advantages of MV Cable
2.4kV MV 90 cable uses ethylene propylene rubber (EPR) insulation, providing excellent dielectric strength, heat resistance, and resistance to environmental aging, ensuring long-term stable operation. Its external aluminum interlocked armor structure, combined with a flame-retardant, weather-resistant PVC sheath, provides superior mechanical protection and environmental adaptability. As an MV 90 (90°C continuous operation) grade cable, it can be laid in both humid and dry environments.
| Conductor Size (Stranding) | Nominal Insulation (Mils) | Ground Wire Size(AWG) | Nominal Diameter Over Armor(Inches) | Jacke Tthickness (Mils) | Approx.Cable O.D. (Inches) | Approx.Net Weight (LBS/1000 FT) |
| 2 (7W) | 115 | 6 | 1.37 | 50 | 1.48 | 1363 |
| 2/0 (19W) | 115 | 4 | 1.71 | 60 | 1.84 | 2326 |
| 4/0 (19W) | 115 | 3 | 1.92 | 60 | 2.05 | 3256 |
| 350(37W) | 115 | 2 | 2.21 | 60 | 2.34 | 4825 |
| 500(37W) | 115 | 1 | 2.46 | 75 | 2.63 | 6567 |
Certification
MV cable is UL certified. UL-certified medium-voltage cables meet stringent safety and performance standards, providing reliable protection for industrial and commercial power systems.
Heat-Resistant
Wear Resistance
Mechanical Strength
UL Certificated
APPLICATIONS
MV 90 cable is suitable for cable tray, conduit, or overhead installations, and meets medium-voltage cable industry standards such as UL, NEMA, and ICEA. With its robust structure and reliable electrical performance, this armored cable is widely used in factory main power lines, building power distribution trunk lines, and other medium-voltage power supply scenarios that require weather resistance, pressure resistance, and mechanical protection.
Cable Tray
The cable is ideal for cable tray systems in industrial and commercial sites, where its armored design allows secure installation without additional conduit while maintaining electrical reliability.
Factories
In manufacturing environments with heavy machinery and potential physical impact, the aluminum interlocked armor protects the cable from crushing and abrasion while ensuring stable power supply for production lines.
Commercial Building
The cable is suitable for main feeder circuits in large commercial buildings, delivering medium-voltage power safely through cable trays or exposed installations while meeting MV-90 temperature and safety requirements.
Infrastructure
During infrastructure modernization or facility expansion projects, this MV-90 armored cable provides a durable and code-compliant solution for upgrading medium-voltage power circuits.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional UL wire manufacturer. Our factory has continuously improved its processes and accumulated technical expertise. We have established a mature and stable production system in key areas such as conductor drawing, insulation extrusion, cabling, and testing.
Packaging Information
MV cable is commonly packaged on wooden reel, or on large wooden reel. Custom packaging is also available.
Wooden Reel
Large Wooden Reel
