UL PVC Single Core 5 KV /8 KV MV 105 Cable

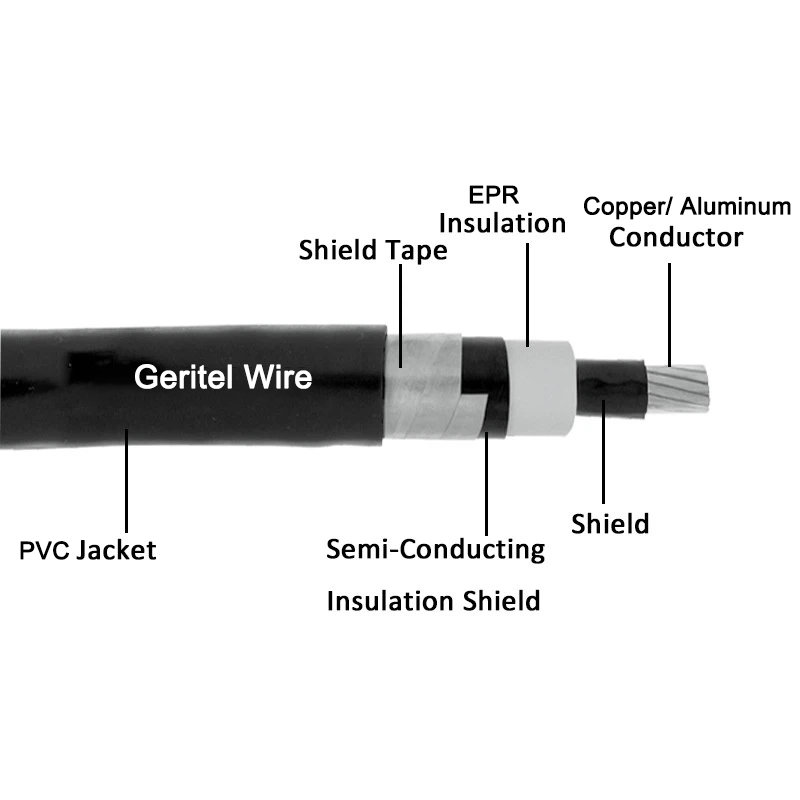

Conductor ：
One Compact Bare Stranded Copper Conductor
Shield ：
Extruded Semi-Conducting Conductor Shield
Insulation：
Lead Free EPR Insulation
Insulation Shield：
Extruded Semi-Conducting Insulation Shield, 5 Mil Bare Copper Shield Tape With 25% Minimum Overlap
Jacket：
Low Friction PVC Jacket
Rated Voltage：
5 KV /8 KV
Temperature range ：
105℃
Standard：
UL 1072
Description
Download
Conductor
One Compact Bare Stranded Copper Conductor
Insulation and Sheath
EPR Insulation & XL-CPE Jacket
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
105°C

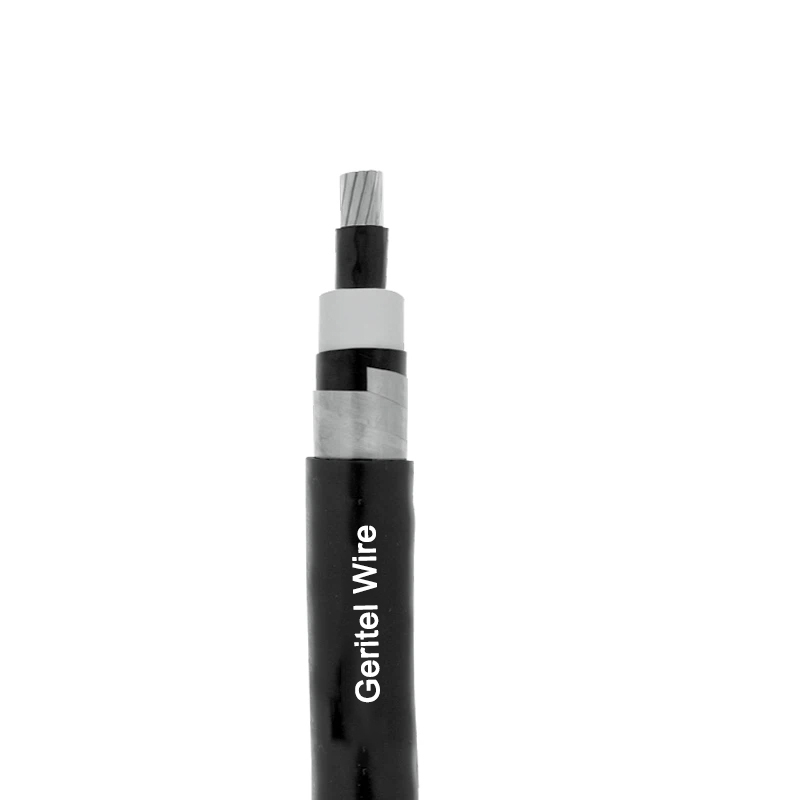

MV105 Cable
MV-105 single-conductor 5–8 kV shielded type is a typical medium-voltage single-core shielded power cable designed for commercial, industrial, and utility power distribution systems, suitable for applications requiring high electrical performance and operational reliability.
Single Core MV105 Cable
Single core 5/8 kV shielded MV-105 is a medium-voltage power cable for commercial, industrial, and utility applications.
Conductors：Bare Copper(Aluminum）
Rated Voltage Uo/U (Um) : 5kV /8kV
Insulated & ：EPR
Jacket： PVC
Standards ： UL1072
Temperature range ：105℃
Advantages of MV Cable
MV-105 cable uses compressed or compacted annealed bare copper conductors, balancing excellent conductivity and mechanical strength. A semi-conductive conductor shield is extruded over the conductor to ensure uniform electric field distribution and reduce the risk of partial discharge. The insulation layer is made of EPR (ethylene propylene rubber), possessing high dielectric strength, good heat and aging resistance, and supporting continuous operation at 105 °C. A peelable semi-conductive insulating shield is added to the outside of the insulation, along with a 5 mil copper tape metal shield (25% overlap) for reliable grounding and electromagnetic shielding. The outer sheath is made of flame-retardant, moisture-resistant, and sunlight-resistant PVC, suitable for dry or humid environments, and can be laid in conduits, cable trays, cable trenches, direct burial, and some overhead applications.
| Conductor Size (Stranding) | Nominal Insulation (Mils) | Minimum O.D.Over Insulation (Inches) | Maximum O.D.Over Insulation (Inches) | Jacke Tthickness (Mils) | Approx.Cable O.D. (Inches) | Approx.Net Weight (LBS/1000 FT) |
| 6(7W) | 115 | 0.42 | 0.49 | 60 | 0.65 | 295 |
| 4 (7W) | 115 | 0.46 | 0.54 | 60 | 0.7 | 365 |
| 2 (7W) | 115 | 0.51 | 0.59 | 60 | 0.76 | 471 |
| 1/0 (19W) | 115 | 0.58 | 0.66 | 60 | 0.82 | 623 |
| 2/0 (19W) | 115 | 0.62 | 0.7 | 60 | 0.86 | 728 |
| 4/0 (19W) | 115 | 0.72 | 0.8 | 80 | 1 | 1053 |
| 250(37W) | 115 | 0.77 | 0.85 | 80 | 1.05 | 1199 |
| 350(37W) | 115 | 0.87 | 0.95 | 80 | 1.14 | 1559 |
| 500(37W) | 115 | 0.99 | 1.07 | 80 | 1.27 | 2088 |
| 750(61W) | 115 | 1.17 | 1.25 | 80 | 1.45 | 2962 |
| 1000(61W) | 115 | 1.32 | 1.4 | 80 | 1.6 | 3815 |
Certification
MV cable is UL certified. Medium-voltage cables that pass UL testing have excellent heat resistance, voltage resistance, and fire resistance, reducing the risk of circuit failure.
Heat-Resistant
Wear Resistance
Flame-Retardant
UL Certificated
APPLICATIONS
Single Conductor MV-105 cable is primarily used in medium-voltage power distribution and transmission systems, suitable for applications requiring high operational safety and long-term reliability. This cable is widely used in medium-voltage feeders and power circuits in industrial plants, commercial buildings, utility distribution networks, substations, and power generation facilities, and can stably carry power transmission at voltage levels of 5–8 kV.
Industrial Power Distribution
In industrial plants and manufacturing facilities, Single Conductor 5–8 kV Shielded MV-105 cable is used for medium voltage feeders and equipment connections, providing stable power transmission, effective shielding, and long-term reliability under continuous high-temperature operation.
Substations
MV-105 cable is commonly installed between transformers, switchgear, and control equipment in substations, where its EPR insulation and copper tape shield ensure electrical safety, grounding continuity, and reduced electromagnetic interference.
Underground Duct
In underground duct banks and conduit systems, the robust insulation and moisture-resistant PVC jacket of the MV-105 cable provide reliable protection against environmental stress, making it suitable for long-term buried power distribution.
Cable Tray
When installed in cable trays or raceways, the single-conductor MV-105 design allows for flexible routing and organized installation while maintaining effective shielding and thermal performance in enclosed or open-air environments.
