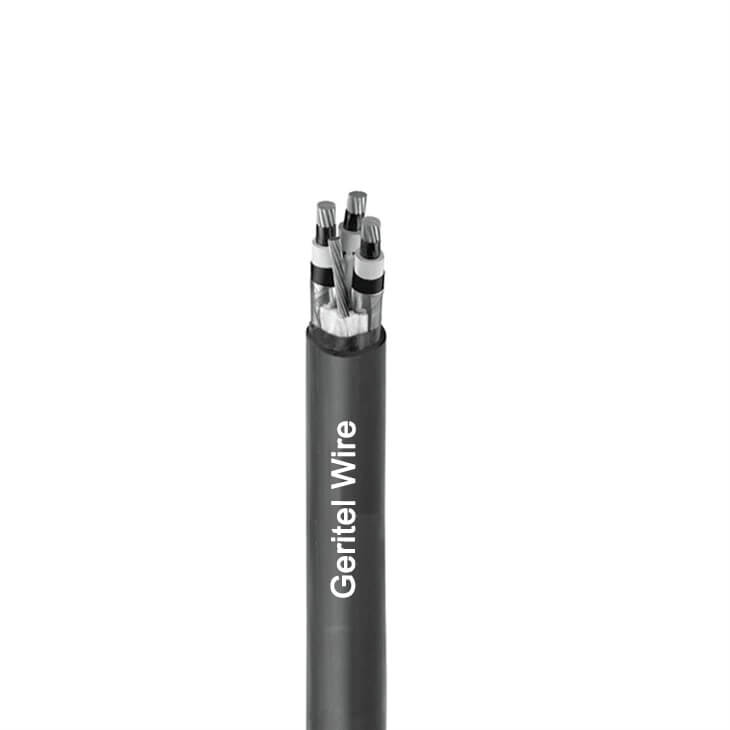

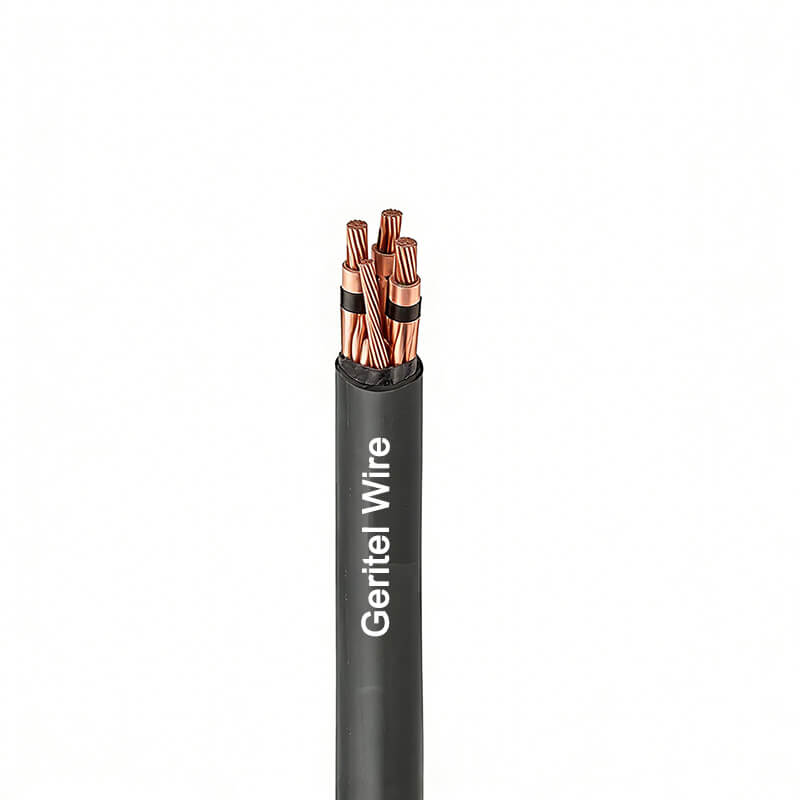

PVC 5 KV/8 KV Cable 3 Core MV 105 Cable

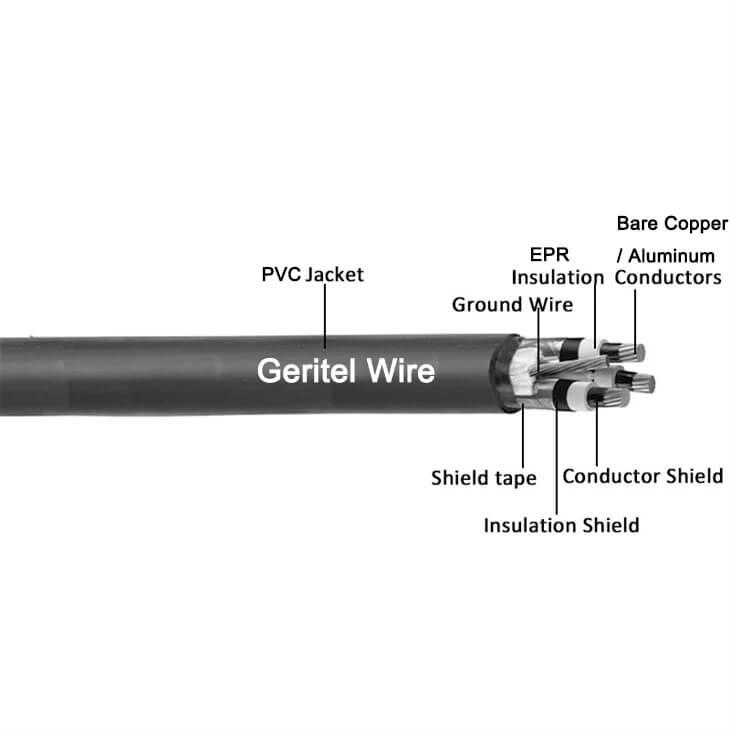

Conductor ：
Three Compact Bare Stranded Copper Conductors
Conductor Shield ：
Extruded Semi-Conducting Conductor Shield
Insulation：
Lead-Free EPR Insulation
Insulation Shield：
Extruded Semi-Conducting Insulation Shield, 5 Mil Bare Copper Shield Tape With 25% Minimum Overlap
Ground Wire：
Cabled With Appropriately Sized Bare Copper Ground Wire
Jacket：
Low Friction PVC Jacket
Rated Voltage：
5 KV/8 KV
Temperature range ：
105℃
Standard：
UL 1072
Description
Download
Conductor
Three Compact Bare Stranded Copper Conductors
Insulation and Sheath
Lead-Free EPR Insulation & Low Friction PVC Jacket
No. of Core
Single Core/Three Core
Temperature Rating
105°C

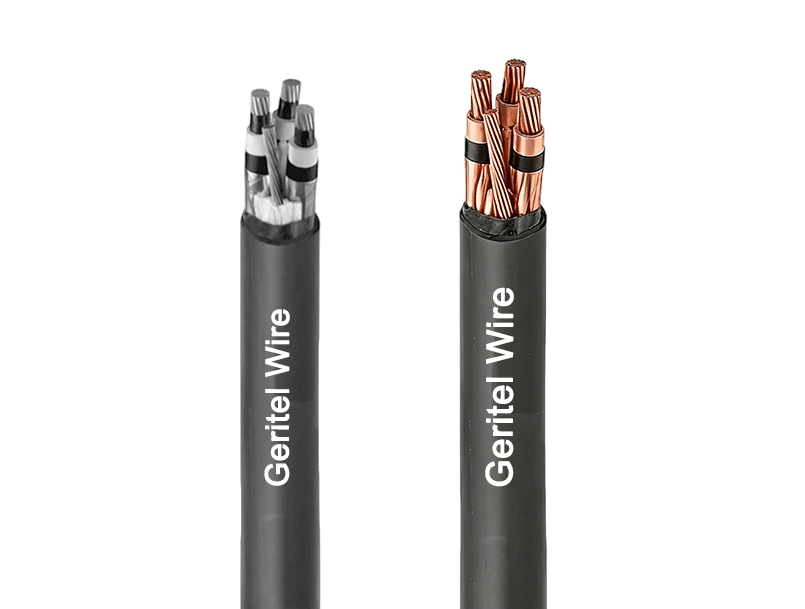

MV105 Cable
Three Conductor 5-8 kV, Shielded, MV-105 is a three-core shielded medium-voltage power cable conforming to the UL MV-105 standard. It has a rated voltage of 5 kV (133%) / 8 kV (100%) and is designed for the long-term stable operation of medium-voltage power distribution systems. MV105 cables are suitable for various installation methods, including cable trays, conduits, direct burial, and indoor/outdoor installations.

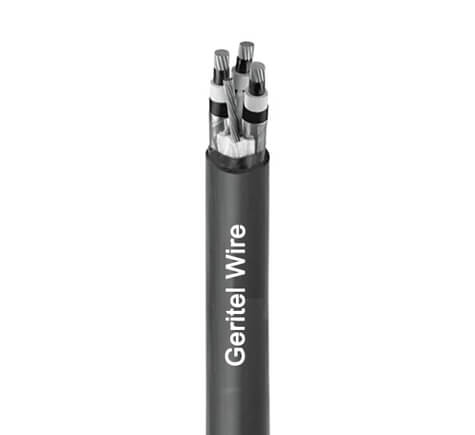

MV 105 Cable
Nominal insulation class of 5kV 133% / 8kV 100%, conforming to UL Type MV-105 standard. For medium-voltage power supply or distribution lines in commercial, industrial, oil refining and petrochemical facilities, power stations, and other sites.
Conductors：Bare Copper (Aluminum)
Rated Voltage Uo/U (Um) : 5 KV/8 KV
Insulated & ：EPR
Jacket： PVC
Standards ： UL 1072
Temperature range ：105℃
Advantages of MV Cable

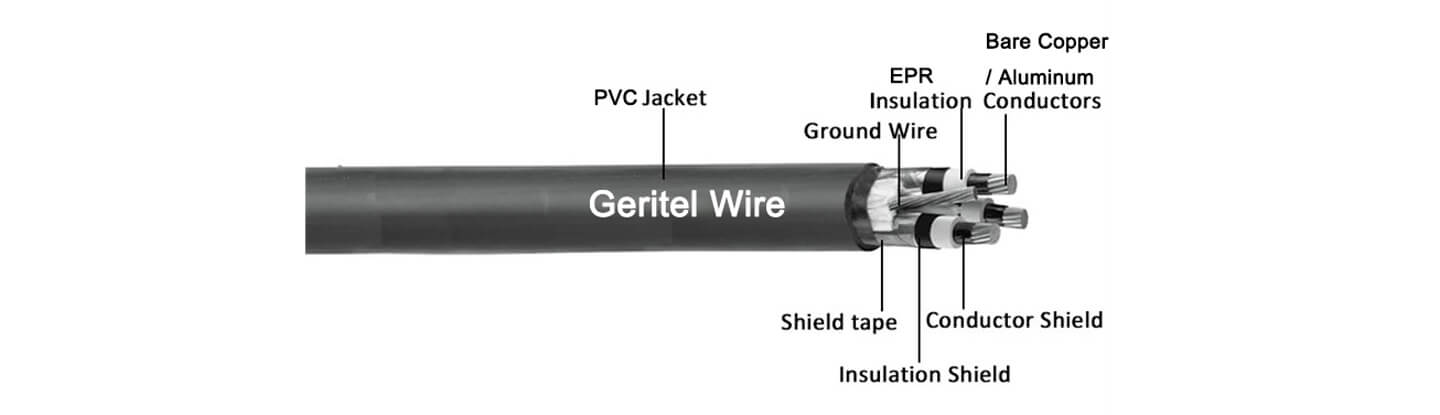

MV105 cables typically use Class B compacted or compressed bare copper conductors, covered with an extruded semi-conductive conductor shield, and incorporating high-dielectric-strength, lead-free EPR insulation. This allows for a continuous operating temperature of 105 °C in both dry and humid environments. Each core has an extruded semi-conductive insulation shield combined with copper tape metal shielding, effectively balancing the electric field, reducing the risk of partial discharge, and improving system safety. The three insulated cores are twisted together and then covered with a flame-retardant, sun-resistant, and moisture-resistant PVC outer sheath.
| Conductor Size (Stranding) | Nominal Insulation (Mils) | Minimum O.D.Over Insulation (Inches) | Maximum O.D.Over Insulation (Inches) | Ground Wire Size(AWG) | Jacke Tthickness (Mils) | Approx.Cable O.D. (Inches) | Approx.Net Weight (LBS/1000 FT) |
| 6(7W) | 115 | 0.41 | 0.49 | 6 | 80 | 1.29 | 939 |
| 4 (7W) | 115 | 0.46 | 0.54 | 6 | 80 | 1.39 | 1158 |
| 2 (7W) | 115 | 0.51 | 0.59 | 6 | 80 | 1.51 | 1511 |
| 1/0 (19W) | 115 | 0.58 | 0.66 | 4 | 80 | 1.67 | 2030 |
| 2/0 (19W) | 115 | 0.62 | 0.7 | 4 | 80 | 1.82 | 2449 |
| 4/0 (19W) | 115 | 0.72 | 0.8 | 3 | 110 | 2.07 | 3438 |
| 350(37W) | 115 | 0.87 | 0.95 | 2 | 110 | 2.36 | 5009 |
| 500(37W) | 115 | 0.99 | 1.07 | 1 | 110 | 2.64 | 6793 |
Certification
MV cable is UL certified. UL certified cables pass rigorous flame retardant and flame spread tests, improving the safety and fire resistance of power systems.
Heat-Resistant
Flame-Retardant
Mechanical Strength
UL Certificated
APPLICATIONS
MV105 cables possess excellent electrical performance, mechanical strength, and environmental adaptability. Three Conductor 5-8 kV, Shielded, MV-105 is widely used in medium-voltage power supply and distribution applications such as commercial buildings, industrial facilities, power plants, substations, and petrochemical plants.
Industrial Power Distribution Systems
In industrial plants and manufacturing facilities, Three Conductor 5–8 kV, Shielded, MV-105 cables are used to distribute medium voltage power to large equipment and production lines. The EPR insulation and copper tape shielding ensure stable performance, reduced electrical stress, and reliable operation under continuous high-load conditions.
Commercial Building
For large commercial buildings such as shopping centers, airports, and office complexes, this MV-105 cable provides dependable medium voltage feeder connections. Its compact three-conductor design simplifies installation while offering excellent thermal performance and long service life.
Substation
Three Conductor 5–8 kV, Shielded, MV-105 cables are ideal for connecting transformers and switchgear in substations. The copper tape shield helps control electrical stress and provides effective grounding, supporting stable and safe medium voltage operation.
Motor
MV cable is widely applied in supplying power to medium voltage motors, pumps, and drives. The shielded design helps reduce voltage stress and partial discharge, extending equipment life and improving system reliability.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional UL wire manufacturer. We have established a comprehensive quality management system, from raw material inspection and process control to finished product testing. Every process has clear standards and records, ensuring that every batch of wires and cables meets technical specifications and customer requirements.
Packaging Information
MV cable is commonly packaged on wooden reel, or on large wooden reel. Custom packaging is also available.
Wooden Reel
Large Wooden Reel
