Machine Tool MTW Wire
Conductor ：
Copper
Insulation：
PVC
Rated Voltage：
600V
Standard：
UL 758 & 1063
Temperature range : 90℃( Dry) ; 60℃(Oil) ; 60℃(Wet)：
Description
Download
Conductor
Copper
Insulation
PVC
No. of Conductor
Single
Temperature Rating
Dry: 90℃ ; Oil: 60℃ ; Wet: 60℃

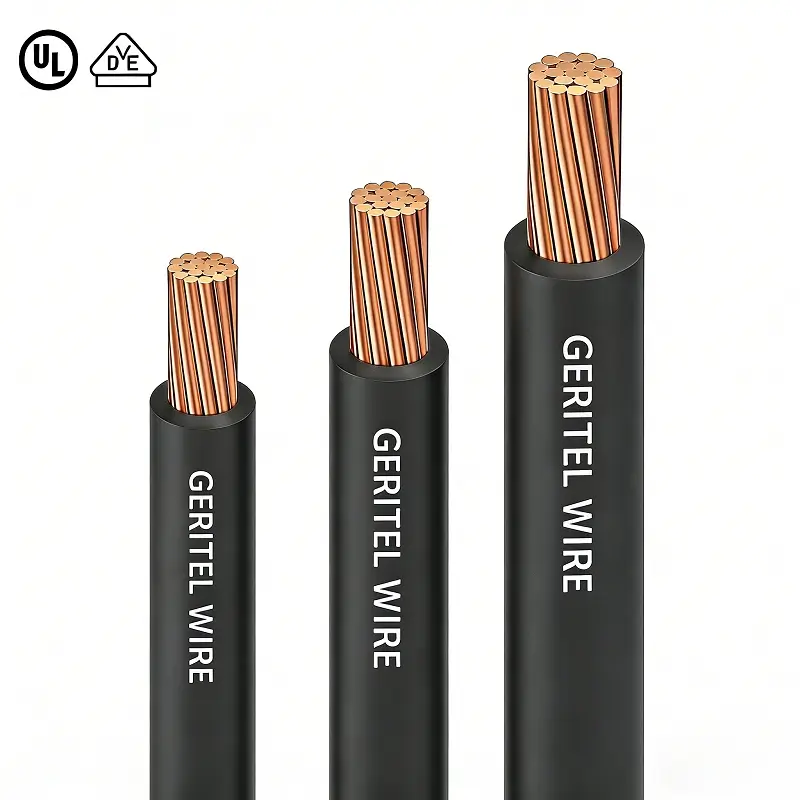

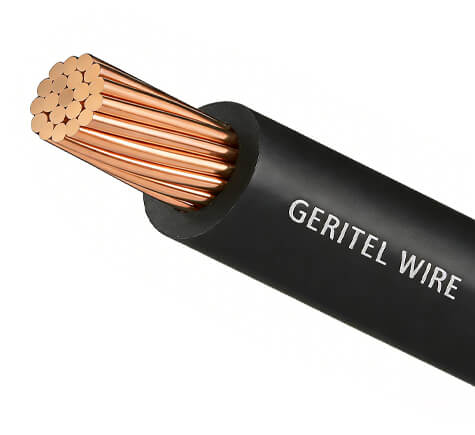

MTW WIRE

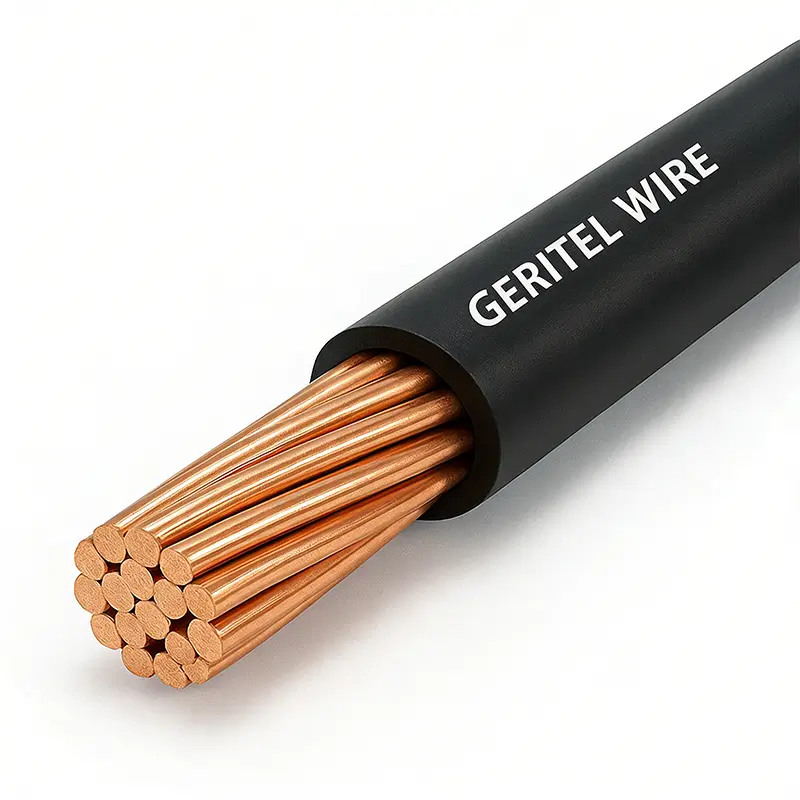

MTW wire features flexible stranded copper conductors and PVC thermoplastic insulation, a rated voltage of 600V, and balances good electrical performance with installation flexibility, making it a common choice for internal wiring in industrial equipment.
MTW WIRE

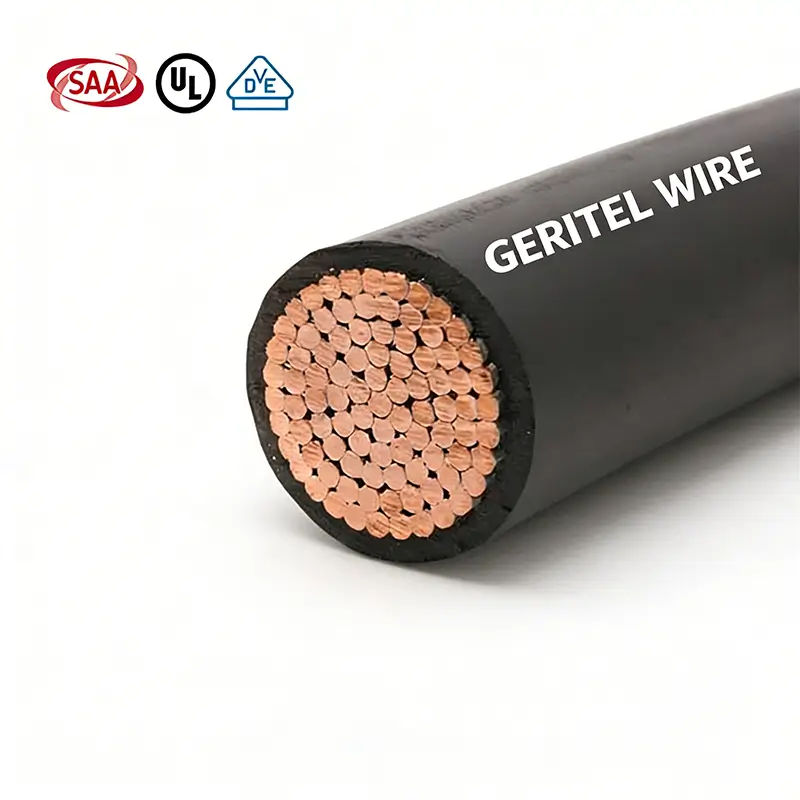

MTW Wire (Machine Tool Wire) is a UL-compliant industrial conductor primarily used for wiring within equipment and control systems.
Copper Conductors
Rated Voltage Uo/U (Um) : 600V
Insulated : PVC
Standards : UL 758 & 1063
Temperature range ：Dry: 90℃ ; Oil: 60℃ ; Wet: 60℃
Advantages of MTW cable
The advantages of MTW wire lie in its excellent flexibility and reliability. The stranded conductors facilitate wiring in confined spaces, and the durable PVC insulation helps extend its service life. It is UL certified, complies with industrial and electrical standards, offers high installation safety, and is easy to maintain.
| Conductor Size | No. of Strands | Insulation Thickness | Overall Diameter | Net Weight | ||
| AWG/KCM | INCHES | MM | INCHES | MM | KG/KM | |
| 18 | 16 | 0.03 | 0.76 | 0.113 | 2.87 | 11 |
| 16 | 26 | 0.03 | 0.76 | 0.125 | 3.18 | 14 |
| 14 | 41 | 0.03 | 0.76 | 0.139 | 3.53 | 20 |
| 12 | 65 | 0.03 | 0.76 | 0.158 | 4.01 | 28 |
| 10 | 105 | 0.03 | 0.76 | 0.182 | 4.62 | 43 |
| 8 | 19 | 0.045 | 1.14 | 0.246 | 6.25 | 74 |
| 6 | 19 | 0.06 | 1.52 | 0.315 | 8 | 114 |
| 4 | 19 | 0.06 | 1.52 | 0.365 | 9.27 | 167 |
| 2 | 19 | 0.06 | 1.52 | 0.43 | 10.92 | 252 |
Certification

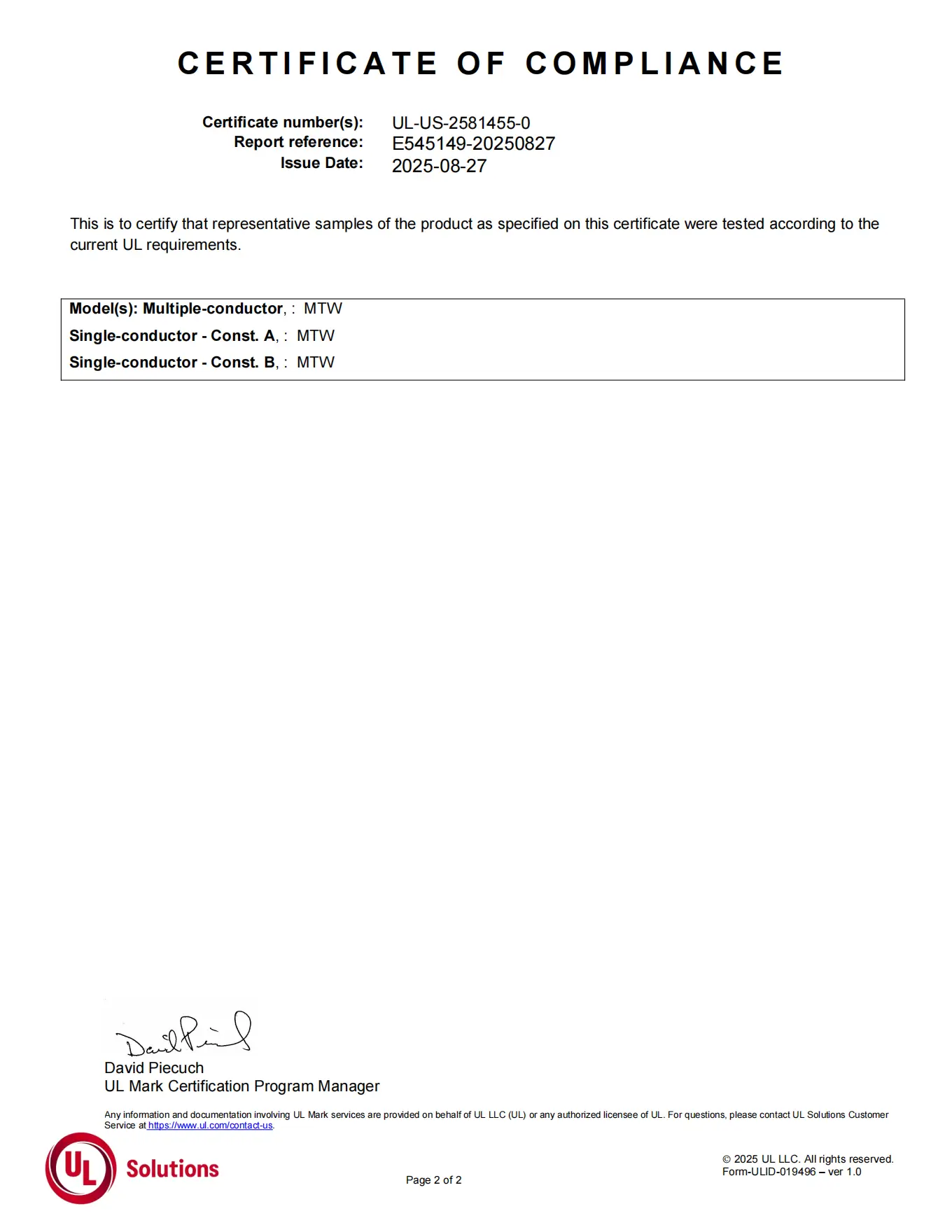

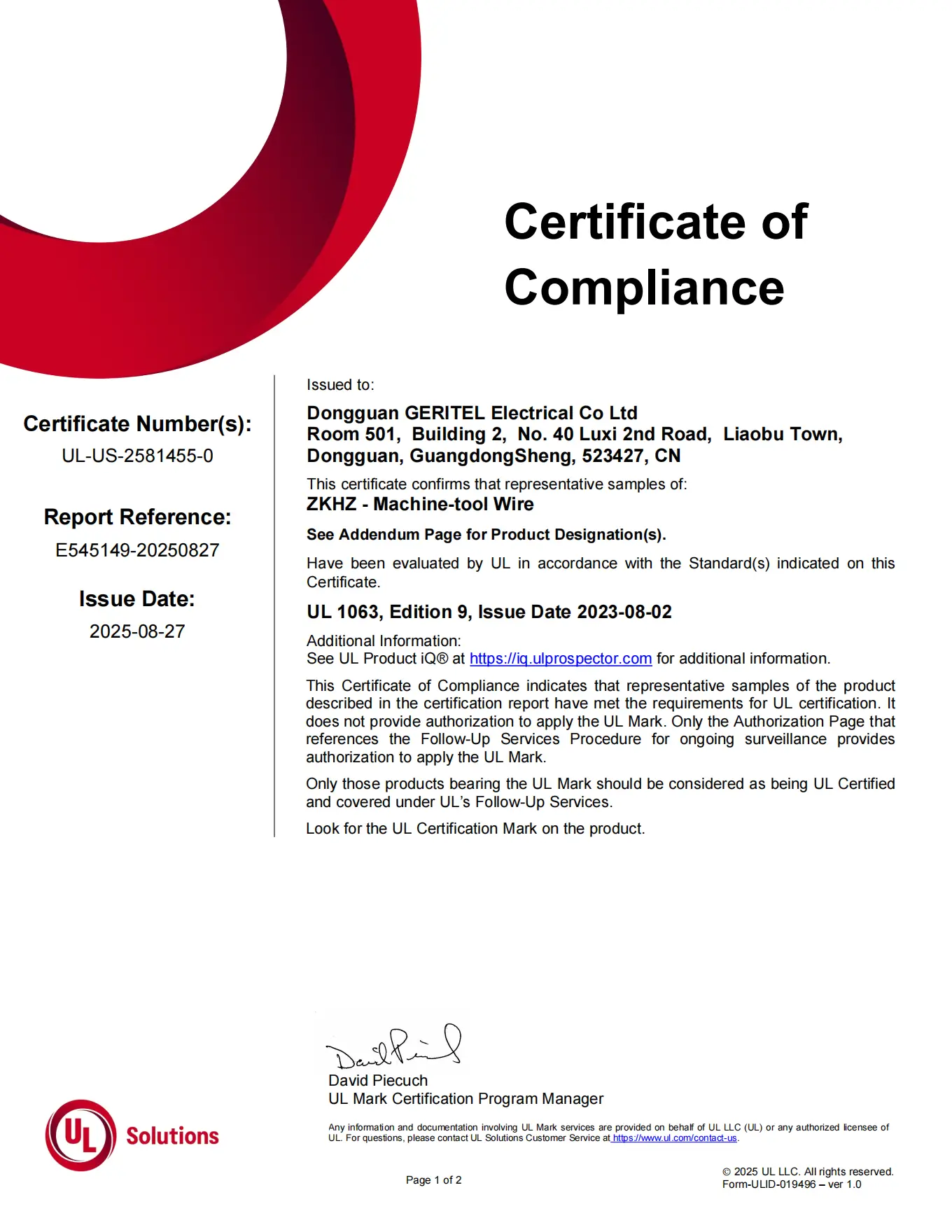

MTW Wire has been UL certified under report reference E545149, confirming compliance with applicable safety and performance standards for machine tool and equipment internal wiring applications.
Heat resistance
Current carrying capacity
Electrical performance
UL Certified
APPLICATIONS
MTW wire is commonly used for internal wiring in control cabinets, distribution boxes, machine tools, and automation systems. It is used to connect components such as contactors, relays, and PLCs. It can also be used for fixed wiring inside household appliances and industrial equipment, making it suitable for wiring environments with limited space.

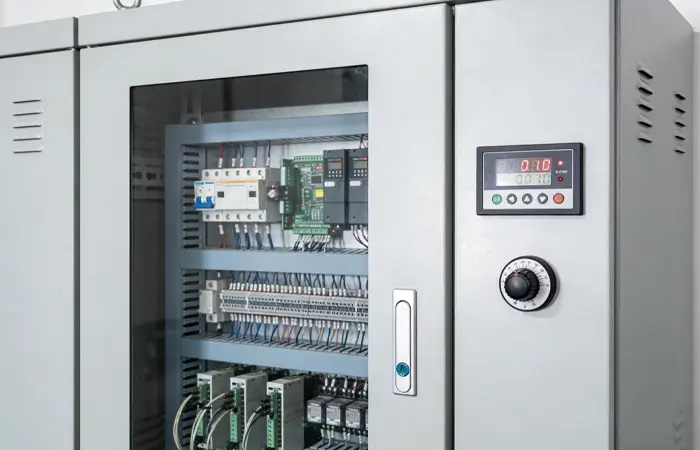

Industrial Control Cabinet
In industrial control cabinets, MTW wire is mainly used for internal connections between components. Due to the compact space and dense wiring inside the control cabinet, the flexible stranded conductor of MTW wire is easy to bend and organize between DIN rails, wire troughs and terminal blocks, improving wiring neatness and maintenance efficiency.
Distribution Box
In low-voltage distribution boxes or substations, MTW wire is typically used for internal branching and functional connections, rather than the building's main circuitry. MTW wire offers good current carrying capacity and flame retardant properties, meeting the safety requirements within the distribution box, while its flexible structure facilitates short-distance wiring within metal enclosures.

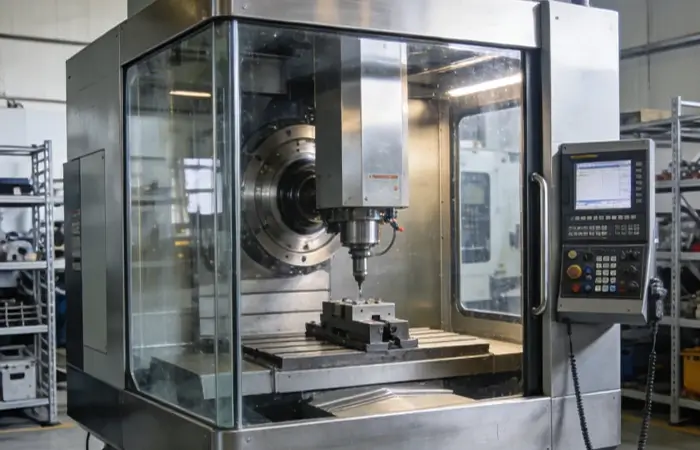

Machine Tool Equipment
In CNC machine tools, machining centers, packaging machines and other equipment, MTW wire is mainly used for internal fixation. The inside of wiring machine tools often experiences vibration and local temperature rise. The flexible stranded conductor and heat-resistant PVC insulation of MTW wire help reduce stress concentration and fatigue damage caused by vibration.

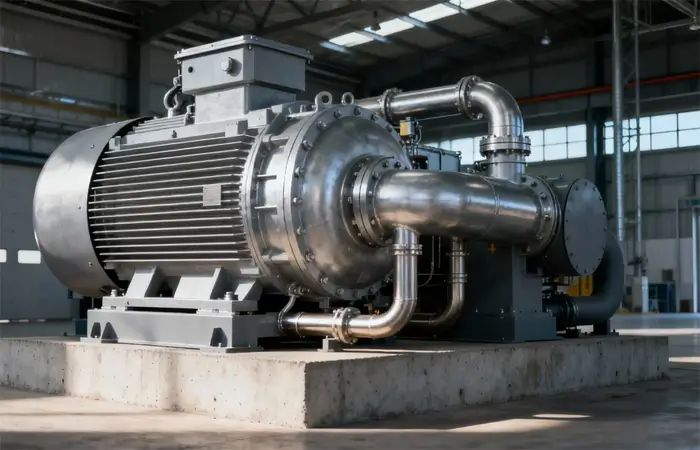

Industrial Electrical Appliances
In industrial electrical appliances, MTW wire can be used for internal fixed connections. Its flame-retardant properties and heat resistance help improve the safety of the whole machine, but it is not usually used for external power lines or movable cables.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional UL wire manufacturer. We offer comprehensive customized services. Our services cover the entire process from product selection and technical consultation to customized production and after-sales support. Regardless of project size, we provide professional guidance and rapid response at every stage to help clients achieve successful project completion.
Packaging Information
MTW wire is typically supplied in three packaging forms: coiled, plastic reels, and wooden reels. The specific type depends on the cable size and dimensions.

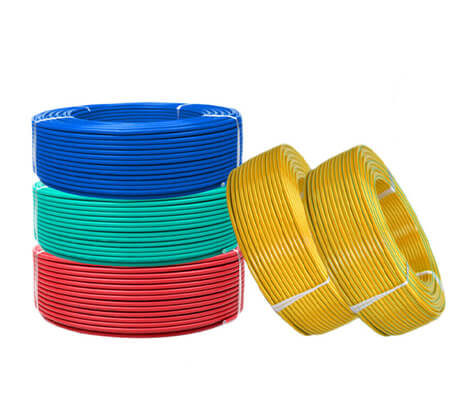

Coiled

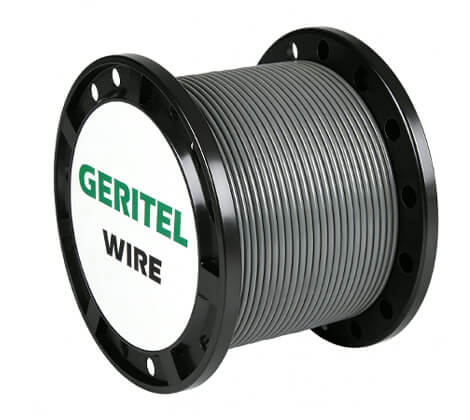

Plastic Reel

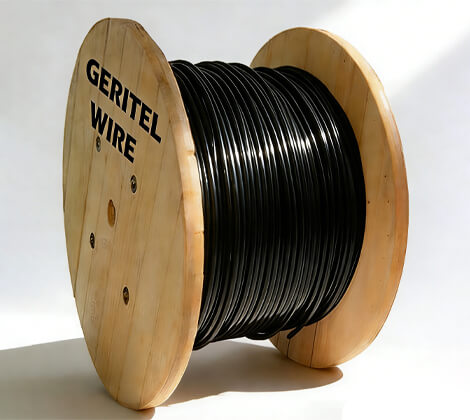

Large Wooden Reel
