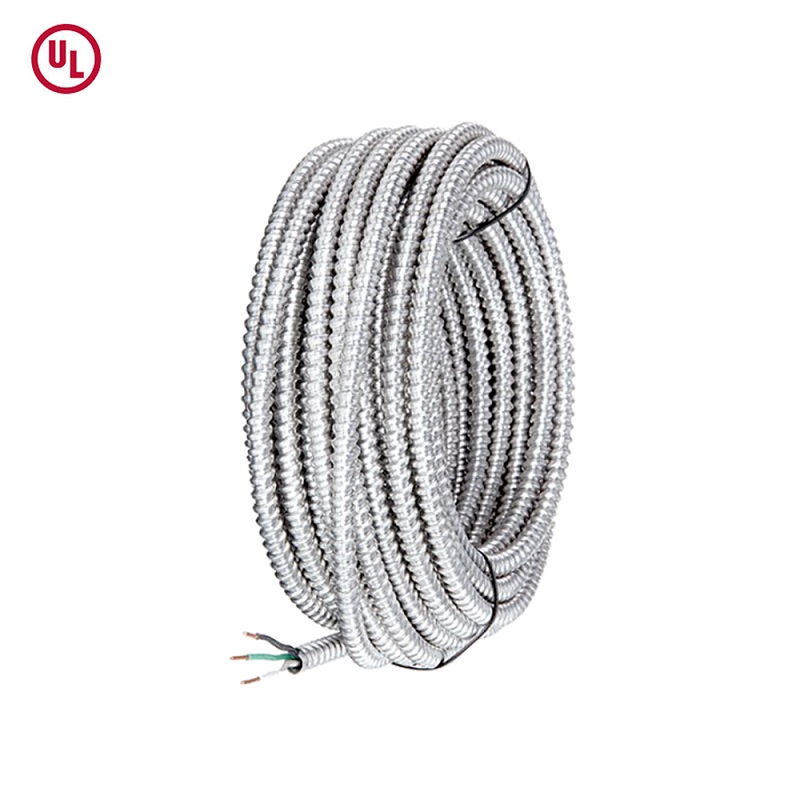

PVC Coated Metal Clad MC Cable

Geritel Wire is a professional UL cables manufacturer with UL certification. We supply wire and cable to projects across North America and Latin America, including universities, airports, commercial buildings, hospitals, and more.

Conductor ：

Pure Copper

Insulation：

PVC

Jacket：

Nylon

Armor：

Aluminum Interlock Armor

Rated Voltage：

600V

Standard：

UL83,UL1569,CUL

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

MC Cable Manufacturer

MC cable

Conductor

Pure Copper

NM-B

Insulation and Sheath

PVC & NYLON

No. of Conductor

2 cores /3 cores /4 cores

Temperature Rating

75°C(wet) & 90℃（dry）

MC Cable

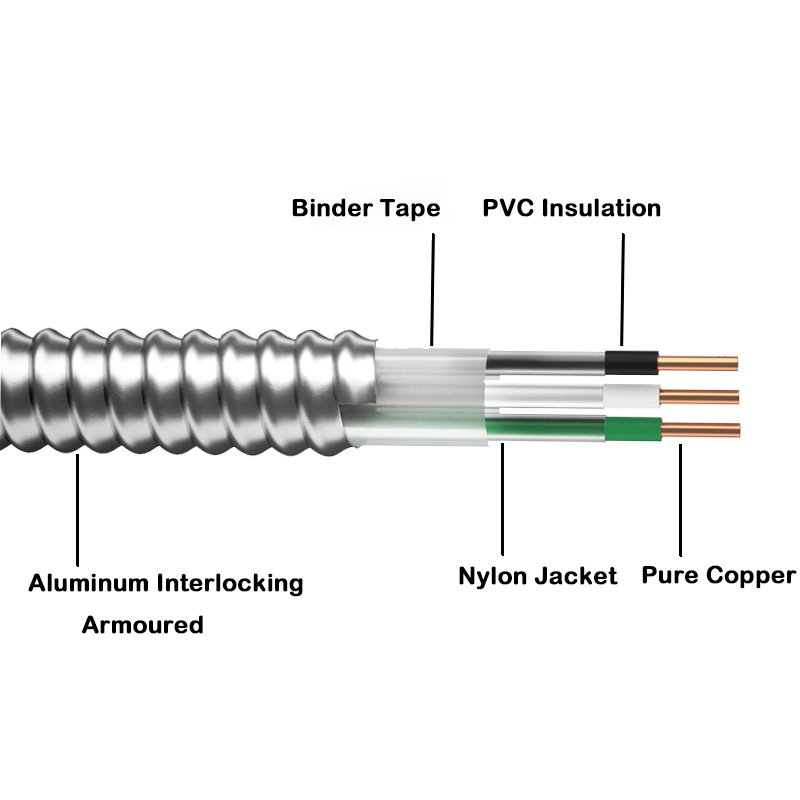

MC cable (metal-sheathed cable) is a common building cable consisting of multi-core insulated copper conductors, an independent grounding conductor, and an interlocking metal sheath. Its rated voltage is typically 600V. Its structure integrates conductor and mechanical protection, conforms to UL standards, and is suitable for fixed installation inside buildings.

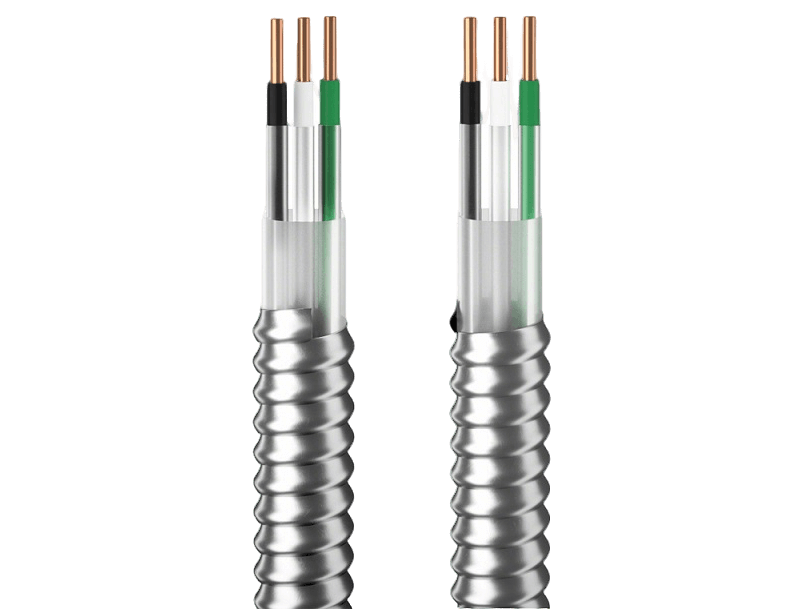

MC cable

MC Cable

Its structure integrates conductor and mechanical protection, conforms to UL standards, and is suitable for fixed installation inside buildings.

NM-B cable

Copper Conductors

NM-B cable

Rated Voltage Uo/U (Um) : 600V

NM-B cable

Insulated & Jacket：PVC &NYLON

NM-B cable

Standards

UL83 & UL1569 & CUL

NM-B CABLE

Armor : Aluminum Interlock Armor

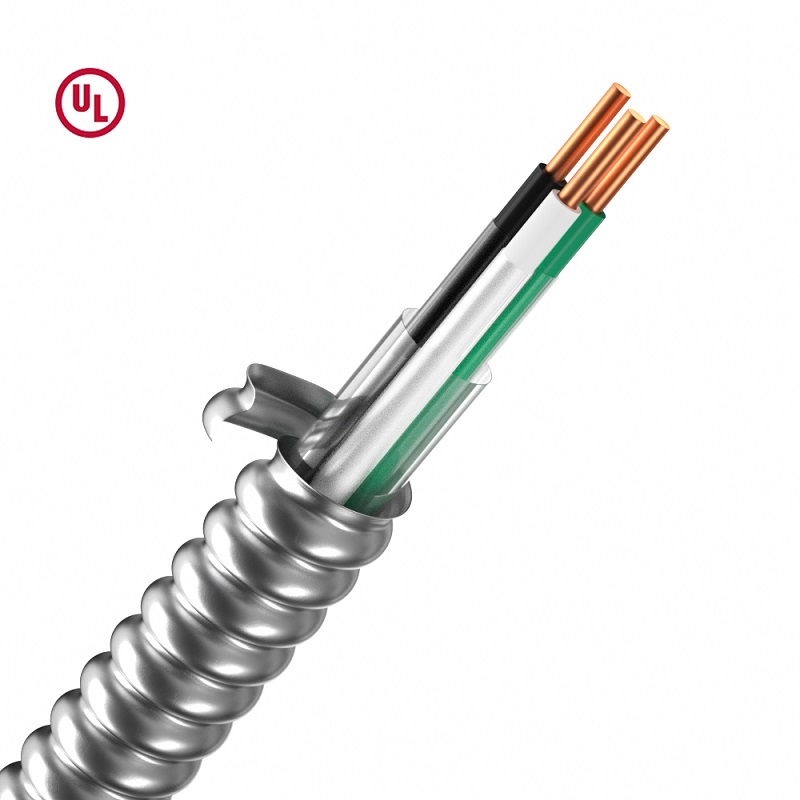

NM-B WIRE

Temperature range

75°C(wet)

90℃（dry）

Advantages of MC cable

MC cable possesses excellent current-carrying capacity and heat resistance. The outer metal sheath provides superior impact resistance, compression resistance, and flame retardancy, while also reducing external electromagnetic interference. Its overall structure is stable, suitable for long-term operation, and meets the safety and reliability requirements of building electrical systems.

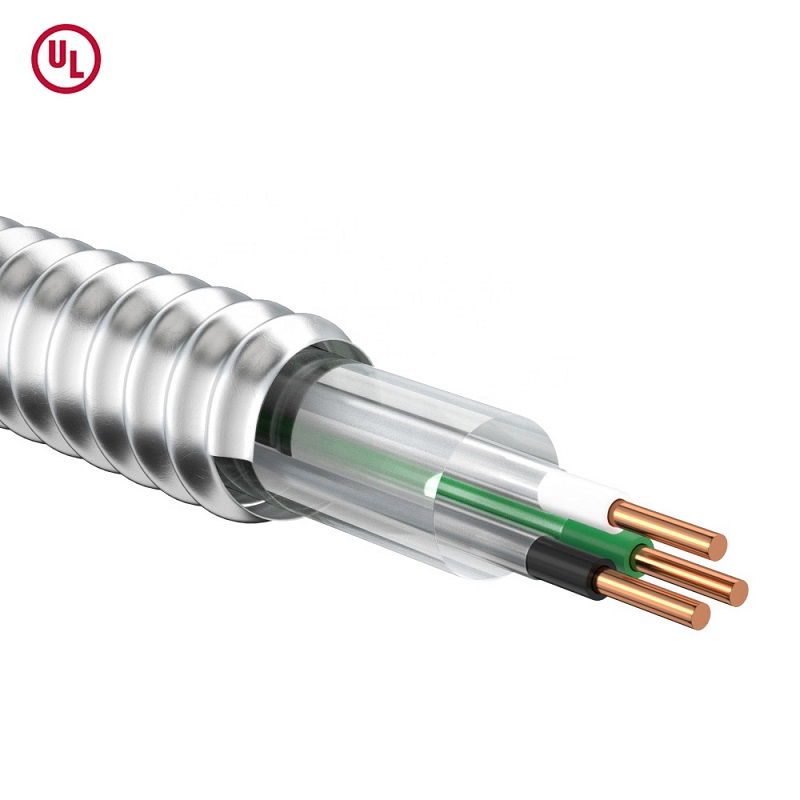

MC metal clad cable

Size AWG	Strands No./OD (mm)	PVC Insulation Average Thickness (mm)	Nylon Jacket Minimumn Thickness (mm)	Approx O.D (mm)	Max.DC Resistance (20℃,Ωkm) (Bare Copper)	Approx Weight （km/kg）
14/2+14/1	1/1.63	0.38	0.10	11.9	8.45	141.54
14/3+14/1	1/1.63	0.38	0.10	12.5	8.45	170.75
14/4+14/1	1/1.63	0.38	0.10	13.1	8.45	200.36
12/2+12/1	1/2.05	0.38	0.10	12.8	5.31	184.82
12/3+12/1	1/2.05	0.38	0.10	13.6	5.31	227.02
12/4+12/1	1/2.05	0.38	0.10	14.4	5.31	269.69
10/2+10/1	1/2.59	0.51	0.10	14.5	3.343	263.46
10/3+10/1	1/2.59	0.51	0.10	15.5	3.343	329.09
10/4+10/1	1/2.59	0.51	0.10	16.6	3.343	395.3
8/2+10/1	7/1.23 1/2.59	0.76/0.51	0.13/0.10	17.1	2.144/ 3.343	364.61
8/3+ 10/1	7/1.23 1/2.59	0.76/0.51	0.13/0.10	18.6	2.144/ 3.343	471.96
8/4+ 10/1	7/1.23 1/2.59	0.76/0.51	0.13/0.10	20.2	2.144/ 3.343	582.33
6/2+8/1	7/1.56 7/1.23	0.76/0.76	0.13/0.13	21.3	1.348/ 2.144	521.37
6/3+8/1	7/1.56 7/1.23	0.76/0.76	0.13/0.13	22.0	1.348/ 2.144	686.69
6/4+8/1	7/1.56 7/1.23	0.76/0.76	0.13/0.13	23.9	1.348/ 2.144	850
4/2+8/1	7/1.96 7/1.23	1.02/0.76	0.15/0.13	24.1	0.848/ 2.144	721.34
4/3+8/1	7/1.96 7/1.23	1.02/0.76	0.15/0.13	27.3	0.8481/ 2.144	1023.89
4/4+8/1	7/1.96 7/1.23	1.02/0.76	0.15/0.13	28.7	0.8481/ 2.144	1284.51
3/2+6/1	7/2.20 7/1.56	1.02/0.76	0.15/0.13	25.7	0.6727/1.348	944.59
3/3+6/1	7/2.20 7/1.56	1.02/0.76	0.15/0.13	28	0.6727/1.348	1258.36
3/4+6/1	7/2.20 7/1.56	1.02/0.76	0.15/0.13	30.6	0.6727/1.348	1575.69
2/2+6/1	7/2.47 7/1.56	1.02/0.76	0.15/0.13	27.4	0.5335/1.348	1097.85
2/3+6/1	7/2.47 7/1.56	1.02/0.76	0.15/0.13	30	0.5335/1.348	1478.98
2/4+6/1	7/2.47 7/1.56	1.02/0.76	0.15/0.13	32.8	0.5335/1.348	1867.82
1/2+6/1	19/1.69 7/1.56	1.27/0.76	0.18/0.13	30.9	0.4230/ 1.348	1334.92
1/3+6/1	19/1.69 7/1.56	1.27/0.76	0.18/0.13	33.9	0.4230/ 1.348	1816.76
1/4+6/1	19/1.69 7/1.56	1.27/0.76	0.18/0.13	37.2	0.4230/ 1.348	2314.28

Certification

MC cable is UL certified under report number E544860, complying with applicable safety and performance standards for metal-clad building cable. It is designed for fixed electrical installations, offering reliable electrical performance, mechanical protection, and code-compliant safety in commercial and industrial buildings.

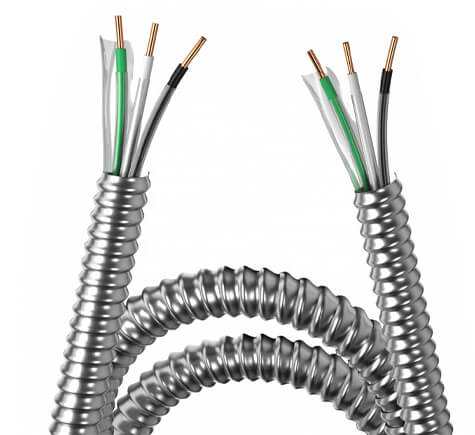

Metal Clad Cable

Environmental Resistance

EMI Shielding Performance

Flame Retardant Performance

UL Certificated

UL1569 MC cable certification

APPLICATIONS

MC cable is commonly used for branch power supply in commercial buildings such as office buildings, shopping malls, hospitals, and hotels. It is also widely used in equipment rooms, power distribution rooms, cable trays, and suspended ceiling spaces. In multi-family residences, it can be used for public areas and trunk cabling. In industrial buildings, it is suitable for fixed power supply and exposed installation, meeting high mechanical and fire protection requirements.

MC cable for Commercial Buildings

Commercial Buildings

MC cable is commonly used for lighting and socket branch wiring in office buildings, shopping malls and hotels. It can be installed in the open or concealed manner, meeting strict building electrical codes and fire protection requirements, while taking into account both safety and construction efficiency.

MC Cable for Industrial Plants

Industrial Facilities

In factories, equipment rooms, and production workshops, MC cables are suitable for power supply and distribution systems for fixed equipment. Their metal sheaths effectively resist mechanical shocks, making them suitable for complex or high-risk industrial environments.

MC Cable for Residential Building

Residential Building

MC cable is commonly used in common areas and trunk cabling of apartments and residential buildings, providing enhanced mechanical protection and fire resistance, and meeting the electrical safety and durability requirements of multi-family dwellings.

MC Cable for Cable Tray System

Cable Trays

MC cable can be laid directly in cable trays or ceilings without the need for additional metal conduits, offering flexible installation options and is commonly used for power distribution in concealed spaces in commercial buildings.

Customer Photos

Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

MC Cable Manufacturer

plant equipment

Geritel Wire is a professional UL wire manufacturer. Our cables are designed and manufactured strictly according to UL standards and are certified by international standards such as UL, cUL, and CSA. Every meter of cable meets safety specifications. Whether for residential, commercial, or industrial projects, UL wire can meet different voltage and temperature requirements, providing customers with reliable power transmission solutions.

MC Cable Manufacturer

Packaging Information

MC cables are typically packaged in three ways: coiled, small wooden reel, and large wooden reel.

MC wire coiled package

Coiled

MC Cable Wooden Reel Package

Small Wooden Reel

MC Cable Large Wooden Reel Packaging

Large Wooden Reel
