Rubber Flat Submersible Cable
Conductor：
Finely Stranded Bare Flexible Copper Conductor
Insulation：
EPR Rubber
Jacket：
Black \ Blue Heavy Duty EPR
Rated Voltage：
450/750 V
Temperature range：
-40℃ to +90°C
Standard：
IEC 245, CEI 20-19 & BS 6007, BS 6899
Description
Download
Conductor
Finely Stranded Bare Flexible Copper Conductor
Insulation and Sheath
EPR Rubber Insulation & Heavy Duty EPR Sheath
No. of Conductor
3 core / 4 core
Temperature Rating
-40℃ to 90℃
Submersible Cable

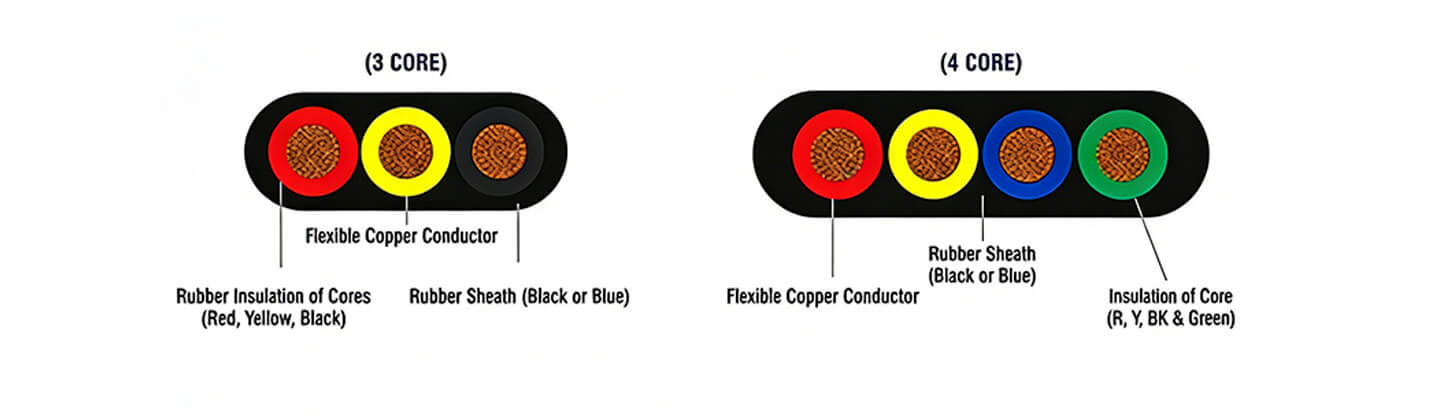

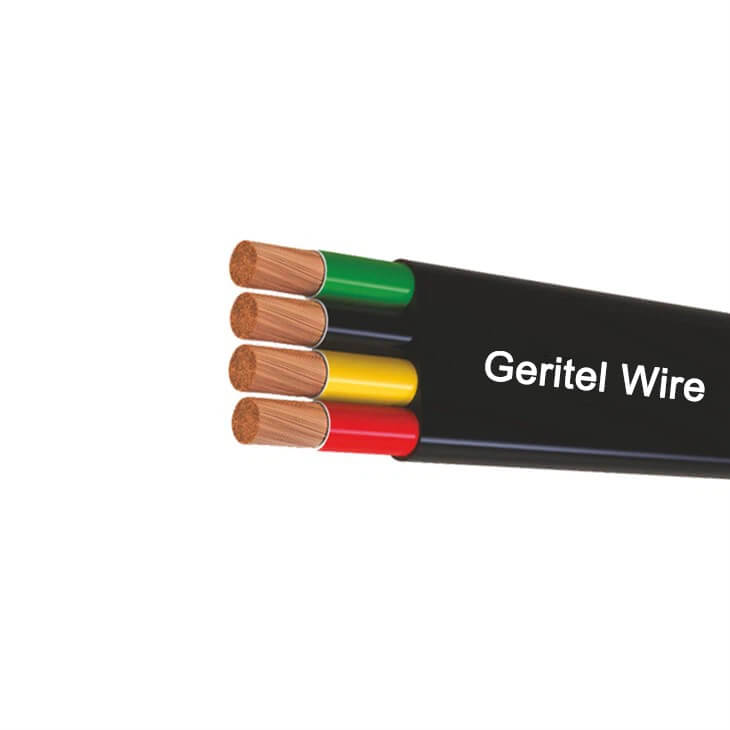

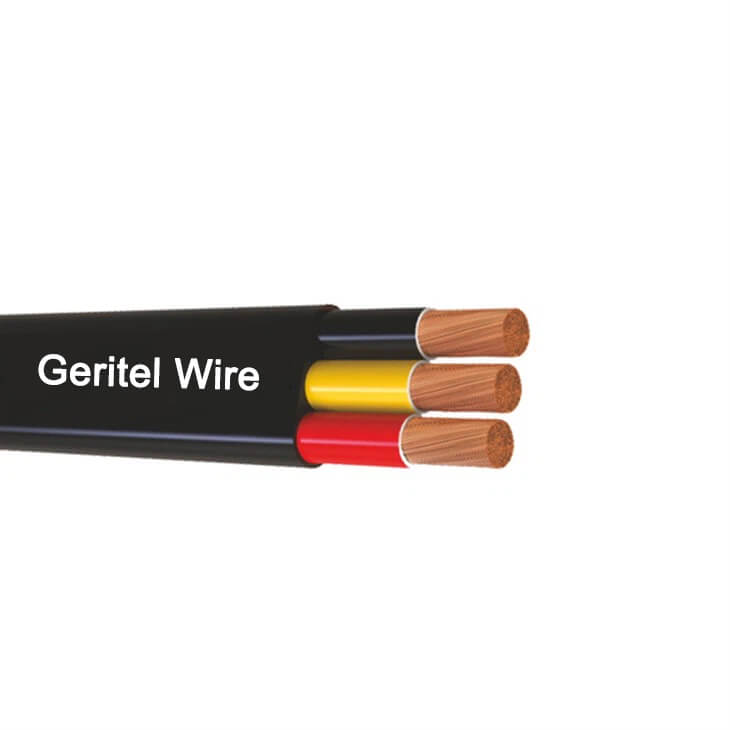

3 & 4 Core EPDM flat submersible cable features a flat design, allowing for more compact and flexible installation in boreholes or pump wells with 3 or 4 cores (AWG specification), while providing grounding protection (4 cores with a green grounding wire).
Flat Submersible Cable
Submersible cable offers excellent conductivity and long-term stable electrical performance, while facilitating installation in narrow boreholes or winding conduits.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 450/750 V
Insulated : EPR Rubber
Standards : IEC 245, CEI 20-19 & BS 6007, BS 6899
Outer Jacket : Black \ Blue Heavy Duty EPR
Temperature range ：-40℃ to 90℃
Advantages of cable
Submersible cable is a high-performance power cable specifically designed for submersible pumps and water treatment systems. It uses highly flexible bare copper conductors covered with EPDM rubber insulation, with a temperature range of -40°C to +90°C. It exhibits excellent resistance to water, moisture, and chemical corrosion, enabling safe operation in continuous immersion or humid environments.
| No. of Cores | Conductor Size | Nos and Dia.of Wire | Ground Conductor Size | Core Dia. | Nominal Sheath Thickness | Cable Overall Dimension |
| (AWG) | (Nos. x mm) | (mm) | (mm) | (mm) | (mm) | |
| 3 | 14 | 41x0.254 | — | 3.85 | 1.15 | 14.60x6.40 |
| 3 | 12 | 65x0.254 | — | 4.5 | 1.15 | 16.80x7.40 |
| 3 | 10 | 105x0.254 | — | 5.3 | 1.15 | 18.70x7.90 |
| 3 | 8 | 168x0.254 | — | 6.5 | 1.4 | 23.70x9.90 |
| 3 | 6 | 226x0.254 | — | 8 | 1.4 | 28.00x11.40 |
| 3 | 4 | 420x0.254 | — | 10.1 | 2 | 35.50x14.70 |
| 3 | 2 | 665x0.254 | — | 11.3 | 2 | 35.50x16.20 |
| 3 | 1 | 817x0.254 | — | 13.6 | 2.2 | 45.50x18.30 |
| 3 | 1/0 | 1045x0.254 | — | 13.6 | 2.2 | 45.50x18.30 |
| 3 | 2/0 | 1330x0.254 | — | 15.6 | 2.2 | 51.00x20.00 |
| 3 | 3/0 | 1672x0.254 | — | 18 | 2.4 | 60.00x23.50 |
| 3 | 4/0 | 2116x0.254 | — | 19.8 | 2.65 | 65.00x25.00 |
| 3 | 250MCM | 2503x0.254 | — | 20.6 | 2.8 | 68.00x28.00 |
| 4 | 14 | 41x0.254 | 14 | 3.85 | 1.15 | 18.00x6.50 |
| 4 | 12 | 65x0.254 | 12 | 4.5 | 1.15 | 21.00x7.60 |
| 4 | 10 | 105x0.254 | 10 | 5.3 | 1.15 | 24.30x7.90 |
| 4 | 8 | 168x0.254 | 10 | 6.5 | 1.4 | 29.70x9.90 |
| 4 | 6 | 266x0.254 | 8 | 8 | 2 | 36.00x11.80 |
| 4 | 4 | 420x0.254 | 8 | 10.1 | 2 | 45.10x14.70 |
| 4 | 2 | 665x0.254 | 6 | 11.3 | 2.2 | 50.10x16.20 |
| 4 | 1 | 817x0.254 | 6 | 13.6 | 2.2 | 58.10x19.00 |
| 4 | 1/0 | 1045x0.254 | 6 | 13.6 | 2.2 | 58.10x19.00 |
| 4 | 2/0 | 1330x0.254 | 4 | 15.6 | 2.2 | 66.50x21.50 |
| 4 | 3/0 | 1672x0.254 | 2 | 18 | 2.65 | 77.30x23.50 |
| 4 | 4/0 | 2116x0.254 | 2 | 19.8 | 3.85 | 87.00x27.80 |
Certification
cable has passed multiple international certifications. The cable meets stringent industry requirements in material selection, structural design, and manufacturing processes.
Highly Flexible
Water-Resistant
Heavy-Duty Construction
Multiple Certificated
APPLICATIONS
With its water resistance, oil resistance, and resistance to mechanical damage, submersible cable is widely used in various scenarios such as deep well submersible pumps, irrigation systems, industrial drainage, building water pumps, and environmental water treatment, providing safe and stable power supply for submersible pump motors.
Deep Well Submersible Pump
Submersible cable can be used for extended periods of immersion in deep well water environments. EPDM rubber insulation and sheath provide excellent water and pressure resistance, ensuring a stable power supply to the deep well submersible pump motor.
Agricultural
In agricultural irrigation and groundwater extraction applications, the cable can withstand wet soil and frequent start-stop conditions, maintaining reliable electrical performance and service life.
Water Drainage
In urban water supply and wastewater treatment systems, this submersible pump cable supports continuous operation, meeting the engineering requirements for long-term stable power supply and safe operation.
Water Treatment
Submersible cable maintains good insulation performance in high humidity and highly corrosive environments, making it suitable for power connections of wastewater pumps and circulating pumps.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. We have established a comprehensive quality management system, from raw material inspection and process control to finished product testing. Every process has clear standards and records, ensuring that every batch of wires and cables meets technical specifications and customer requirements.
Packaging Information
Submersible cables are typically offered in three packaging options: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
