PVC Round Submersible Cable
Conductor：
Bare Copper Conductor
Insulation：
PVC
Jacket：
PVC
Rated Voltage：
0.6/1kV
Temperature range：
-15°C to +70°C
Standard：
IEC 60227, BS 6500, DIN VDE 0281, IS 694
Description
Download
Conductor
Finely Stranded Bare Flexible Copper Conductor
Insulation and Sheath
PVC Insulation & PVC Sheath
No. of Conductor
3 core / 4 core
Temperature Rating
-15°C to +70°C

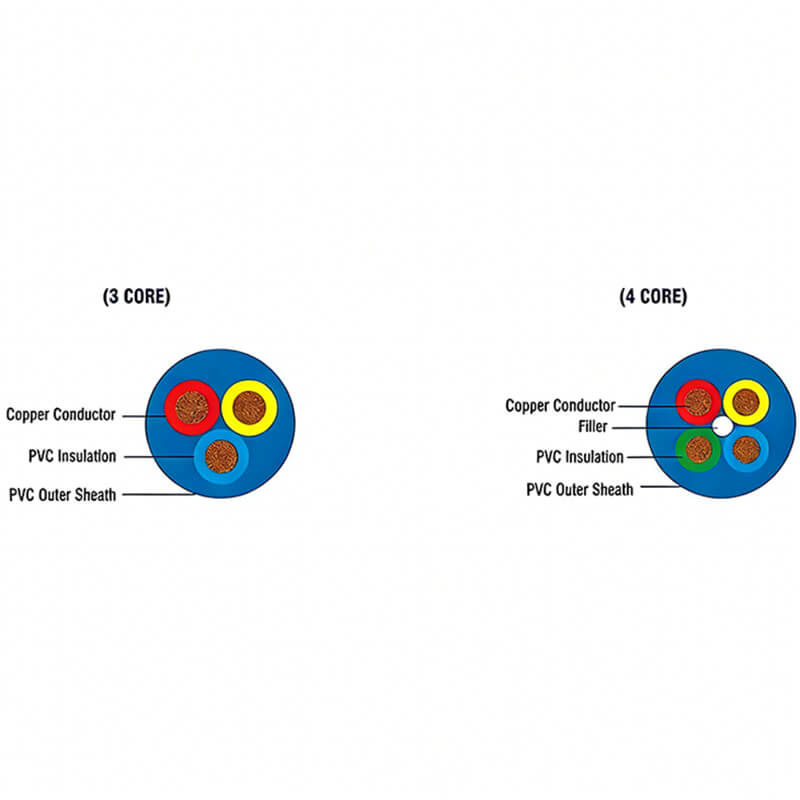

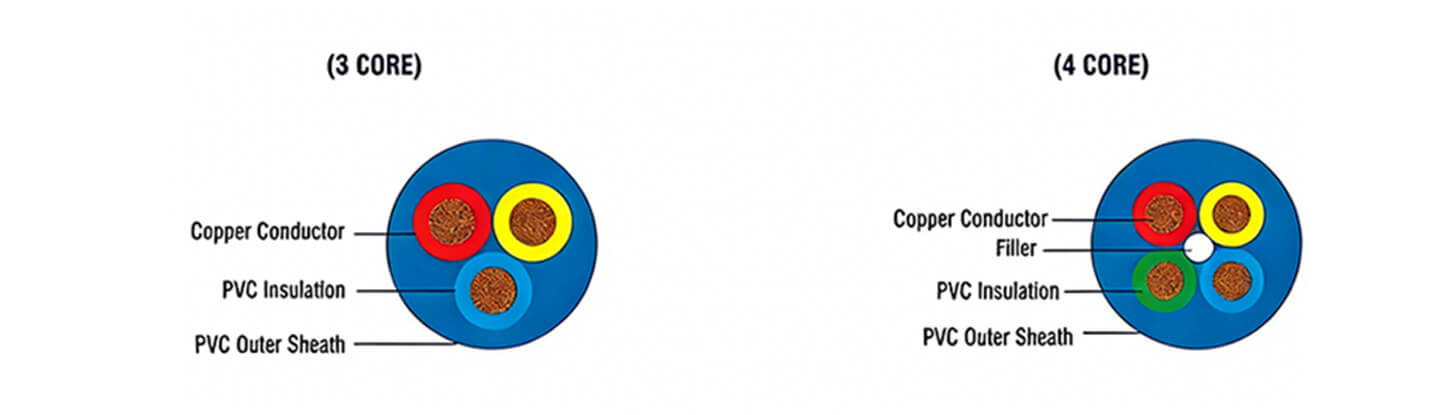

Submersible Cable
Submersible cables are available in 3 & 4 core specifications, with voltage ratings up to 0.6/1kV and an operating temperature range typically from −15°C to +70°C, ensuring safety in both high and low temperature environments.
round Submersible Cable
PVC submersible round cables are high-performance power cables specifically designed for underwater and humid environments, widely used in various submersible pumps, irrigation systems, industrial water supply and drainage projects.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 0.6/1kV
Insulated : PVC
Standards : IEC 60227, BS 6500, DIN VDE 0281, IS 694
Outer Jacket : PVC
Temperature range ：-15°C to +70°C
Advantages of cable
Round submersible cables is high-quality multi-strand soft copper conductors, offering strong conductivity and excellent flexibility. The conductor surface is covered with a water-resistant and corrosion-resistant PVC insulation layer, effectively preventing the intrusion of moisture, grease, and chemicals. The outer sheath is also made of high-strength PVC material, resistant to wear and aging, and can withstand the mechanical tension and vibration generated by the long-term operation of submersible pumps.
| No. of Cores | Conductor | Rubber Insulation | Rubber Sheath | Approx. Overall Dimensions | Conductor Resistance at 20°C(max) | |
| Nominal Area in Sq.mm. | Nos. & Dia of wire Nos./mm. |
Nominal Thickness (in mm) |
Nominal Thickness (in mm) |
(in mm) | ohms/km | |
| 3 | 1.5 | 22/0.30 | 0.8 | 1.6 | 10.2 | 12.1 |
| 3 | 2.5 | 36/0.30 | 0.9 | 1.8 | 11.9 | 7.41 |
| 3 | 4 | 56/0.30 | 1 | 1.9 | 13.5 | 4.95 |
| 3 | 6 | 84/0.30 | 1 | 2.1 | 15.6 | 3.3 |
| 3 | 10 | 140/0.30 | 1.2 | 3.3 | 20.6 | 1.91 |
| 3 | 16 | 226/0.30 | 1.2 | 3.5 | 24.2 | 1.21 |
| 3 | 25 | 354/0.30 | 1.4 | 3.8 | 29.1 | 0.78 |
| 3 | 35 | 490/0.30 | 1.4 | 4.1 | 32.1 | 0.554 |
| 3 | 50 | 703/0.30 | 1.6 | 4.5 | 38.1 | 0.386 |
| 3 | 70 | 988/0.30 | 1.4 | 4.8 | 42.3 | 0.272 |
| 3 | 95 | 1349/0.30 | 1.8 | 5.3 | 49.1 | 0.206 |
| 4 | 1.5 | 22/0.30 | 0.8 | 1.7 | 11.2 | 12.1 |
| 4 | 2.5 | 36/0.30 | 0.9 | 1.9 | 13 | 7.41 |
| 4 | 4 | 56/0.30 | 1 | 2 | 14.9 | 4.95 |
| 4 | 6 | 84/0.30 | 1 | 2.3 | 17.5 | 3.3 |
| 4 | 10 | 140/0.30 | 1.2 | 3.4 | 22.6 | 1.91 |
| 4 | 16 | 224/0.30 | 1.2 | 3.6 | 27.1 | 1.21 |
| 4 | 25 | 350/0.30 | 1.4 | 4.1 | 32.7 | 0.78 |
| 4 | 35 | 490/0.30 | 1.4 | 4.4 | 36.2 | 0.554 |
| 4 | 50 | 703/0.30 | 1.6 | 4.8 | 42.3 | 0.386 |
| 4 | 70 | 988/0.30 | 1.6 | 5.2 | 48.2 | 0.272 |
| 4 | 95 | 1349/0.30 | 1.8 | 5.9 | 55.6 | 0.206 |
Certification
cable has passed multiple international certifications. The cables have passed rigorous electrical safety tests, including withstand voltage testing, insulation resistance testing, and immersion performance verification.
Highly Flexible
Water-Resistant
Oil Resistant
Multiple Certificated
APPLICATIONS
PVC submersible round cables can be directly buried underground or used in wells, pumping stations, and pools. They are suitable for agricultural irrigation, domestic and industrial water supply systems, as well as various submersible pumps, deep well pumps, and sewage pump projects, providing users with reliable and durable power transmission solutions.
Deep Well Submersible Pumps
PVC submersible round cables are commonly used for power connections in deep well submersible pumps. They can operate submerged in water for extended periods, stably transmitting power to the motor.
Agricultural Irrigation
In farmland irrigation projects, this cable connects submersible pumps to wells. Its water-resistant and abrasion-resistant PVC sheath allows it to withstand moist soil and prolonged outdoor environments.
Fountains
In landscape fountains and artificial water features, PVC Submersible Cables can be safely concealed underwater, providing continuous power to the pump while maintaining good flexibility and safety.

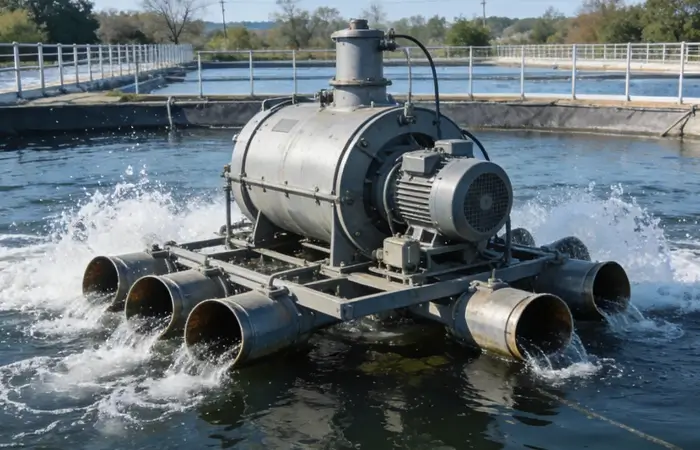

Aquaculture Aeration
Used to power aerators and circulation pumps in fishponds and aquaculture systems, the water-resistant PVC structure can withstand long-term damp and underwater environments, reducing maintenance frequency.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. With a mature production and quality control system, our wires and cables have served over 80 countries and regions, and we are familiar with the product specifications, certifications, and packaging and labeling requirements of different countries.
Packaging Information
Submersible cables are typically offered in three packaging options: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
