PVC Flat Submersible Cable
Conductor：
Bare Copper Conductor
Insulation：
PVC Insulation
Jacket：
PVC Sheath
Rated Voltage：
450/750 V
Temperature range：
-15°C to +70°C
Standard：
IEC 60227, BS 6500, DIN VDE 0281, IS 694, UL 83
Description
Download
Conductor
Annealed Bare Copper Conductor According to IS 8130, BS 6360, IEC 228 & VDE 0295
Insulation and Sheath
PVC Insulation & PVC Sheath
No. of Conductor
3 core / 4 core
Temperature Rating
-15°C to +70°C
Submersible Cable

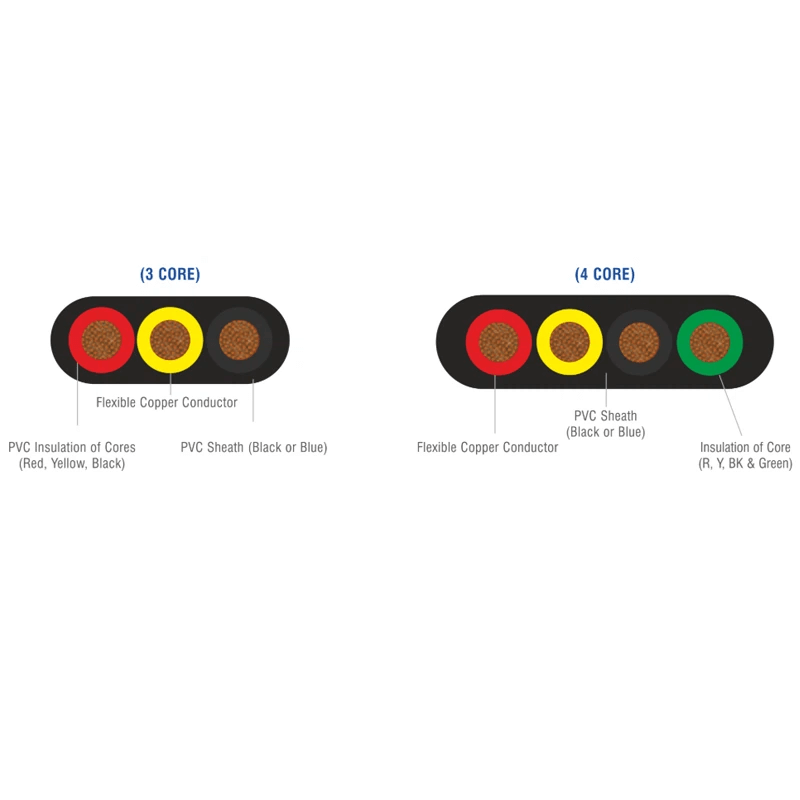

Submersible cables are commonly available in 3 core or 4 core configurations. 4 core cables include a grounding conductor for applications requiring higher safety. The long-term permissible operating temperature is generally -15 °C to +70 °C.
Flat Submersible Cable
PVC submersible flat cable is a flat power cable suitable for installation in humid, underwater, or well environments.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 450/750 V
Insulated : PVC
Standards : IEC 60227, BS 6500, DIN VDE 0281, IS 694, UL 83
Outer Jacket : PVC
Temperature range ：-15°C to +70°C
Advantages of cable
Submersible cables typically use high-purity annealed soft copper conductors, offering excellent flexibility and conductivity. Each conductor is insulated with high-quality PVC and encased in a water-resistant, abrasion-resistant PVC outer sheath, effectively preventing moisture penetration, mechanical wear, and common oil contamination.
| No. of Cores | Conductor Size | Nos and Dia.of wire | Ground Conductor Size | Core Dia. | Nominal Sheath Thickness | Cable Overall Dimension |
| (AWG) | (Nos.x mm) | (mm) | (mm) | (mm) | (mm) | |
| 3 | 14 | 41x0.254 | — | 3.6 | 1.15 | 13.30x6.20 |
| 3 | 12 | 65x0.254 | — | 4.3 | 1.15 | 15.60x7.00 |
| 3 | 10 | 105x0.254 | — | 5.1 | 1.15 | 17.70x7.40 |
| 3 | 8 | 168x0.254 | — | 6.3 | 1.4 | 22.30x9.30 |
| 3 | 6 | 226x0.254 | — | 7.6 | 1.4 | 26.30x10.80 |
| 3 | 4 | 420x0.254 | — | 9.9 | 2 | 32.30x13.10 |
| 3 | 2 | 665x0.254 | — | 11.1 | 2 | 35.90x14.30 |
| 3 | 1 | 817x0.254 | — | 13.6 | 2.2 | 45.50x18.30 |
| 3 | 1/0 | 1045x0.254 | — | 13.6 | 2.2 | 45.50x18.30 |
| 3 | 2/0 | 1330x0.254 | — | 15.6 | 2.2 | 51.00x21.00 |
| 3 | 3/0 | 1672x0.254 | — | 18 | 2.4 | 61.00x23.500 |
| 3 | 4/0 | 2116x0.254 | — | 19.8 | 2.65 | 65.00x25.20 |
| 3 | 250MCM | 2503x0.254 | — | 20.6 | 2.8 | 68.00x28.00 |
| 4 | 14 | 41x0.254 | 14 | 3.85 | 1.15 | 18.00x6.50 |
| 4 | 12 | 65x0.254 | 12 | 4.5 | 1.15 | 21.00x7.60 |
| 4 | 10 | 105x0.254 | 10 | 5.3 | 1.15 | 24.30x7.90 |
| 4 | 8 | 168x0.254 | 10 | 6.5 | 1.4 | 29.70x9.90 |
| 4 | 6 | 226x0.254 | 8 | 8 | 2 | 36.00x11.80 |
| 4 | 4 | 420x0.254 | 8 | 10.1 | 2 | 45.10x14.70 |
| 4 | 2 | 665x0.254 | 6 | 11.3 | 2.2 | 50.10x16.20 |
| 4 | 1 | 817x0.254 | 6 | 13.6 | 2.2 | 58.10x19.00 |
| 4 | 1/0 | 1045x0.254 | 6 | 13.6 | 2.2 | 58.10x19.00 |
| 4 | 2/0 | 1330x0.254 | 4 | 15.6 | 2.2 | 66.50x21.50 |
| 4 | 3/0 | 1672x0.254 | 2 | 18 | 2.65 | 77.30x23.50 |
| 4 | 4/0 | 2116x0.254 | 2 | 19.8 | 3.85 | 87.00x27.80 |
Certification
Submersible cable has passed multiple international certifications. They pass withstand voltage tests, insulation resistance tests, aging tests, and immersion tests, ensuring long-term safe and stable operation in underwater environments.
Highly Flexible
Water-Resistant
Heavy-Duty Construction
Multiple Certificated
APPLICATIONS
PVC submersible flat cable is primarily used to provide stable power connections for various submersible pumps and underwater motors, and is particularly suitable for fixed installations in humid, underwater, or high-humidity environments.
Deep Well Submersible Pumps
Powered by submersible pump motors for deep wells and drilling. The flat design facilitates vertical installation along the pump body, reducing torsion within the wellbore and ensuring long-term stable operation.
Agricultural Irrigation
Widely used in agricultural wells and irrigation pumps, providing reliable power for continuously operating pumping stations. Suitable for humid and open-air environments.

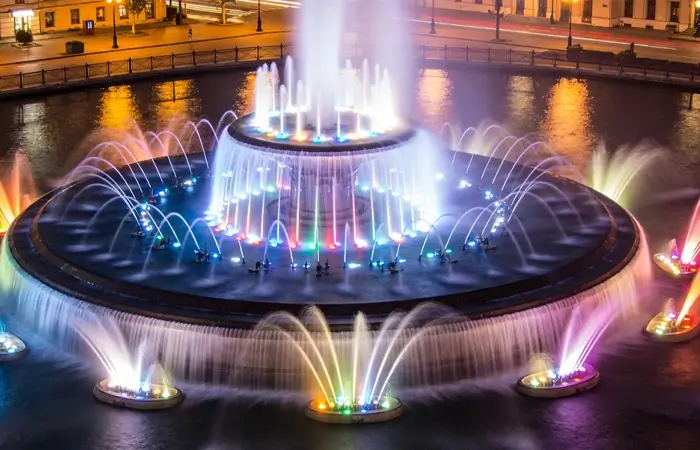

Fountains
Suitable for powering landscape fountains and artificial water features. The flexible cable facilitates concealed installation while meeting moisture-proof requirements.

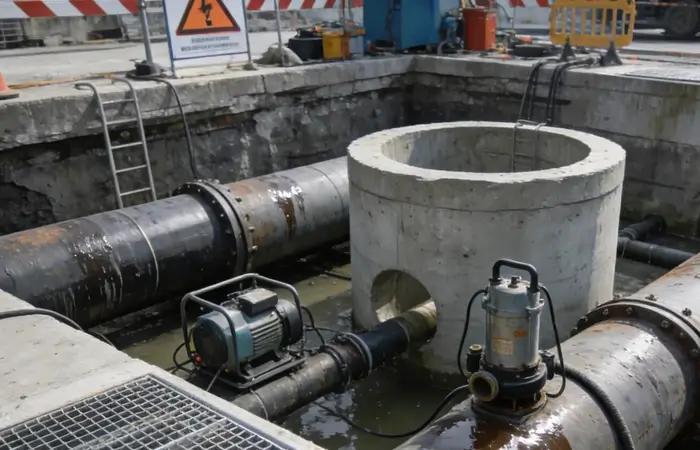

Industrial Dewatering Pumps
Suitable for drainage pumps in factories, underground facilities, and equipment pits, providing a stable power connection for moderate mechanical stress conditions.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. We support a variety of customization needs, including conductor structure, insulation materials, color, printing content, and packaging methods, flexibly matching different national standards and project applications.
Packaging Information
Submersible cables are typically offered in three packaging options: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
