Single Core Silicone Wire
Conductor：
Tinned copper
Insulation：
Silicon
Rated Voltage：
600V
Standard：
UL3135/UL3239/VW-1
Temperature Range：
-60 ℃~200 ℃
Description
Download
Conductor
Tinned copper
Insulation
Silicon
No. of Conductor
Single core
Temperature Rating
-60 ℃~200 ℃

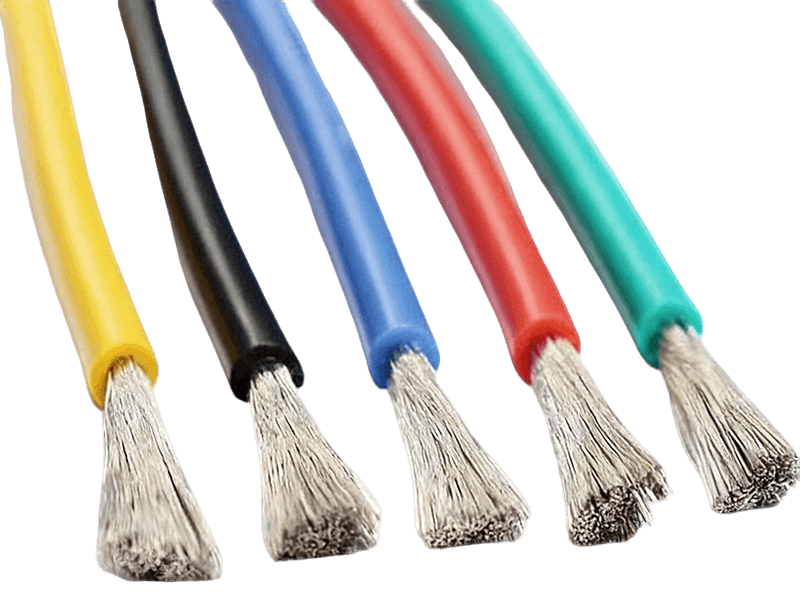

Single Core silicone wire

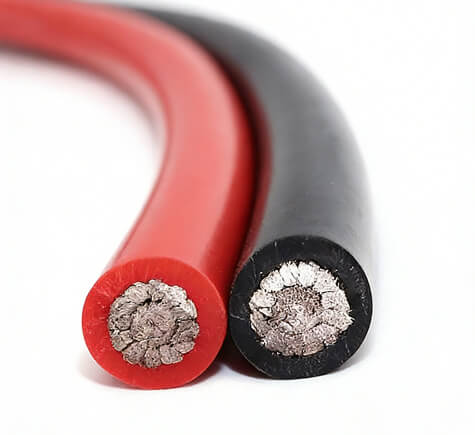

Single core silicone cable is a single-core cable consisting of a single highly flexible conductor and a high-temperature resistant silicone insulation layer. It is suitable for various industrial and civil electrical systems.

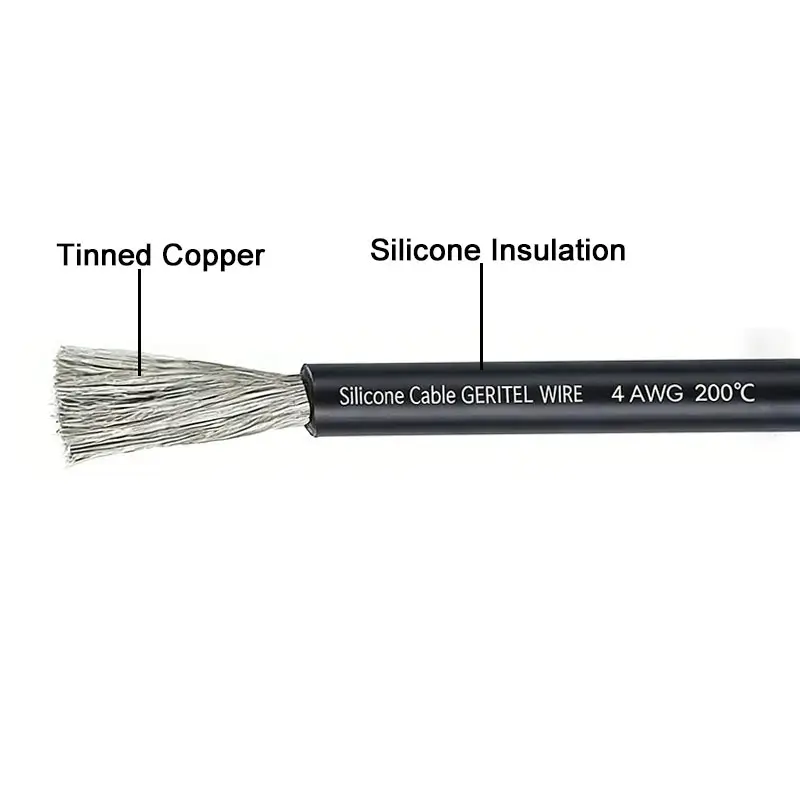

silicone wire
Single core silicone cables use high-quality silicone as insulation, offering excellent high and low temperature resistance (typically operating stably in the range of -60°C to +200°C), good electrical insulation strength, and voltage withstand capability.
Conductors ：Tinned copper
Rated Voltage Uo/U (Um) ：600V
Insulated：Silicon
Standard：UL3135/UL3239/VW-1
Rated voltage : 600V
Temperature range : -60 ℃~200 ℃

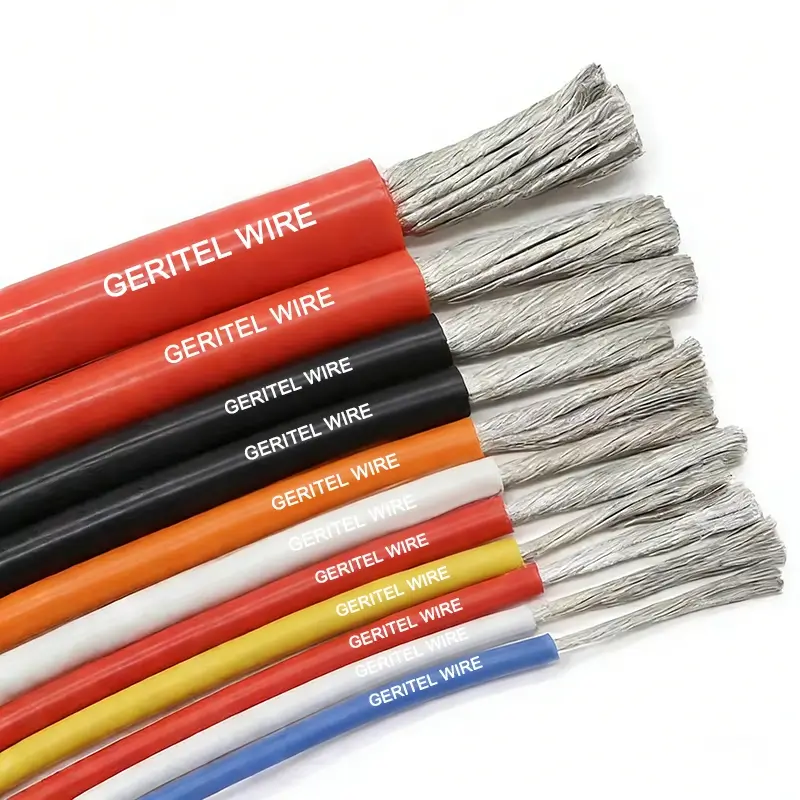

Advantages of silicone wire
Single core silicone cables can withstand extreme temperatures and have extremely high flexibility and resistance to repeated bending; the silicone insulation layer is resistant to aging and has excellent chemical corrosion resistance and UV resistance; the simple single-core structure facilitates fixed cabling and directional power transmission.
| Conductor | Insulator | Electrical Characteristics | Maximum Current | Package | ||||
| Size | No.& Nominal / Diameter of Wire | Section | Diameter | Insulator Thick | Over Diameter | Conductor Resistance | Ampere | |
| awg | mm | mm2 | mm | mm | mm | km | A | Meter/Roll |
| 0 | 19000/0.08mm | 95.5 | 12.73 | 2.64 | 18 | 0.18 | 955 | 50 |
| 1 | 15000/0.008mm | 75 | 11.3 | 2.3 | 15.5 | 0.45 | 840 | 50 |
| 2 | 100000/0.008mm | 50 | 9.24 | 2.4 | 14 | 0.63 | 630 | 50 |
| 3 | 6700/0.008mm | 33.7 | 7.73 | 2.6 | 13 | 0.89 | 500 | 50 |
| 4 | 5000/0.008mm | 25 | 6.53 | 2.4 | 11 | 1.25 | 400 | 50 |
| 6 | 3200/0.008mm | 16 | 5.23 | 1.65 | 8.5 | 1.9 | 300 | 100 |
| 7 | 2400/0.008mm | 12 | 4.53 | 1.35 | 7.2 | 2.6 | 240 | 100 |
| 8 | 1650/0.008mm | 8.3 | 3.75 | 1.5 | 6.3 | 3.7 | 190 | 100 |
| 10 | 1050/0.008mm | 5.3 | 3 | 1.3 | 5.45 | 6.3 | 140 | 100 |
| 11 | 750/0.008mm | 3.8 | 2.53 | 1.2 | 5 | 8.3 | 1.05 | 100 |
| 12 | 680/0.008mm | 3.4 | 2.41 | 1 | 4.5 | 9.8 | 88 | 100 |
| 13 | 500/0.008mm | 2.5 | 2.07 | 1 | 4 | 12.5 | 70 | 100 |
| 14 | 400/0.008mm | 2 | 1.85 | 0.9 | 3.5 | 15.6 | 55 | 200 |
| 15 | 300/0.008mm | 1.5 | 1.6 | 0.8 | 3.2 | 20.8 | 42 | 200 |
| 16 | 252/0.008mm | 1.27 | 1.47 | 0.75 | 3 | 24.4 | 35 | 200 |
| 17 | 210/0.008mm | 1 | 1.33 | 0.68 | 2.7 | 29.8 | 30 | 200 |
| 18 | 150/0.008mm | 0.75 | 1.33 | 0.55 | 2.3 | 39.5 | 22 | 200 |
| 20 | 100/0.008mm | 0.5 | 0.92 | 0.45 | 1.8 | 62.5 | 13 | 400 |
| 22 | 60/0.008mm | 0.3 | 0.72 | 0.45 | 1.7 | 88.6 | 8 | 400 |
| 24 | 40/0.008mm | 0.2 | 0.58 | 0.5 | 1.6 | 97.6 | 5 | 400 |
| 26 | 30/0.008mm | 0.16 | 0.51 | 0.5 | 1.5 | 123 | 3.5 | 400 |
| 28 | 16/0.008mm | 0.08 | 0.37 | 0.4 | 1.2 | 227.2 | 1.25 | 1500 |
| 30 | 11/0.008mm | 0.055 | 0.31 | 0.3 | 0.8 | 331 | 0.8 | 2500 |
Certification
Single core silicone cable has passed multiple international certifications. and has passed the VW-1 flame retardancy test, certifying that it meets stringent international application requirements in terms of high temperature resistance, electrical safety, and flame retardancy.
Flexibility
Temperature Resistance
Weather Resistance
UL3135/UL3239/VW-1
APPLICATIONS
Single core silicone cables are widely used in home appliances, lighting systems, automated machinery, control cabinet internal wiring, new energy equipment, automotive electronics, and other electrical systems requiring high temperatures, frequent bending, or long-term stable operation.
Household Appliances
Silicone wire is widely used for internal connections in high-temperature appliances such as ovens, microwave ovens, and induction cookers. It maintains stable insulation and good flexibility even under sustained high temperatures.
Industrial
In motors, transformers, and reactors, silicone wire can withstand the high temperatures near the windings, making it suitable for industrial equipment with high heat loads and long operating times.
LED Lighting
Silicone wire is commonly used for internal wiring in LED drivers and lamps. It is heat-resistant and does not age, preventing the insulation layer from hardening or cracking due to lamp body heat.
Medical Equipment
Silicone wire offers excellent flexibility and safety, making it suitable for internal wiring in medical instruments, diagnostic equipment, and heating-related medical devices.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire & cable manufacturer. We possess a mature and complete production system, independently handling every step from copper wire drawing, stranding, and extrusion to finished product testing. We provide global customers with stable quality wires and cables and reliable cable solutions.
Packaging Information

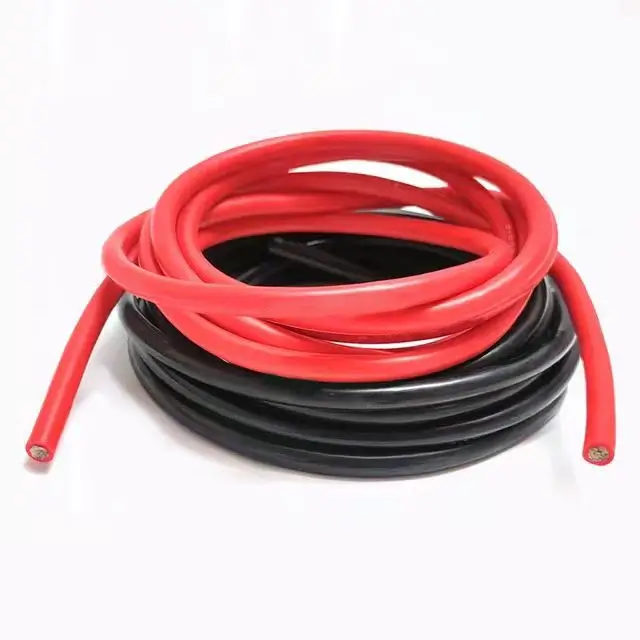

Silicone cables are typically packaged in coils, either plastic reel or wooden reel. The specific packaging method depends on the cable's size and length.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
