Parallel Silicone Cable
Conductor：
Tinned Copper
Insulation：
Silicone Rubber
Rated Voltage：
600V
Standard：
UL Certified
Temperature range：
-60℃ ~ 200℃
Description
Download
Conductor
Tinned Copper
Insulation
Silicone Rubber
No. of Conductor
2 cores
Temperature Rating
-60℃ ~ 200℃

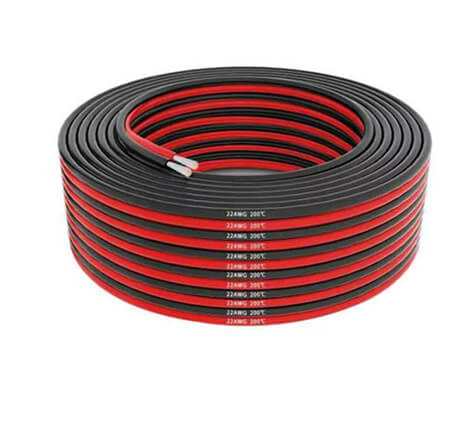

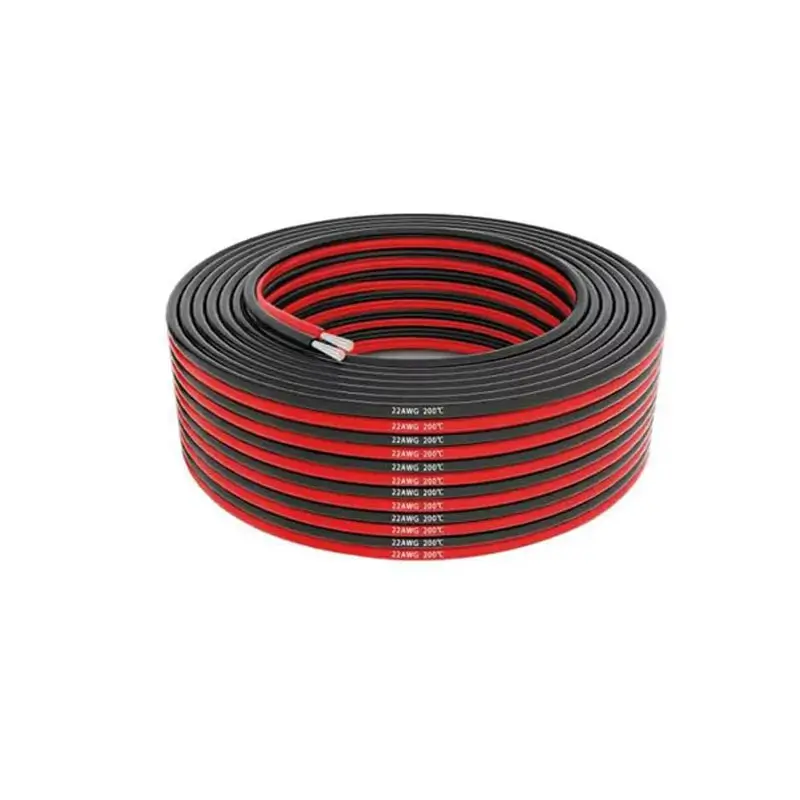

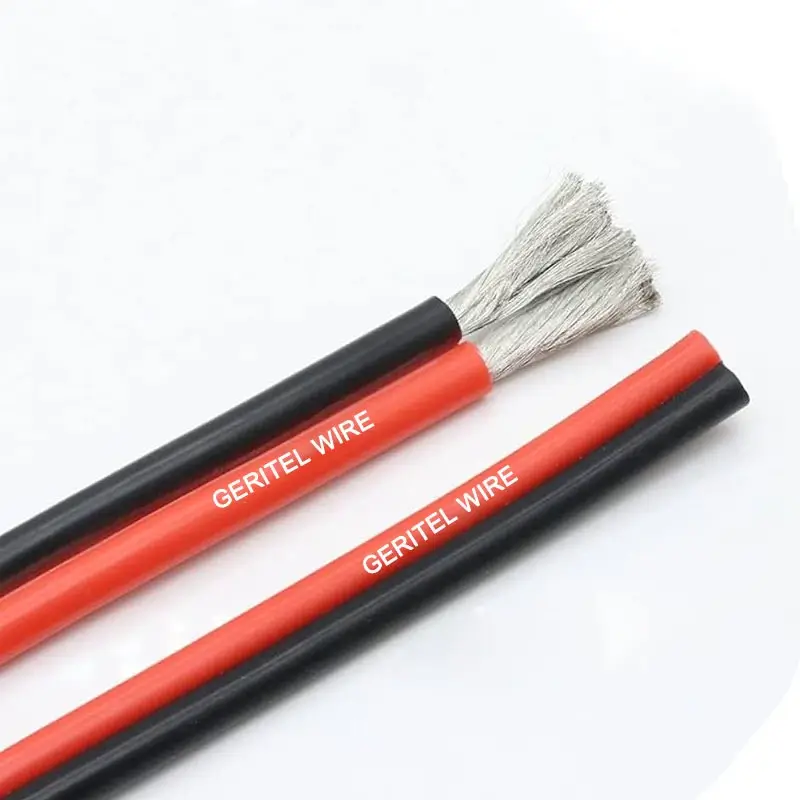

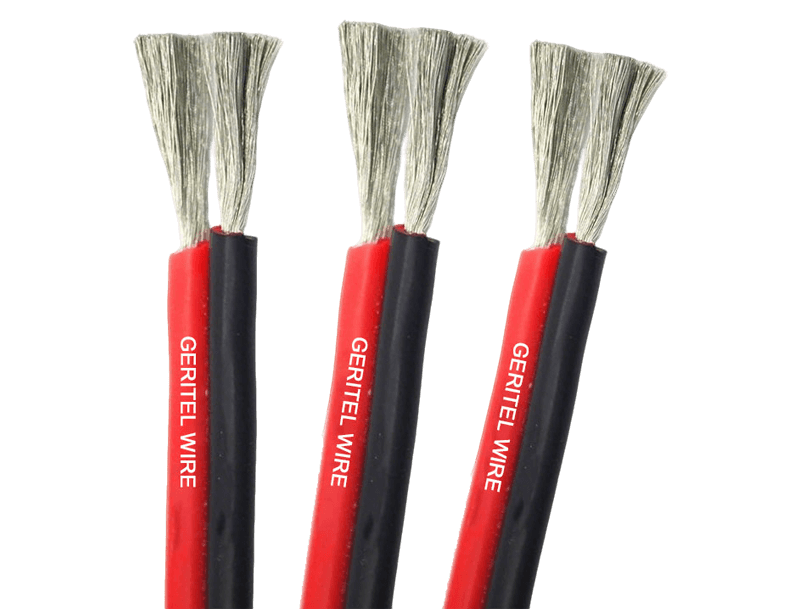

Parallel Silicone Cable
Parallel Silicone Wire is a highly flexible silicone wire consisting of two parallel conductors with a tinned copper stranded structure and insulation made of high and low temperature resistant silicone rubber. This cable offers wide temperature tolerance, meeting the electrical transmission needs of harsh environments, and is available in red/black color options for easy power polarity identification.
Parallel Silicone Cable

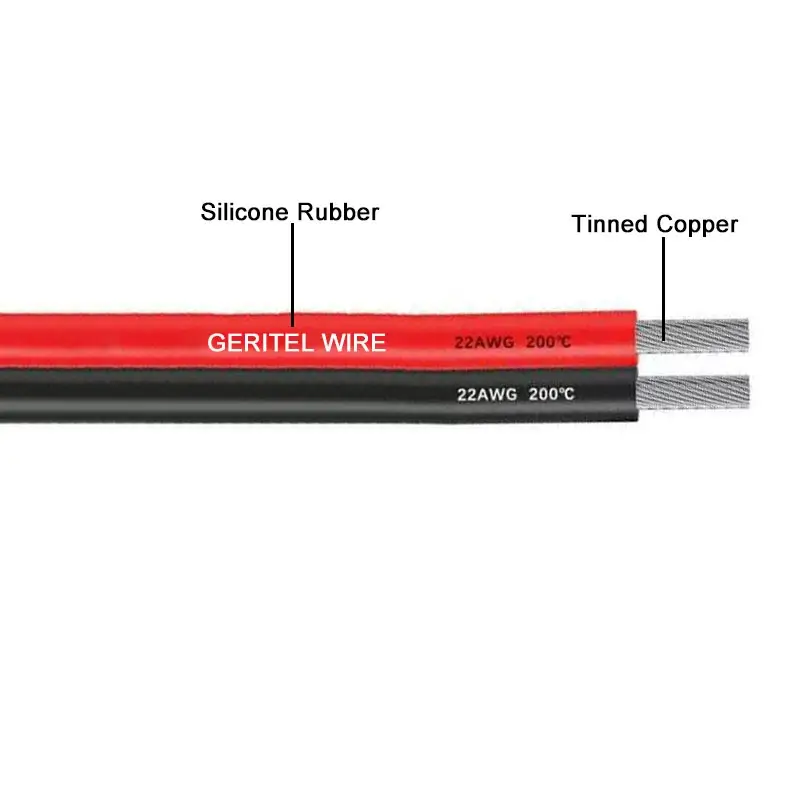

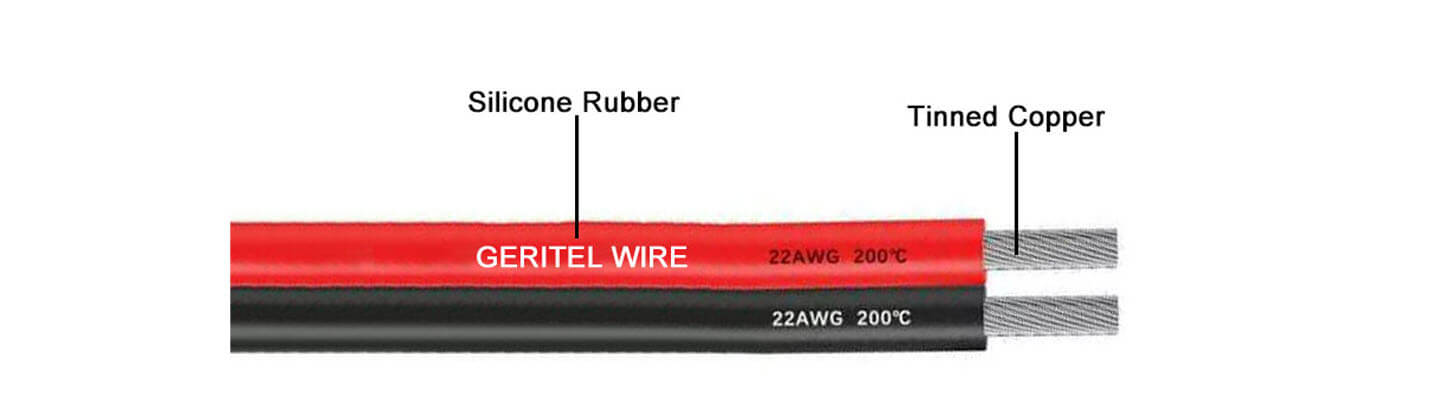

Parallel Silicone Wire's conductors are made of tinned copper wire stranded together, improving conductivity and corrosion resistance; the silicone rubber insulation offers excellent thermal stability, oil resistance, and aging resistance, allowing for long-term operation in environments ranging from -60°C to 200°C.
Conductors ：Tinned Copper
Rated Voltage Uo/U (Um) ：600V
Insulated：Silicone Rubber
Standard：UL Certified
Rated voltage：600V
Temperature range : -60℃ ~ 200℃
Advantages of Parallel Silicone Cable
Parallel silicone wire features high-temperature resistance, excellent flexibility, and durability, maintaining stable performance even under cold/hot cycling and vibration environments. Tinned copper conductors enhance oxidation resistance and solderability. Silicone insulation provides fatigue resistance, aging resistance, and strong chemical resistance. A dual-color identification design facilitates installation. The product is suitable for multiple industries, reducing maintenance and replacement costs.

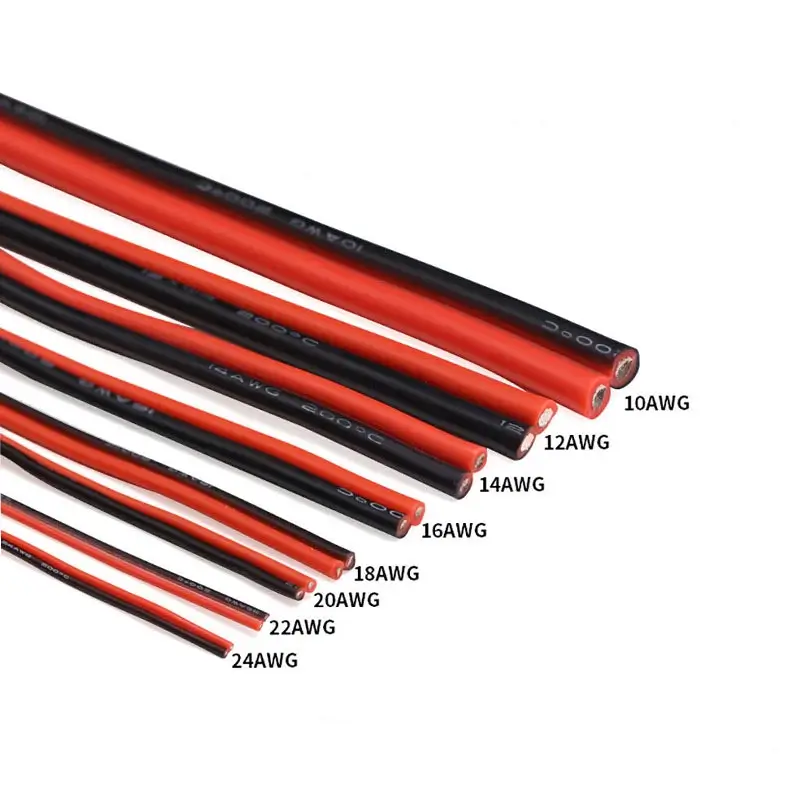

| Conductor | Finished Products | Maximum Resistance at 20℃ | |||
| NO.OF COND | Cond No. | Insulation Avg.Thick. | Outside Dia. | Packing | |
| AWG | mm | mm | mm | m/r | Ω/mm |
| 30*2C | 7/0.1 | 0.45 | 1.20x2.50 | 610 | 354.33 |
| 28*2C | 7/0.127 | 0.45 | 1.30x2.70 | 610 | 223.75 |
| 26*2C | 7/0.16 | 0.45 | 1.40x2.90 | 610 | 139.76 |
| 24*2C | 11/0.16 | 0.45 | 1.50x3.10 | 610 | 88.36 |
| 22*2C | 17/0.16 | 0.45 | 1.70x3.50 | 610 | 60.16 |
| 20*2C | 21x0.178 | 0.45 | 1.90x3.90 | 305 | 38.58 |
| 18*2C | 34/0.178 | 0.45 | 2.10x4.30 | 305 | 22.98 |
| 16*2C | 26/0.254 | 0.45 | 2.40x4.90 | 305 | 15.06 |
Certification
Parallel silicone cables have successfully passed multiple international certifications. The cables not only possess high flexibility, thermal stability, and durability, but also meet the stringent quality requirements of global industrial, medical, aerospace, and consumer electronics applications.
Flexibility
Temperature Resistance
Mechanical Strength Properties
UL Certified
APPLICATIONS
Parallel Silicone Wire is widely used in power and control applications requiring high temperature resistance and flexibility, such as automotive power cables, industrial machinery wiring, electronic equipment power connections, thermoelectric devices, heating systems, and other fields requiring stable current transmission under extreme operating conditions. Its high temperature resistance and environmental resistance enable it to withstand harsh operating conditions.
LED Lighting
Parallel silicone cable is commonly used in LED light strips, stage lighting, and landscape lighting systems. Its parallel dual-core structure facilitates polarity differentiation, and the silicone insulation layer ensures long-term stable operation in high-temperature lighting environments while maintaining good flexibility, making it suitable for lighting wiring that involves frequent movement or bending.
Robotics
Parallel silicone cable is ideal for robotic arms, cable chain systems, and reciprocating motion equipment. Its highly flexible silicone insulation and side-by-side structure allow the cable to maintain good electrical connection during continuous bending and twisting, making it widely used in collaborative robots and automated handling equipment.
Home Appliances
Parallel silicone cables are often used as internal connection wires in household or commercial appliances such as ovens, coffee makers, induction cookers, and heating equipment. Its high-temperature resistance allows it to withstand the high-temperature environment near heating elements, making it safer and more reliable than ordinary PVC wires.

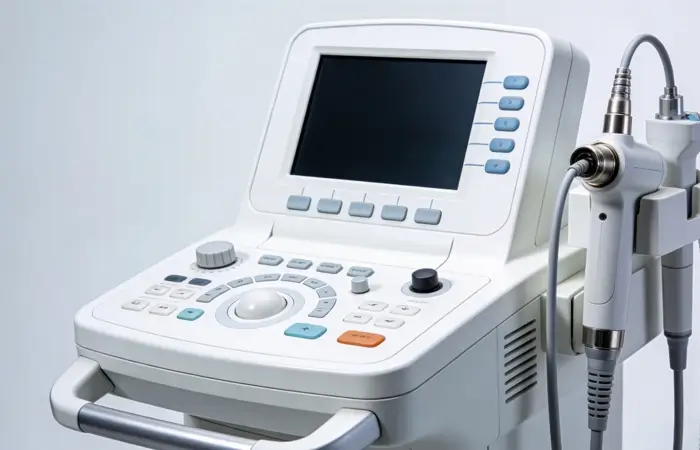

Medical Equipment
Medical equipment and precision testing instruments have extremely high requirements for cable flexibility and safety. Parallel Silicone Cable is halogen-free, low-odor, and highly flexible, making it suitable for use in mobile medical devices, testing probes, and power cables, reducing cable damage caused by repeated handling.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire manufacturer. we consistently use international standards as the core basis for our technology and quality. We have strict requirements for materials and manufacturing processes. Through systematic production control and continuous quality audits, every cable we produce meets the high standards of compliance and safety demanded by the market.
Packaging Information
Silicone cables are typically packaged in coils, either plastic reel or wooden reel. The specific packaging method depends on the cable's size and length.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
