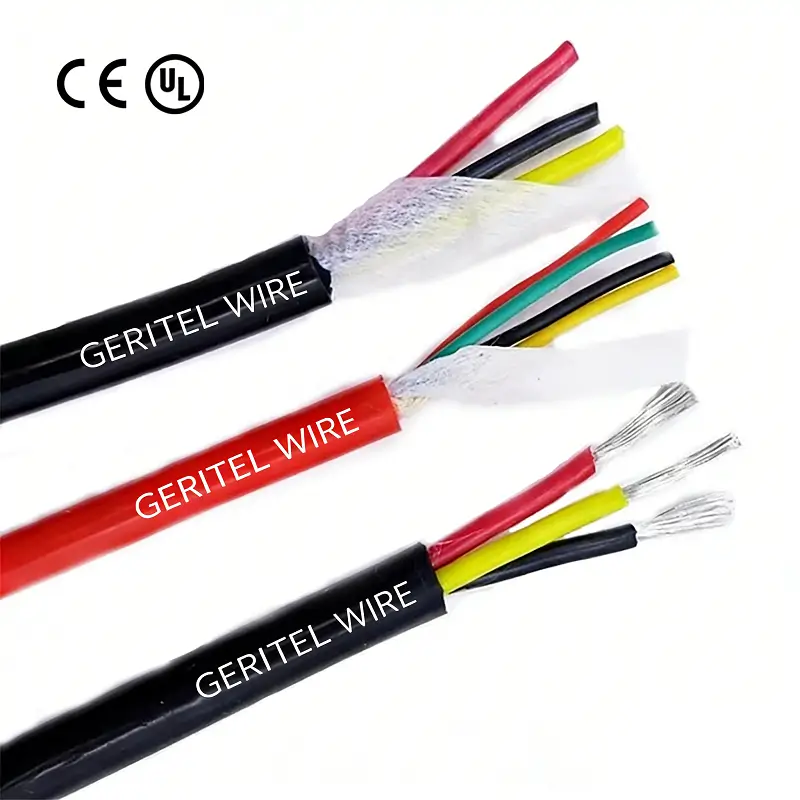

Multi Core Silicone Cable
Conductor：
Class 5 Fine Stranded Tinned Copper
Insulation：
Silicone Rubber
Rated Voltage：
300/500V
Standard：
VDE 0482-332-1-2/IEC 60332-1-2, DIN EN 50267/IEC 60754
Temperature range：
-60°C ~ 180°C
Description
Download
Copper Conductor
Class 5 Fine Stranded Tinned Copper
Insulation
Silicone Rubber
Temperature Rating
-60°C ~180°C

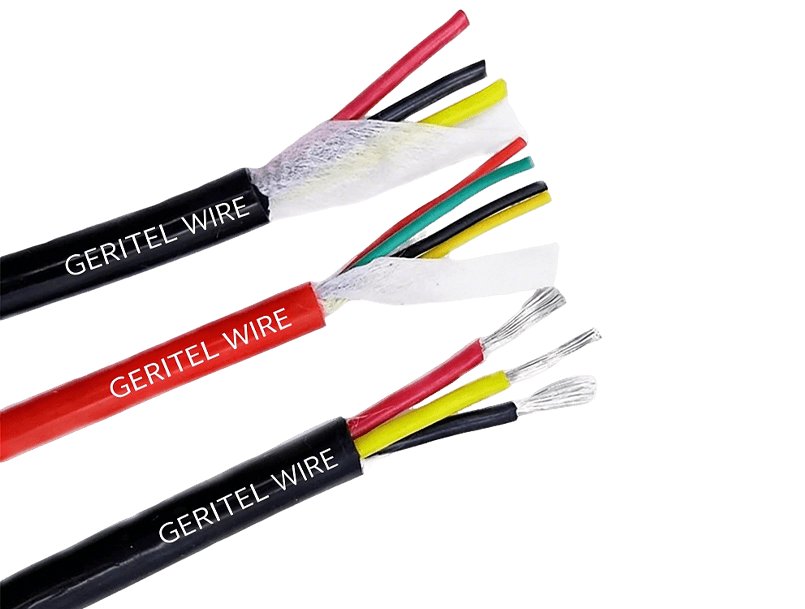

Single Core Multicore Silicone Cable

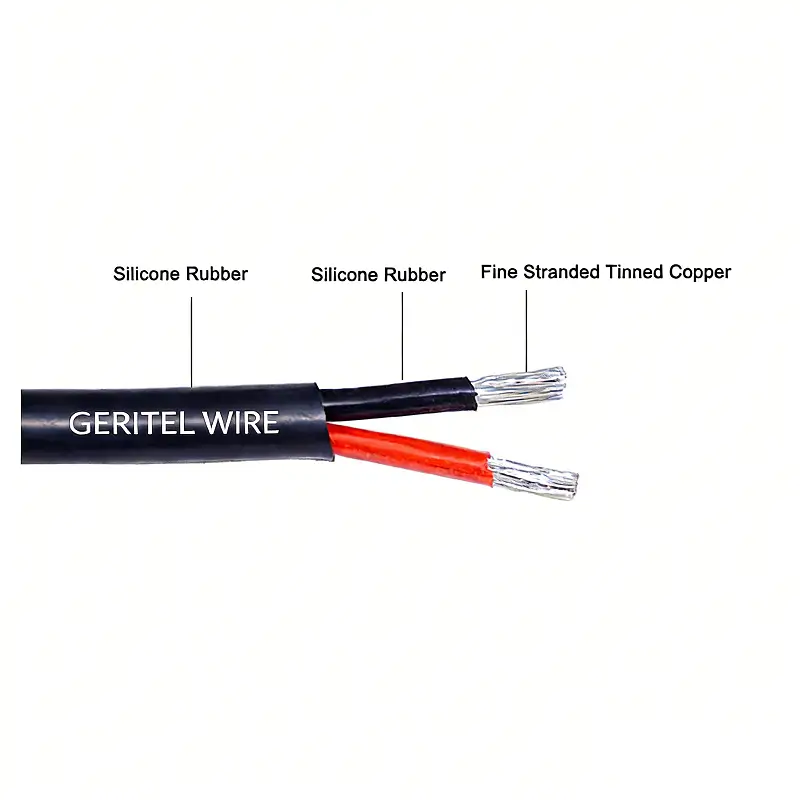

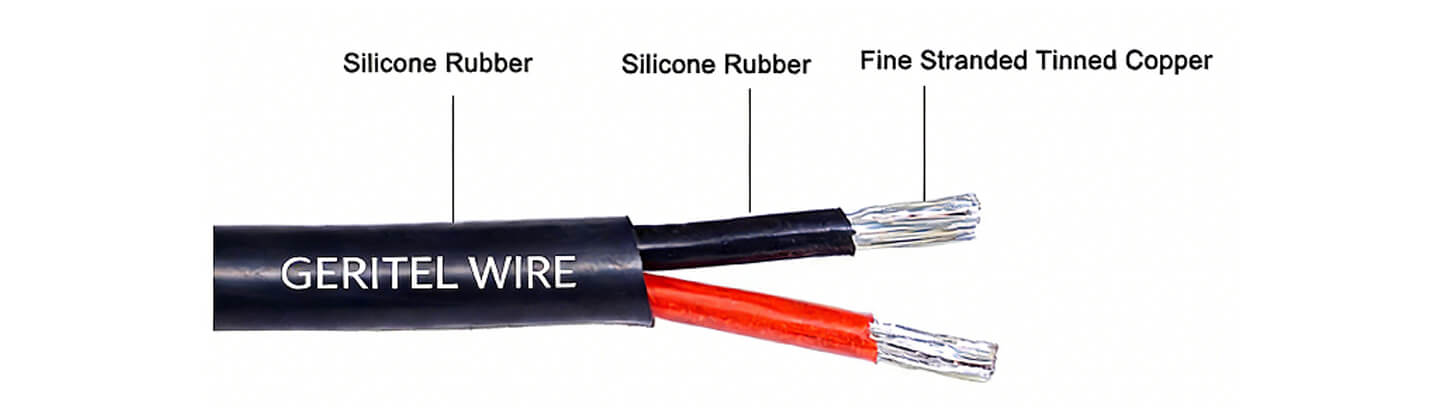

Silicone multicore cable is a high-temperature multicore cable composed of multiple finely stranded conductors insulated and sheathed with silicone rubber. The cable features high temperature resistance, excellent flexibility, and long-term durability, making it suitable for electrical connections in harsh environments.

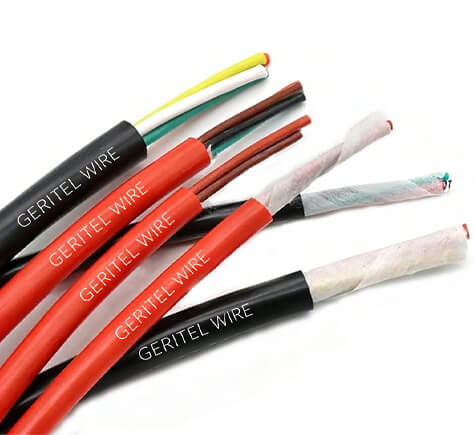

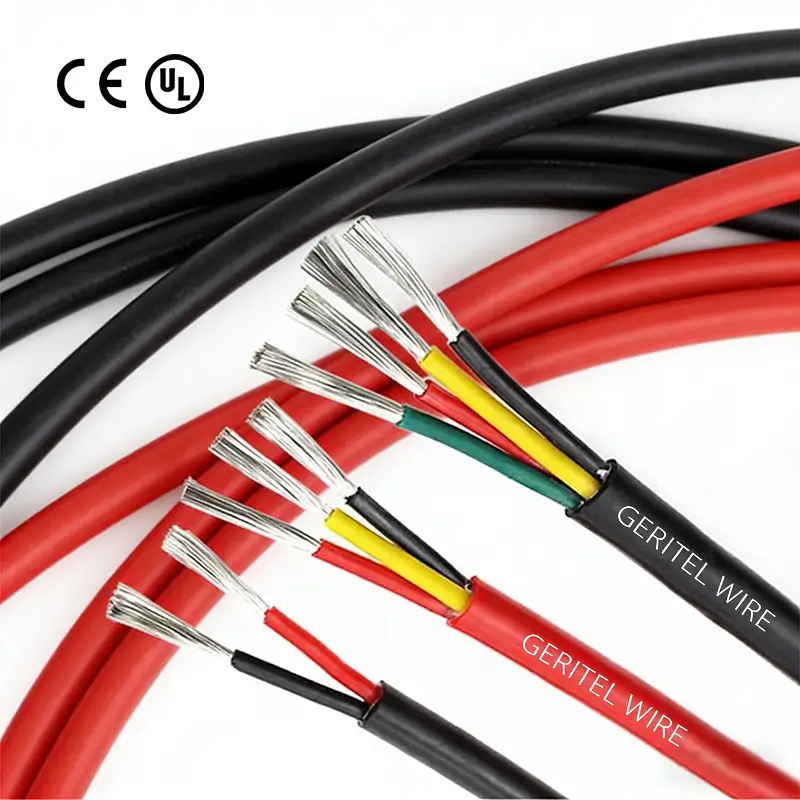

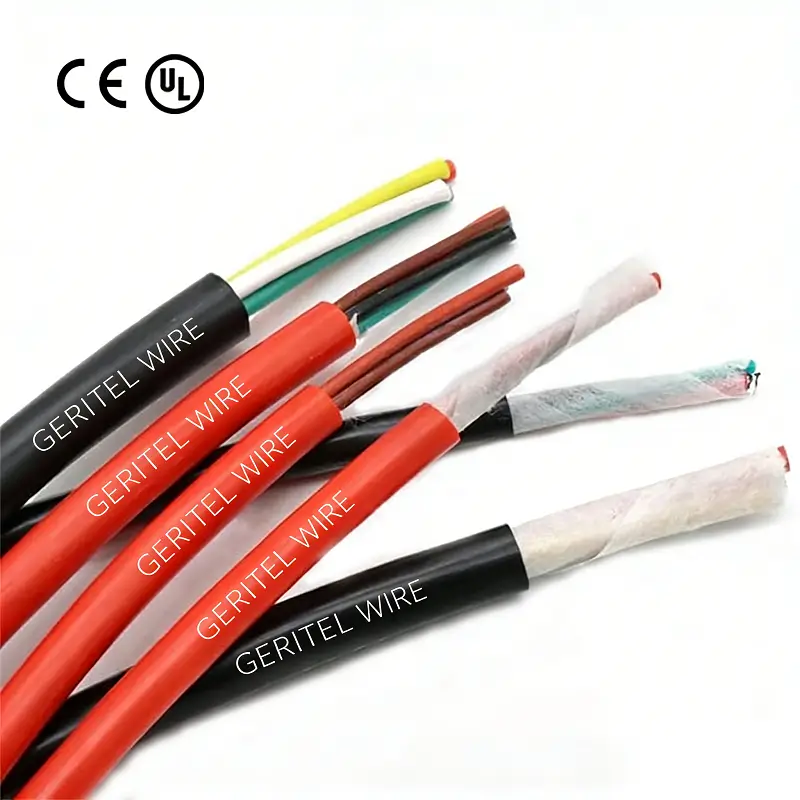

Multicore Silicone Cable
Silicone insulated wire has good resistance to high and low temperatures, chemical corrosion, aging, and excellent flexibility, and can withstand frequent bending.
Conductors ： Class 5 Fine Stranded Tinned Copper
Rated Voltage Uo/U (Um) ：300/500V
Insulated：Silicone Rubber
Standard：VDE 0482-332-1-2/IEC 60332-1-2, DIN EN 50267/IEC 60754
Temperature range : -60°C ~ 180°C
Advantages of Multicore Silicone Cable
Multicore silicone cables utilize a rational stranding pitch and compact arrangement to achieve a stable layout of multiple core wires within a limited outer diameter, improving overall cable strength while reducing installation space requirements.
| No. of Cores | Nominal Cross Sectional Area | Nominal Outer Diameter | Nominal Weight |
| mm2 | mm | kg/km | |
| 2 | 0.75 | 6.2 | 42 |
| 2 | 1 | 6.5 | 54 |
| 2 | 1.5 | 7.1 | 65 |
| 3 | 0.75 | 6.8 | 66 |
| 3 | 1 | 7.4 | 78 |
| 3 | 1.5 | 8 | 98 |
| 3 | 2.5 | 9.7 | 152 |
| 4 | 0.75 | 7.8 | 84 |
| 4 | 1 | 8 | 95 |
| 4 | 1.5 | 8.8 | 122 |
| 5 | 0.75 | 8.5 | 101 |
| 5 | 1 | 8.8 | 122 |
| 5 | 1.5 | 9.6 | 148 |
| 7 | 0.75 | 9.6 | 158 |
| 7 | 1.5 | 10.9 | 232 |

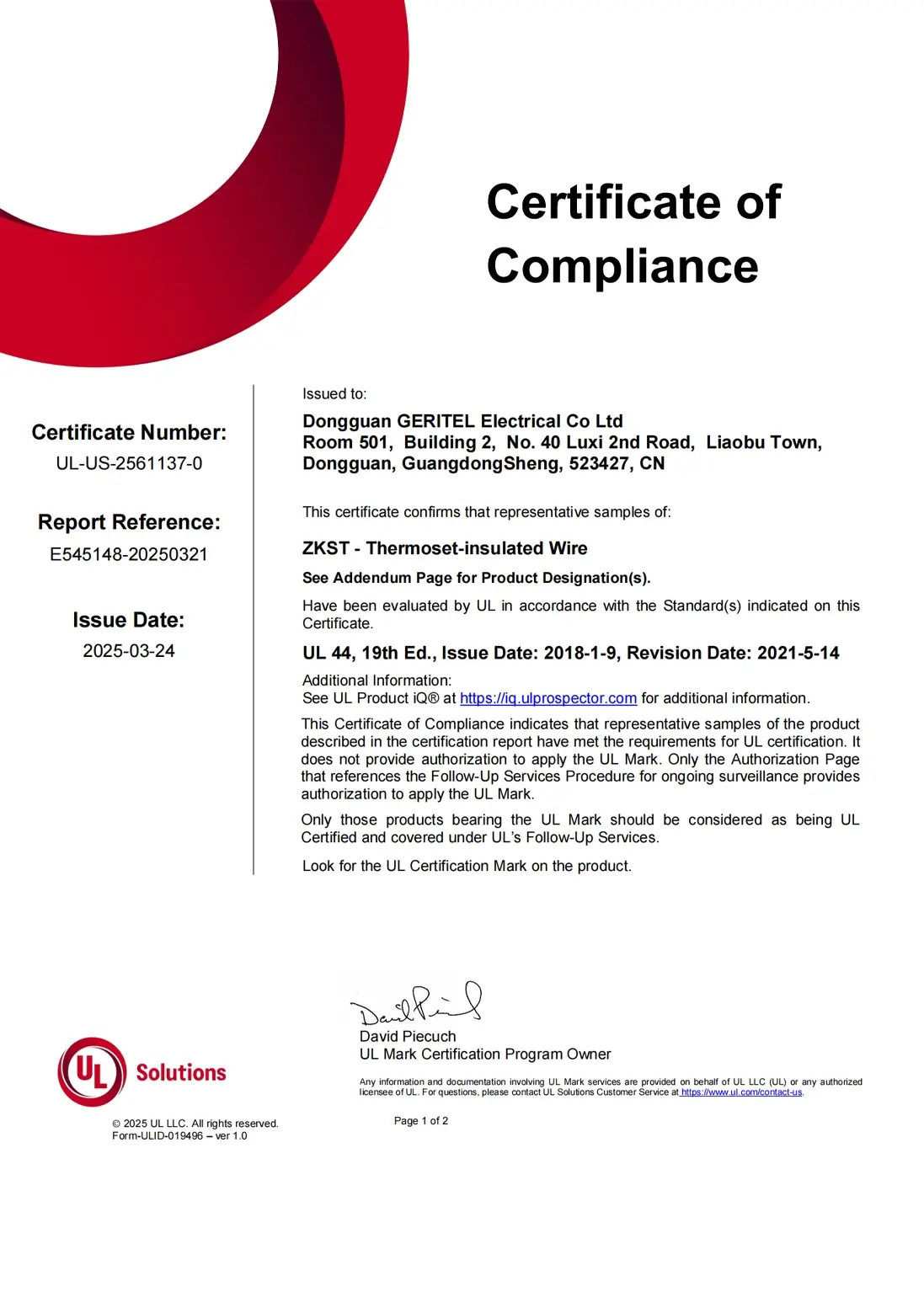

Certification
Silicone Wire has passed multiple authoritative international certifications. Silicone wires meet the stringent market requirements for wire products in terms of conductor structure, insulation materials, electrical properties, and temperature resistance.
Flexibility
Weather Resistant
Temperature Resistance
VDE/IEC/DIN EN 50267
APPLICATIONS
Silicone multicore cable is widely used in applications requiring high-temperature resistance and reliable electrical connections, such as industrial production lines, automated equipment, machine control cabinets, furnaces and smelting equipment, power systems, and outdoor machinery configurations.
High-temperature Industrial Equipment
Silicone cable is widely used in the internal wiring systems of industrial ovens, furnaces, injection molding machines, and heat treatment equipment. In continuous high-temperature operating environments, the silicone insulation maintains stable physical structure and electrical properties, without hardening, cracking, or losing flexibility due to heat aging.
Automation Equipment
In industrial automation and robotics applications, cables need to withstand frequent bending, twisting, and high-speed movement. Silicone cable, with its finely stranded copper conductors and flexible silicone rubber insulation, possesses excellent bending resistance and fatigue resistance, making it particularly suitable for robotic arms, cable chain systems, and dynamic connection parts.
Lighting Systems
In stage lighting, film and television lighting fixtures, and high-power lighting equipment, the area around the fixtures often experiences high operating temperatures. Silicone cable remains flexible and stable under high-temperature conditions, preventing insulation aging due to heat buildup and ensuring long-term stable operation of the lighting system.
Home Appliances
Silicone cable is widely used in the internal high-temperature connection parts of home appliances such as ovens, induction cookers, coffee makers, and water heaters. Its heat resistance, aging resistance, and excellent electrical insulation properties effectively improve the safety and service life of the entire machine.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire manufacturer. we consistently use international standards as the core basis for our technology and quality. We have strict requirements for materials and manufacturing processes. Through systematic production control and continuous quality audits, every cable we produce meets the high standards of compliance and safety demanded by the market.
Packaging Information
Silicone cables are typically packaged in coils, either plastic reel or wooden reel. The specific packaging method depends on the cable's size and length.

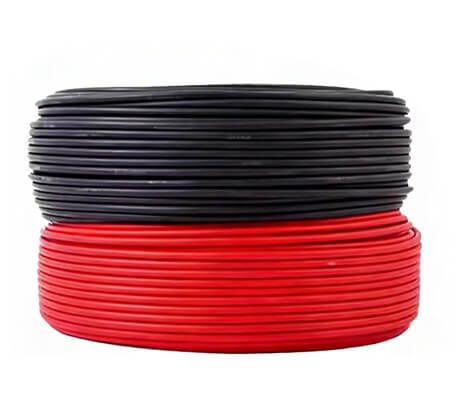

Coiled

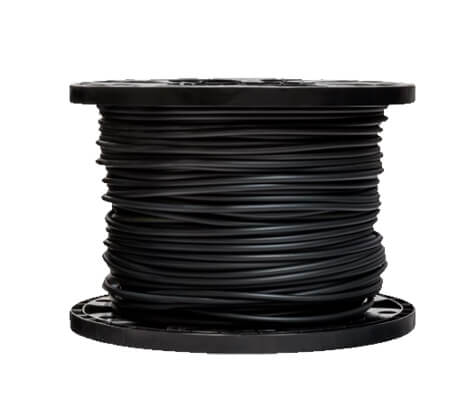

Plastic Reel

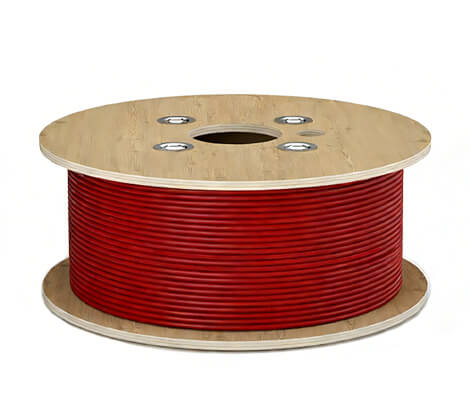

Wooden Reel
