H07ZZ-F Cable
Conductor：
Class 5 Flexible Copper Conductor
Insulation：
LSZH (Low Smoke Zero Halogen)
Jacket：
LSZH (Low Smoke Zero Halogen)
Rated Voltage：
450/750 V
Temperature range：
Fixed: -20°C to +90°C ; Flexed: -5°C to +50°C
Standard：
EN 50525-3-21, HD 22-13, CEI 20-19 Part 13, EN 60228
Description
Download
Conductor
Class 5 Flexible Copper Conductor
Insulation and Sheath
LSZH (Low Smoke Zero Halogen) Insulation & LSZH (Low Smoke Zero Halogen) Jacket
No. of Conductor
1 Core / 2 Core / 3 Core / 4 Core / 5 Core / 6+ cores
Temperature Rating
Fixed: -20°C to +90°C
Flexed: -5°C to +50°C

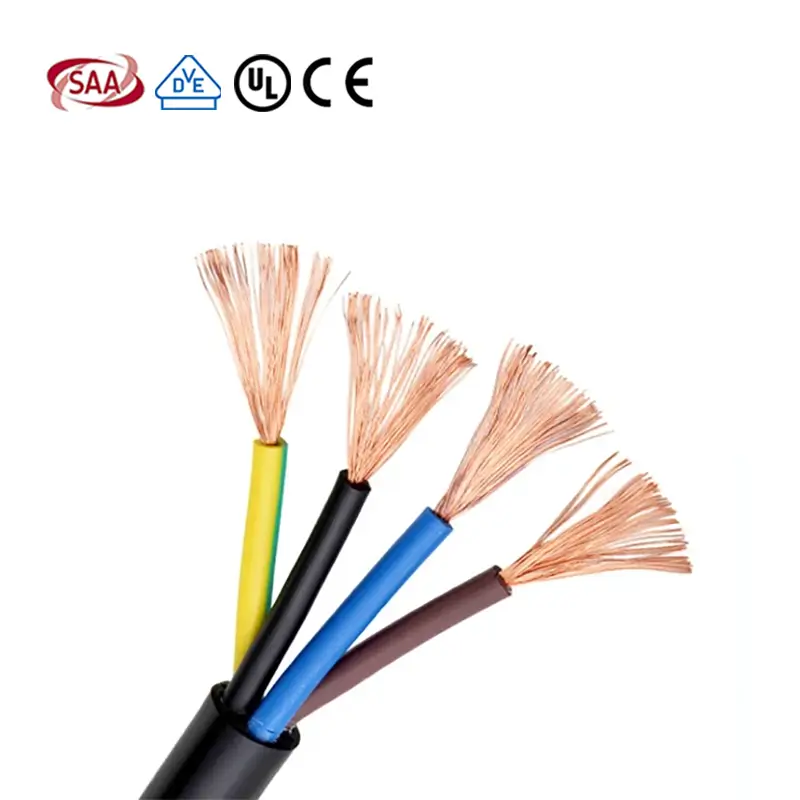

H07ZZ-F Cable
H07ZZ-F cable is a 450/750V flexible low-smoke halogen-free (LSZH) rubber cable. It uses highly flexible multi-strand copper conductors, and both the insulation and sheath are made of low-smoke halogen-free materials, possessing fire resistance, abrasion resistance, and resistance to moderate mechanical stress.
H07ZZ-F
H07ZZ-F cable is suitable for applications with high safety requirements, such as buildings, industrial equipment, stage lighting, and mobile power supplies.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 450/750 V
Insulated : LSZH (Low Smoke Zero Halogen)
Standards : EN 50525-3-21, HD 22-13, CEI 20-19 Part 13, EN 60228
Outer Jacket : LSZH (Low Smoke Zero Halogen)
Temperature range ：Fixed: -20°C to +90°C Flexed: -5°C to +50°C
Advantages of flexible cable
H07ZZ-F cable features a highly flexible class 5 stranded copper conductor, an outer layer of low-smoke halogen-free (LSZH) insulation, and a LSZH sheath. The core wires of the multi-core cable are marked with standard color codes or black numbers. The overall design takes into account flexibility, abrasion resistance, and fire safety.
| No. Of Cores |
Nominal Cross Sectional Area mm2 |
Nominal Overall Diameter mm |
Nominal Weight Kg/Km |
| 1 | 1.5 | 6.4 | 63 |
| 1 | 2.5 | 7.1 | 76 |
| 1 | 4 | 8.1 | 107 |
| 1 | 6 | 8.85 | 140 |
| 2 | 1 | 8.85 | 112 |
| 2 | 1.5 | 9.75 | 135 |
| 2 | 2.5 | 11.65 | 190 |
| 2 | 4 | 13.45 | 255 |
| 2 | 6 | 14.95 | 335 |
| 3 | 1 | 9.5 | 125 |
| 3 | 1.5 | 10.55 | 129 |
| 3 | 2.5 | 12.45 | 250 |
| 3 | 4 | 14.45 | 330 |
| 3 | 6 | 16.05 | 440 |
| 4 | 1 | 10.55 | 170 |
| 4 | 1.5 | 11.65 | 196 |
| 4 | 2.5 | 13.8 | 275 |
| 4 | 4 | 15.95 | 388 |
| 4 | 6 | 17.85 | 515 |
| 5 | 1 | 11.65 | 205 |
| 5 | 1.5 | 12.8 | 242 |
| 5 | 2.5 | 15.15 | 341 |
| 5 | 4 | 17.75 | 495 |
| 5 | 6 | 19.85 | 642 |
| 7 | 1.5 | 16.7 | 355 |
| 12 | 1.5 | 20 | 660 |
| 19 | 1.5 | 27.5 | 788 |
| 27 | 1.5 | 31.5 | 1077 |
| 37 | 1.5 | 36.5 | 1358 |
Certification
H07ZZ-F cable has passed multiple certifications. Certified cables offer greater assurance in material selection and manufacturing processes, reducing the risk of malfunctions during use.
High Flexibility
Wear Resistance
Oil Resistant
UL 62 Certified
APPLICATIONS
H07ZZ-F cable is suitable for building cabling, industrial control equipment, stage lighting, audio-visual equipment, and mobile power systems, especially in environments with strict requirements for fire safety, low smoke, and non-toxic emissions, providing reliable power and control signal transmission.
Stage Lighting
H07ZZ-F cable is used for stage lighting equipment cabling. Its flexible design facilitates frequent movement and dimming operations, while the LSZH material reduces the risk of fire smoke.
Audio Equipment
Suitable for powering audio systems in concerts or cinemas, ensuring stable signal transmission. The wear-resistant sheath is suitable for high-frequency handling and mobile installation.
Building
Used as main power and control cables in office buildings, shopping malls, or public buildings. Its low-smoke, halogen-free characteristics improve fire safety.
Control Cabinet
H07ZZ-F cables are used for terminal block and controller connections. They are bend-resistant and abrasion-resistant, suitable for frequent operation in automated production environments.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. We support a variety of customization services, including conductor structure, insulation materials, sheath type, color, printing content, and packaging methods, to help customers better match project needs, market regulations, and end-application scenarios.
Packaging Information
H07ZZ-F cables come in three standard packaging options: coiled, plastic spool, and wooden spool. Customized packaging is also available.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
