H05RR-F Cable
Conductor：
Class 5 Flexible Copper Conductor
Insulation：
Rubber Insulation
Jacket：
Rubber Jacket
Rated Voltage：
300/500 V
Temperature range：
-25ºC to +60ºC
Standard：
EN 50525-2-21, EN 60228
Description
Download
Conductor
Class 5 Flexible Copper Conductor
Insulation and Sheath
Rubber Insulation & Rubber Jacket
No. of Conductor
2 Core / 3 Core / 4 Core / 5 Core
Temperature Rating
-25ºC to +60ºC

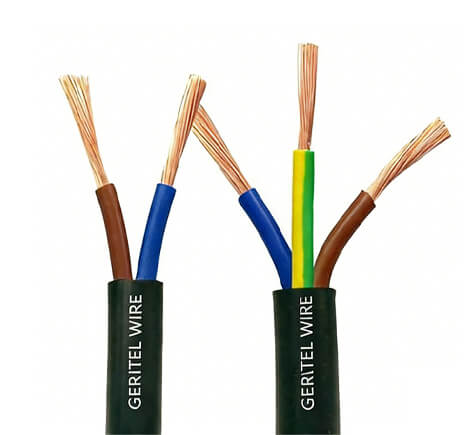

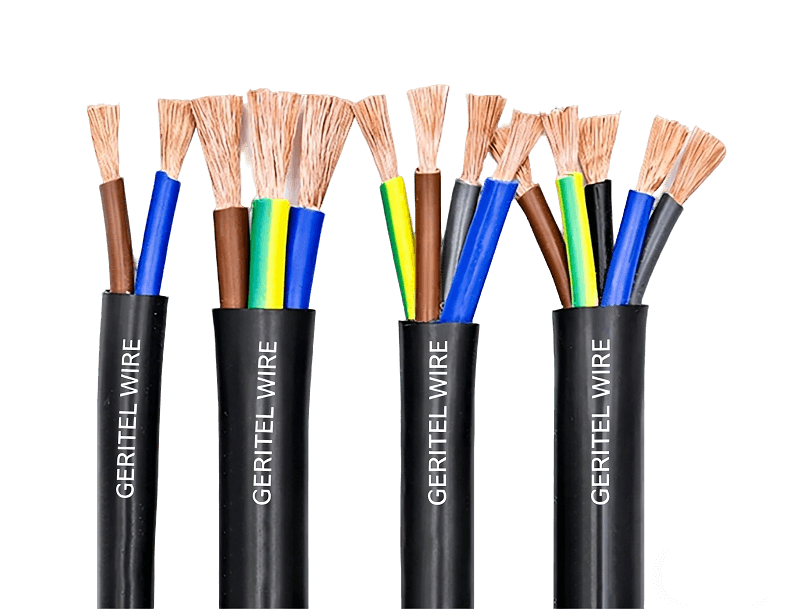

H05RR-F Cable
H05RR-F cable is a lightweight rubber-sheathed flexible cable conforming to EN 50525-2-21 standard. It features multi-strand, finely stranded copper conductors, rubber insulation, and sheath construction.
H05RR-F
H05RR-F cable possesses excellent flexibility and abrasion resistance, making it suitable for household appliances, mobile equipment, and light-load power connection applications.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 300 /500 V
Insulated : Rubber Insulation
Standards : EN 50525-2-21, EN 60228
Outer Jacket : Rubber Jacket
Temperature range ：-25ºC to +60ºC
Advantages of flexible cable

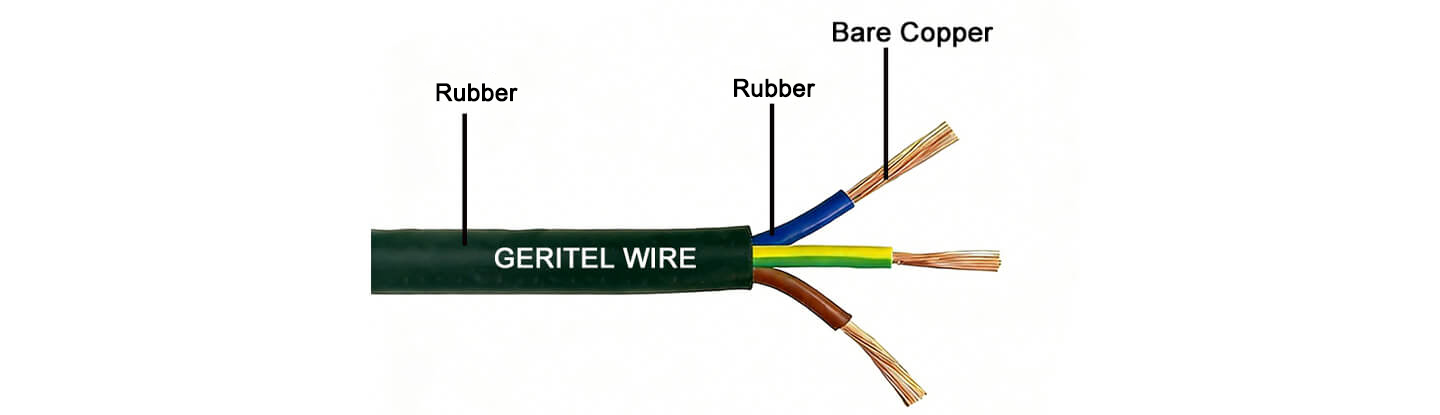

H05RR-F cable uses Class 5 multi-strand, finely stranded copper conductors, with a rubber insulation layer and an integrally extruded rubber sheath. Its flexible and compact structure makes it suitable for frequent bending and relocation.
| No. Of Cores |
Nominal Cross Sectional Area mm2 |
Nominal Thickness Of Insulation mm |
Nominal Overall Diameter mm |
| 2 | 0.75 | 0.6 | 6.1 |
| 2 | 1 | 0.6 | 6.6 |
| 2 | 1.5 | 0.8 | 7.8 |
| 2 | 2.5 | 0.9 | 9.2 |
| 2 | 4 | 1 | 10.8 |
| 3 | 0.75 | 0.6 | 6.6 |
| 3 | 1 | 0.6 | 7 |
| 3 | 1.5 | 0.8 | 8.4 |
| 3 | 2.5 | 0.9 | 9.9 |
| 3 | 4 | 1 | 11.7 |
| 3 | 6 | 1 | 13.3 |
| 4 | 0.75 | 0.6 | 7.3 |
| 4 | 1 | 0.6 | 7.6 |
| 4 | 1.5 | 0.8 | 9.4 |
| 4 | 2.5 | 0.9 | 11.1 |
| 4 | 4 | 1 | 13 |
| 4 | 6 | 1 | 14.5 |
| 5 | 0.75 | 0.6 | 8.1 |
| 5 | 1 | 0.6 | 8.4 |
| 5 | 1.5 | 0.8 | 10.3 |
| 5 | 2.5 | 0.9 | 12.4 |
| 5 | 4 | 1 | 14.5 |
Certification
H05RR-F cable has passed multiple certifications. The cables meet international standards for safety, electrical performance, and material quality.
High Flexibility
Wear Resistance
Oil Resistant
UL 62 Certified
APPLICATIONS
H05RR-F cable is primarily used in household appliances, portable devices, power extension cords, and light-duty mobile tools, and is suitable for flexible power connections in dry or slightly humid indoor environments.
Home Appliances
Used to connect household appliances such as washing machines, microwave ovens, and electric kettles, stable power supply.
Portable Tools
Suitable for handheld power tools such as electric drills, grinders, and electric screwdrivers, supporting frequent movement.
Stage Equipment
For powering lighting, sound, and stage equipment; flexible cables facilitate wiring and retraction.
Heating Equipment
For powering portable heating or cooling equipment such as small electric heaters and portable fans.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. We possess a mature and comprehensive production system and stable, efficient manufacturing capabilities. From raw material selection, conductor drawing, insulation extrusion to cabling and testing, every process is completed in our own factory.
Packaging Information

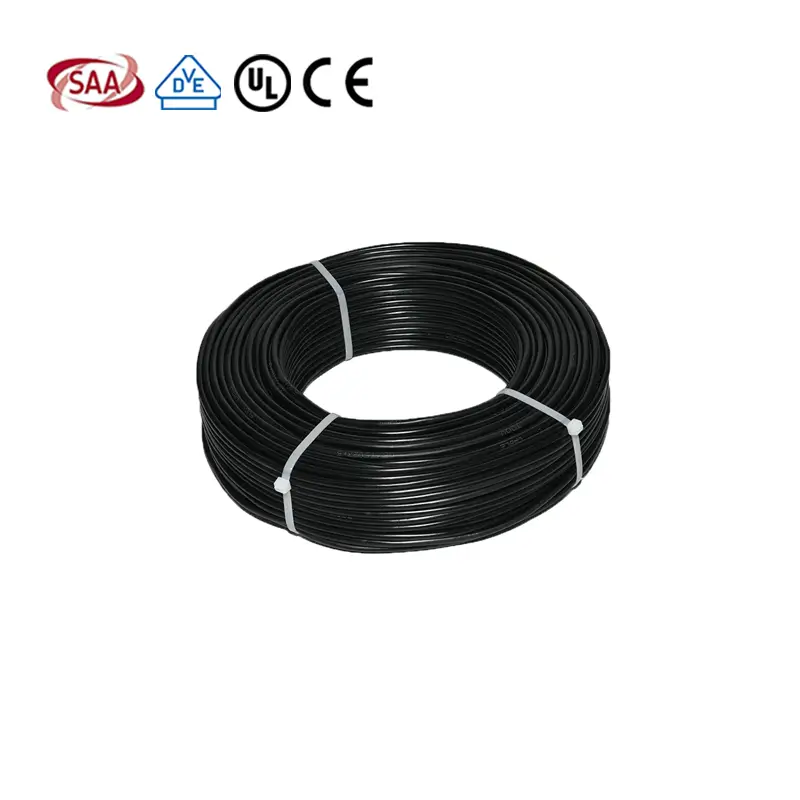

H05RR-F cables come in three standard packaging options: coiled, plastic spool, and wooden spool. Customized packaging is also available.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
