Solar Extension Cables with PV Connectors
TUV/UL/IEC/CE Certification & 25+ Years Life ：
Compatible With Over 2,000 Commonly Used Solar Module Connectors ：
Large PV Power Stations/Rooftops/Floating Solar Stations/Farms ：
Compatible With Over 2,000 Commonly Used Solar Module Connectors ：
IP68 For Outdoor Waterproof & UV Resistance ：
30+ Years of Production Experience ：
Quick Online Quotes & Free Samples Are Available ：
Description
Download
Conductor
Tinned Copper
Insulation and Sheath
XLPO Insulated & XLPO Sheath
Connector
with Female and Male Connectors
Temperature Rating
-40℃ to +120℃

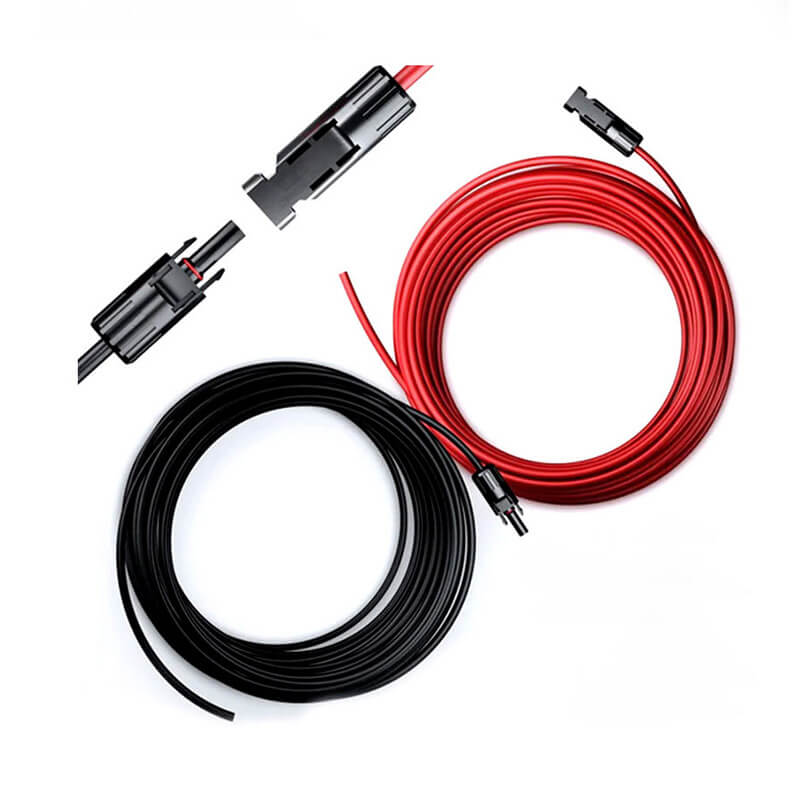

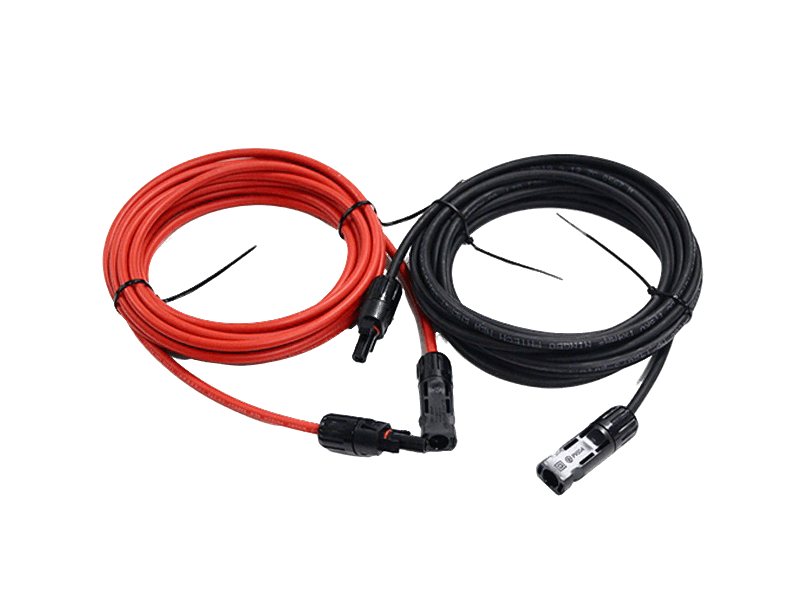

Solar Extension Cables
Solar panel extension cable with PV connectors is a high-performance extension cable designed for photovoltaic (PV) systems, enabling safe and efficient connections between solar panels and inverters, controllers, or other system equipment.

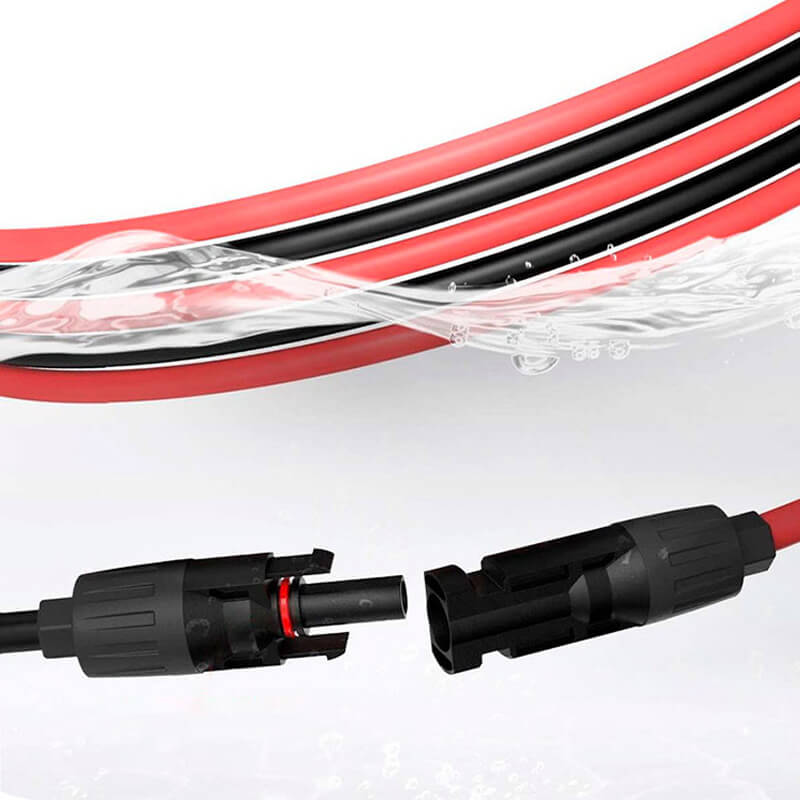

Solar Extension Cables
Solar extension cables maintain stable electrical performance under conditions of high temperature, strong ultraviolet radiation, rain, snow, and high humidity, suitable for desert photovoltaic projects, centralized power plant arrays, and coastal projects.

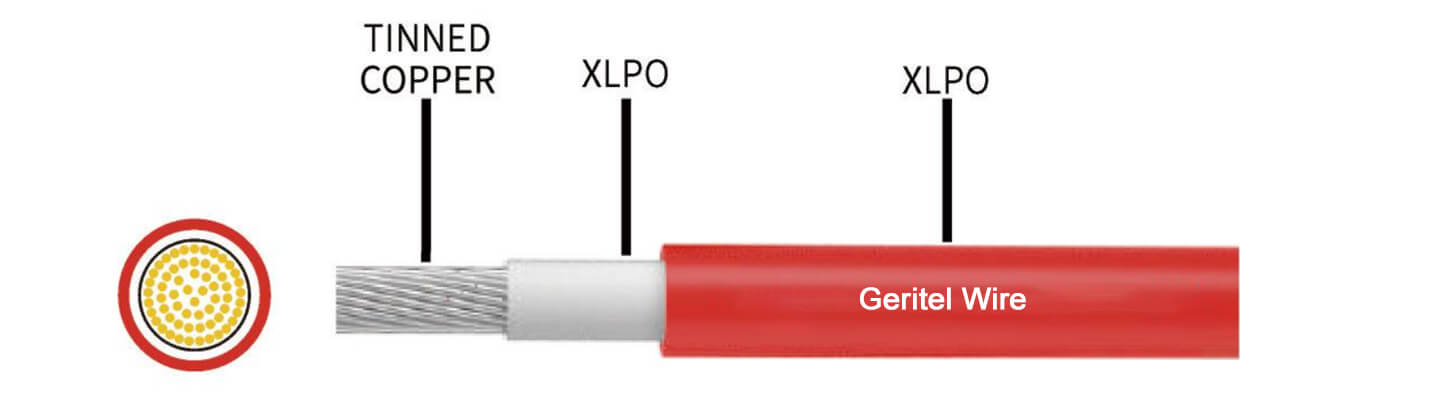

Solar Cable Conductor Materials：Tinned Copper
Rated Voltage Uo/U (Um) : TUV1500V
Solar Cable Insulation and Sheath : XLPO Insulation & XLPO Sheath
Solar Cable Standard :
IEC62852
Temperature range -40℃ to +120℃
Advantages of Solar Extension Cable
Solar Panel Extension Cable has obtained multiple international certifications, including TUV, UL, IEC, and CE, and uses highly weather-resistant materials, ensuring stable long-term operation even in harsh outdoor environments. It is suitable for Ø2.5-Ø16mm² photovoltaic solar cables.
| Rated voltage | TUV1500V/UL1500V |
| Test voltage | 6KV(50Hz,1Min) |
| Rated current-2.5mm² | 35A (14AWG) |
| Rated current-4mm² | 40A (12AWG) |
| Rated Current-6mm² | 45A (10AWG) |
| Contact material | Copper, Tin-plated |
| Contact resistance | Less than 0.35 mΩ |
| Degree of protection | IP68 |
| Ambient temperature | -40℃ up to +120℃ |
| Certification | IEC62852 |

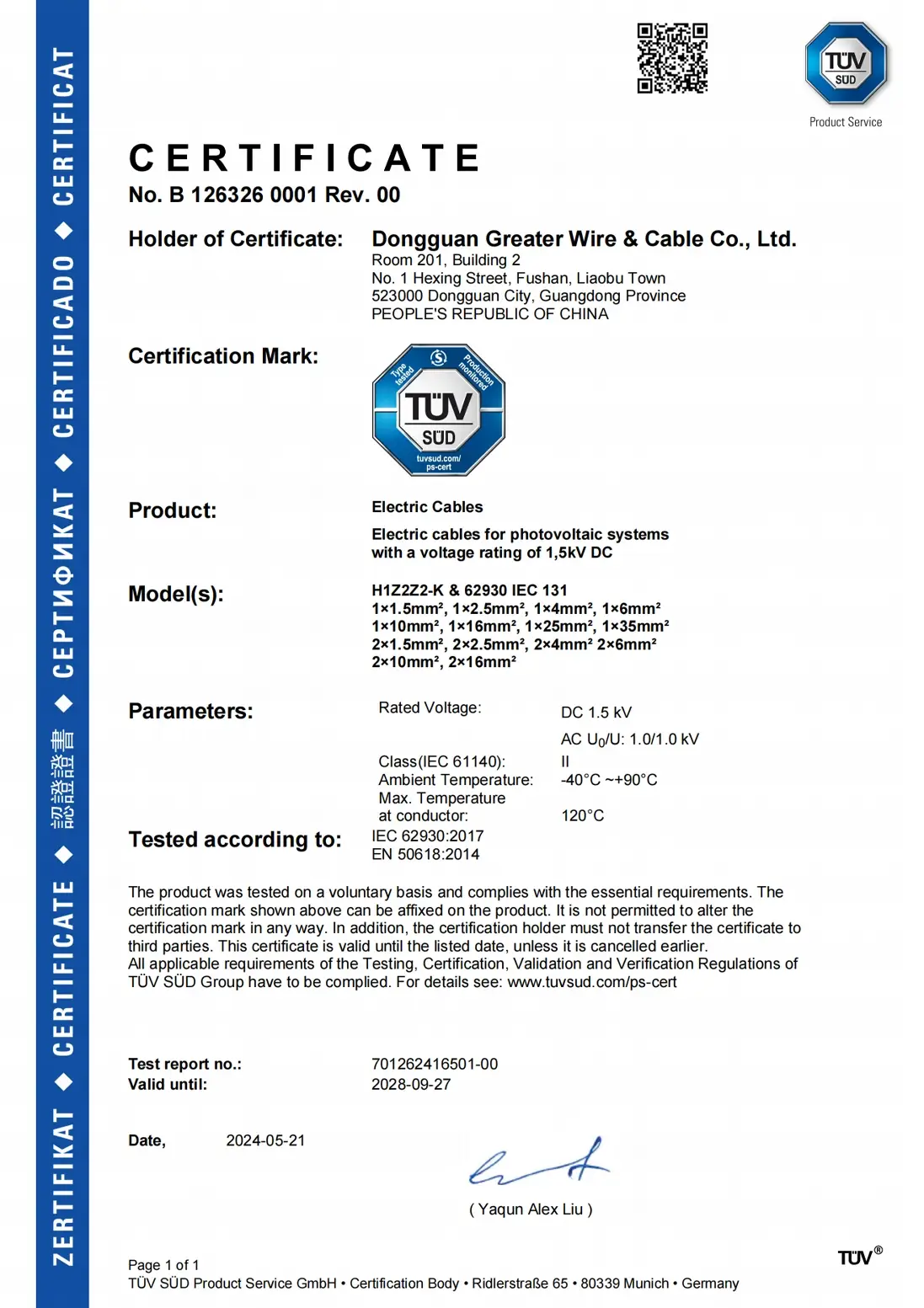

Certification
Solar cable is TUV certified. Certifications including TUV, UL, IEC, and CE fully demonstrate that the product meets the stringent requirements of the global photovoltaic industry in terms of electrical safety, structural reliability, and long-term weather resistance.
Flexibility
Bending Resistant
Weather Resistance
TUV Certified
APPLICATIONS
Solar panel extension cable with PV connectors is widely used in various photovoltaic power generation systems, mainly for the extension and connection between solar panels and between panels and inverters or combiner boxes.

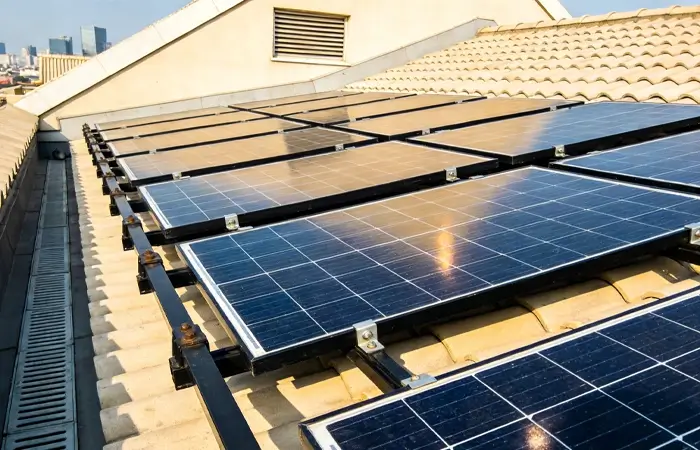

Residential Rooftops
Used to connect rooftop solar modules to inverters, flexibly extending wiring lengths in situations with limited module spacing or complex layouts, ensuring safe and neat system operation.

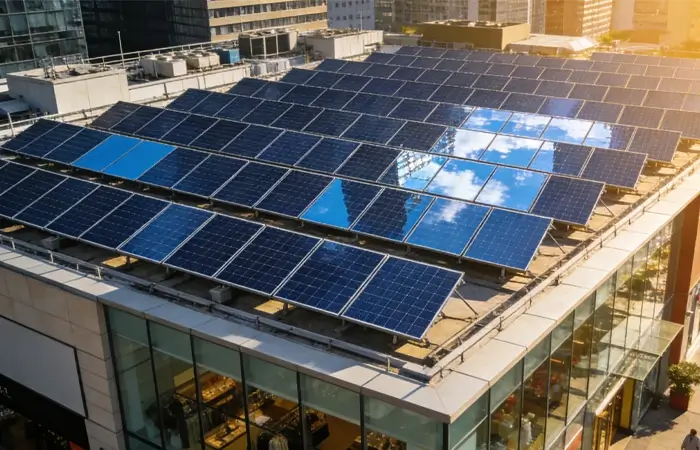

Commercial Buildings
Suitable for rooftop photovoltaic projects in shopping malls, office buildings, and factories, helping to achieve efficient connections between module arrays.

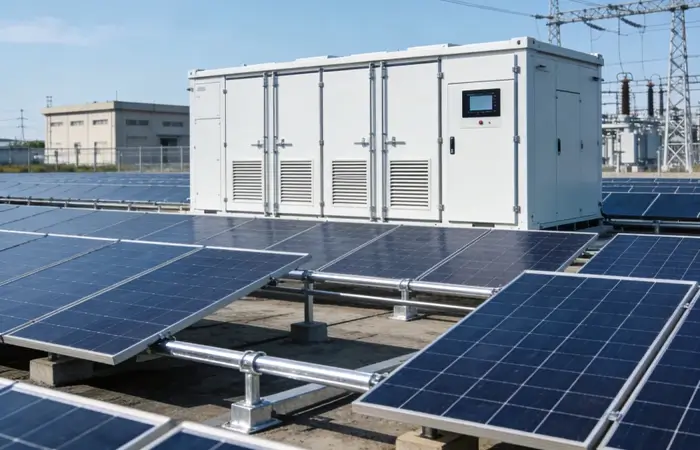

PV Power Plants
Used in centralized photovoltaic power plants for connecting module strings to combiner boxes, meeting long-distance wiring requirements and ensuring stable DC power transmission.
Agricultural PV
Applied to agricultural photovoltaic, greenhouse, and other scenarios, meeting the connection needs of dispersed module installations and achieving stable and reliable power output.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional photovoltaic products supplier. Through a modern intelligent factory that combines advanced digital technologies with smart manufacturing, enabling efficient, integrated, and intelligent production and testing operations.
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
