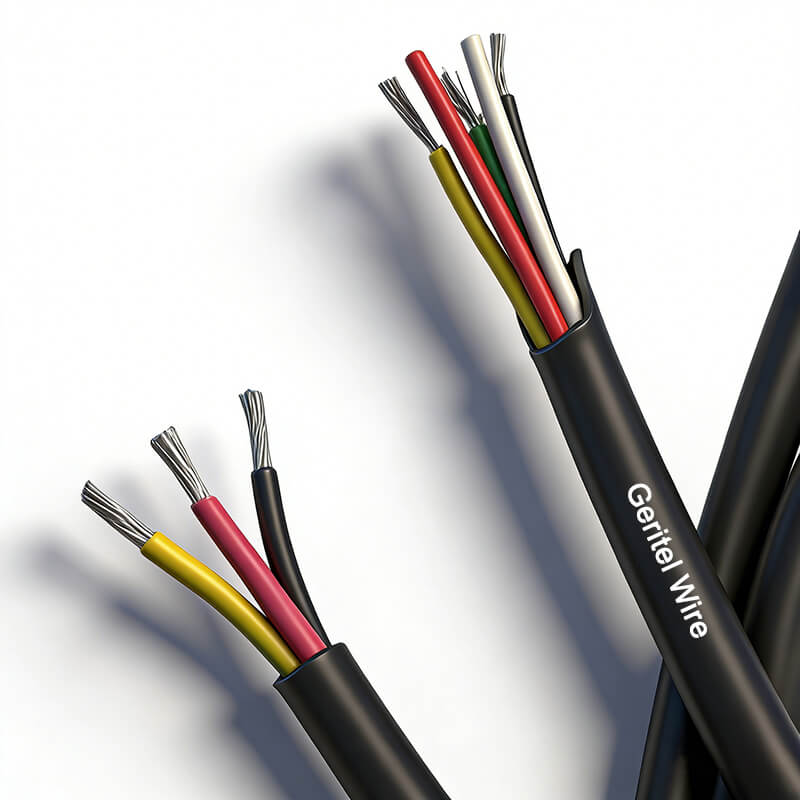

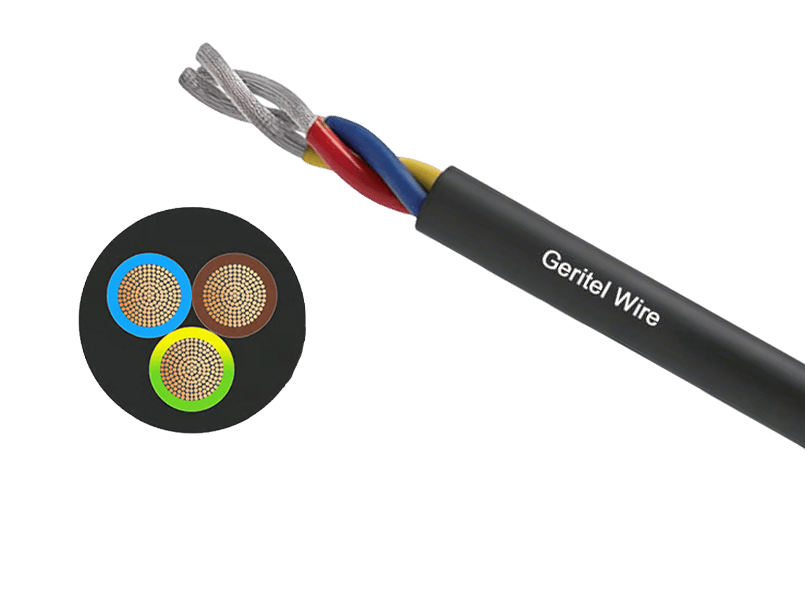

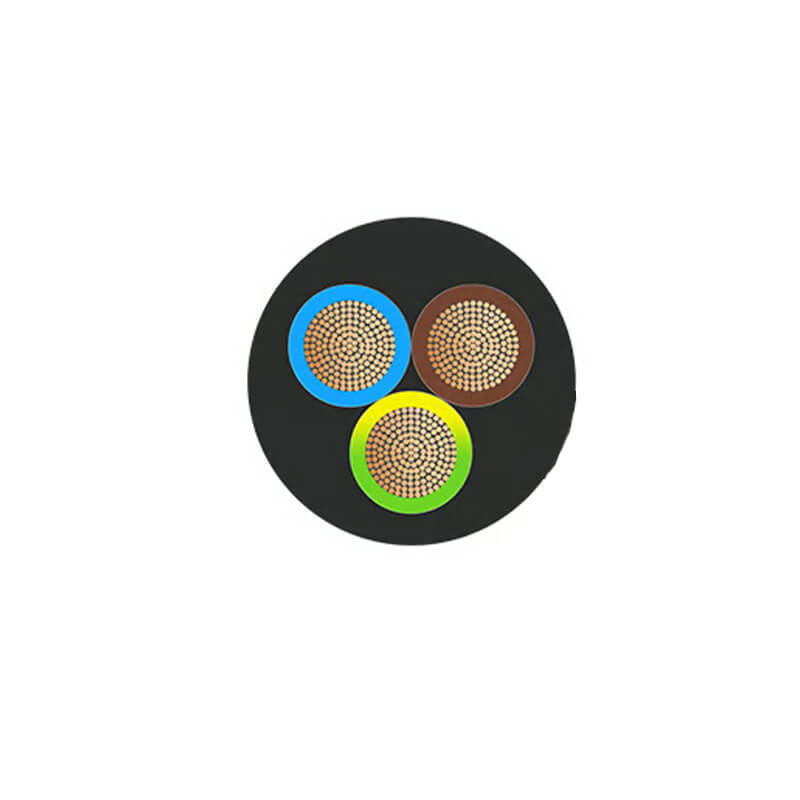

AC PV07AC-F Solar Cable
Conductor：
Tin-plated Copper
Insulation：
XLPE
Sheath：
XLPE
Rated Voltage：
450/750V
Temperature range : -40 °C to 90℃：
Description
Download
Conductor
Tin-plated Copper
Insulation & Sheath
XLPE & XLPE
No. of Conductor
2C & 3C & 4C & 5C
Temperature Rating
-40 °C to 90°C

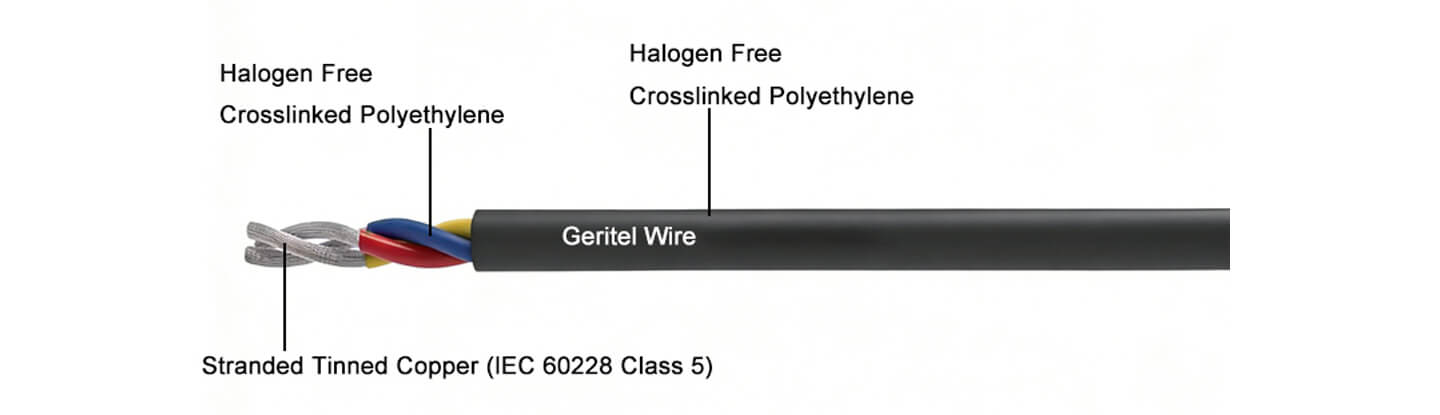

PV07AC-F Cable
PV07AC-F solar AC cable is specifically designed for the AC side of photovoltaic systems. It features multi-core tinned copper conductors and low-smoke halogen-free cross-linked polyethylene insulation and sheath, with an operating temperature range of -40°C to +90°C.

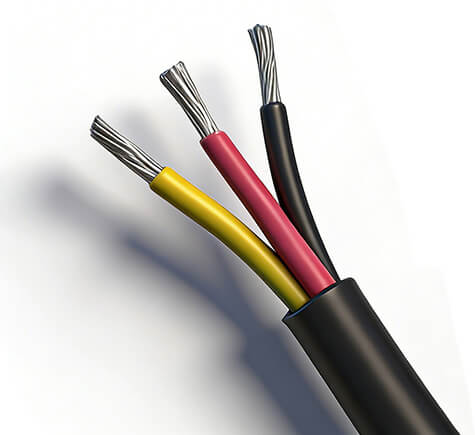

PV07AC-F Cable
PV07AC-F cable meets the IEC 60332-1 flame retardancy test and is suitable for reliable AC power transmission in residential and commercial photovoltaic power generation systems.
Conductor：Tin-plated Copper
Rated Voltage Uo/U (Um) : 450/750V
Insulated : XLPE
Standard : IEC60332-1
Temperature range -40 °C to 90°C
Advantages
Copper UL 4703 PV cable possesses excellent electrical and environmental performance. Its copper conductor uses a multi-strand twisted structure, offering superior conductivity and corrosion resistance; the insulation uses weather-resistant materials.
| Conductor Cross Section | Insulation Thickness | Sheath Thickness | Cable OD | Conductor resistance | |
| mm2 | AWG | mm | mm | mm | Ω/km 20℃ |
| 3x1 | 18 | 0.8 | 0.74 | 5.00 土 0.2 | 20 |
| 3x1.5 | 16 | 0.8 | 0.88 | 5.00 土 0.2 | 13.7 |
| 3x2.5 | 14 | 0.8 | 1.02 | 7.25 土 0.2 | 8.27 |
| 3x4 | 12 | 0.8 | 1.16 | 9.65 土 0.2 | 5.09 |
| 3x6 | 10 | 0.8 | 1.32 | 13.75 土 0.5 | 3.39 |
| 3x10 | 8 | 0.8 | 1.6 | 22.40 土 0.5 | 1.95 |
| 3x16 | 6 | 0.8 | 1.99 | 35.80 土 0.5 | 1.24 |
Certification
PV07AC-F solar AC cable has obtained multiple international certifications. The cable limits flame propagation and enhances safety and reliability in photovoltaic AC power installations.
Flexibility
Wear Resistant
Weather Resistance
IEC60332-1
APPLICATIONS
PV07AC-F solar AC cable is mainly used for AC power connections in photovoltaic systems, including the transmission of alternating current from inverters to distribution panels or grid connection points. It is suitable for both indoor and outdoor installations, providing safe and reliable AC power delivery in a wide range of solar energy applications.
PV Inverter to AC Distribution Box
PV07AC-F Solar AC Cable is widely used in grid-connected photovoltaic systems, connecting the AC output of string inverters or central inverters to the AC distribution box. Rated at 450/750 V, the cable reliably carries the AC current output from the inverter, while its cross-linked halogen-free insulation and sheath provide excellent heat and aging resistance, suitable for long-term continuous operation.
Residential Rooftop PV Systems
In residential rooftop photovoltaic systems, PV07AC-F is typically used for the AC connection between the inverter and the household distribution system. The cable is flexible, making it easy to install on roofs, walls, or in conduits; it also features UV and ozone resistance, allowing it to be exposed to outdoor environments for extended periods without performance degradation.
Photovoltaic Power Plant
In factory, commercial building, or warehouse rooftop photovoltaic projects, PV07AC-F can be used for centralized wiring and distribution of AC output from multiple inverters. The three-core or five-core structure meets the needs of single-phase or three-phase systems, ensuring stable grid connection of photovoltaic power to the internal distribution system or the public grid.
Ground-Mounted Power Plant
In large ground-mounted photovoltaic power plants, PV07AC-F Solar AC Cable is often used to connect inverters to low-voltage AC distribution cabinets or step-up transformers. Its weather-resistant sheath can withstand high temperatures, strong UV radiation, and large diurnal temperature variations, ensuring the safety and reliability of AC power transmission.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire manufacturer. We consistently use international standards as the core basis for our technology and quality. We have strict requirements for materials and manufacturing processes. Through systematic production control and continuous quality audits, every cable we produce meets the high standards of compliance and safety demanded by the market.
Packaging Information
PV07AC-F solar cable is available in coiled packaging, on plastic reels, or on small wooden reels. The specific packaging method will be determined based on the actual cable size and quantity.
Coiled
Plastic Reel
Small Wooden Reel
