Dual Core H1Z2Z3-K Solar Cable
Conductor：
Class 5 (flexible) tinned copper
Insulation：
XLPO
Rated Voltage：
DC 1.5KV , AC 1.0/1.0 KV
Standard：
TUV/UL/ lEC 62930 / EN 50618:2014 / UL4703
Temperature range -40 °C to 90°C：
Description
Download
Conductor
Class 5 (flexible) tinned copper
Insulation
XLPO
No. of Conductor
2 Cores
Temperature Rating
-40 °C to 90°C

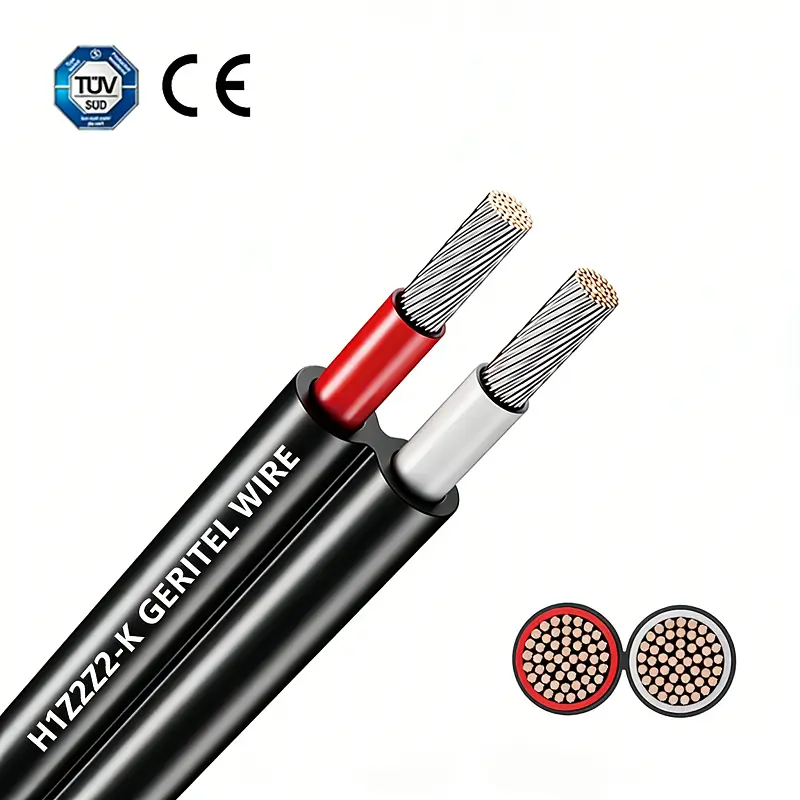

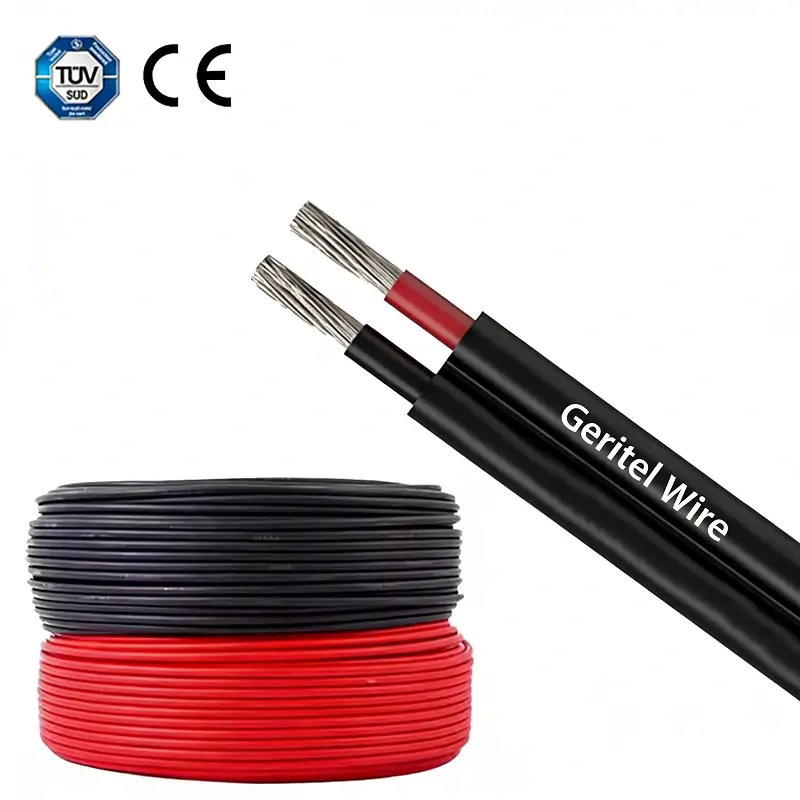

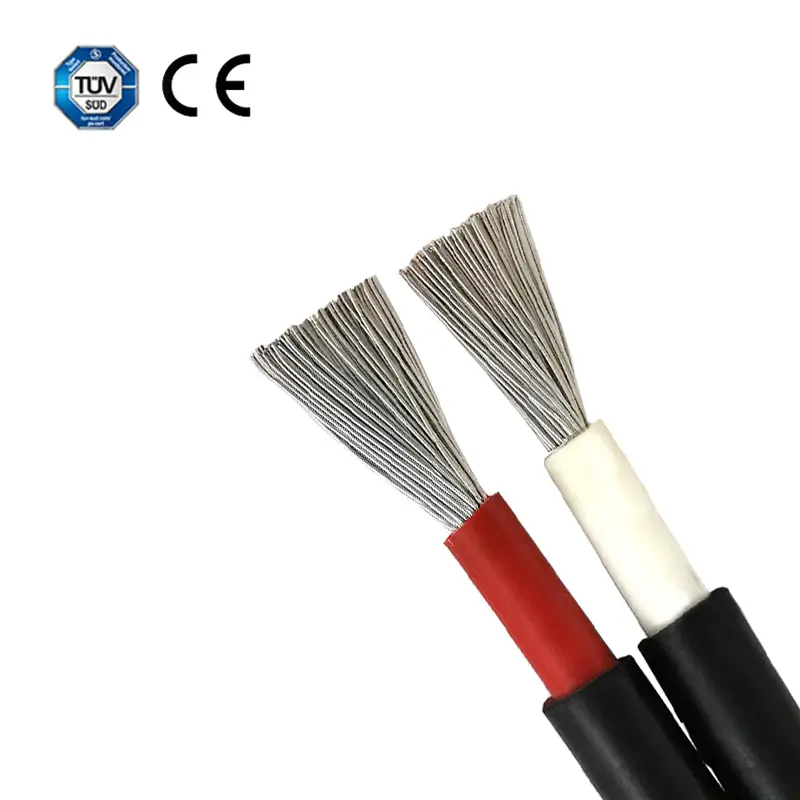

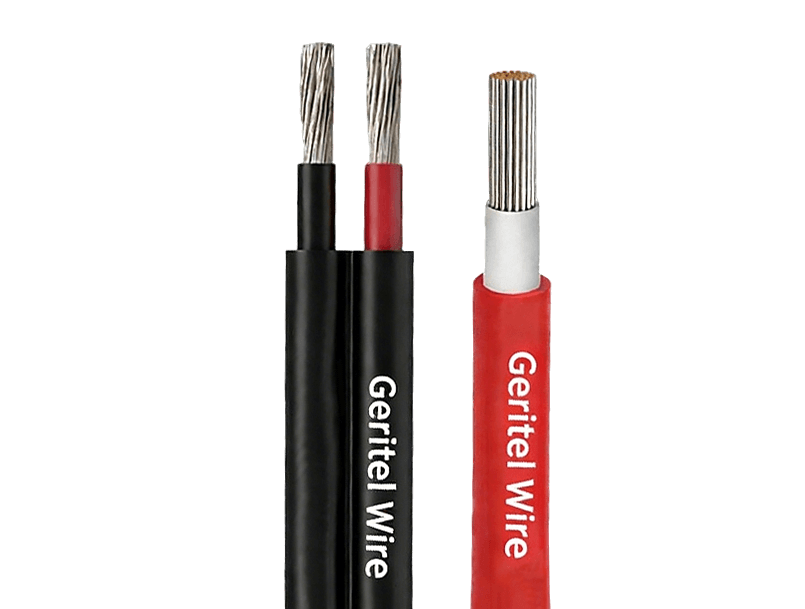

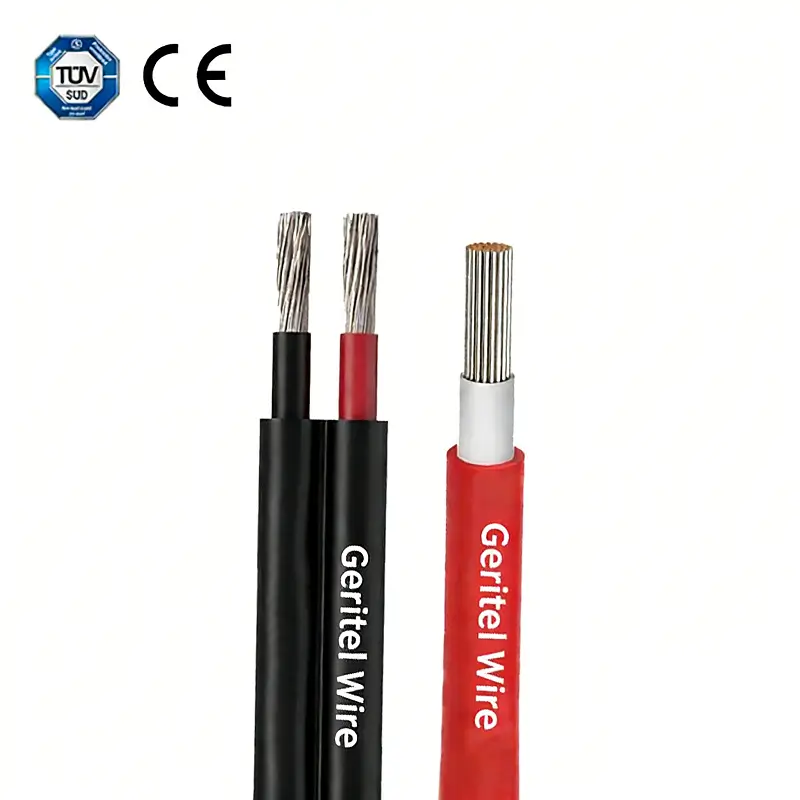

Dual Core H1Z2Z3-K solar cable
H1Z2Z2-K twin-core DC solar photovoltaic cable features flexible tinned copper conductors and a cross-linked polyolefin (XLPO) insulation and sheath structure. It offers excellent weather resistance, high and low-temperature resistance, and UV resistance, making it a reliable power supply cable for critical power connections in photovoltaic systems, such as from solar panels to inverters.
2 core solar cable
H1Z2Z2-K solar cables possess excellent UV resistance, moisture resistance, heat resistance, and aging resistance; they meet multiple international safety standards and testing requirements, improving the overall safety and long-term reliability of photovoltaic systems.

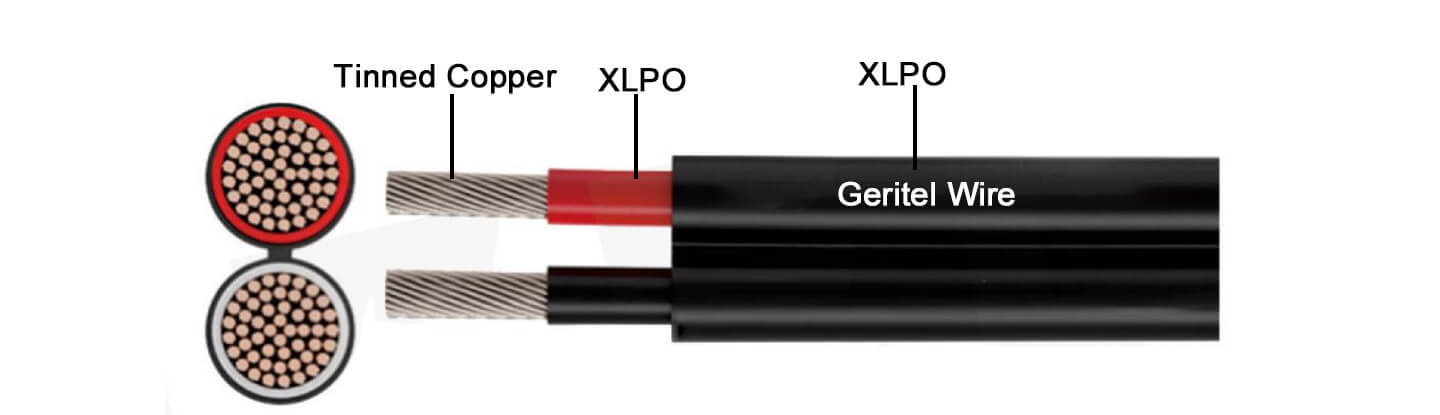

Conductor : Class 5 (flexible) tinned copper
Rated Voltage Uo/U (Um) : DC 1.5KV , AC 1.0/1.0 KV
Insulated : XLPO
Standard : TUV/UL/ lEC 62930 / EN 50618:2014 / UL4703
Temperature range -40 °C to 90°C
Advantages of solar cable
Two core photovoltaic cable features a Class 5 (flexible) tinned copper conductor, offering excellent conductivity and mechanical flexibility. The insulation and sheath are made of cross-linked polyolefin (XLPO) material, which is flame-retardant, low-smoke, and halogen-free.
| Conductor | Nominal Insulation Thickness | Nominal sheath Thickness | Approx. Overall Diam. | Approx.Weight | Minimum Insulation | Max.Conductor Resistance DC @20℃ | ||
| Nominal Area | Approx.Diam. | |||||||
| (mm²) | (mm) | (mm) | (mm) | (mm) | (kg/km) | 20℃ (MΩ .km) |
90℃ (MΩ .km) |
(MΩ .km) |
| 1x1.5 | 1.57 | 0.7 | 0.8 | 4.7 | 38 | 860 | 0.86 | 13.7 |
| 1x2.5 | 2.04 | 0.7 | 0.8 | 5.2 | 45 | 690 | 0.69 | 8.21 |
| 1x4 | 2.6 | 0.7 | 0.8 | 5.6 | 60 | 580 | 0.58 | 5.09 |
| 1x6 | 3.16 | 0.7 | 0.8 | 6.3 | 90 | 500 | 0.5 | 3.39 |
| 1x10 | 4.5 | 0.7 | 0.8 | 7.6 | 131 | 420 | 0.42 | 1.95 |
| 1x16 | 5.7 | 0.7 | 0.9 | 9 | 187 | 340 | 0.34 | 1.24 |
| 1x25 | 7.2 | 0.9 | 1 | 11.2 | 267 | 340 | 0.34 | 0.795 |
| 1x35 | 8.5 | 0.9 | 1.1 | 12.7 | 368 | 290 | 0.29 | 0.565 |
| 1x50 | 9.4 | 1 | 1.2 | 14.5 | 560 | 270 | 0.27 | 0.393 |
| 1x70 | 11.1 | 1.1 | 1.2 | 16.5 | 756 | 250 | 0.25 | 0.277 |
| 1x95 | 13.1 | 1.1 | 1.3 | 18.7 | 1036 | 220 | 0.22 | 0.21 |
| 1x120 | 14.8 | 1.2 | 1.3 | 20.4 | 1309 | 210 | 0.21 | 0.164 |
| 1x150 | 16.5 | 1.4 | 1.4 | 22.7 | 1636 | 210 | 0.21 | 0.132 |
| 1x185 | 18.3 | 1.6 | 1.6 | 25.2 | 2000 | 200 | 0.2 | 0.108 |
| 1x240 | 21 | 1.7 | 1.7 | 28.5 | 2607 | 200 | 0.2 | 0.0817 |
| 2x1.5 | 1.57 | 0.7 | 0.8 | 4.8*10.5 | 78 | 860 | 0.86 | 13.7 |
| 2x2.5 | 2.04 | 0.7 | 0.8 | 5.2*11.8 | 92 | 690 | 0.69 | 8.21 |
| 2x4 | 2.6 | 0.7 | 0.8 | 5.6*12.8 | 122 | 580 | 0.58 | 5.09 |
| 2x6 | 3.16 | 0.7 | 0.8 | 6.3*13.7 | 182 | 500 | 0.5 | 3.39 |
| 2x10 | 4.5 | 0.7 | 0.8 | 8.0*16.8 | 264 | 420 | 0.42 | 1.95 |
| 2x16 | 5.7 | 0.7 | 0.9 | 9.0*19.8 | 376 | 340 | 0.34 | 1.24 |
Certification

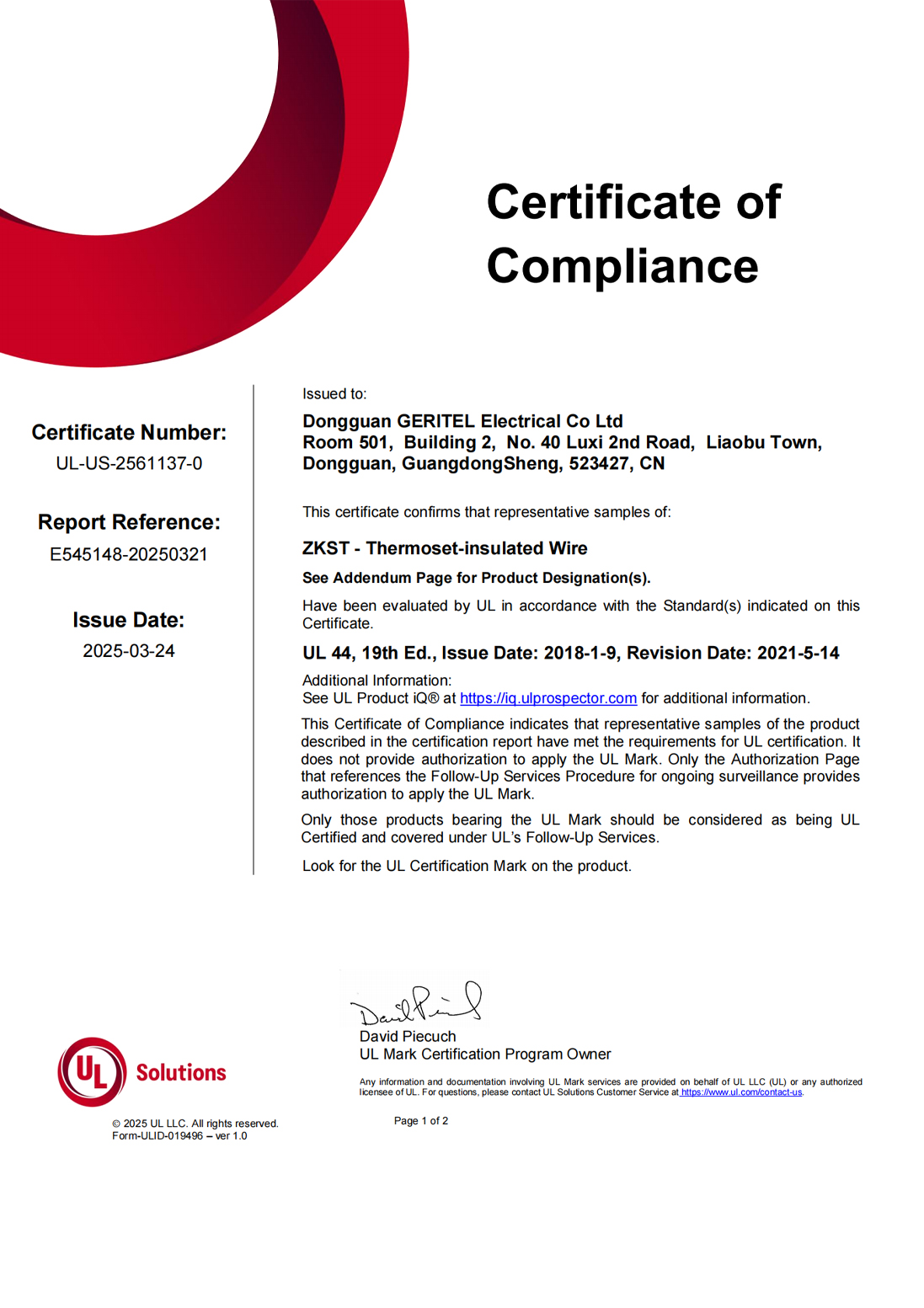

Dual Core H1Z2Z3-K solar cable is TUV and UL certified and complies with IEC 62930, EN 50618:2014, and UL 4703 standards, which ensures high safety, reliability, and long-term stable operation in photovoltaic systems.
Flexibility
Bending Resistant
Weather Resistance
UL/TUV Certified
APPLICATIONS
Dual-core DC solar cables are primarily used for DC side connections in photovoltaic systems, including high-voltage DC power transmission between solar modules and inverters, junction boxes, or control equipment. Their excellent high-temperature resistance and weather resistance make them suitable for photovoltaic applications in outdoor or variable climate conditions, providing stable and reliable power transmission for the system.
Combiner Box
Dual core H1Z2Z3-K cable can be directly used as the DC cable from the combiner box output to the inverter input. This section of the line typically needs to carry the maximum current of the entire branch, and the 2-core solar cable provides sufficient current carrying capacity and excellent insulation performance.
PV Tracking Mount System
In PV systems with single-axis or dual-axis tracking mounts, cables often need to be repeatedly bent to accommodate the movement of the mounts. The dual-core structure reduces the friction between the two single-core cables, making it suitable for repeated bending and dynamic working environments.
Rooftop Distributed Systems
In residential or commercial rooftop PV systems, the dual-core H1Z2Z3-K is used for connecting modules to the combiner box and for DC input to the inverter. Its advantages include simple wiring, quick installation, and less polarity confusion, making it particularly suitable for on-site construction.
PV + Energy Storage Integration
In PV + Energy Storage (ESS) systems, the dual-core H1Z2Z3-K is commonly used for transmitting DC output from the PV array to the energy storage unit and the energy storage DC busbar, maintaining system efficiency and reliability.
