SPT Christmas Light Wire
Conductor ：
Copper
Insulation：
PVC
Rated Voltage：
300V
Temperature range：
60℃
Standard：
BPS certified
Description
Download
Conductor
Copper
Insulation
PVC
No. of Conductor
2 cores
Temperature Rating
60°C

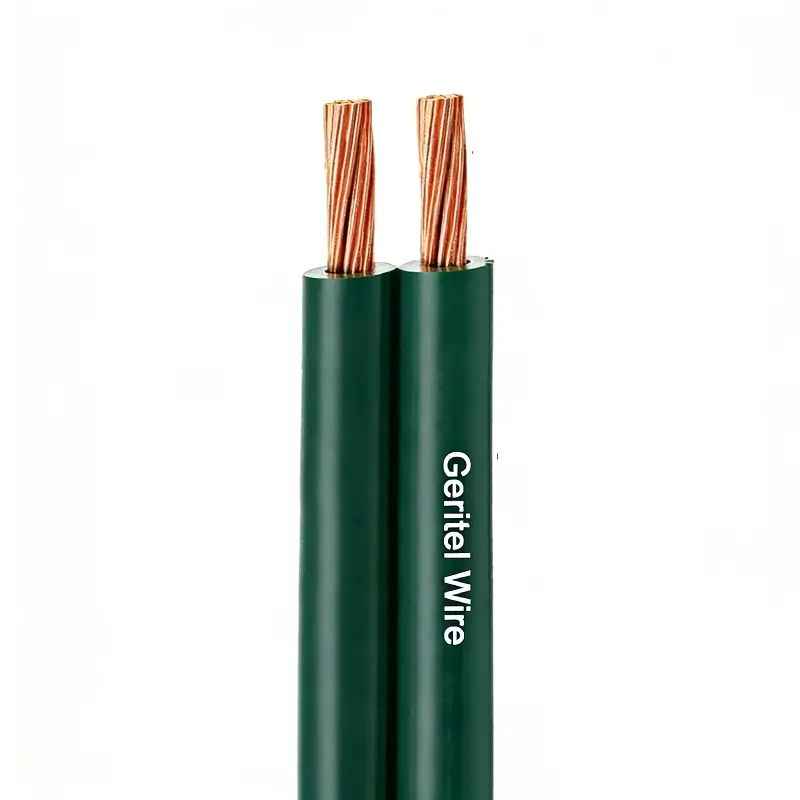

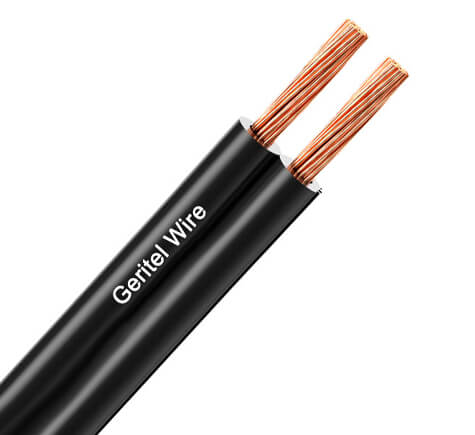

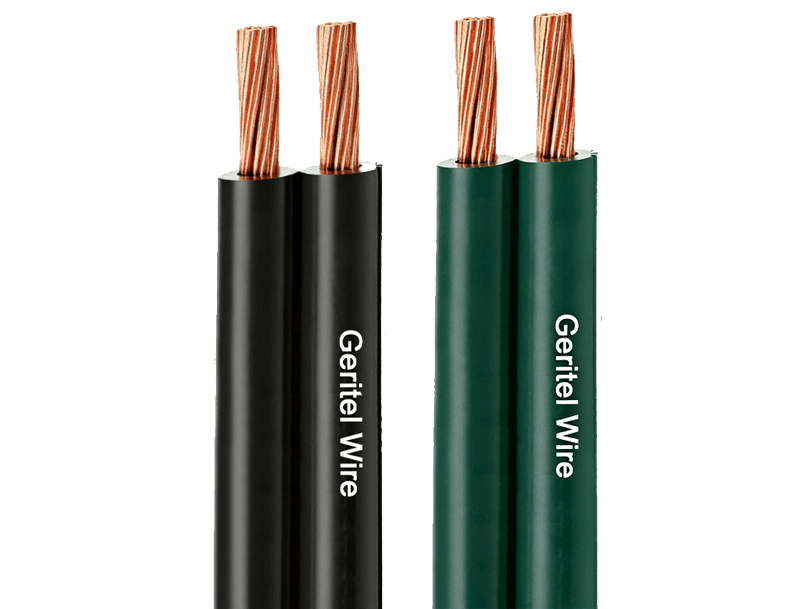

SPT Cable

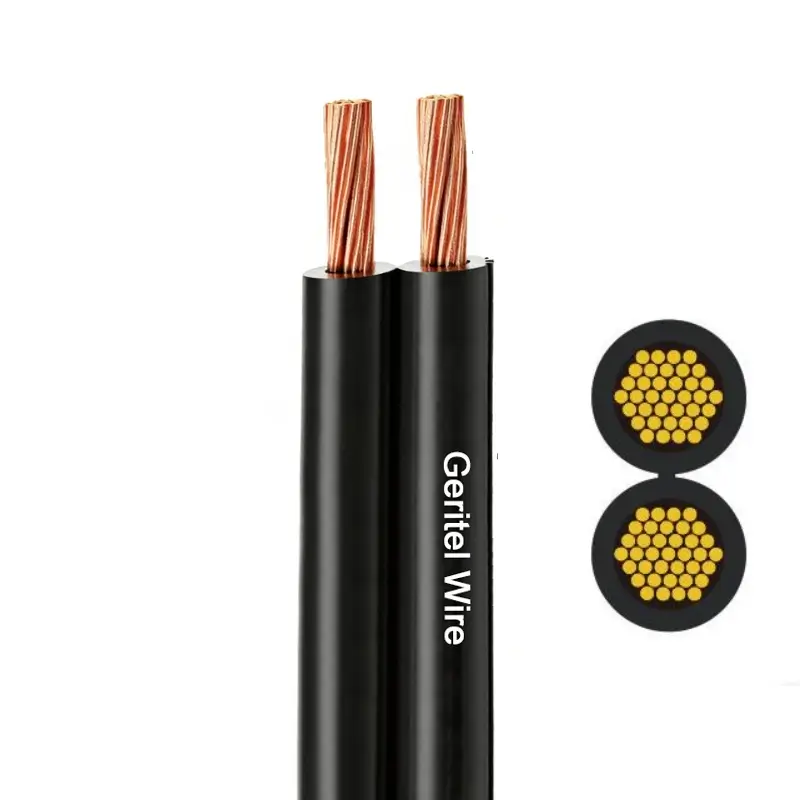

SPT wire is a common parallel-structure thermoplastic insulated wire primarily used for power connections in low-power indoor appliances and lighting equipment. Depending on the insulation thickness, SPT wire is generally classified into types such as SPT-1, SPT-2, and SPT-3 to meet different electrical and mechanical performance requirements.
STP Wire
SPT wire is generally rated at 300V and is suitable for power supply scenarios with low to medium current loads.
Copper Conductors
Rated Voltage Uo/U (Um) : 300V
Insulated : PVC
Standards : BPS
Temperature range : 60℃
Advantages of SPT wire

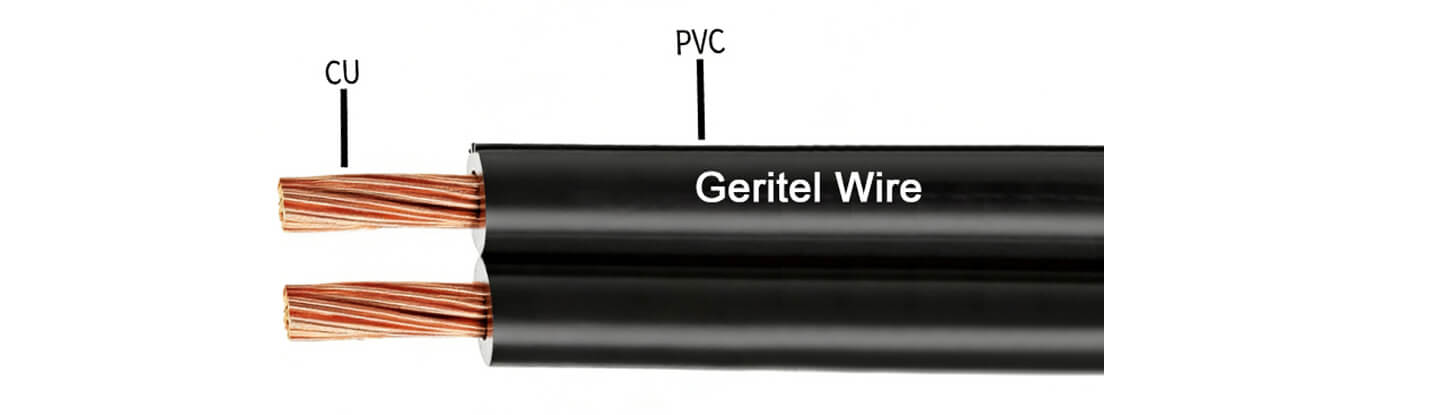

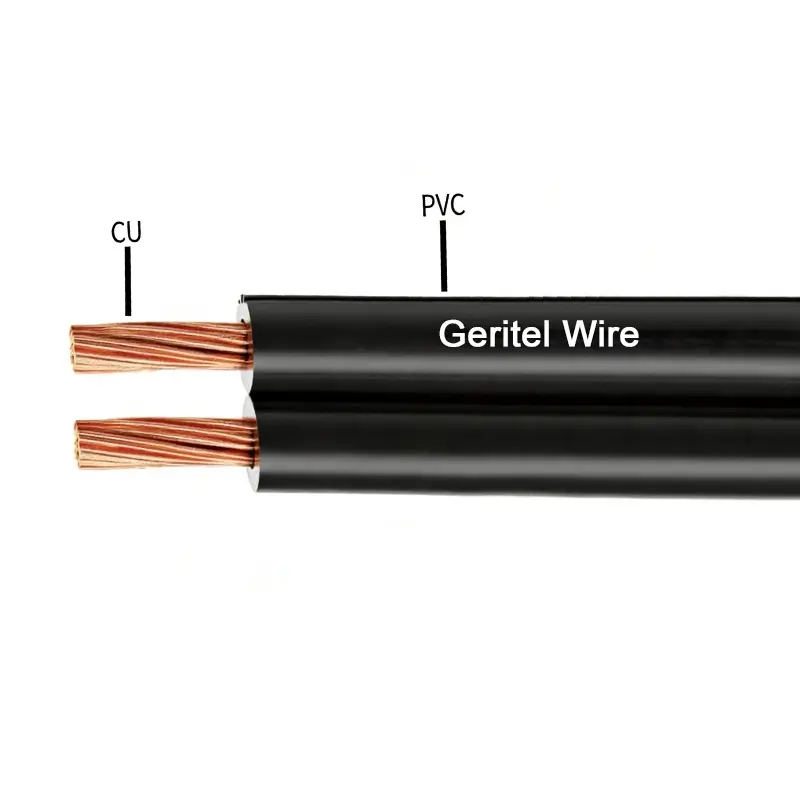

SPT wire typically consists of two parallel copper conductors covered with a flexible PVC thermoplastic insulation layer. It offers good flexibility and ease of processing, facilitating installation, stripping, and termination.
| SPT (FLATCORD),300 VOLTS, 60°C | |||||||
| SIZE OF CONDUCTOR | No.& Nominal Diameter of Wire | Type Designation | Approximate Cable Weight |
Approximate Cable Diameter |
Standard Length | ||
| MM | Approximate AWG | KG/KM | MM | METER | |||
| Major | Minor | ||||||
| 0.75 mm² | 18 | 30 x 0.18 mm | SPT-1 | 29.96 | 5.4 | 2.7 | 150 |
| 1.25 mm² | 16 | 50 x 0.18 mm | SPT-2 | 57.33 | 7.8 | 3.9 | 150 |
| 2.0 mm² | 14 | 37 x 0.26 mm | SPT-3 | 115.33 | 11.6 | 5.8 | 150 |
| 3.5 mm² | 12 | 45 x 0.32 mm | SPT-4 | 166.02 | 12.8 | 7.4 | 150 |
Certification
SPT wire has passed BPS certification and meets multiple relevant international standards. The product demonstrates stable performance in terms of electrical safety, material properties, and manufacturing consistency.
flexibility
Insulation performance
Electrical performance
BPS certified
APPLICATIONS
SPT wire is usually used for power connections in table lamps, floor lamps, decorative lighting, small household appliances, and commercial lighting equipment. It is suitable for fixed indoor or lightly mobile use environments.
Table Lamp & Floor Lamp
Used for power connection of indoor lighting equipment such as table lamps and floor lamps, the wire is flexible and easy to bend, making it easy to run through conduits and expose the wiring, and meets the 300V low voltage lighting power supply requirements.
Decorative Lighting
Suitable for power cord connections of decorative string lights, ambient lighting, and festive lights. Lightweight and simple in structure, it is suitable for short-distance wiring and temporary or semi-fixed indoor use.
Small Household Appliances
Power cords for light-load household appliances such as fans, radios, and humidifiers provide stable power supply and meet the requirements for flexibility and basic mechanical properties.
Commercial Lighting
It is used for internal or external wiring of commercial lighting, display lighting and shop window lighting. It is easy to install and helps to improve assembly efficiency and wiring standardization.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional Philippine cable manufacturer. Our cable portfolio covers a comprehensive range of local standard cables, including THHN, THW, TF, TFN, Royal Cord, SPT Cable, and other commonly used models, meeting the diverse wiring needs of residential, commercial, and industrial projects.
Packaging Information
SPT cable is typically packaged in coils, plastic reels, or wooden reels.

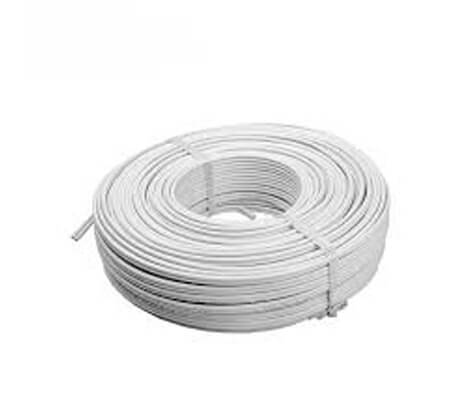

Coiled

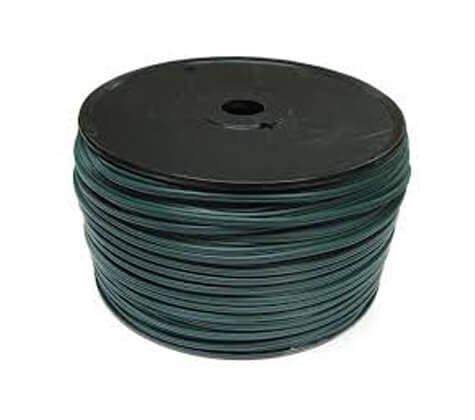

Plastic Reel

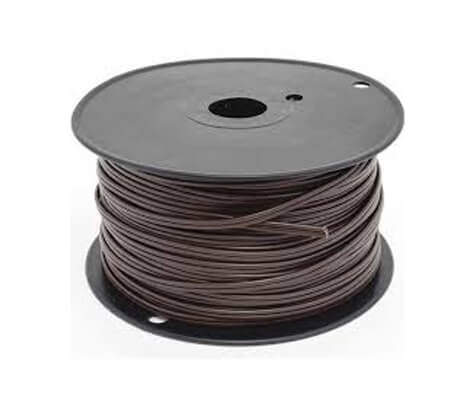

Tinplate Reel
