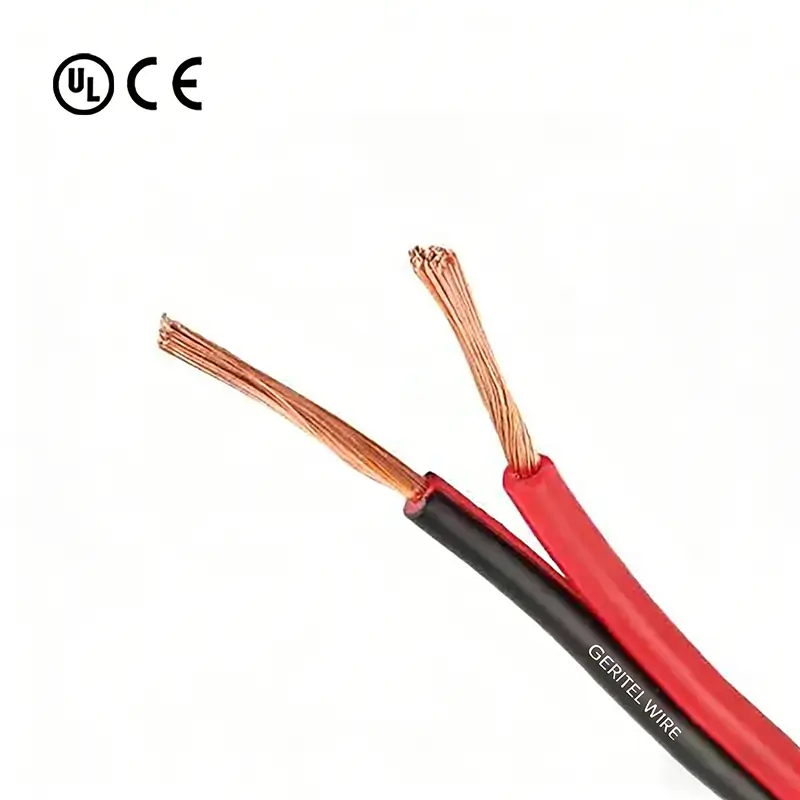

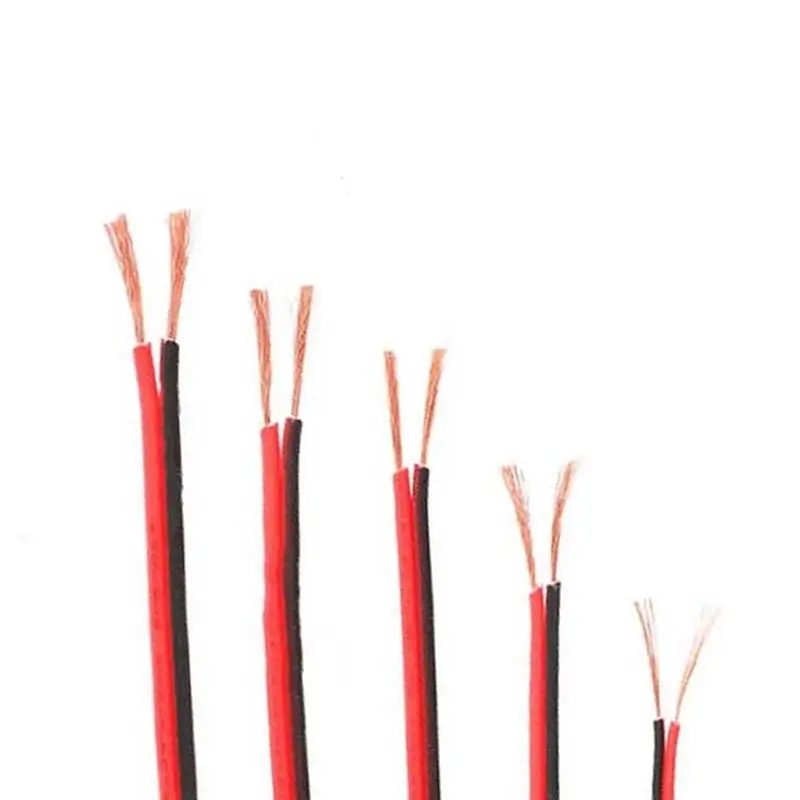

Red and Black Speaker wire
Conductor ：
Pure Copper
Insulation：
PVC
Temperature range: -10℃ ~ 60℃ ：
Standard：
UL & ROHS
Description
Download
Conductor
Pure Copper
Insulation
PVC
No. of Conductor
2 cores
Temperature Rating
-10℃ ~ 60℃

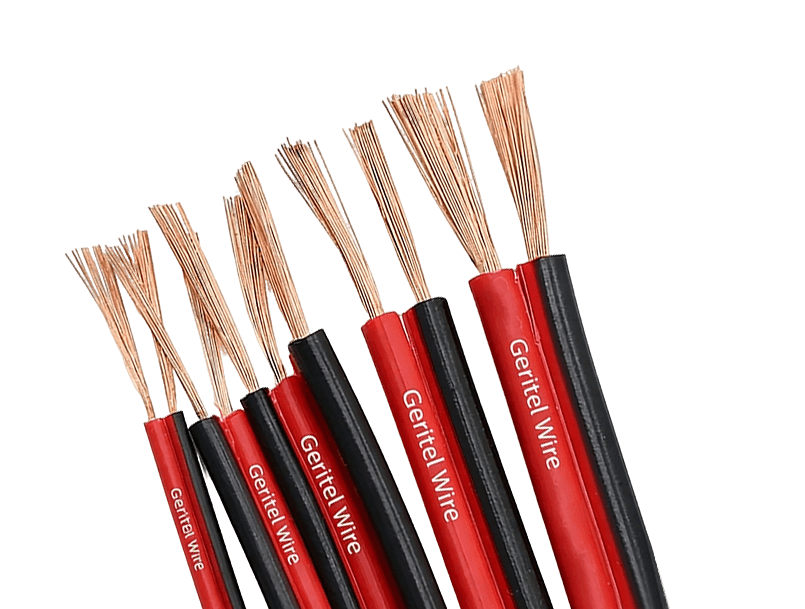

speaker wire

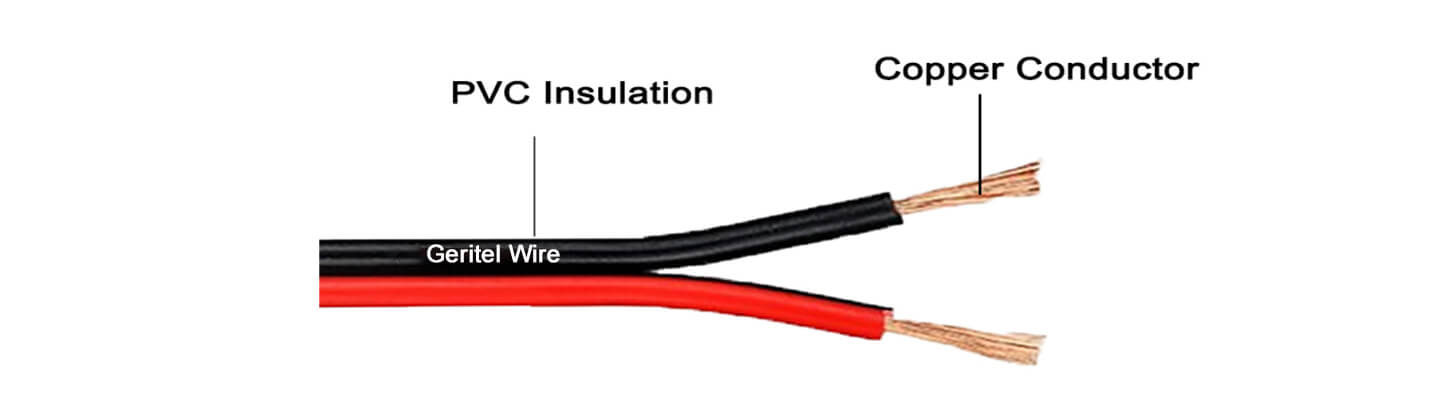

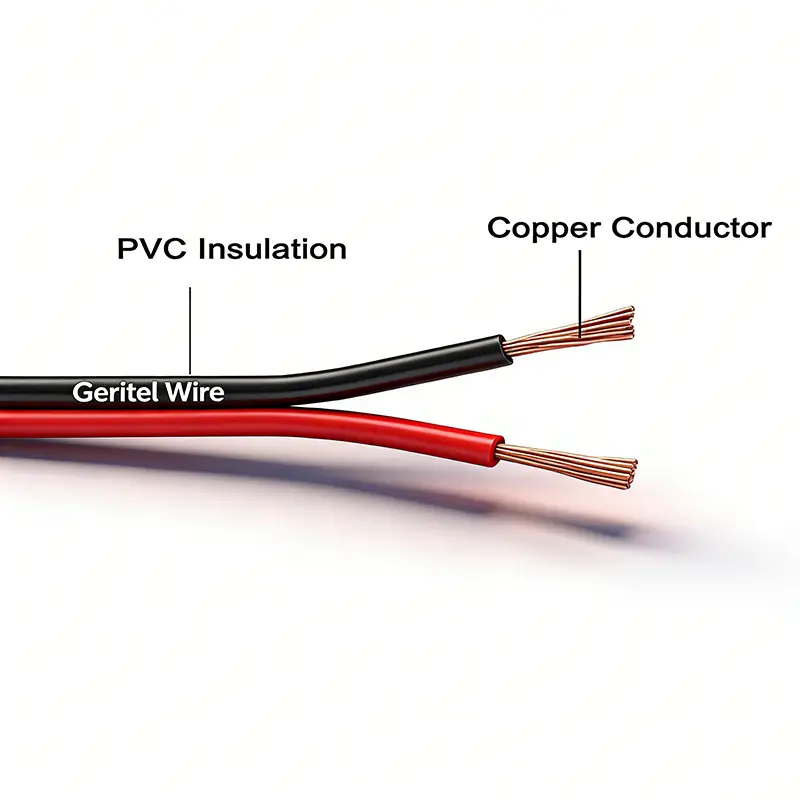

Audio cables are commonly used audio connectors, featuring 100% pure copper conductors and high-quality PVC insulation, providing excellent electrical performance and durability. The flat cable body with two-color markings facilitates installation and polarity identification.
Speaker Wire
Speaker wire is low resistance and excellent signal transmission characteristics thanks to its high-purity copper conductor, providing clearer sound quality.
Conductors：Pure Copper
Insulated : PVC
Standards : UL & ROHS
Temperature range : -10℃ ~ 60℃
Advantages of SPEAKER wire
Speaker cable uses ASTM B-174 standard annealed pure copper conductors, which have excellent conductivity and low resistance, clear and stable signal transmission. The high-grade PVC outer sheath is heat-resistant and wear-resistant, suitable for long-term use in general environments. The cable's contrasting colors and flat structure allow for more flexible wiring.
| NUMBER OF COND. | AWG | COND. | NOM.INSULATION THICKNESS | NOMINAL O.D. | ||
| SIZE | STRAND | INCHES | MM | INCHES | MM | |
| 2 | 24 | 7/32 | 0.016 | 0.41 | 0.058x0.17 | 1.47x2.79 |
| 2 | 22 | 46233 | 0.02 | 0.51 | 0.070x0.145 | 1.77x3.68 |
| 2 | 20 | 46325 | 0.02 | 0.51 | 0.085x0.160 | 2.16x4.06 |
| 2 | 18 | 16/30 | 0.02 | 0.51 | 0.083x0.181 | 2.11x4.60 |
| 2 | 16 | 26/30 | 0.02 | 0.51 | 0.105x0.210 | 2.67x5.33 |
| 2 | 14 | 41/30 | 0.025 | 0.64 | 0.125x0.235 | 3.18x5.69 |
| 2 | 12 | 65/30 | 0.025 | 0.64 | 0.154x0.323 | 3.91x8.20 |

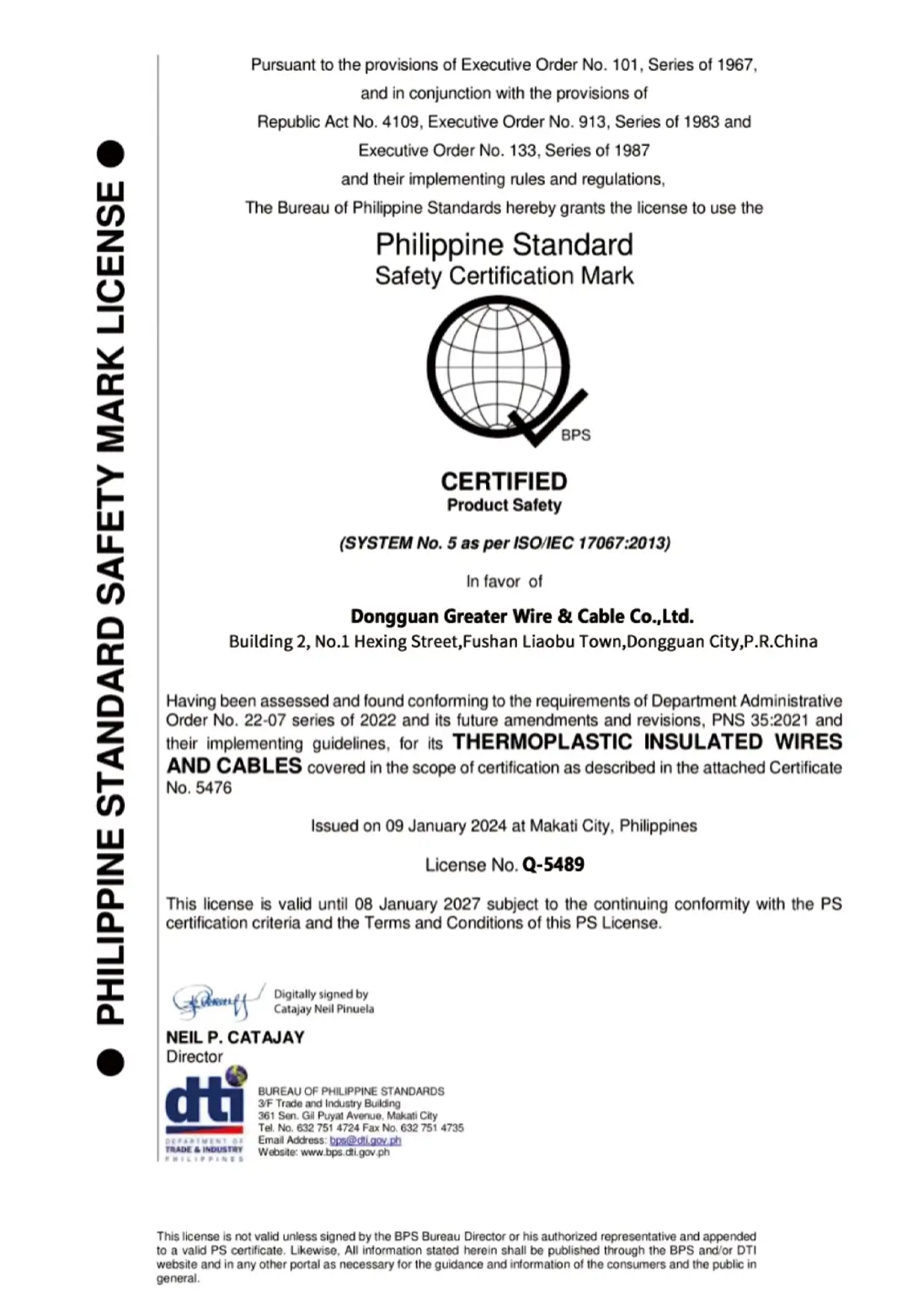

Certification
Speaker cable has passed multiple certifications, meeting electrical safety and hazardous substance restrictions, reliable performance, and environmental compliance in audio applications.
Flexibility
Temperature Rating
Electrical Performance
UL & ROHS
APPLICATIONS
speaker wire features low resistance and excellent signal transmission characteristics thanks to its high-purity copper conductor, providing clearer sound quality compared to traditional multi-core aluminum wires; its flat design helps conceal wiring and reduces space usage; and its heat-resistant and durable PVC material extends its lifespan.
Home Theater
Designed to connect power amplifiers to front, surround, and center speakers, meeting medium-power audio transmission needs. Effectively reduces signal loss in home environments, ensuring clear and stable sound.
Car Audio
Suitable for connecting front and rear door speakers and low-power subwoofers in automobiles. The multi-strand copper conductors offer good flexibility, facilitating wiring in the confined spaces of a vehicle, and provide excellent vibration resistance.
Public Broadcasting
Audio system wiring for conference rooms, classrooms, and small commercial spaces. Speaker wire meets standard sound reinforcement power requirements, balancing cost and reliability.

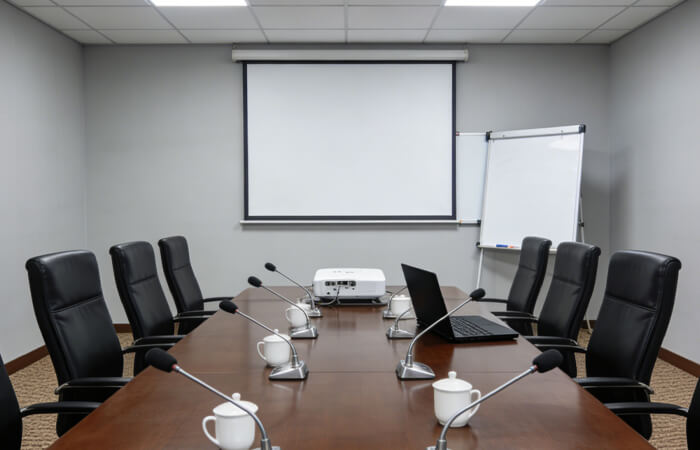

Conference Rooms
Commonly used by audio enthusiasts to build their own speakers or replace existing cables. The wire gauge is universal, easy to solder and terminate, and suitable for various audio device interfaces.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional Philippine cable manufacturer. We are familiar with local wire and cable markings and provide cable solutions for many hospitals and educational institutions in the Philippines. Our products have demonstrated stable performance over long-term operation.
Packaging Information
Speaker wires are typically packaged in coils, with plastic spools, or in tinplate reels. Customization services are available.

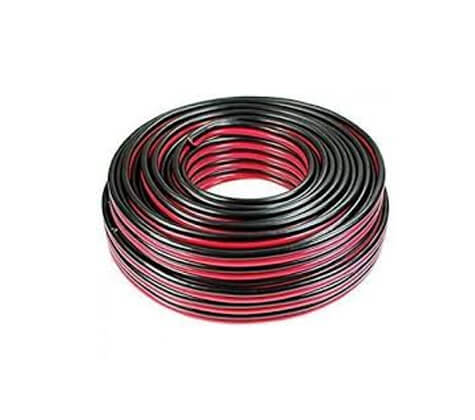

Coiled

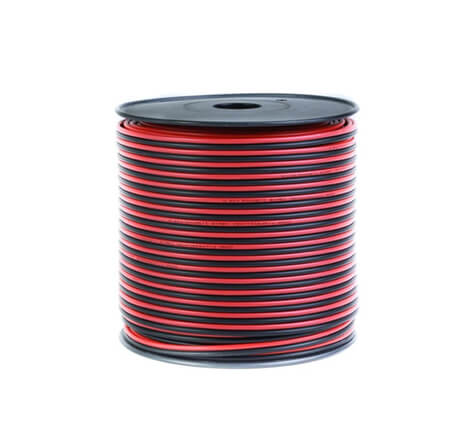

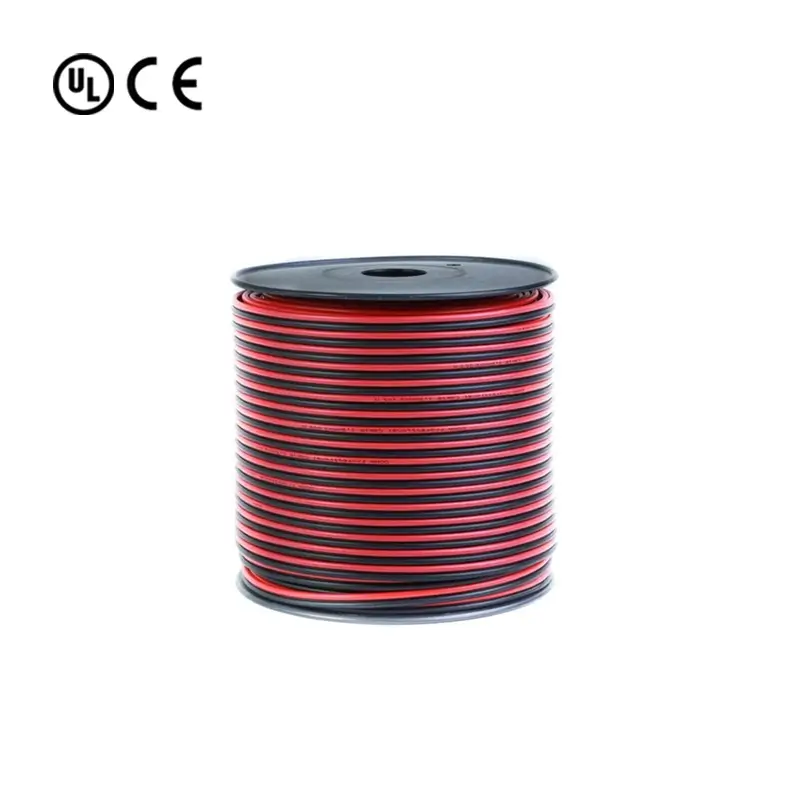

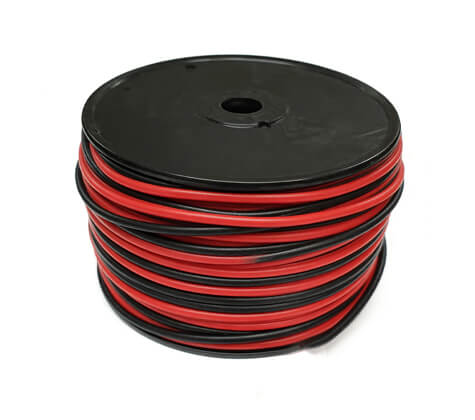

Plastic Reel

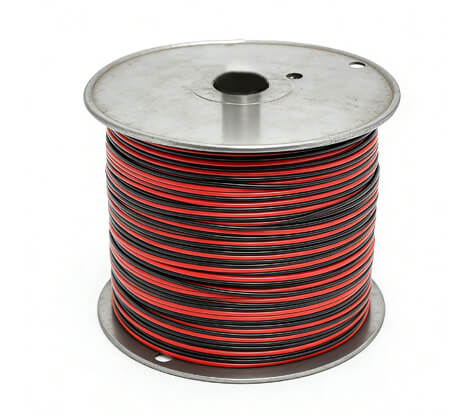

Tinplate Reel
