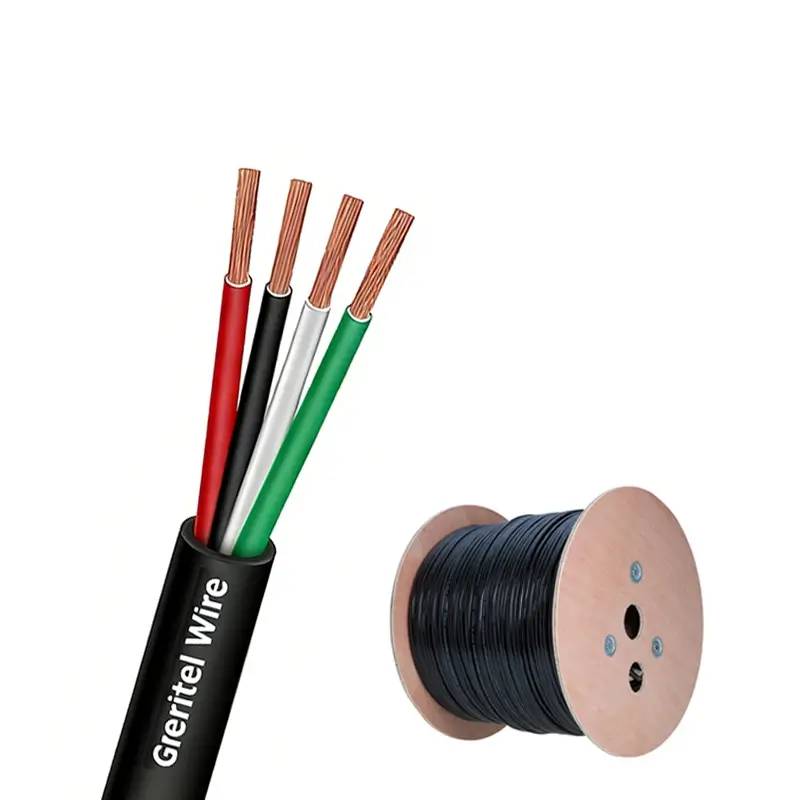

4 Core Royal Cord
Conductor ：
99.99% high-purity oxygen-free copper
Insulation：
PVC（Lead Free)
Jacket：
PVC(Lead Free)
Rated Voltage：
600V
Temperature range ：
-15℃ ~ 60℃
Standard：
BPS Certified
Description
Download
Conductor
99.99% high-purity oxygen-free copper
Insulation and Sheath
PVC & PVC
No. of Conductor
4 cores
Temperature Rating
-15°C ~ 60℃

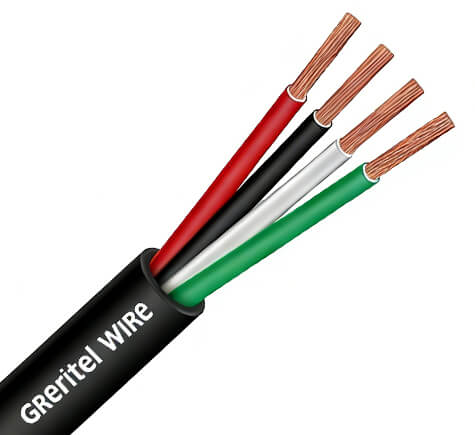

4 Core Royal Cord
4 Core Royal Cord is a four-core flexible power cable containing four multi-strand soft copper conductors, protected by high-quality PVC insulation and an overall sheath. The four cores are used for live, neutral, auxiliary, and ground wires, making it suitable for complex and multi-functional electrical system connections.
4 core royal cord
4 core royal cord is made of multi-strand soft copper conductors combined with high-quality PVC insulation and sheath, combining flexibility and durability for easy conduit installation and equipment connection.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 600V
Insulated : PVC
Outer Jacket : PVC
Standards : BPS Certified
Temperature range ：-15℃ ~ 60℃

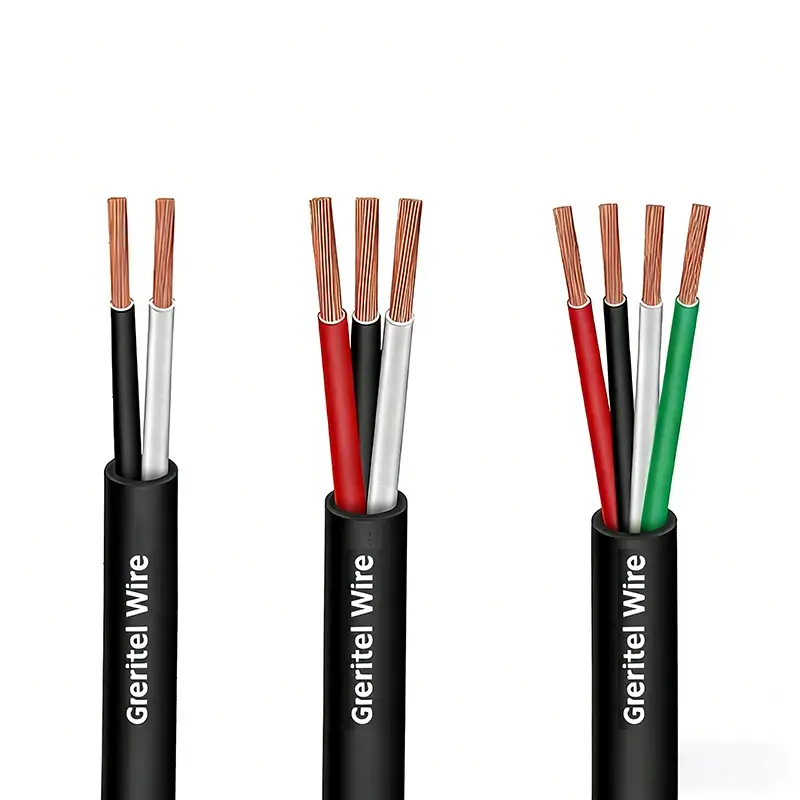

Advantages of royal cord
Royal Cord 4C uses soft-annealed multi-strand copper conductors, offering high conductivity and ample flexibility, ideal for environments with significant bending and frequent movement. Each conductor has independent PVC insulation, and the overall outer sheath enhances mechanical protection. It meets 600V rated voltage and corresponding temperature requirements, ensuring reliable operation in normal indoor and protected environments.
| Size / Nom.Areas of Conductor | Size /Nom. Area of Conductor | No.& Diameter Conductor | Approx.Over Diameter of conductor | Max.Conductor Resistance | Ampacity | Test oltage | Stan dard Length | |
| (A) | ||||||||
| AWG | mm2 | No./mm | mm | Ohm/km | A | B | Volts | m |
| 18 | 0.75 | 30/0.18 | 1.1 | 23.52 | 7 | 10 | 2000 | 75 |
| 16 | 1.25 | 50/0.18 | 1.5 | 14.11 | 10 | 13 | 2000 | 75 |
| 14 | 2 | 37/0.26 | 1.8 | 9.14 | 15 | 18 | 3000 | 75 |
| 12 | 3.5 | 65/0.26 | 2.4 | 5.2 | 20 | 25 | 3000 | 75 |
| 10 | 5.5 | 104/0.26 | 3 | 3.25 | 25 | 30 | 3000 | 75 |
| 8 | 8 | 7/22/0.26 | 4.2 | 2.24 | 35 | 40 | 4000 | 75 |
| 6 | 14 | 7/38/0.26 | 5.5 | 1.3 | 45 | 55 | 4000 | 75 |
| 4 | 22 | 7/60/0.26 | 6.8 | 0.82 | 60 | 70 | 4000 | 75 |
| 2 | 30 | 7/81/0.26 | 8 | 0.62 | 80 | 95 | 4000 | 75 |
| Size /Nom.Areas of Conductor | Size /Nom.Area of Conductor | 2 conductors | 3 conductors | 4 conductors | |||
| Approx. overall diameter | Approx. weight | Approx. overall diameter | Approx. weight | Approx. overall diameter | Approx. weight | ||
| AWG | mm2 | mm | kg/km | mm | kg/km | mm | kg/km |
| 18 | 0.75 | 8.4 | 75 | 8.8 | 92 | 9.5 | 111 |
| 16 | 1.25 | 9.2 | 93 | 9.68 | 117 | 10.5 | 143 |
| 14 | 2 | 12.4 | 165 | 13.05 | 295 | 14.14 | 250 |
| 12 | 3.5 | 14.4 | 235 | 15.14 | 295 | 16.39 | 361 |
| 10 | 5.5 | 15.6 | 293 | 16.44 | 377 | 17.84 | 467 |
| 8 | 8 | 20.2 | 511 | 21.32 | 632 | 24 | 823 |
| 6 | 14 | 23.6 | 744 | 24.92 | 926 | 27.92 | 1200 |
| 4 | 22 | 27 | 1030 | 28.52 | 1296 | 31.7 | 1663 |
| 2 | 30 | 30 | 1292 | 31.71 | 1648 | 35.35 | 2130 |
Certification
4 core Royal Cord is BPS certified. Compliant with the Philippine Electrical Code (PEC) and related testing requirements, and certified by local or international accredited bodies, our cables provide reliable assurance for Philippine engineering projects during acceptance and subsequent use.
Flexibility
Wear Resistance
Structural stability
BPS Certified
APPLICATIONS
4C Royal Cord is suitable for electrical systems requiring multi-functional wiring or grounding protection, such as multi-circuit socket power supply, three-wire power supply for household appliances, commercial equipment, and temporary power distribution. It is also suitable for connections from distribution boxes to control equipment, combined wiring of power and control lines for electromechanical equipment, and temporary wiring in industrial areas.
Three-Phase Equipment
4 core Royal Cord is commonly used for power or power + control circuit connections in small three-phase equipment. Its four-core structure accommodates three live wires plus one control or neutral wire, making it suitable for light industrial equipment, commercial machinery, and equipment testing environments.

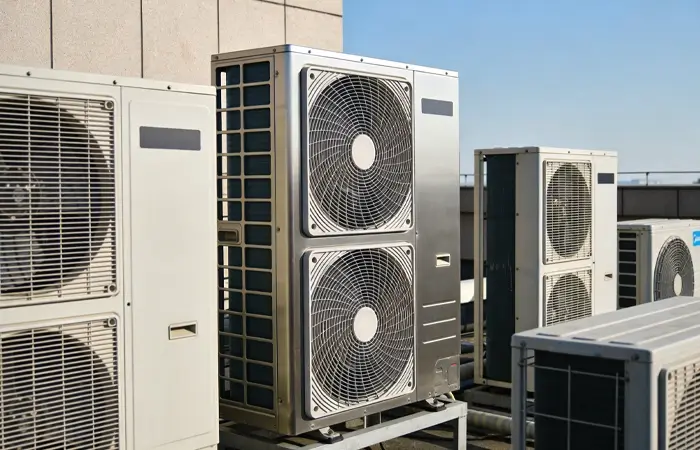

Commercial Air Conditioning
In commercial air conditioning, central air conditioning terminals, or large ventilation equipment, Royal Cord 4 Core can simultaneously handle power and control signal transmission, such as operating power, control loops, or feedback signals, resulting in more centralized, neater wiring and easier maintenance.
Automatic Systems
In Philippine commercial buildings and residences, 4C Royal Cord is commonly used for motor forward/reverse control and power connections in motorized roller shutters, automatic doors, and motorized curtain systems. Its flexible structure facilitates wiring for moving parts of the equipment.
Stage Lighting
In commercial displays, stage lighting, and multi-circuit lighting systems, 4 core Royal Cord can be used for combined connections of multiple control signals and power supplies, suitable for lighting equipment requiring frequent adjustments and relocation.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional Philippine cable manufacturer. We have a deep understanding of the characteristics of the Philippine residential electrical environment and continuously invest in research and development, and production of commonly used household cables such as Royal Cord, SPT Cable, TF, and TFN. These cables are widely used in household appliances, power connections, and indoor wiring, and are highly recognized in the local market.
Packaging Information
Royal Cord cables come in three standard packaging options: coiled, plastic spool, and wooden spool. Customized packaging is also available.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
