3 Core Royal Cord
Conductor ：
99.99% high-purity oxygen-free copper
Insulation：
PVC(Lead Free)
Jacket：
PVC(Lead Free)
Rated Voltage：
600V
Temperature range ：
-15℃ ~ 60℃
Standard：
BPS Certified
Description
Download
Conductor
99.99% high-purity oxygen-free copper
Insulation and Sheath
PVC(Lead Free) & PVC(Lead Free)
No. of Conductor
3 cores
Temperature Rating
-15°C ~ 60℃

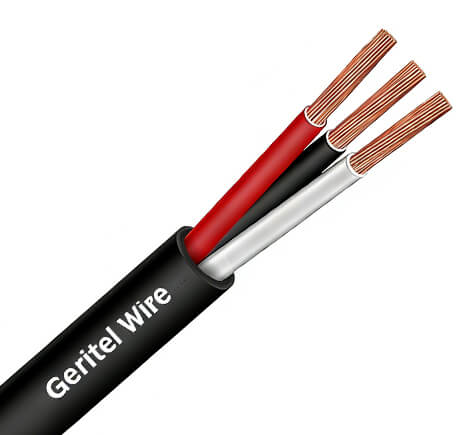

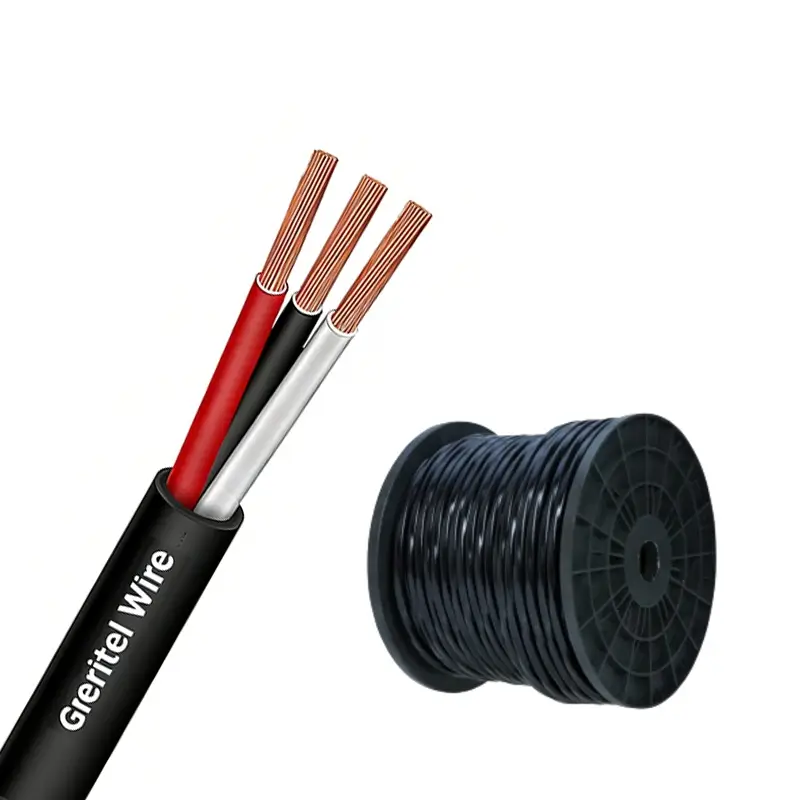

3 Core Royal Cord

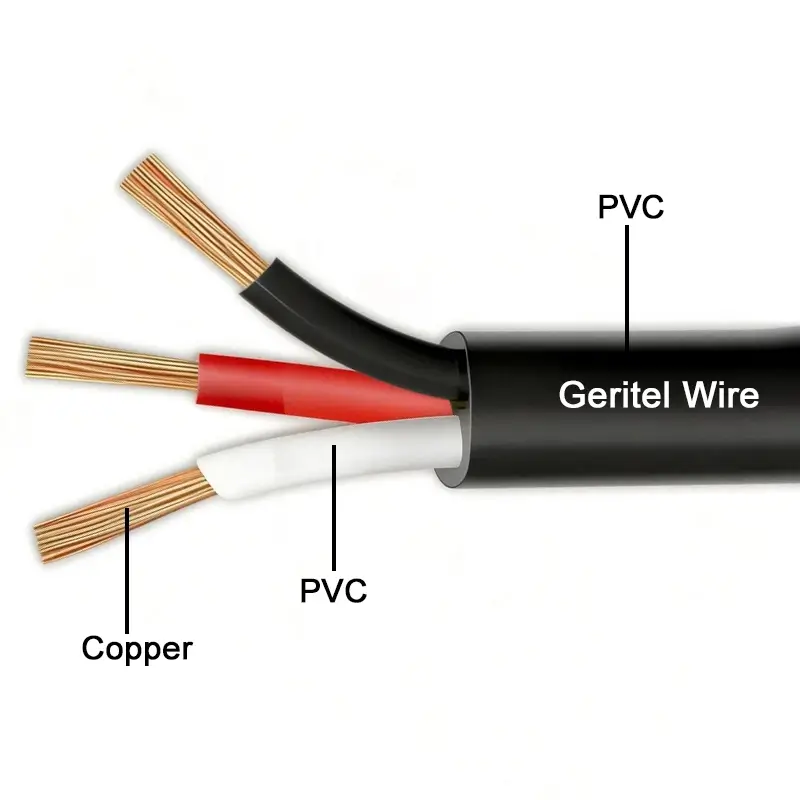

3-Core Royal Cord is a flexible multi-core power cord consisting of three multi-strand soft copper conductors: a live wire, a neutral wire, and an additional conductor (such as a ground or neutral wire), all covered with durable PVC insulation and a sheath.
3 core royal cord
3 core Royal Cord is suitable for applications requiring three-wire power supply and is used in electrical systems with higher safety and grounding requirements.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 600V
Insulated : PVC(Lead Free)
Outer Jacket : PVC(Lead Free)
Standards : BPS Certified
Temperature range ：-15℃ ~ 60℃
Advantages of royal cord
3C Royal Cord uses highly flexible multi-strand soft copper conductors, offering excellent conductivity and strong mechanical flexibility. Each conductor has an independent PVC insulation sheath, effectively preventing short circuits and leakage.
| Size / Nom.Areas of Conductor | Size /Nom. Area of Conductor | No.& Diameter Conductor | Approx.Over Diameter of conductor | Max.Conductor Resistance | Ampacity | Test oltage | Stan dard Length | |
| (A) | ||||||||
| AWG | mm2 | No./mm | mm | Ohm/km | A | B | Volts | m |
| 18 | 0.75 | 30/0.18 | 1.1 | 23.52 | 7 | 10 | 2000 | 75 |
| 16 | 1.25 | 50/0.18 | 1.5 | 14.11 | 10 | 13 | 2000 | 75 |
| 14 | 2 | 37/0.26 | 1.8 | 9.14 | 15 | 18 | 3000 | 75 |
| 12 | 3.5 | 65/0.26 | 2.4 | 5.2 | 20 | 25 | 3000 | 75 |
| 10 | 5.5 | 104/0.26 | 3 | 3.25 | 25 | 30 | 3000 | 75 |
| 8 | 8 | 7/22/0.26 | 4.2 | 2.24 | 35 | 40 | 4000 | 75 |
| 6 | 14 | 7/38/0.26 | 5.5 | 1.3 | 45 | 55 | 4000 | 75 |
| 4 | 22 | 7/60/0.26 | 6.8 | 0.82 | 60 | 70 | 4000 | 75 |
| 2 | 30 | 7/81/0.26 | 8 | 0.62 | 80 | 95 | 4000 | 75 |

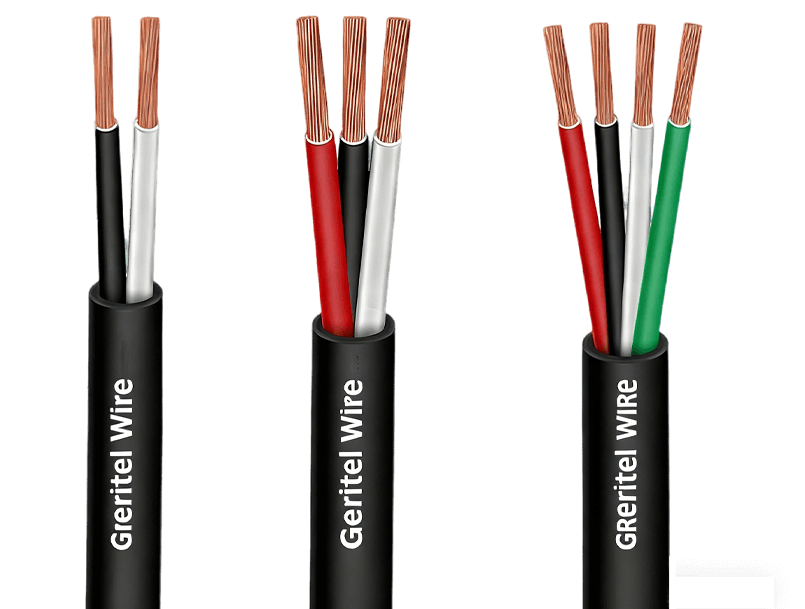

| Size /Nom.Areas of Conductor | Size /Nom.Area of Conductor | 2 conductors | 3 conductors | 4 conductors | |||
| Approx. overall diameter | Approx. weight | Approx. overall diameter | Approx. weight | Approx. overall diameter | Approx. weight | ||
| AWG | mm2 | mm | kg/km | mm | kg/km | mm | kg/km |
| 18 | 0.75 | 8.4 | 75 | 8.8 | 92 | 9.5 | 111 |
| 16 | 1.25 | 9.2 | 93 | 9.68 | 117 | 10.5 | 143 |
| 14 | 2 | 12.4 | 165 | 13.05 | 295 | 14.14 | 250 |
| 12 | 3.5 | 14.4 | 235 | 15.14 | 295 | 16.39 | 361 |
| 10 | 5.5 | 15.6 | 293 | 16.44 | 377 | 17.84 | 467 |
| 8 | 8 | 20.2 | 511 | 21.32 | 632 | 24 | 823 |
| 6 | 14 | 23.6 | 744 | 24.92 | 926 | 27.92 | 1200 |
| 4 | 22 | 27 | 1030 | 28.52 | 1296 | 31.7 | 1663 |
| 2 | 30 | 30 | 1292 | 31.71 | 1648 | 35.35 | 2130 |
Certification
3 Core Royal Cord is BPS certified and meets Philippine national electrical and safety standards. It complies with regulations regarding structure, materials, and electrical performance, and is suitable for compliant applications in the Philippines and other recognized markets.
Flexibility
Wear Resistance
Aging resistance
BPS Certified
APPLICATIONS
3Core Royal Cord is suitable for scenarios requiring three-wire power supply, such as connections for appliances with grounding protection, power supply for medium to high-power household devices, main/control line connections for industrial equipment, and temporary power cabling. In residential, commercial office buildings, and light industrial environments, it is frequently used for power connections to equipment such as air conditioners, refrigerators, and washing machines, or for lighting fixtures, sockets, and cable trays requiring grounding protection.
Washing Machine
In Philippine homes, washing machines are typically placed on balconies, laundry areas, or semi-open spaces, requiring high electrical safety standards. The 3-Core Royal Cord provides a live wire, neutral wire, and independent ground wire, effectively reducing the risk of leakage and improving the safety of equipment operating in humid environments.
Refrigerator
3 Core Royal Cord is commonly used for power cords in refrigerators and commercial freezers. The grounding core safely conducts any leakage current that may arise from the equipment casing, meeting the basic grounding protection requirements for residential and commercial premises in the Philippines.
Office Equipment
In offices and commercial premises, printers, copiers, small servers, and network equipment typically require grounding protection. The 3-Core Royal Cord provides a stable power supply to these devices and enhances the safety and reliability of system operation through the grounding core.
Hotel
In hotel rooms and serviced apartments, appliances such as televisions, mini-fridges, and electric kettles are typically equipped with three-core power cords. 3-Core Royal Cord facilitates unified management of appliance safety and meets the electrical regulations for commercial accommodations.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional Philippine cable manufacturer. We actively participate in various public construction projects, providing high-quality cable products for road lighting, traffic facilities, and public buildings. Whether it's power transmission lines or control and distribution cables, we can provide high-quality products.
Packaging Information
Royal Cord cables come in three standard packaging options: coiled, plastic spool, and wooden spool. Customized packaging is also available.

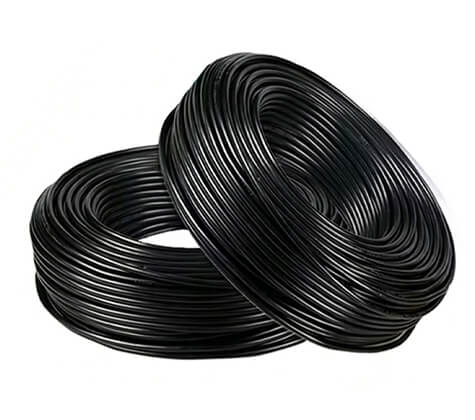

Coiled
Plastic Reel
Wooden Reel
