2 Core Royal Cord
Conductor ：
99.99% high-purity oxygen-free copper
Insulation：
PVC
Jacket：
PVC
Rated Voltage：
600V
Temperature range ：
-15℃ ~ 60℃
Standard：
BPS Certified
Description
Download
Conductor
99.99% high-purity oxygen-free copper
Insulation and Sheath
PVC & PVC
No. of Conductor
2 cores
Temperature Rating
-15°C ~ 60℃

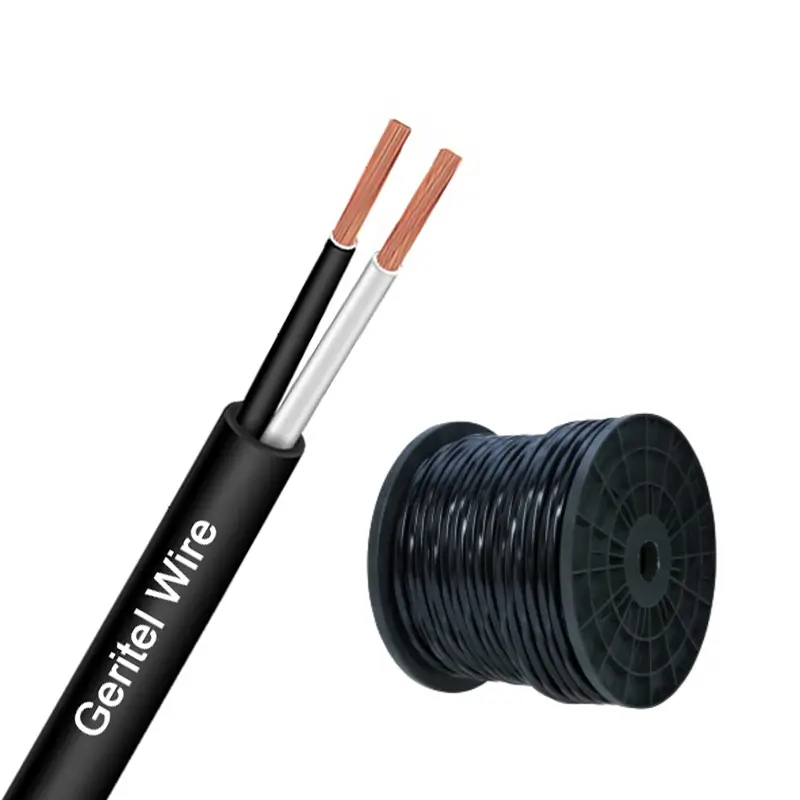

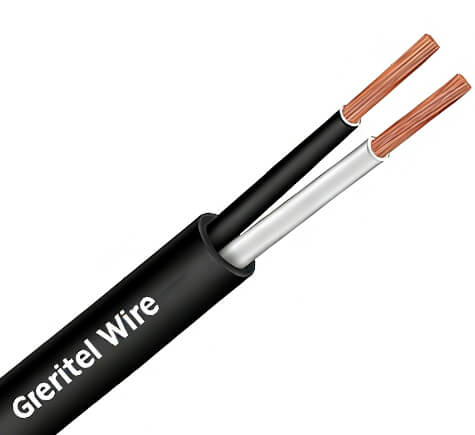

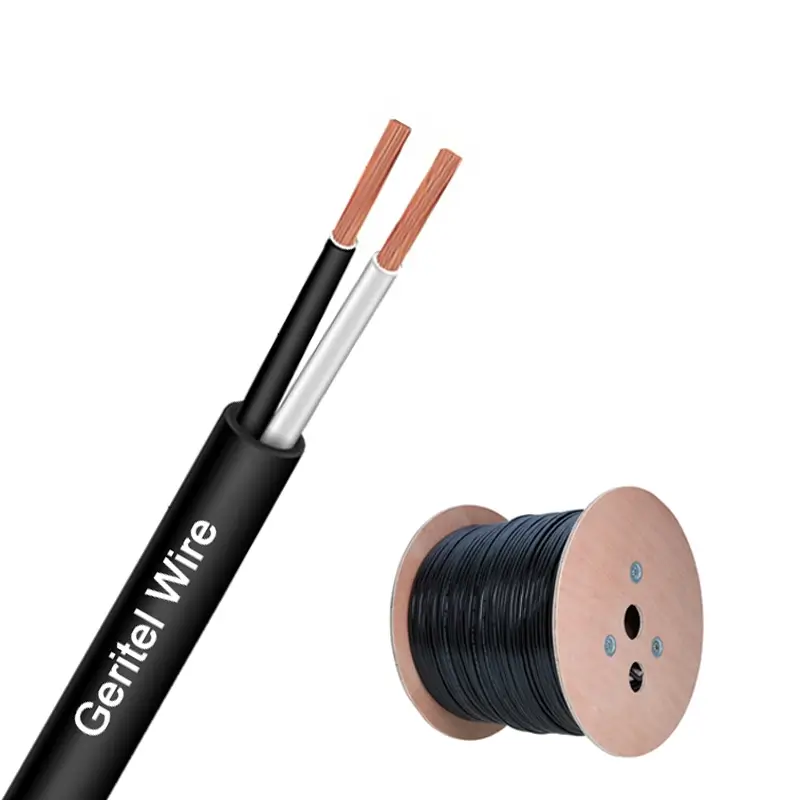

2 Core Royal Cord
2 core Royal Cord is a dual-core, multi-strand flexible cable featuring high-purity, soft-annealed copper conductors and PVC insulation and sheathing, rated for 600V. This cable is specifically designed for single-phase power supply and equipment connections, balancing conductivity and flexibility.
2 core royal cord
2 core Royal Cord has simple structure and high flexibility, making it particularly suitable for single-phase power supply systems.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 600V
Insulated : PVC
Outer Jacket : PVC
Standards : BPS Certified
Temperature range ：-15℃ ~ 60℃
Advantages of royal cord
2 core Royal Cord uses multi-stranded copper conductors, offering excellent conductivity, low resistance, and stable transmission of medium to high currents. The PVC insulation and sheath provide good electrical insulation, abrasion resistance, and aging resistance.
| Size / Nom.Areas of Conductor | Size /Nom. Area of Conductor | No.& Diameter Conductor | Approx.Over Diameter of conductor | Max.Conductor Resistance | Ampacity | Test oltage | Stan dard Length | |
| (A) | ||||||||
| AWG | mm2 | No./mm | mm | Ohm/km | A | B | Volts | m |
| 18 | 0.75 | 30/0.18 | 1.1 | 23.52 | 7 | 10 | 2000 | 75 |
| 16 | 1.25 | 50/0.18 | 1.5 | 14.11 | 10 | 13 | 2000 | 75 |
| 14 | 2 | 37/0.26 | 1.8 | 9.14 | 15 | 18 | 3000 | 75 |
| 12 | 3.5 | 65/0.26 | 2.4 | 5.2 | 20 | 25 | 3000 | 75 |
| 10 | 5.5 | 104/0.26 | 3 | 3.25 | 25 | 30 | 3000 | 75 |
| 8 | 8 | 7/22/0.26 | 4.2 | 2.24 | 35 | 40 | 4000 | 75 |
| 6 | 14 | 7/38/0.26 | 5.5 | 1.3 | 45 | 55 | 4000 | 75 |
| 4 | 22 | 7/60/0.26 | 6.8 | 0.82 | 60 | 70 | 4000 | 75 |
| 2 | 30 | 7/81/0.26 | 8 | 0.62 | 80 | 95 | 4000 | 75 |
| Size /Nom.Areas of Conductor | Size /Nom.Area of Conductor | 2 conductors | 3 conductors | 4 conductors | |||
| Approx. overall diameter | Approx. weight | Approx. overall diameter | Approx. weight | Approx. overall diameter | Approx. weight | ||
| AWG | mm2 | mm | kg/km | mm | kg/km | mm | kg/km |
| 18 | 0.75 | 8.4 | 75 | 8.8 | 92 | 9.5 | 111 |
| 16 | 1.25 | 9.2 | 93 | 9.68 | 117 | 10.5 | 143 |
| 14 | 2 | 12.4 | 165 | 13.05 | 295 | 14.14 | 250 |
| 12 | 3.5 | 14.4 | 235 | 15.14 | 295 | 16.39 | 361 |
| 10 | 5.5 | 15.6 | 293 | 16.44 | 377 | 17.84 | 467 |
| 8 | 8 | 20.2 | 511 | 21.32 | 632 | 24 | 823 |
| 6 | 14 | 23.6 | 744 | 24.92 | 926 | 27.92 | 1200 |
| 4 | 22 | 27 | 1030 | 28.52 | 1296 | 31.7 | 1663 |
| 2 | 30 | 30 | 1292 | 31.71 | 1648 | 35.35 | 2130 |
Certification
2C Royal Cord is BPS certified and meets Philippine national electrical and safety standards. It complies with regulations regarding structure, materials, and electrical performance, and is suitable for compliant applications in the Philippines and other recognized markets.
Flexibility
Wear Resistance
Bending Resistance
BPS Certified
APPLICATIONS
2-core Royal Cord is widely used for power connections in single-phase electrical equipment, such as air conditioners, water heaters, medium-power household appliances, power tools, and commercial equipment. It is also suitable for fixed wiring within buildings or connections between equipment and sockets, exhibiting stable performance indoors or in protected environments, making it suitable for power applications requiring flexibility and reliability.
Air Conditioner
In rental housing and commercial spaces, portable or window air conditioners often use Royal Cord as their power cable. This cable is flexible and bend-resistant, allowing users to easily adjust the device's position in limited spaces, while still meeting the current requirements of the air conditioning unit during operation.
Refrigerator
Royal Cord is commonly used for power connections in refrigerators and freezers in residences and small shops. These devices generate a large current surge upon startup; the multi-strand conductor structure helps improve current carrying capacity and conductivity stability, while the flexible outer sheath facilitates wiring and equipment maintenance in confined spaces.
Washing Machine
In Philippine homes, washing machines are often placed on balconies, in semi-open spaces, or near humid environments. When used as power cords, Royal Cord maintains flexibility while meeting daily power load requirements, facilitating equipment movement and regular maintenance, making it suitable for the characteristics of household laundry equipment.
Electric Fan
In the high temperatures and year-round, long-term use of electric fans in Philippine homes, Royal Cord is widely used for power cords of standing fans, wall fans, and table fans. Its multi-strand soft copper conductor structure offers excellent flexibility and resistance to repeated bending, adapting to the conditions of frequent fan movement, rotation, and prolonged operation.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional Philippine cable manufacturer. Our cables have been successfully applied to numerous important engineering projects, including airports, schools, hospitals, municipal roads, and public buildings. These projects have extremely high requirements for the safety, stability, and reliability of the cables.
Packaging Information
Royal Cord cables come in three standard packaging options: coiled, plastic spool, and wooden spool. Customised packaging is also available.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
