NM Cable

Geritel Wire is a professional Philippine cables manufacturer. We supply wire and cable to projects across the Philippines, including universities, airports, commercial buildings, hospitals, and more.

Conductor ：

Pure Copper

Insulation：

PVC

Jacket：

PVC

Rated Voltage：

600V

Temperature range : 60℃ ：

Standard：

ASTM B-174 & UL & RoHS Directive 2002/95/EC

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

NM Cable Manufacturer

NM Cable

Conductor

Pure Copper

NM Cable

Insulation and Sheath

PVC & PVC

NM Cable

No. of Conductor

2 cores & 3 cores

NM Cable

Temperature Rating

60°C

NM Cable

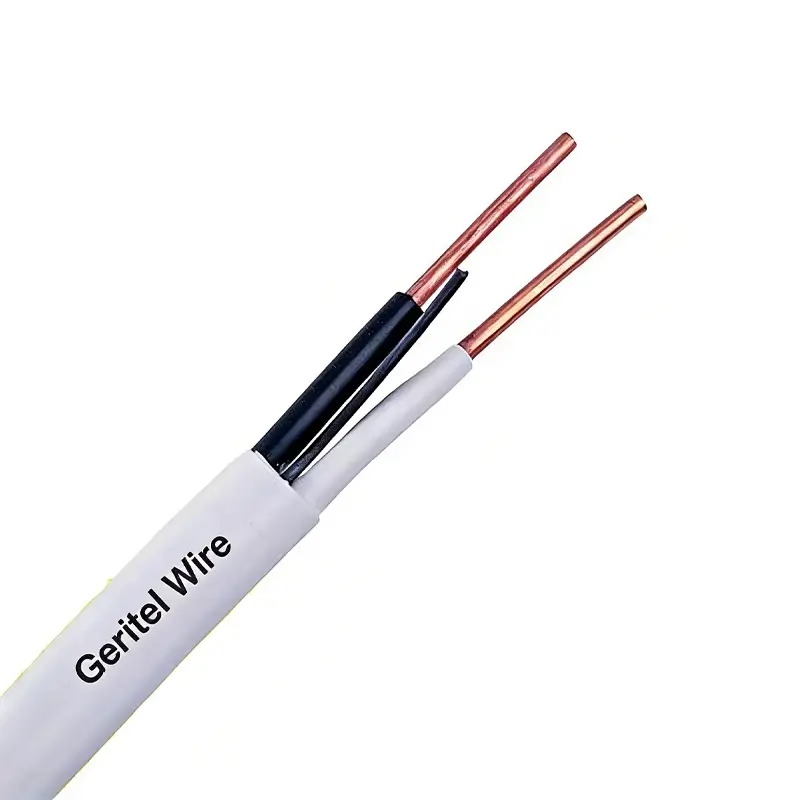

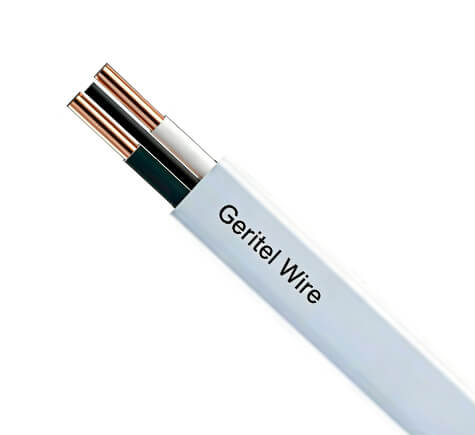

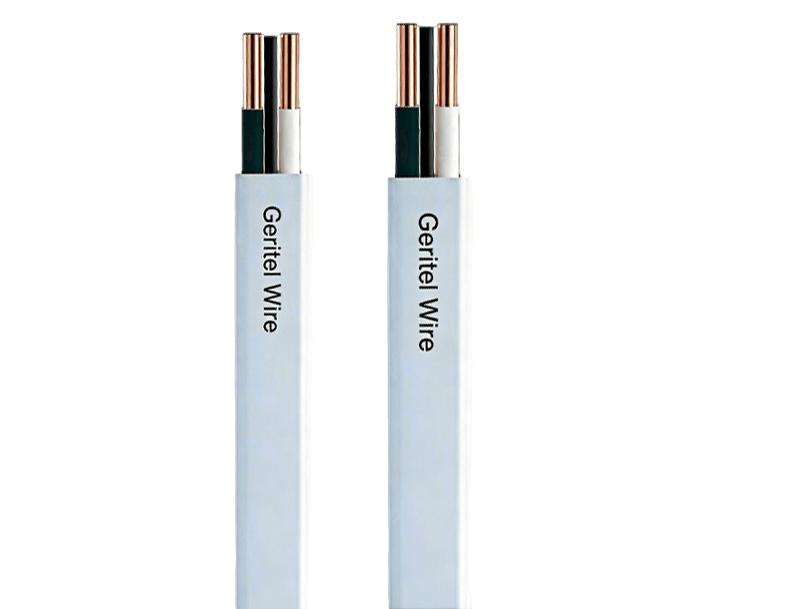

NM cable is a non-metallic sheathed cable consisting of two or three solid or stranded copper conductors. This cable has a flat surface, making it easy to wire and install.

NM wire

NM Cable

NM cable is made of lead-free PVC material and is suitable for electrical wiring connections in buildings. It is a common type of low-voltage cable used in residential and light commercial settings.

NM-B cable

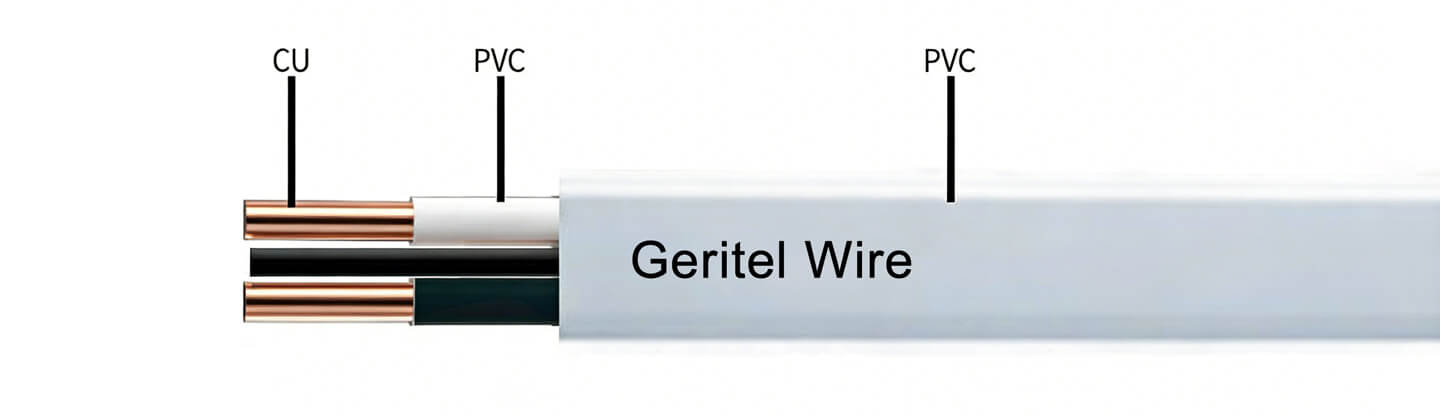

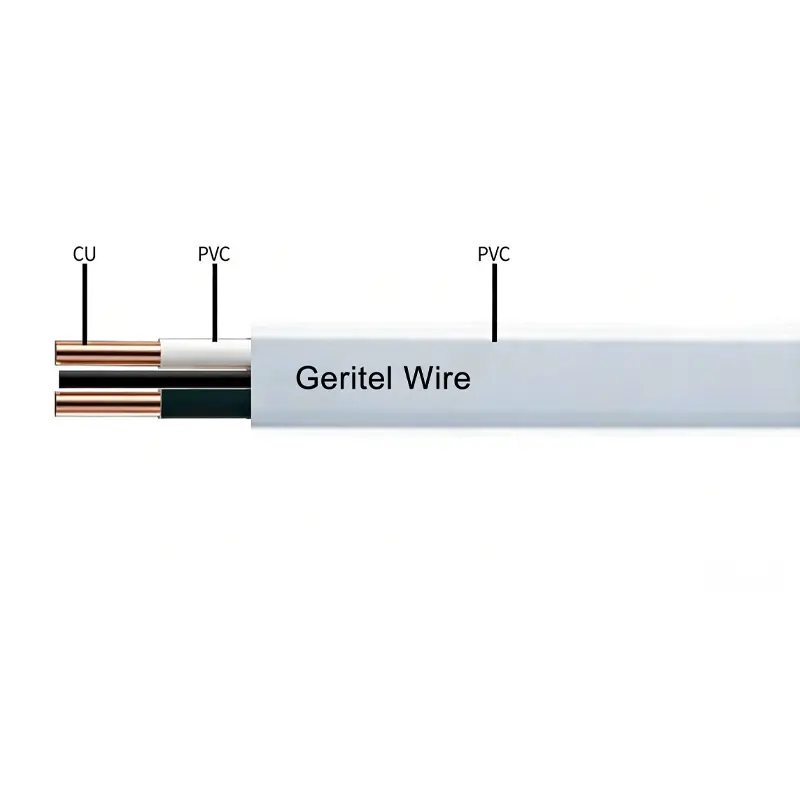

Copper Conductors

NM-B cable

Rated Voltage Uo/U (Um) : 600V

NM-B cable

Insulated : PVC

NM-B CABLE

Jacket : PVC

Standards : ASTM B-174 & UL & RoHS Directive 2002/95/EC

NM-B WIRE

Temperature range : 60℃

Advantages of nm cable

NM cable uses pure copper conductors to provide excellent electrical performance and durability, while the PVC sheath provides good insulation protection. The flat cable structure facilitates fixing and installation.

NM cable

DUREX WIRE TYPE NM, 600 VOLTS, 60°C								Standard Length
SIZE OF CONDUCTOR		No. of Conductors	Approximate Weight	Wall Thickness		Approximate Diameter		Standard Length
MM	Approximate AWG	No. of Conductors	Approximate Weight	KG/KM		MM		METER
Solid
1.6mm	14	2	78.76	0.8	0.8	9.6	4.8	75
2.0mm	12	2	117.45	0.8	0.8	10.4	5.2	75
2.6mm	10	2	166.93	0.8	0.8	11.6	6.4	75
1.6mm	14	3	116.36	0.8	0.8	11.2	4.8	75
2.0mm	12	3	155.97	0.8	0.8	12.4	5.2	75
2.6mm	10	3	228.42	0.8	0.8	14.2	5.8	75
Stranded
2.0mm2	14/7	2	94.72	0.8	0.8	10	5	75
3.5mm2	12/7	2	126.26	0.8	0.8	11.2	5.6	75
5.5mm2	10/7	2	172.62	0.8	0.8	12.4	6.2	75
2.0mm2	14/7	3	122.5	0.8	0.8	11.8	5	75
3.5mm2	12/7	3	179.8	0.8	0.8	13.6	5.6	75
5.5mm2	10/7	3	249.79	0.8	0.8	15.4	6.2	75

Certification

NM cables are certified in the Philippines. Designed and manufactured strictly according to Philippine national standards, they are legally and safely applicable to various electrical engineering projects in the Philippines.

NM wire

Durability

Flexibility

Electrical Performance

ASTM B-174 & UL & RoHS

THHN cable certification

UL approval NM wire certificated

APPLICATIONS

NM Cable is widely used for electrical wiring inside buildings, especially for branch circuits such as switches, sockets, and lighting in residential and light commercial settings. It can be used for wiring within walls, ceilings, and visible or concealed spaces, provided the cable is not directly exposed to excessive moisture or chemical corrosion. Its flexible wiring characteristics and certification compliance also make it suitable for indoor power supply projects conforming to multiple international standards.

NM cable for residential areas

Residential

Fixed wiring in residential walls and ceilings, such as lighting, sockets, and branch circuits, suitable for long-term use in dry or protected environments.

NM Cable for Indoor Lighting

Indoor Lighting

Suitable for indoor lighting wiring in residential and light commercial spaces, it can be concealed within walls or ceilings, offering standardized wiring and high installation efficiency.

NM-B Cables for Residential Building

Light Commercial Buildings

Internal power supply lines for light commercial buildings such as offices and small shops, meeting the needs of normal loads, but not suitable for humid or outdoor environments.

NM Cable for Sockets

Sockets And Switch Circuits

Commonly used in sockets, switches and power distribution branch connections, its planar structure facilitates fixing and termination, and meets the 600V low-voltage power supply requirements.

Customer Photos

Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

NM-B Cable Manufacturer

plant equipment

Geritel Wire is a professional Philippine cable manufacturer. Having cultivated the Philippine cable market for many years, we fully understand the local needs for wires and cables in terms of voltage rating, temperature resistance, insulation materials, and operating environment. Whether it's cables commonly used in residential projects or wires widely used in commercial projects, we can precisely match Philippine standards, truly "made for the local market."

NM Cable Manufacturer

Packaging Information

NM wire is typically packaged in coils, with plastic spools, and in tinplate reels. Customization services are available.

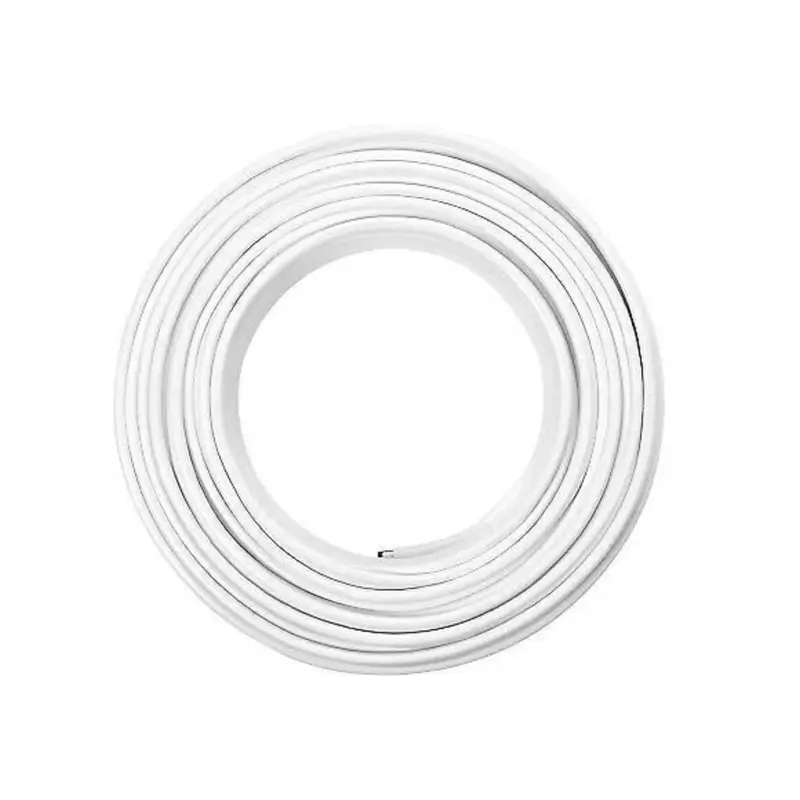

NM Cable coiled package

Coiled

NM Cable plastic reel package

Plastic Reel

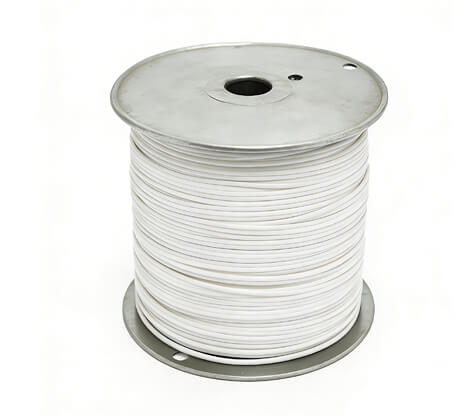

NM Cable tinplate reel package

Tinplate Reel

Global Certification

Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.

Geritel Wire's VDE certification

VDE

Geritel Wire's UL certification

UL

Geritel Wire's SAA certification

SAA

Geritel Wire's TUV certification

TUV

Geritel Wire's ISO certification

ISO

What are people saying about us

Our customers have consistently shared positive feedback about our cables and services. Here’s what they say about US:

Customer Reviews of Geritel Wire

Juan Dela Cruz - Philippine

We’ve been sourcing THHN cables from this factory for two years now. Every batch of cables has a smooth, uniform outer sheath, free of defects. There have been almost zero returns during on-site acceptance, demonstrating extremely consistent quality.

Customer Reviews of Geritel Wire

Angelo Reyes - Philippine

When collaborating with the factory to customize solar photovoltaic lines, their technical team provided detailed answers to our specification questions and offered sample testing plans. The cables fully comply with IEC standards.

Customer Reviews of Geritel Wire

Miguel Flores- Philippine

From quotation to delivery, the factory’s entire process is very transparent, especially regarding the cable certification documents, which provided complete documentation, making our review and acceptance process very smooth.

frequently asked questions

If you have any questions, you can contact me at any time

Do you have a 24/7 emergency response team to deal with emergencies?

Yes, we have a professional pre-sales and after-sales team to respond 24/7. Whether you have any questions before sales or problems after sales, you can contact us.

In which regions of the world does your company conduct business?

1. Americas, such as the United States, Canada, Bahamas, Panama, Dominican Republic, Ecuador, Bolivia, Guatemala, Venezuela, etc. 2. Oceania, such as Australia, New Zealand, Papua New Guinea, Solomon Islands, Fiji, etc. 3. Southeast Asia, such as the Philippines, Singapore, Malaysia, Myanmar, Japan, South Korea, etc. 4. Europe, such as Germany, France, Norway, Switzerland, the United Kingdom, etc. 5. Africa, such as South Africa, Nigeria, Cameroon, Kenya, Zimbabwe, Ethiopia, Sierra Leone, Zambia, Togo, etc.

What after-sales services do you provide?

Our factory provides return and exchange services. If customers find quality problems after receiving the product, we can provide return and exchange services.

What is your quality assurance process?

We will select and inspect the raw material and conduct strict quality inspections on each batch of raw materials. During the production process, the factory usually uses automated equipment and online detection systems for real-time monitoring. For example, the diameter of the copper wire, the thickness of the insulation material, and the twisting process during the wire drawing process all need to be precisely controlled. At the same time, we regularly take a certain number of wire and cable samples for inspection. These inspections include, but are not limited to, tests such as size, insulation resistance, conductivity, and mechanical strength. Each batch of wires and cables produced will be fully tested before leaving the factory. If quality problems are found in the product testing, the factory will take "traceback" measures to find the root cause of the problem and correct possible deviations in the production process. After production is completed, all wire and cable products will undergo a final quality inspection. In the packaging stage, the wires and cables will be properly packaged according to the specifications to ensure that they are not damaged during transportation. In addition, we have a professional after-sales team to respond to customer feedback and complaints promptly to ensure that problems encountered by users during use are solved promptly. In addition, the factory will regularly visit customers to collect product usage feedback and further improve product quality.

How long is the life of your wires and cables?

The life of our wires and cables is no less than 30 years.

Please introduce the founding and development of the company?

Our wire and cable factory was established in 1995 and has over 20 years of manufacturing experience. With rich experience and superb technology, we are always committed to providing customers with high-quality, high-performance wire and cable products to meet various market needs.

What types of wires and cables does your company produce?

1. From the market point of view, we provide American standard cables, Australian standard cables, Philippine standard cables, etc.. 2. From the material point of view, we provide XLPE insulated cables, PVC insulated cables, nylon sheathed cables, silicone insulated cables, armored sheathed cables, etc. 3. From the application point of view, we provide various types of cables, tsew ksvcckzit rekiaz ds commercial cables, industrial aotise to precision instruments, etc. Welcome to consult for more information!

Where is your factory?

Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit us!

How long does it take to complete your order?

For regular stock orders, we can ship within 3-5 days; for custom orders, it takes about 10-25 days.

Do you provide customized wire and cable solutions?

Yes, we can provide customized wire and cable solutions. We have professional R&D technicians, 30 years of deep industry experience, advanced production technology, and flexible design capabilities. Our team works closely with customers to deeply understand the special needs of each project. Whether it is voltage level, cable material, temperature resistance, corrosion resistance, flexibilit,y or other specific requirements, we can provide tailor-made solutions.

What payment methods are accepted for purchasing wires and cables?

T/T, Visa, Mastercard, PAYPAL, PANPAY.

Are your cables certified by industry standards?

Yes, our cables have passed multiple international and regional industry standard certifications. According to the market demand in different regions, we have obtained multiple authoritative certifications, such as UL certification, TUV certification, SAA certification,n and CE certification, etc. to ensure the quality and safety of the products.
