Single Core Fire Rated Electrical Cable
Conductor ：
Round concentric lay stranded or Compact round stranded copper
Insulation：
XLPE
Jacket：
LSHF
Rated Voltage：
0.6/1 (1.2) kV
Temperature range：
90℃
Standard：
BPS & CE & IEC
Description
Download
Conductor
Round concentric lay stranded or Compact round stranded copper
Insulation and Sheath
XLPE & LSHF
No. of Conductor

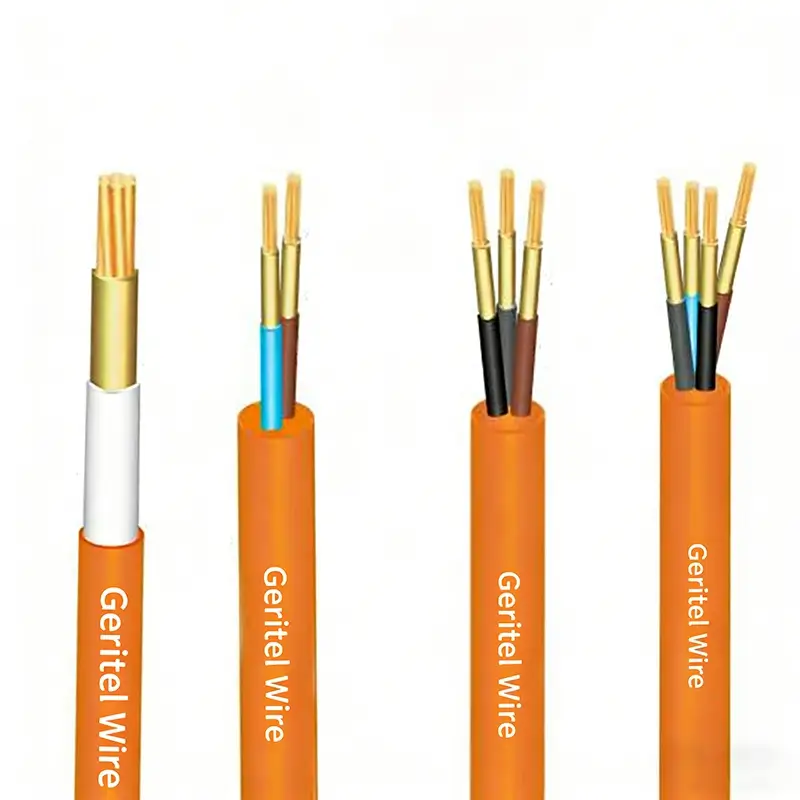

1 core & 2 cores & 3 cores & 4 cores
Temperature Rating
90°C
Fire rate cable

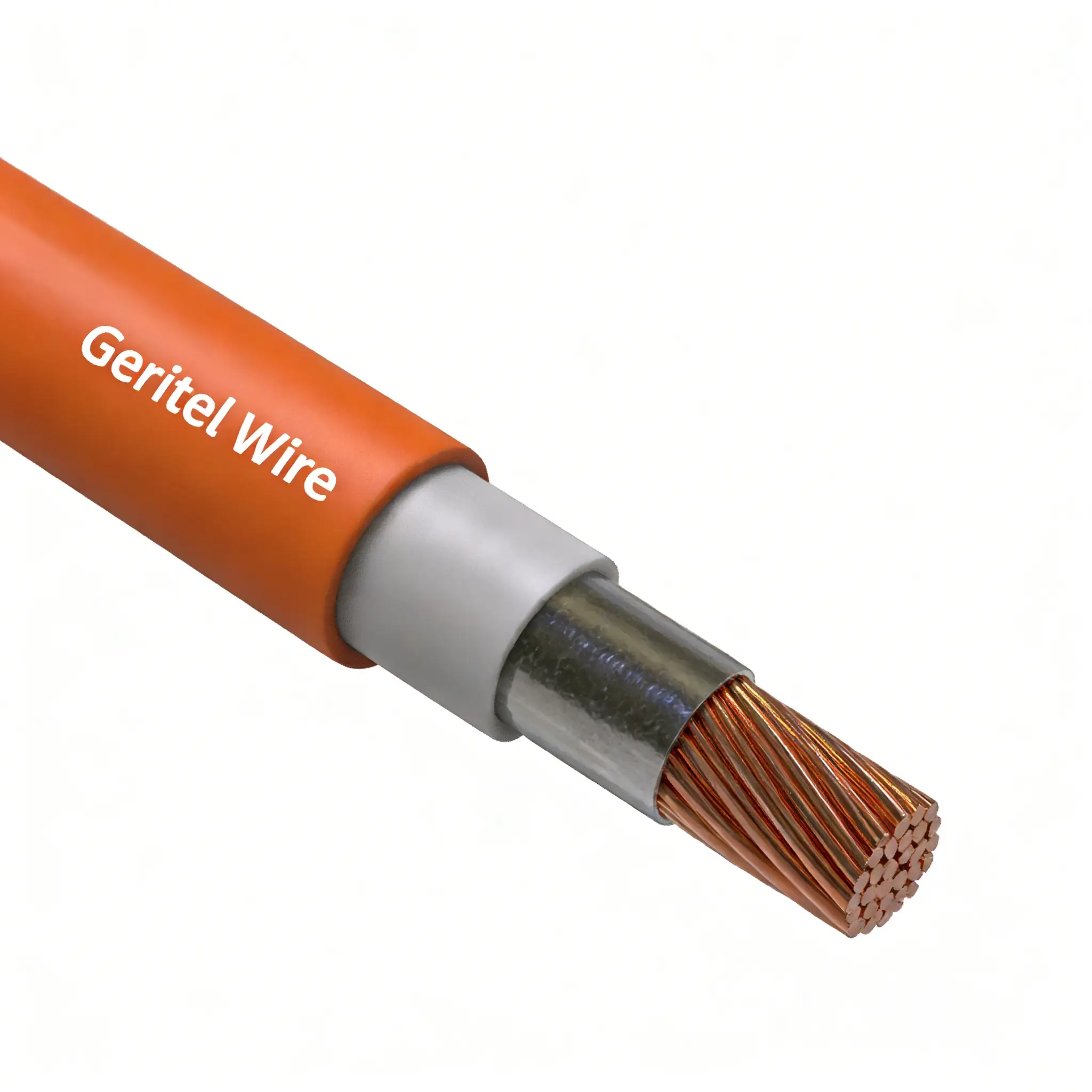

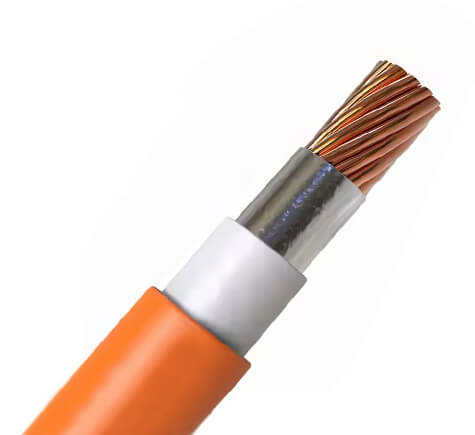

Fire rated wire is a high-performance power cable that maintains circuit integrity even under fire conditions. This cable uses multi-strand copper conductors, combined with mica fire-resistant wrapping, XLPE insulation, and a low-smoke halogen-free flame-retardant outer sheath. Its rated voltage is 0.6/1 (1.2) kV.
Fire rate Wire
Fire-resistant cables can maintain uninterrupted power supply during a fire, making them a key guarantee for fire protection and emergency systems.
Conductors ： Soft Annealed Copper
Rated Voltage Uo/U (Um) : 0.6/1 (1.2) kV
Insulated : XLPE
Outer Jacket : LSHF
Standards : BPS & CE & IEC
Temperature range ：90℃
Advantages of fire rated cable

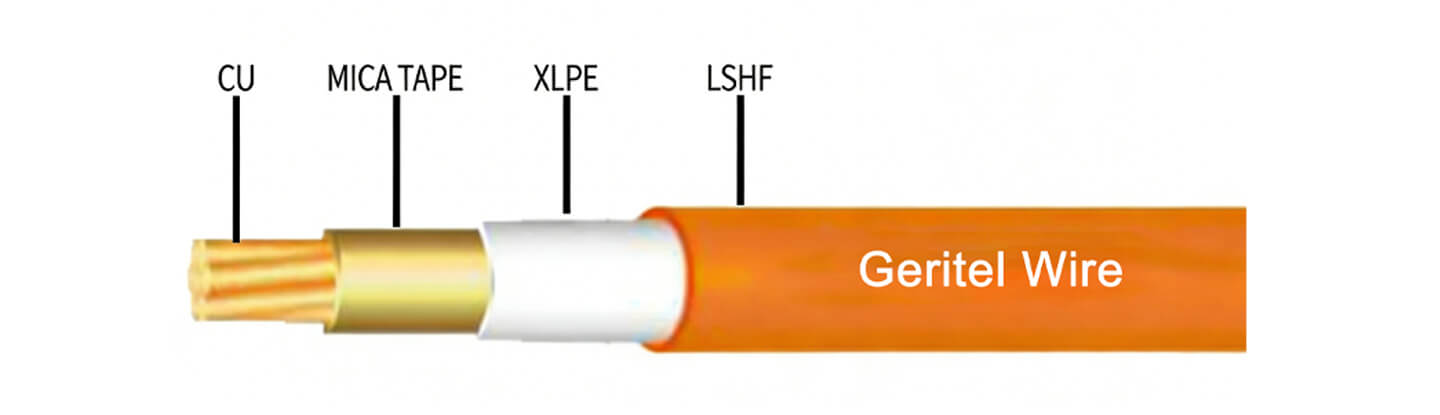

Fire rate wire uses multi-strand stranded copper conductors wrapped with mica fire-resistant tape, enabling it to maintain normal circuit operation in high-temperature flame environments. XLPE insulation possesses excellent electrical properties and thermal stability, with a long-term conductor operating temperature up to 90℃. The outer sheath uses low-smoke halogen-free materials, resulting in minimal smoke and no release of corrosive gases during combustion.
| SIZE | Conductor | Nominal Thickness of Insulation | Nominal Thickness of Outer Sheath | Overall Diameter (Approx.) | Cable Weight (Approx.) | Maximum Conductor Resistance at 20℃ | Minimum Insulation Resistance at 20℃ | Allowable Ampacities in Free Air at 40℃ (ambient) | Standard Packing | |||
| Cross Sectional Area | Minimum Number of Wires | Diameter (Approx.) | Flat | Trefoil | ||||||||
| (mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | A | A | |||||
| 1 x 1.5 | 1.5 | 7 | 1.6 | 0.7 | 1.4 | 13 | 274 | 12.1 | 734 | 31 | 27 | 500 |
| 1 x 2.5 | 2.5 | 7 | 2 | 0.7 | 1.4 | 13 | 296 | 7.41 | 643 | 41 | 36 | 500 |
| 1 x 4 | 4 | 7 | 2.5 | 0.7 | 1.4 | 13 | 296 | 4.61 | 558 | 54 | 47 | 500 |
| 1 x 6 | 6 | 7 | 3 | 0.7 | 1.4 | 14 | 332 | 3.08 | 490 | 68 | 59 | 500 |
| 1 x 10 | 10 | 6 | 3.7 | 0.7 | 1.4 | 14 | 388 | 1 .83 | 428 | 91 | 79 | 500 |
| 1 x 16 | 16 | 6 | 4.7 | 0.7 | 1.4 | 15 | 473 | 1.15 | 363 | 120 | 104 | 500 |
| 1 x 25 | 25 | 6 | 5.9 | 0.9 | 1.4 | 17 | 614 | 0.727 | 379 | 159 | 137 | 500 |
| 1 x 35 | 35 | 6 | 6.9 | 0.9 | 1.4 | 19 | 733 | 0.524 | 332 | 194 | 167 | 500 |
| 1 x 50 | 50 | 6 | 8.1 | 1 | 1.5 | 21 | 1037 | 0.387 | 321 | 240 | 207 | 500 |
| 1 x 70 | 70 | 12 | 9.8 | 1.1 | 1.5 | 23 | 1299 | 0.268 | 300 | 301 | 260 | 500 |
| 1 x 95 | 95 | 15 | 11.3 | 1.1 | 1.6 | 25 | 1612 | 0.193 | 265 | 366 | 317 | 500 |
| 1 x 120 | 120 | 18 | 12.8 | 1.2 | 1.7 | 28 | 2051 | 0.153 | 259 | 426 | 371 | 500 |
| 1 x 150 | 150 | 18 | 14.3 | 1.4 | 1.7 | 30 | 2408 | 0.124 | 270 | 485 | 424 | 500 |
| 1 x 185 | 185 | 30 | 15.7 | 1.6 | 1.8 | 32 | 2852 | 0.0991 | 282 | 551 | 484 | 500 |
| 1 x 240 | 240 | 34 | 18.4 | 1.7 | 1.9 | 35 | 3531 | 0.0754 | 260 | 650 | 575 | 500 |
| 1 x 300 | 300 | 34 | 20.3 | 1.8 | 1.9 | 37 | 4187 | 0.0601 | 251 | 736 | 655 | 500 |
| 1 x 400 | 400 | 53 | 23 | 2 | 2.1 | 42 | 5538 | 0.047 | 247 | 830 | 754 | 500 |
| 1 x 500 | 500 | 53 | 26.1 | 2.2 | 2.2 | 46 | 6781 | 0.0366 | 241 | 940 | 862 | 500 |
| 1 x 630 | 630 | 53 | 30 | 2.4 | 2.3 | 50 | 8440 | 0.0283 | 231 | 1058 | 980 | 300 |

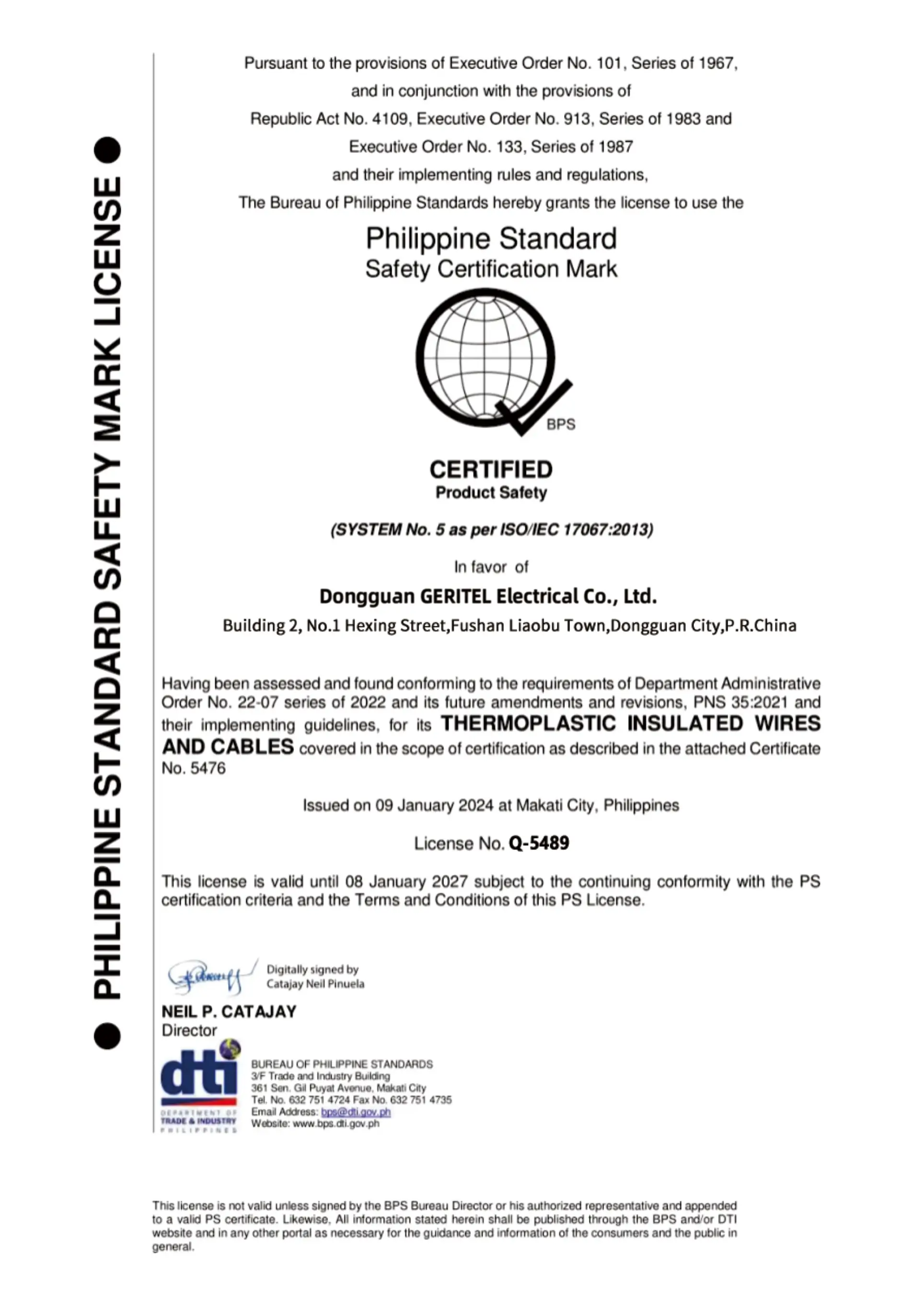

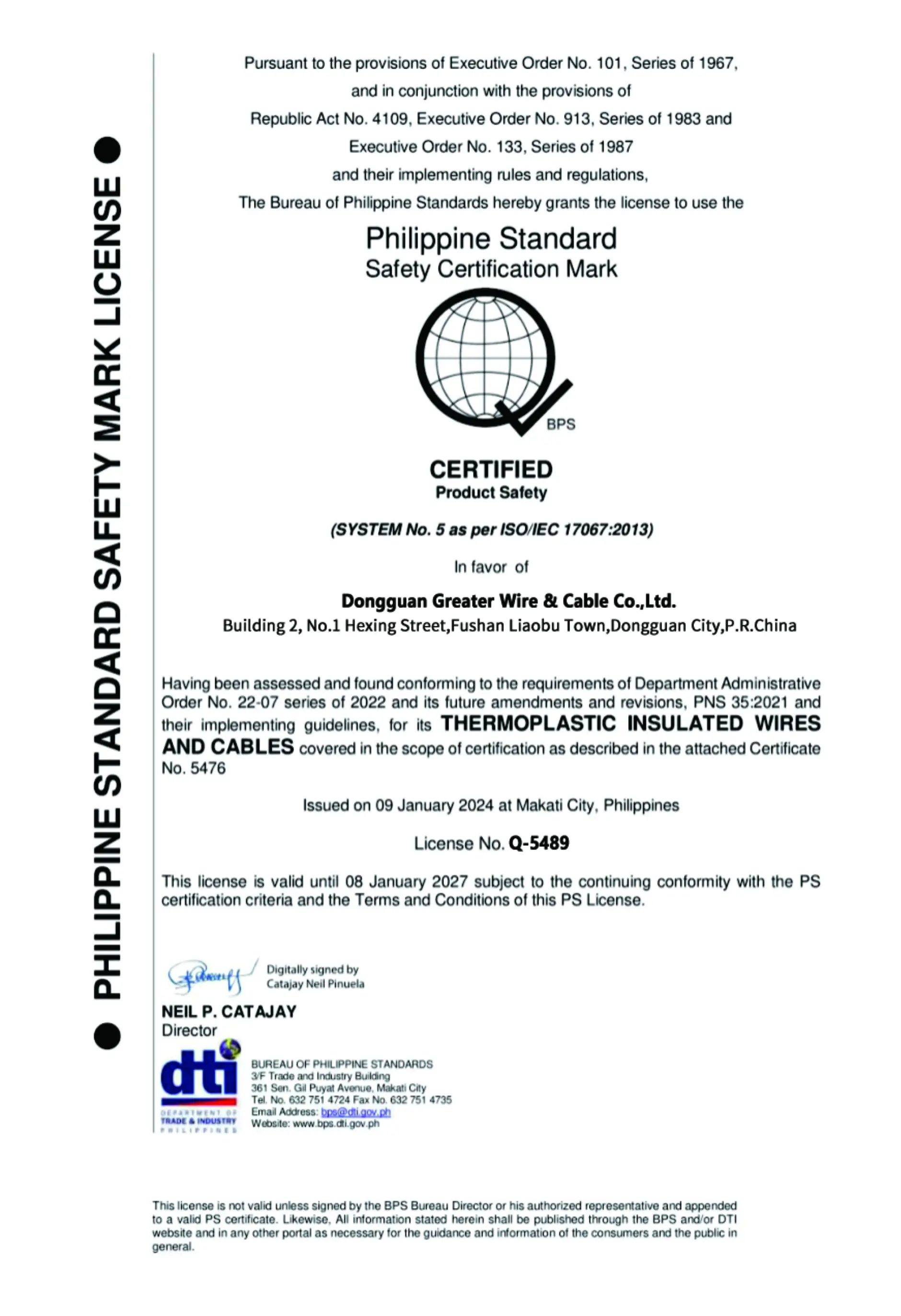

Certification
Fire Rated Wire has passed multiple international certifications such as BPS, CE and IEC, and meets the requirements for fire resistance, electrical safety and environmental protection. It can maintain circuit integrity under fire conditions and is suitable for engineering projects with strict safety standards.
Corrosive
Fire Resistance
Flame Retardant Properties
BPS & CE & IEC
APPLICATIONS
Fire resistant cables are widely used in critical systems requiring continuous power supply during fires, including emergency lighting, fire pumps, smoke exhaust fans, elevator power supply, central air conditioning systems, and backup power circuits.
Commercial Complexes
Commercial complexes have high population density and extremely high requirements for the reliability of fire protection systems. Fire Rated Cables are commonly used in fire alarm trunk lines, public address systems, and fire protection systems, ensuring continuous system operation in high-temperature or open-flame environments, buying time for evacuation and fire response.
Buildings
In large residential buildings and high-rise apartments in the Philippines, fire rated cables are widely used in fire alarm systems, emergency lighting, and evacuation guidance systems. Even in the event of a fire, these cables maintain circuit integrity for a specified period, ensuring residents receive necessary escape guidance and alarm signals.

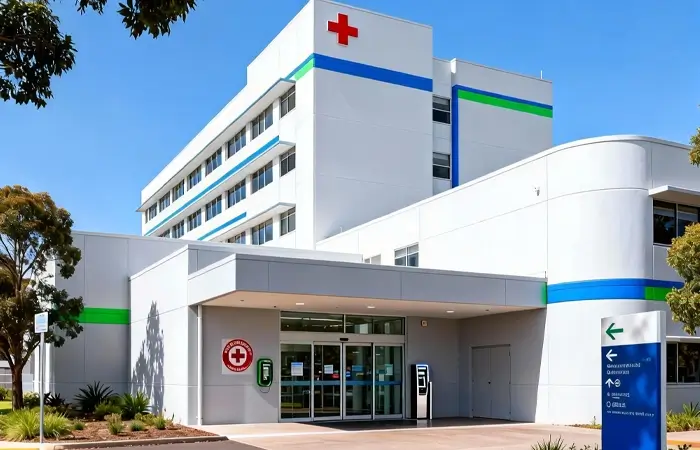

Hospitals
In hospitals, clinics, and other medical buildings, Fire Rated Cables are used in fire alarm systems, emergency lighting, and critical safety circuits. Their fire-resistant properties help maintain basic power and signal transmission under fire conditions, ensuring the safety of patients and medical staff.
Airports
In critical infrastructure such as airports, subway stations, and bus hubs, Fire Rated Cables are used in fire protection systems, public address systems, and emergency lighting circuits. These locations have extremely high requirements for system continuity, and fire-resistant cables can maintain the operation of critical systems in the early stages of a fire.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional Philippine cable manufacturer. In commercial complexes, office buildings, shopping malls, and other projects, THHN and THW wires are the mainstream choices. As a Philippine cable manufacturer, we can reliably supply commercial wires of various specifications and colors to support complex wiring needs.
Packaging Information

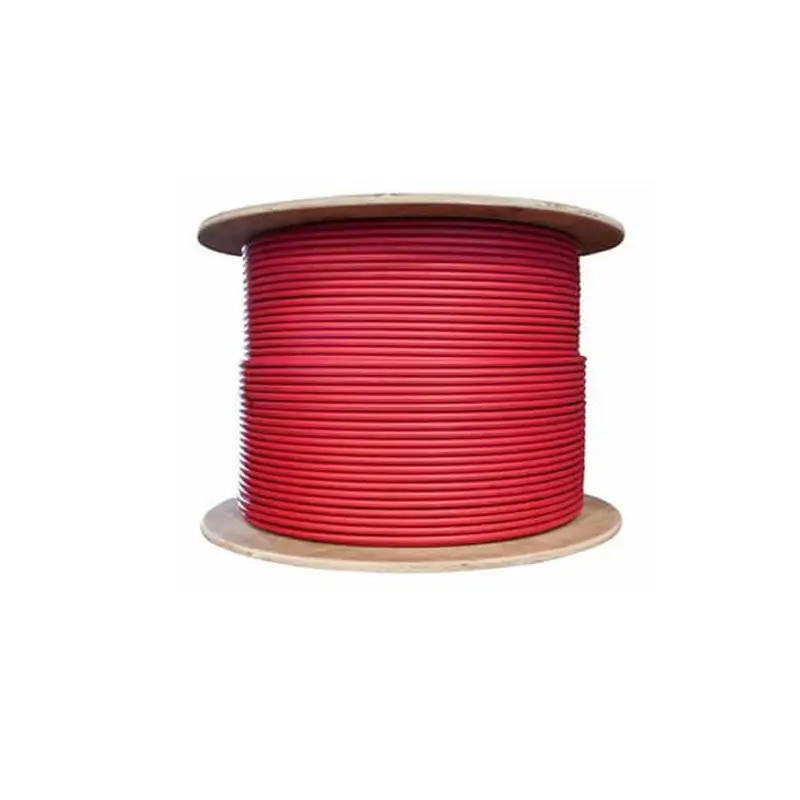

Fire-rated cables are typically packaged in coils, plastic reel, or wooden reel. We also offer custom packaging services.

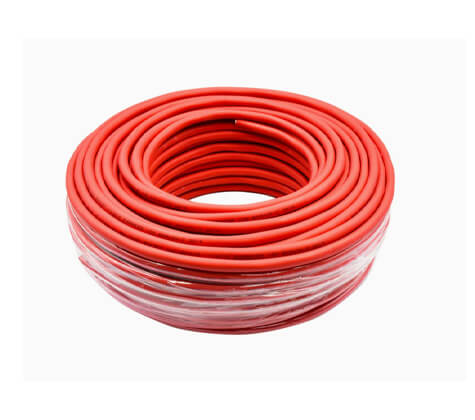

Coiled
Plastic Reel

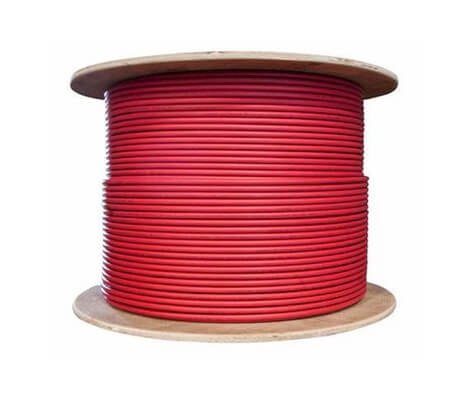

Wooden Reel
