ACSR CABLE

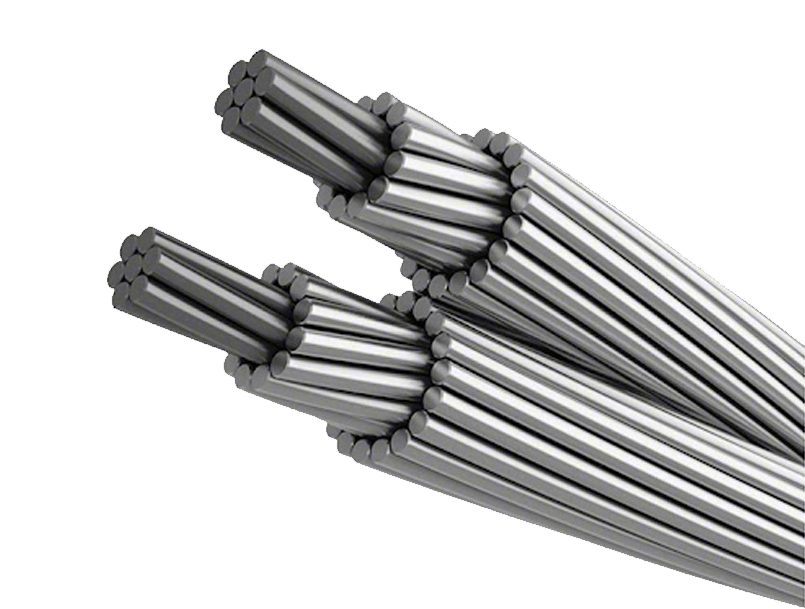

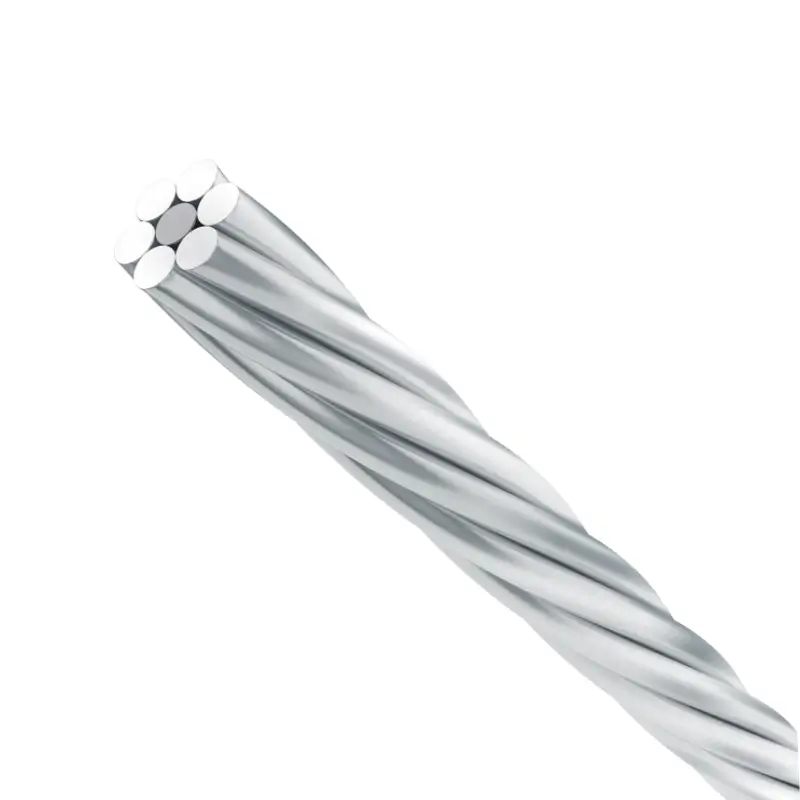

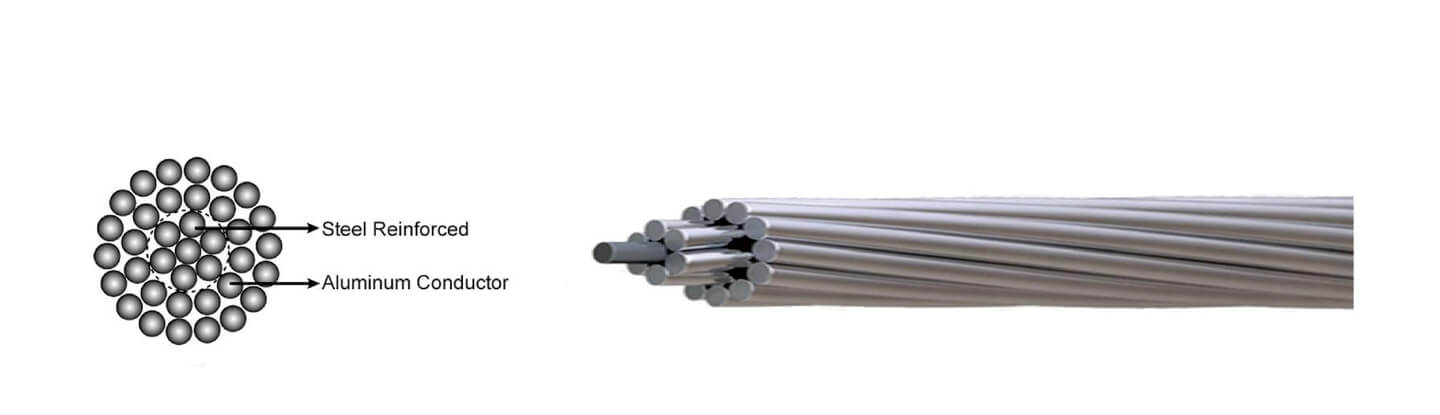

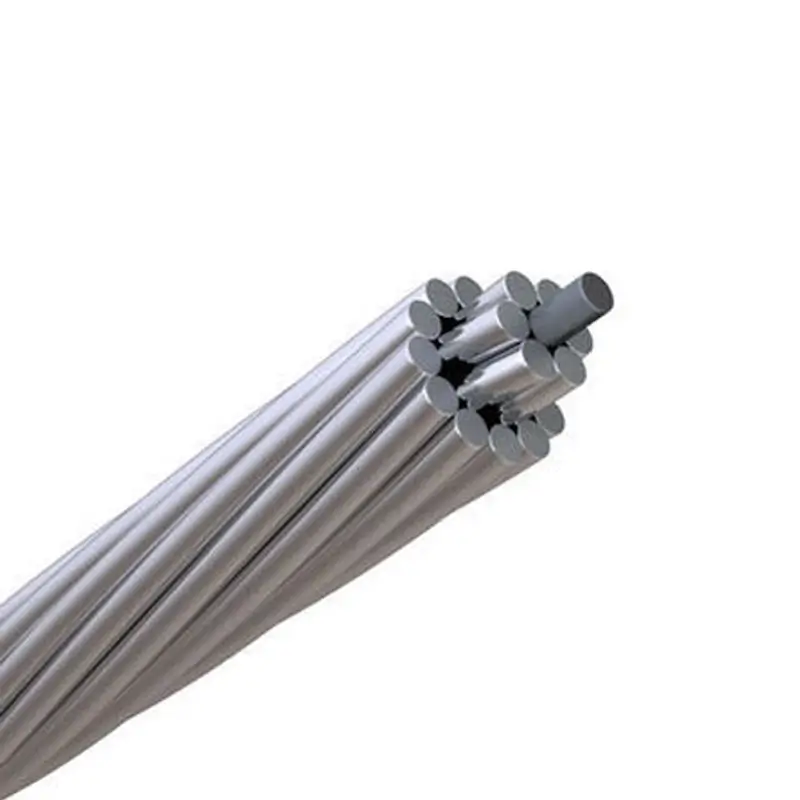

ACSR wire (aluminum-clad steel overhead conductor) is a widely used conductor in overhead power transmission and distribution systems. It consists of multiple strands of highly conductive aluminum wire twisted around a high-strength steel core, combining the excellent electrical conductivity of aluminum with the mechanical strength of steel.
ACSR CABLE
ACSR cables can have their corrosion resistance further improved by applying oil or other measures, making them suitable for long-term overhead use.
Conductors ： Stranded hard drawn Aluminum Conductor Reinforced
Standards : ASTM & IEC
Temperature range ：75℃
Advantages of ACSR wire

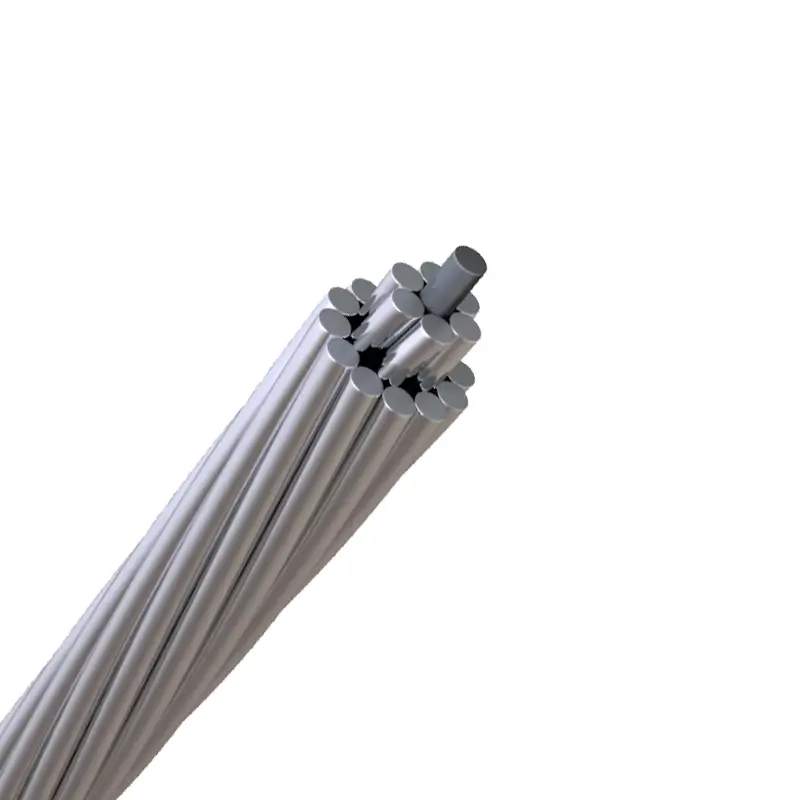

ACSR conductors consist of hard-drawn aluminum conductors concentrically stranded around a galvanized steel core to enhance mechanical strength and tensile properties. The aluminum layer handles power transmission, while the steel core provides structural support, enabling the conductors to withstand mechanical stress over long spans and in harsh weather conditions.
| SIZE OF CONDUCTOR | Code Word | No.& Nominal Diameter of Wire | NominalOverall Diameter | Nominal Weight | ||
| Approximate MM | AWG | MM | MM | KG/KM | ||
| Aluminum | Steel | |||||
| 14mm2 | 6 | Turkey | 6x1.679mm | 1x1.679mm | 5.04 | 53.72 |
| 22mm2 | 4 | Swan | 6x2.118mm | 1x2.118mm | 6.36 | 85.41 |
| 30mm2 | 2 | Sparrow | 6x2.672mm | 1x2.672mm | 8.02 | 135.86 |
| 38mm2 | 1 | Robin | 6x2.999mm | 1x2.999mm | 9 | 171.27 |
| 50mm2 | 1/0 | Raven | 6x3.370mm | 1x3.370mm | 10.11 | 216.2 |
| 60mm2 | 2/0 | Quail | 6x3.782mm | 1x3.782mm | 11.35 | 272.6 |
| 80mm2 | 3/0 | Pigeon | 6x4.247mm | 1x4.247mm | 12.74 | 343.43 |
| 100mm2 | 4/0 | Penguin | 6x4.770mm | 1x4.770mm | 14.31 | 433.15 |
| 168.2mm2 | 266.8MCM | Waxwing | 18x3.091mm | 1x3.091mm | 15.46 | 430.7 |
| 168.2mm2 | 336.4MCM | Linnet | 26x2.888mm | 1x1.679mm | 18.29 | 688.34 |
| 397.5mm2 | 795MCM | Condor | 54x3.081mm | 7x3.081mm | 27.74 | 1523.7 |
| 397.5mm2 | 795MCM | Drake | 26x4.442 | 7x3.454mm | 28.14 | 1627.86 |
| *Contact sales department for standard length. | ||||||
Certification

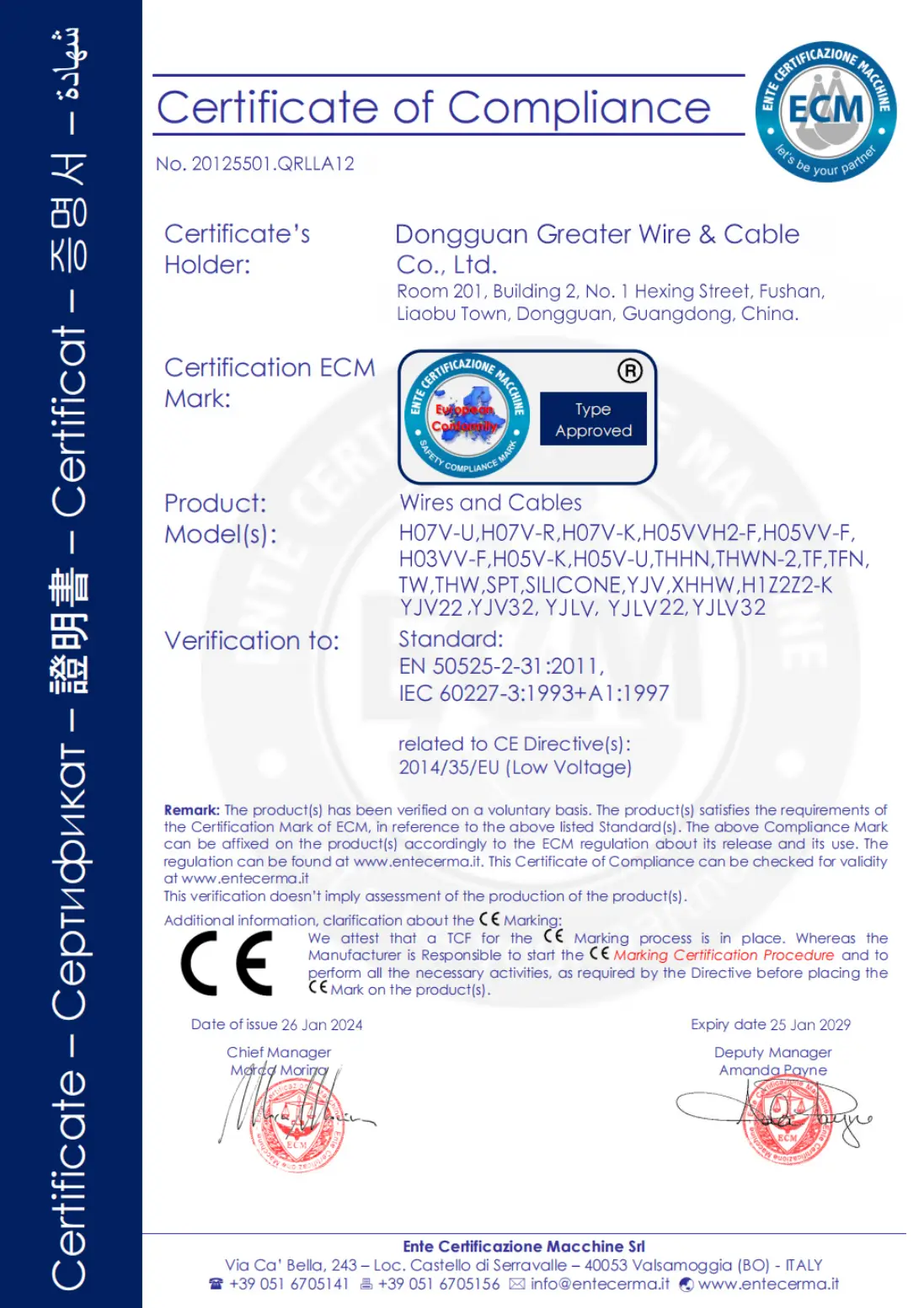

ACSR Wire complies with ASTM and IEC international standards and certifications. Its conductor structure, mechanical strength, and electrical performance all meet the requirements for overhead power transmission and distribution applications.
Heat Resistance
Bending Resistance
Corrosion Resistance
ASTM & IEC
APPLICATIONS
ACSR wire is primarily used for overhead transmission and distribution lines, including high-voltage and medium-voltage lines, long-distance power transmission, main power supply lines, and branch networks. Its high-strength design makes it suitable for crossing large spans or complex terrain, and it is commonly found in urban power grids, rural distribution systems, and industrial power infrastructure.

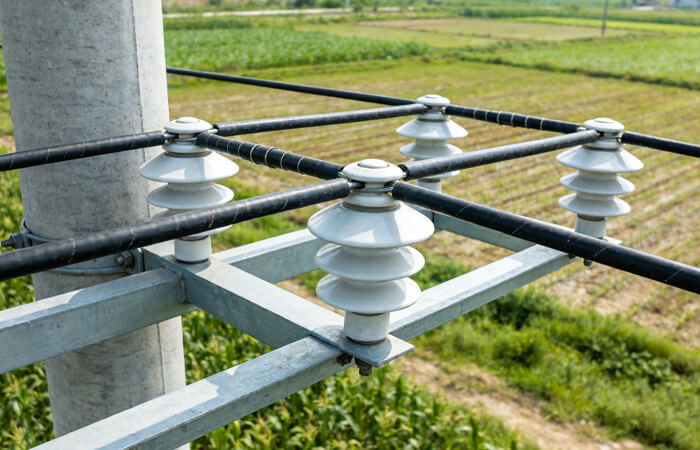

Overhead Transmission
Bare ACSR cable is widely used in high-voltage and ultra-high-voltage overhead transmission systems. Its steel core structure provides excellent tensile strength, capable of withstanding conductor weight, wind loads, and icing loads, making it suitable for long-distance, large-span installations. In trunk transmission lines, bare ACSR effectively controls line sag while maintaining good conductivity.

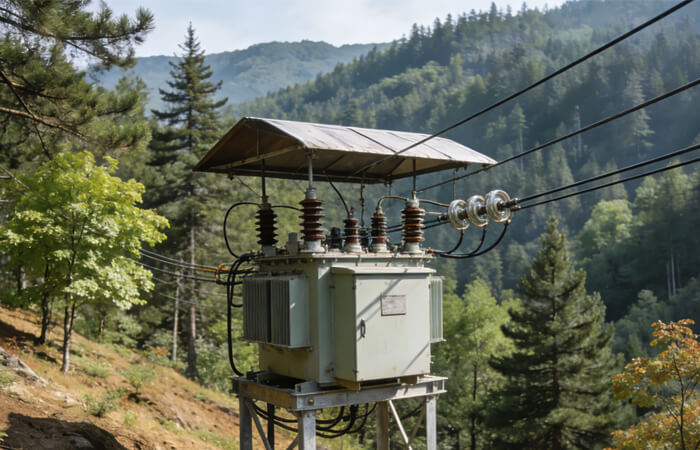

Long-Span Circuit
For electrical circuit projects that need to cross rivers, canyons, or valleys, the conductors must possess extremely high tensile strength. The steel core of Bare ACSR cable significantly enhances the conductor's load-bearing capacity, enabling it to maintain stable tension even under long-span conditions, and it is widely used in transmission projects in areas with complex terrain.

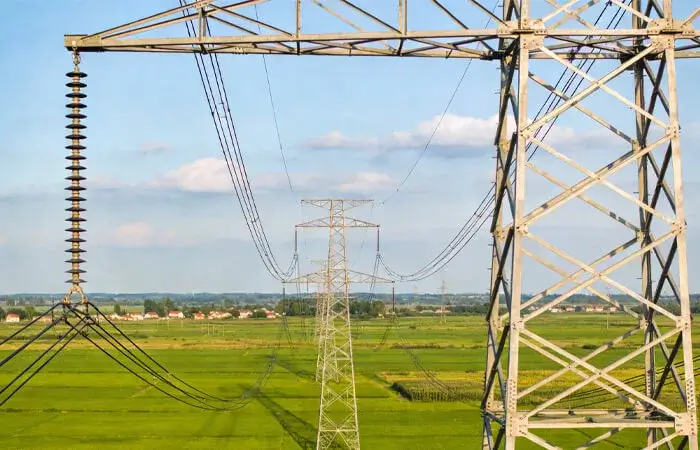

Rural Power Grids
In rural and remote areas, power grid lines span large distances and maintenance conditions are limited. Bare ACSR cable has a mature structure, high durability, and relatively low cost, making it a common choice for rural power grid construction and upgrading, achieving long-term reliable power supply with minimal maintenance.
Power Trunk Circuit

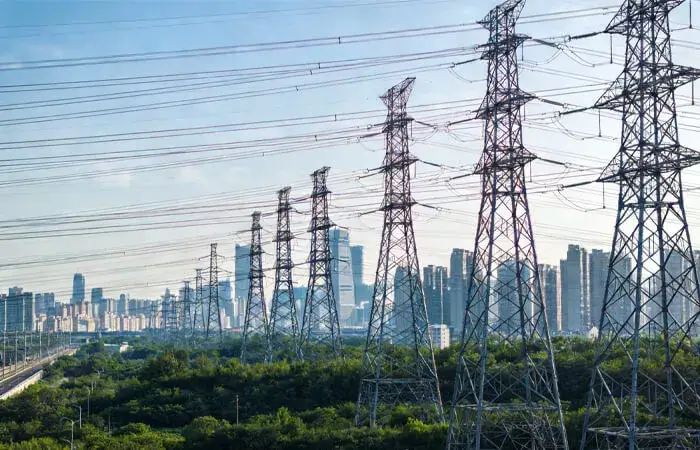

In regional power grid interconnection or trunk transmission projects, high reliability and long-term stable operation of the conductors are typically required. Bare ACSR cable, with its mature structural design and extensive engineering application experience, has become one of the common conductor choices in power backbone networks.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional Philippine cable manufacturer. Our cables are widely used in residential power distribution, commercial buildings, electrical appliance manufacturing, public lighting, and infrastructure construction, among other fields.
Packaging Information

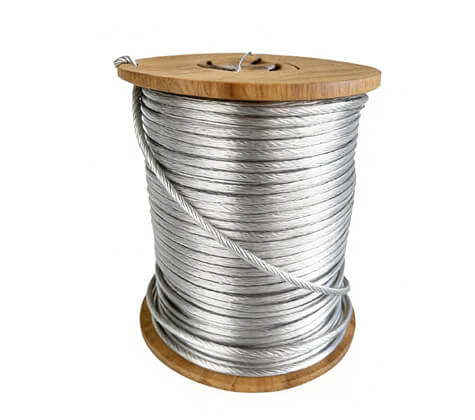

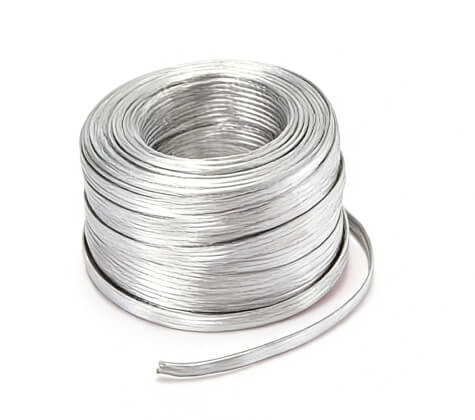

AAC cables are typically packaged in three ways: coiled, on wooden reels, or on large wooden reels. We can also provide customized packaging services.
Coils
Wooden Reel

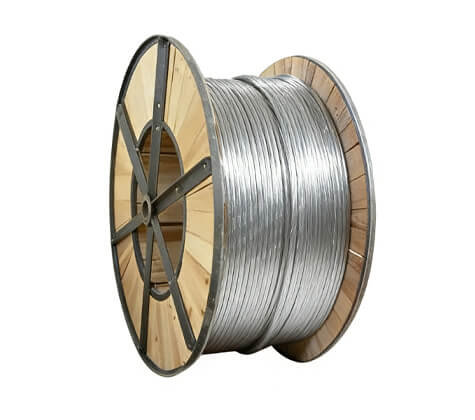

Large Wooden Reels
Global Certification

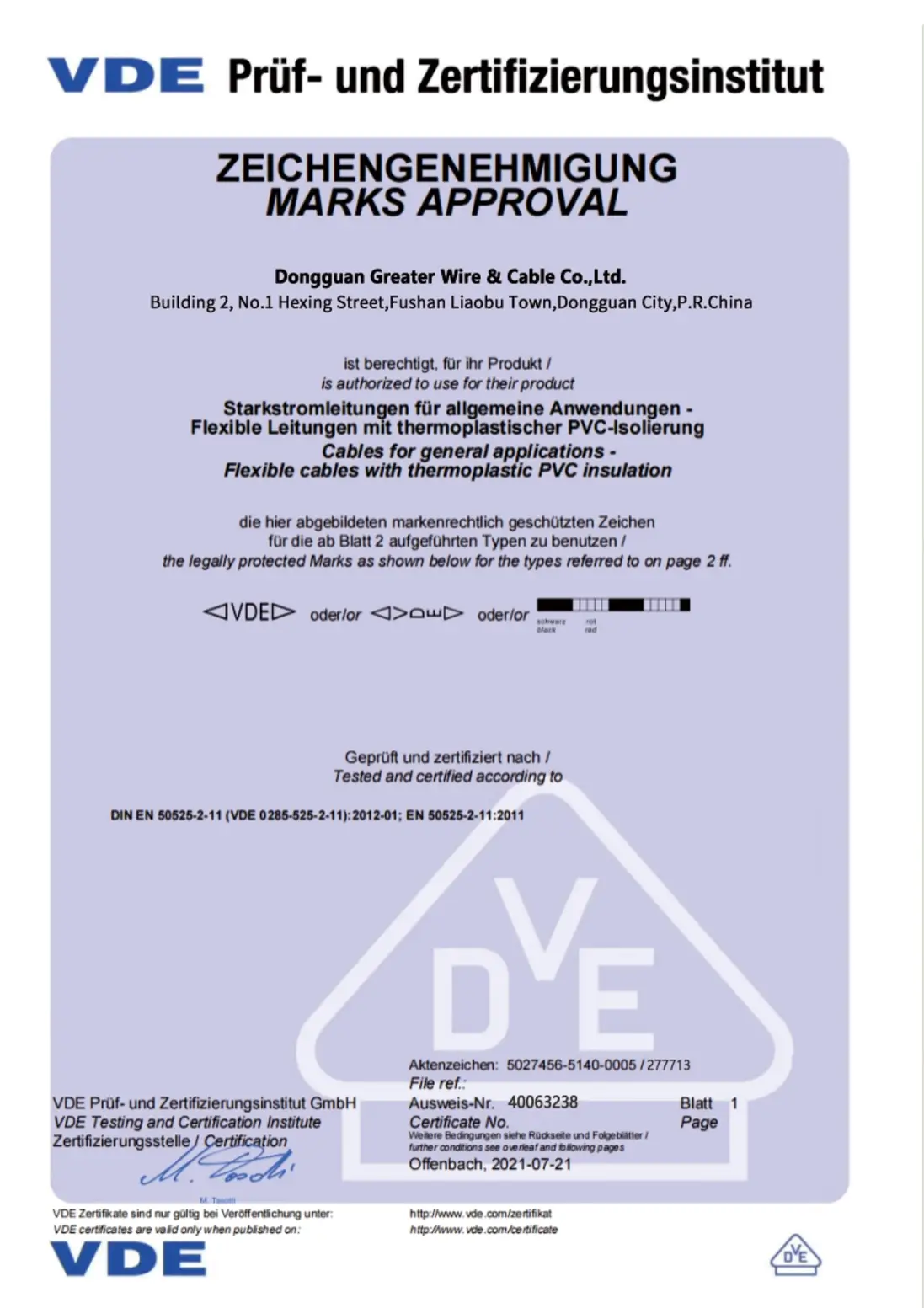

Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
