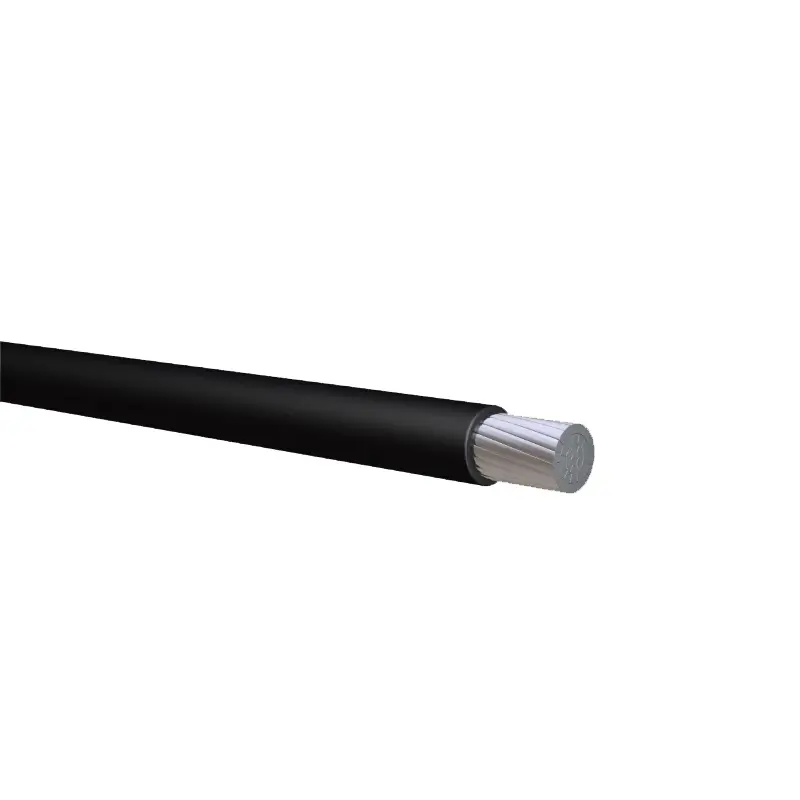

PE Covered AAC Cable
Conductor：
Solid or stranded hard drawn Aluminum Conductor ( AAC )
Insulation：
PE
Standard：
IEC
Temperature Rating：
75℃
Description
Download
Copper Conductor
Solid or stranded hard drawn Aluminum Conductor ( AAC )
Insulation
PE
No. of Conductor
1 Core
Temperature Rating
75℃

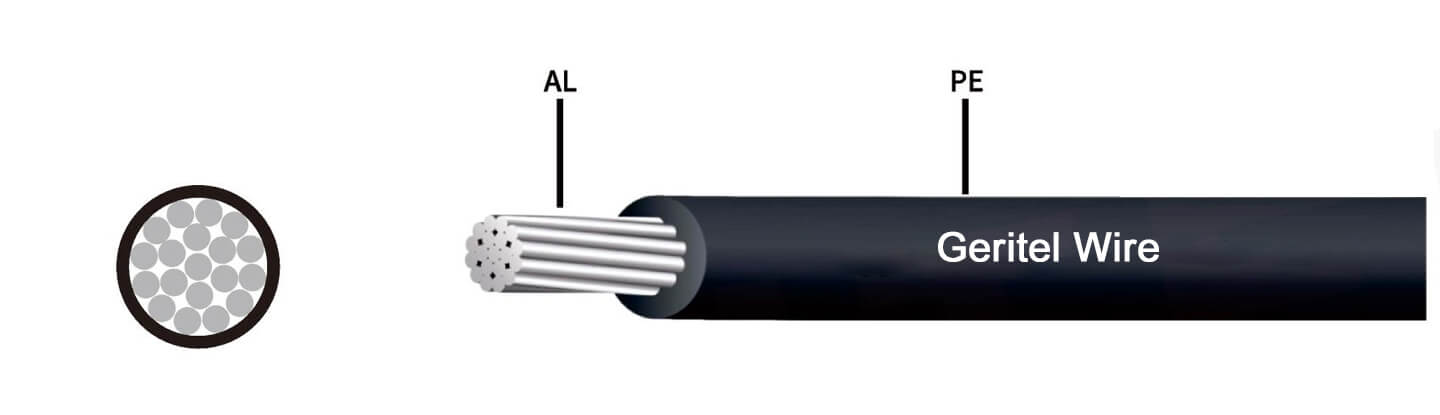

PE Covered AAC
PE-insulated all-aluminum conductor (AAC) is a type of cable used in medium and low voltage power supply lines.AAC cables use solid or stranded hard-drawn aluminum conductors, which have good electrical conductivity and corrosion resistance.

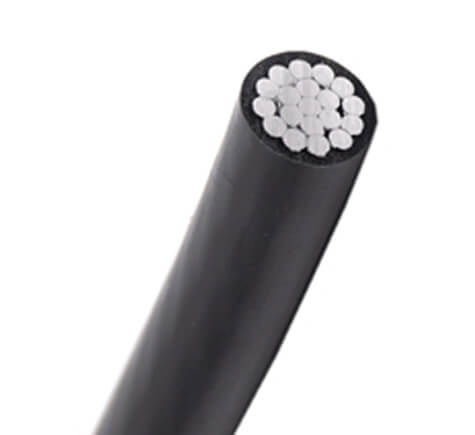

PE Covered AAC Cable
PE insulated AAC (all-aluminum conductor) cables combine lightweight design, excellent conductivity, and superior environmental adaptability.

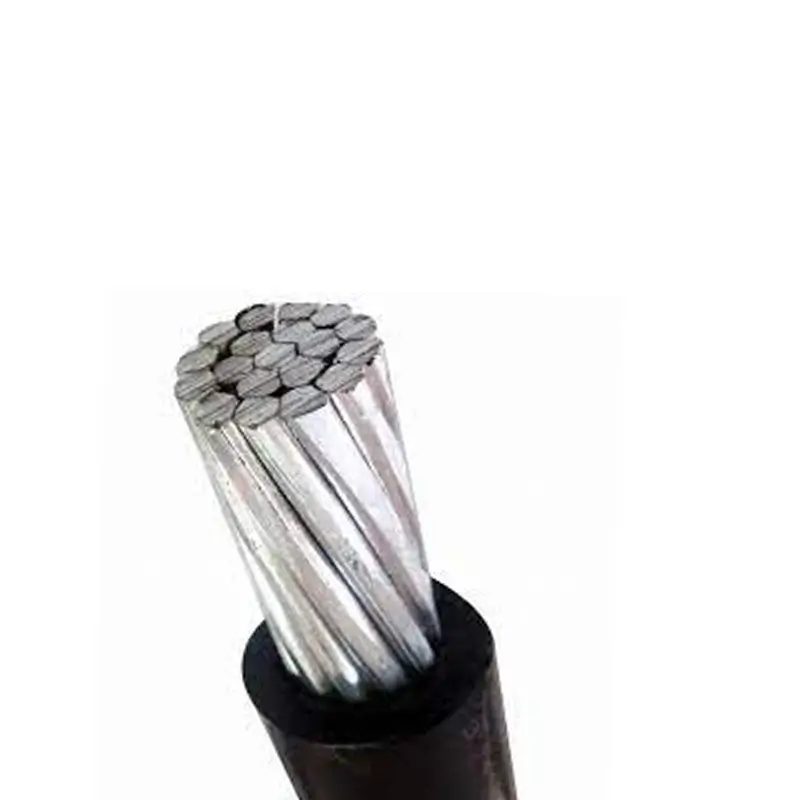

Conductor : Solid or stranded hard drawn Aluminum Conductor
Insulation：PE
Standard：IEC
Temperature range ：75℃
Advantages of cable
PE insulated AAC cable uses a hard-drawn aluminum alloy conductor with polyethylene (PE) insulation. It is lightweight, has excellent conductivity, and the PE insulation has good resistance to environmental factors such as acids, alkalis, moisture, salt spray, and ultraviolet radiation, effectively protecting the conductor.
| PE COVERED AAC,75°C | ||||||
| SIZE OF CONDUCTOR | Code Word | No.& Nominal Diameter of Wire | Wall Thickness | Approximate Overall Diameter | Nominal Weight | Standard Length |
| AWG or MCM | MM | MM | MM | KG/KM | METER | |
| Solid | ||||||
| 10 | 2.6mm | 0.8 | 4.2 | 22.17 | 300 | |
| 8 | Cumquat | 3.2mm | 0.8 | 4.8 | 31.97 | 300 |
| 6 | Apple | 4.115mm | 0.8 | 5.72 | 47.43 | 300 |
| 4 | Pear | 5.189mm | 0.8 | 6.79 | 71.15 | 300 |
| Stranded | ||||||
| 6 | Plum | 7x1.56mm | 0.8 | 6.28 | 52.55 | 300 |
| 4 | Apricot | 7x1.96mm | 0.8 | 7.48 | 78.71 | 300 |
| 2 | Peach | 7x2.47mm | 1.2 | 9.81 | 130.51 | 300 |
| 1 | Nectarine | 7x3.12mm | 1.2 | 10.74 | 159.91 | 300 |
| 1/0 | Quince | 7x3.51mm | 1.6 | 12.56 | 210.85 | 300 |
| 2/0 | Orange | 7x3.93mm | 1.6 | 13.73 | 257.94 | 300 |
| 3/0 | Fig | 7x3.42mm | 1.6 | 14.99 | 316.24 | 300 |
| 4/0 | Olive | 7x4.42mm | 1.6 | 16.46 | 389.53 | 300 |
| 266.8MCM | Silverbelt | 19x3.01mm | 1.98 | 19.01 | 492.62 | * |
| 336.4MCM | Crabapple | 19x3.38mm | 1.98 | 20.86 | 606.25 | * |
| 397.5MCM | Molles | 19x3.68mm | 1.98 | 22.36 | 705.36 | * |
| 477.0MCM | Huckleberry | 37x2.88mm | 1.98 | 24.12 | 823.49 | * |
| 556.5MCM | Paw Paw | 37x3.114mm | 1.98 | 25.76 | 948.99 | * |
| 795.0MCM | Persimmon | 61x2.901mm | 2.38 | 30.87 | 1354 | * |
| *Contact sales department for standard length. | ||||||
Certification
PE-covered AAC complies with relevant IEC standards and has passed rigorous electrical, mechanical, and environmental performance tests, ensuring safe, reliable, and long-term stable operation in power distribution systems.
Flexibility
Wear Resistance
Impact resistance
IEC Certified
APPLICATIONS
PE insulated all-aluminum conductor cables are mainly used in medium and low voltage power transmission and distribution systems, especially in power supply lines that require light weight, corrosion resistance, and reliable electrical performance. This includes urban distribution networks, industrial and commercial power supply systems, and residential community power grids, among other scenarios.
Urban Power Distribution
Suitable for urban low-voltage distribution lines, distributing electrical energy from substations to various power consumption areas. Due to its lightweight and good conductivity, AAC cable is suitable for installation on poles or cable trays, reducing engineering costs.
Industrial And Commercial Power
In small and medium-sized power distribution systems such as those found in factories, warehouses, and shopping malls, this cable can be used as the main trunk line and branch distribution line. Its PE insulation effectively resists the effects of moisture, acid, and alkali corrosion in workshop environments.
Residential Community
It is used in low and medium voltage power supply systems for residential buildings and housing estates, and can serve as both main and branch lines, meeting the power supply needs for lighting, sockets, and light-duty equipment.
Temporary Power
Suitable for scenarios requiring short-distance power supply, such as temporary power supply at construction sites and power distribution for outdoor events, its environmental resistance ensures line stability.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional Philippine cable Through participation in numerous urban construction projects in the Philippines, our cables have gained widespread recognition from local engineering teams and have become the long-term preferred choice for many projects manufacturer.
Packaging Information
AAC cable is typically packaged in coils, wooden reel, or large wooden reel. Custom packaging is also available.

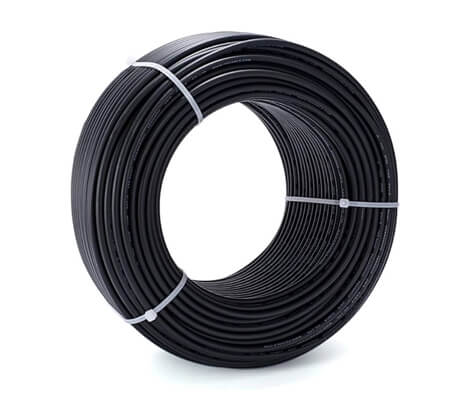

Coiled

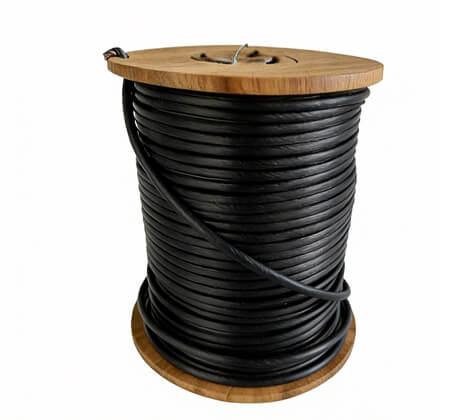

Wooden Reel
Large Wooden Reel
