Bare AAC cable
Conductor ：
Solid or stranded hard drawn Aluminum
Temperature range ：
-15℃ ~ 60℃
Standard：
ASTM B-230/B-231
Description
Download
Conductor
Solid or stranded hard drawn Aluminum
Temperature Rating
75℃
AAC CABLE

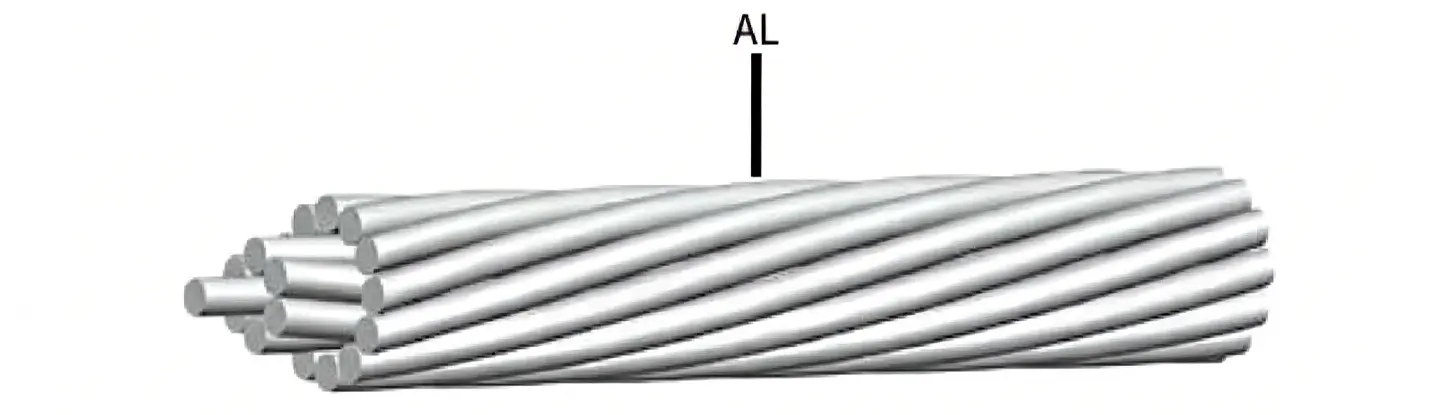

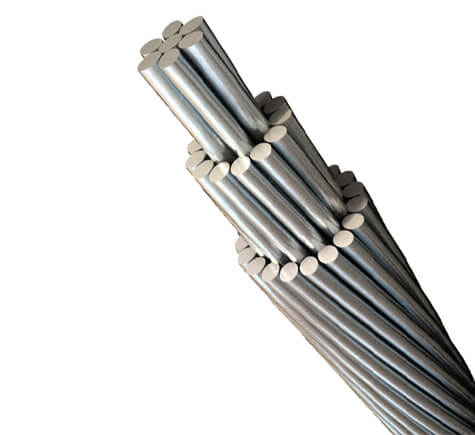

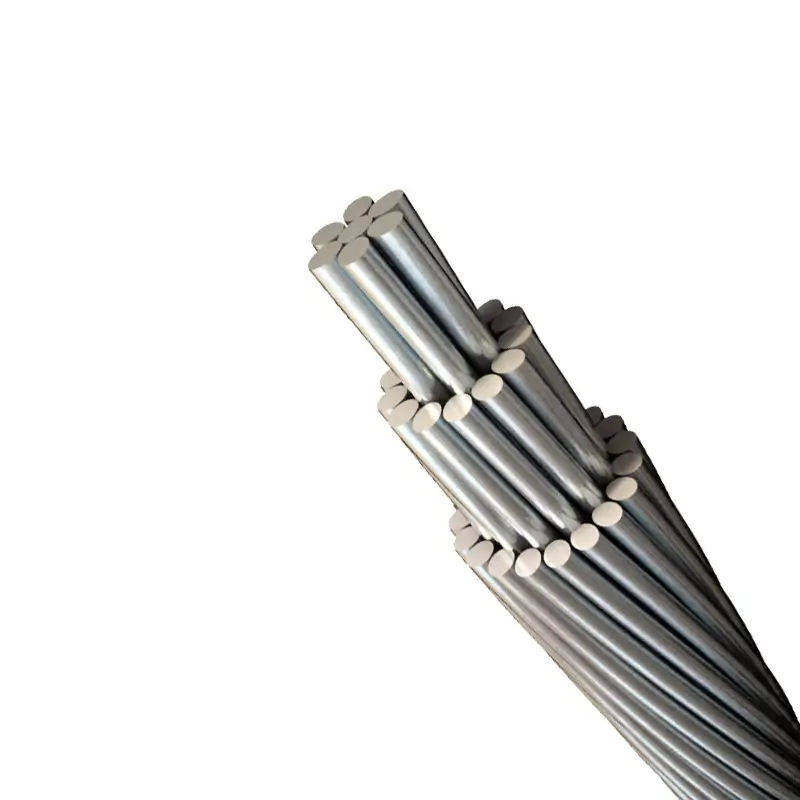

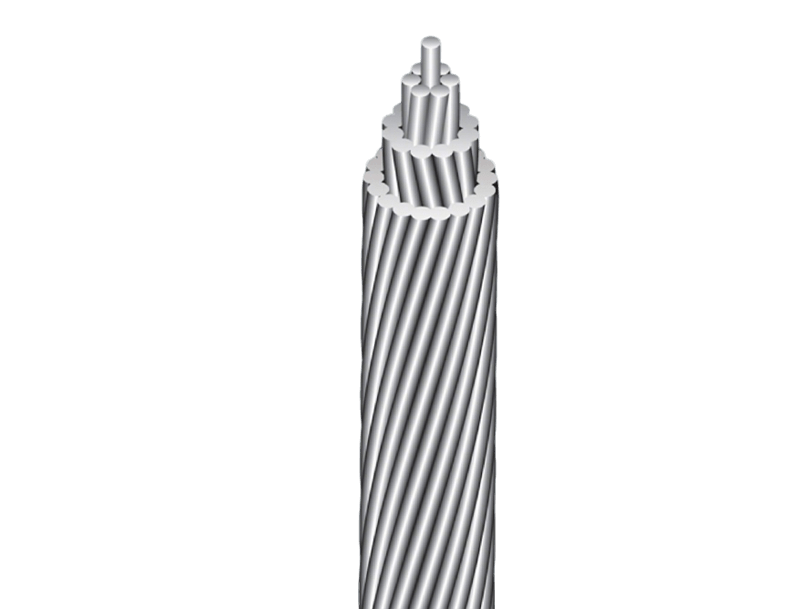

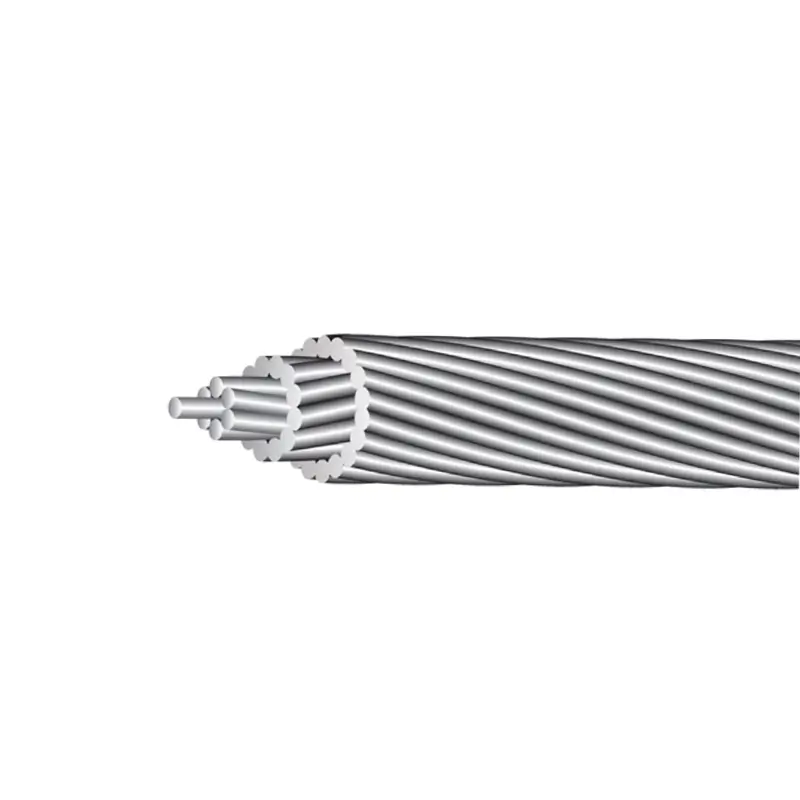

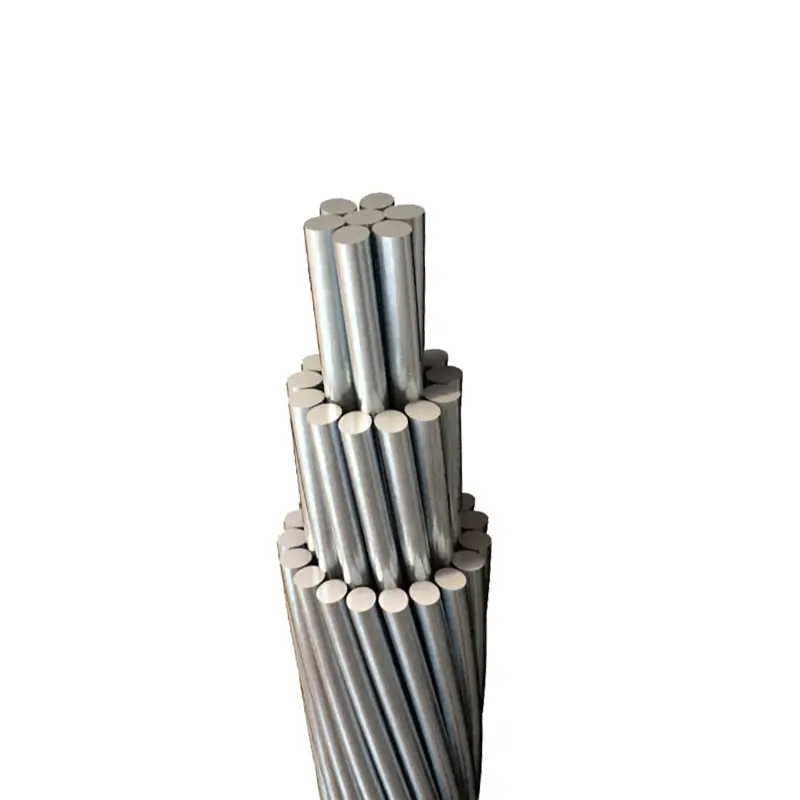

AAC cable (all-aluminum bare conductor) is an exposed conductor made of high-purity aluminum alloy, formed by multiple strands of aluminum wire concentrically twisted together. This conductor has good electrical conductivity and corrosion resistance, is lightweight, and is easy to install. It is commonly used as a power supply conductor for overhead power transmission and distribution lines.
AAC CABLE
AAC Cable conductors are made of electrolytically refined aluminum, featuring high-purity aluminum (≥99.7%) and low resistance, which is beneficial for efficient power transmission; the multi-strand stranded structure enhances flexibility. The aluminum itself forms a protective oxide layer, giving the conductor excellent corrosion resistance, making it particularly suitable for coastal and humid environments.
Conductors ： Solid or stranded hard drawn Aluminum
Standards : ASTM B-230/B-231
Temperature range ：75℃
Advantages of AAC cables
AAC Cable's advantages include lightweight design, excellent conductivity, and good corrosion resistance. The low density of aluminum makes the cable significantly lighter than copper conductors, facilitating transportation and overhead installation, reducing engineering difficulty and costs. Its pure aluminum construction also reduces oxidation corrosion, extending its service life.
| SIZE OF CONDUCTOR | Code Word | No.& Nominal Diameter of Wire | Nominal Overall Diameter | Nominal Weight | |
| Approximate MM |
AWG | MM | MM | KG/KM | |
| Aluminum | |||||
| Solid | |||||
| 2.6mm | 10 | 1x2.588mm | 2.59 | 14.22 | |
| 3.2mm | 8 | 1x3.264mm | 3.26 | 22.62 | |
| 4.2mm | 6 | 1x4.115mm | 4.11 | 35.94 | |
| 5.3mm | 4 | 1x5.189mm | 5.18 | 57.17 | |
| Stranded | |||||
| 14mm2 | 6 | Peachbel | 7x1.555mm | 4.67 | 36.7 |
| 22mm2 | 4 | Rose | 7x1.961mm | 5.89 | 58.33 |
| 30mm2 | 2 | lris | 7x2.473mm | 7.42 | 92.7 |
| 50mm2 | 1/0 | Poppy | 7x3.119mm | 9.34 | 147.46 |
| 60mm2 | 2/0 | Aster | 7x3.502mm | 10.51 | 185.85 |
| 80mm2 | 3/0 | Phlox | 7x3.932mm | 11.78 | 234.36 |
| 100mm2 | 4/0 | Oxlip | 7x3.417mm | 13.25 | 295.66 |
| 50mm2 | 1/0 | Geranium | 19x1.892mm | 9.46 | 147 |
| 60mm2 | 2/0 | Buttercup | 19x2.126mm | 10.63 | 186 |
| 80mm2 | 3/0 | Primrose | 19x2.388mm | 11.94 | 234 |
| 100mm2 | 4/0 | Sunflower | 19x2.679mm | 13.4 | 296 |
| 168.2mm2 | 336.4MCM | Tulip | 19x3.380mm | 16.91 | 469.91 |
Certification
AAC Cable is certified by ASTM B-230 / ASTM B-231 international standards. Its conductor materials, stranding structure and electrical properties all meet the specifications, maintaining reliability and stability in overhead power transmission and distribution applications.
Heat Resistance
Bending Resistance
Corrosion Resistance
ASTM B-230/B-231
APPLICATIONS
AAC cable is commonly used in residential building power distribution, commercial and industrial power systems, infrastructure and energy projects, special electrical equipment connections, and outdoor overhead lines. Different product lines cover applications ranging from low-voltage cabling and power supply to specialized fire-resistant, weather-resistant, and photovoltaic systems, providing reliable solutions for electrical installation and maintenance for all sizes and industries.
Building Power Distribution
Used in the internal power distribution systems of residential and commercial buildings, connecting switches, sockets and lighting fixtures to ensure safe and stable daily power supply.
Power Supply And Industrial Power Supply
Suitable for mechanical equipment, factory power distribution cabinets and power supply lines for large loads, it has heat resistance and durability.
Fireproof And Special Purpose
Flame-retardant and fire-resistant cables can maintain power supply safety in emergencies and are suitable for high-rise buildings and critical facilities.
Overhead And Distribution Line Accessories
Includes aluminum conductors, wire protection devices, etc., used for outdoor overhead wiring, high-voltage transmission, and power network maintenance.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional Philippine cable manufacturer. We supply wires and cables for various projects in the Philippines and have established stable partnerships with local contractors, electrical installers, and distributors.
Packaging Information
AAC cables are typically packaged in three ways: coiled, on wooden reels, or on large wooden reels. We can also provide customized packaging services.
