SAA Single Core Neutral Screen Cable
Conductor：
Plain Annealed Copper Wire AS/NZS 1125, Class 2
Insulation：
PVC V-90
Screen：
Plain Annealed Copper Wire
Sheath：
PVC V-90
Sheath Colour：
Black
Standard：
AS/NZS 4961
Voltage Uo/U：
0.6/1.0kV
Temperature Rating：
75°C
Description
Download
Copper Conductor
Plain Annealed Copper Wire AS/NZS 1125, Class 2
Insulation & Sheath
PVC V-90 Insulated & Sheath
No. of Core

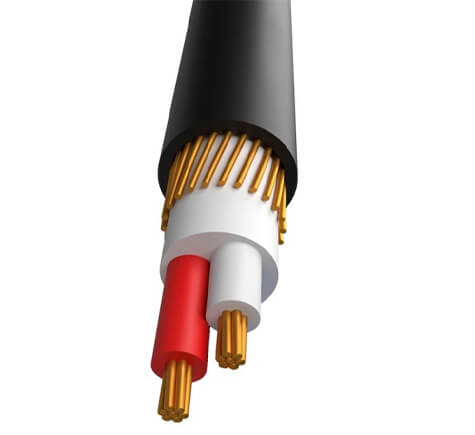

Single Core or Two Core
Voltage
0.6/1.0kV

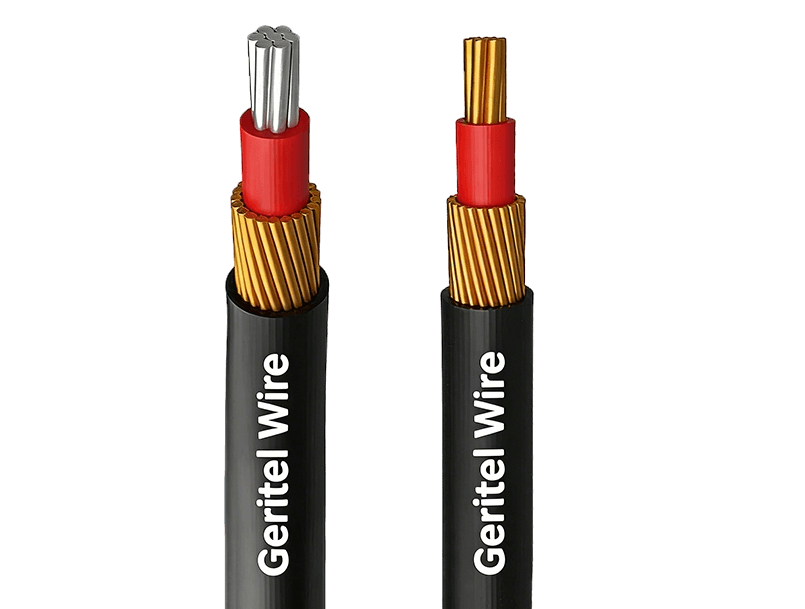

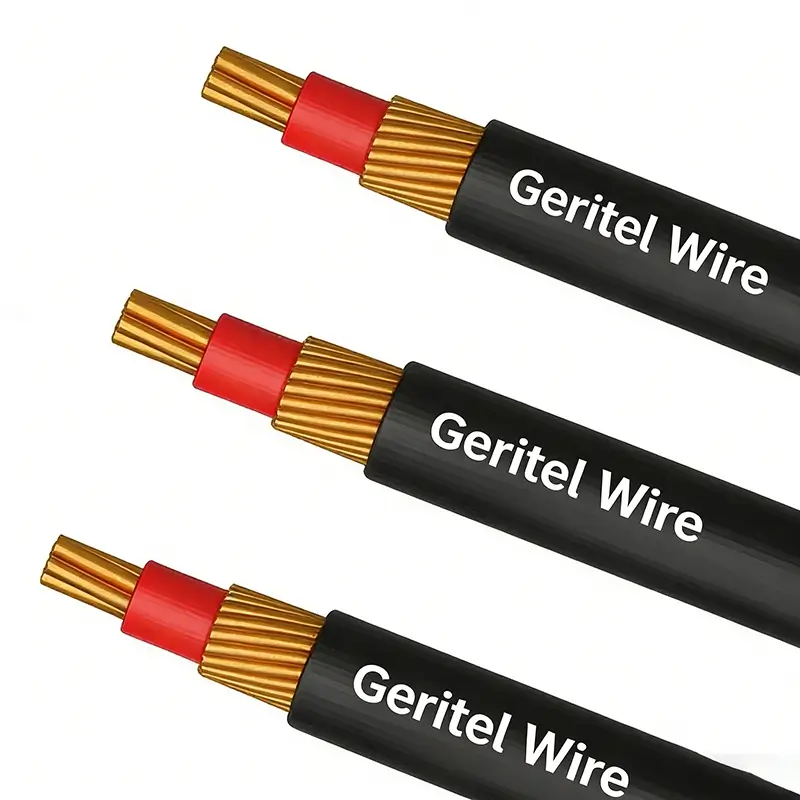

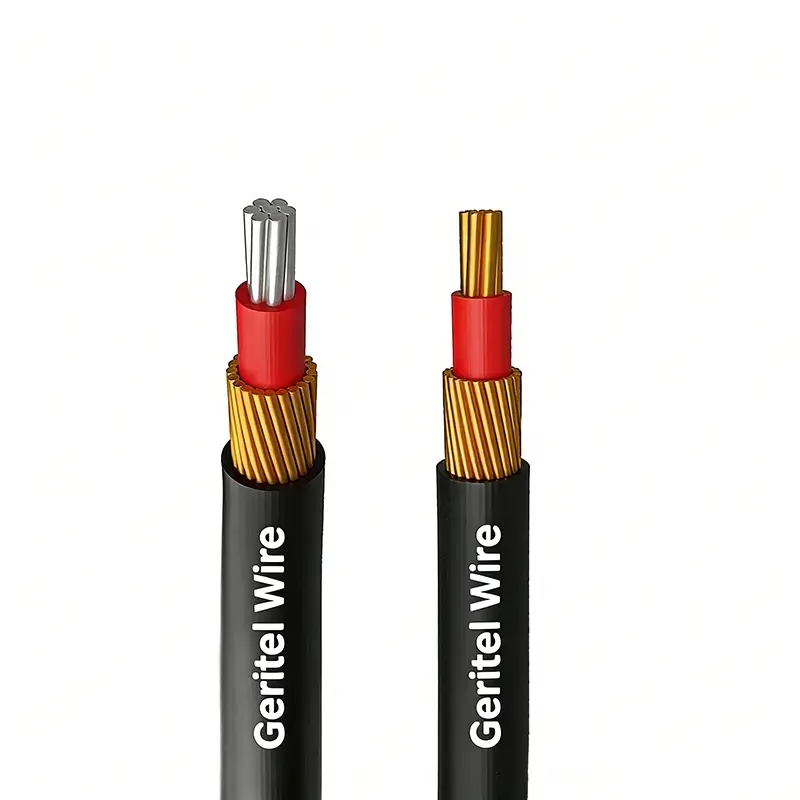

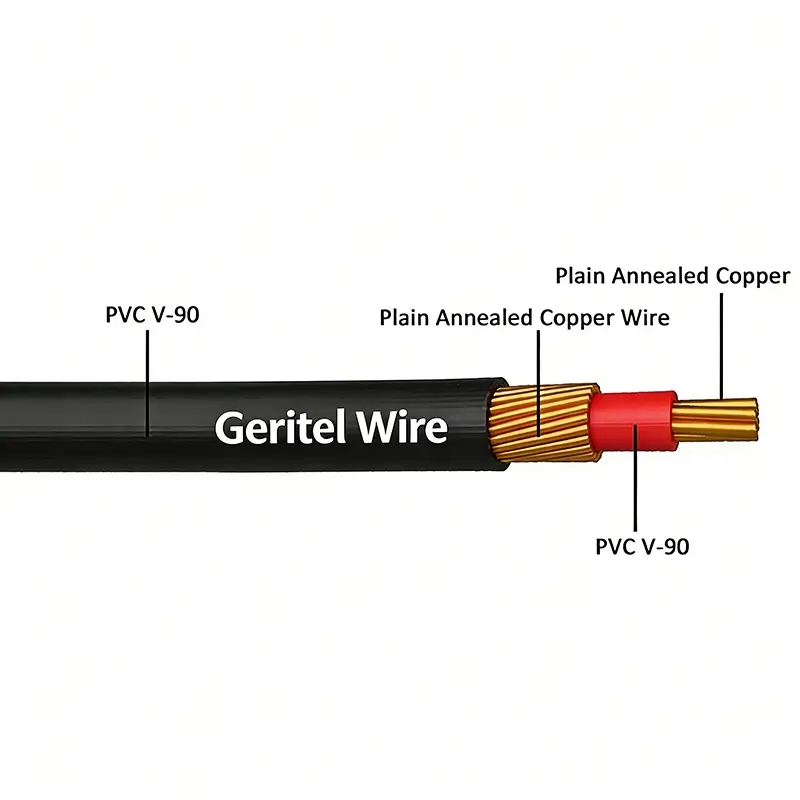

Neutral Screen Cable
PVC neutral screened cables are low-voltage power cables rated at 0.6/1 kV. They feature copper conductors, PVC insulation, and a copper wire neutral shield, offering excellent conductivity, reliable grounding protection, and stable mechanical and electrical safety.
single core Neutral Screen Cable
Neutral screened cables are power cables used in low-voltage power distribution systems, suitable for installation environments requiring high safety, reliable grounding, and electromagnetic interference resistance.
Class 2 Copper Conductors
Rated Voltage Uo/U (Um) 0.6/1.0kV
V-90 Insulated
Standards AS/NZS 4961
V-90 Sheathed
Temperature Range: 75°C
Advantages of Cables

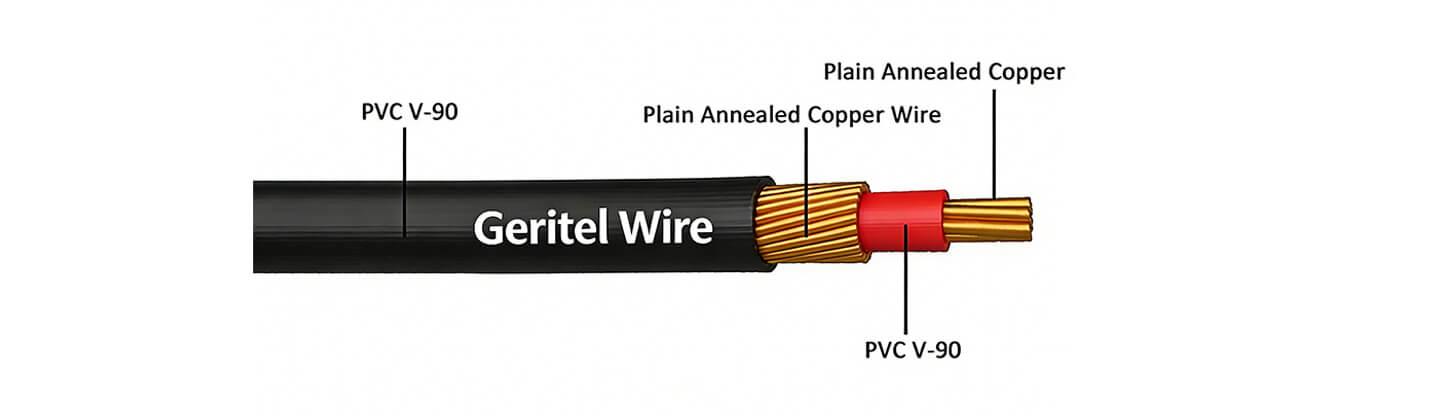

Neutral screened cables utilize multi-strand stranded copper conductors with an extruded PVC insulation layer, providing stable electrical insulation and mechanical protection. A continuous copper wire neutral shield (Neutral Screen) outside the insulation layer effectively improves system grounding and personal safety, while also helping to reduce electromagnetic interference. The outermost layer is a durable PVC sheath with good abrasion resistance, moisture resistance, and chemical resistance.
| Conductor | Nom Insulation Thickness | Screen | Nom Sheath Thickness | Approx. Diameter of Cable | Approx.Cable Weight | ||
| Size | Nom.Diameter | Nom Diameter of Wire | Calculated Area | ||||
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km |
| 1C X 2.5 | 2 | 0.8 | 0.67 | 6 | 1.8 | 9 | 150 |
| 1C X 4 | 2.6 | 1 | 0.67 | 7 | 1.8 | 9.9 | 200 |
| 1C X 6 | 3.1 | 1 | 0.67 | 8 | 1.8 | 10.5 | 230 |
| 1C X 2.5 | 2 | 0.8 | 0.67 | 6 | 3.2 | 11.8 | 220 |
| 1C X 4 | 2.6 | 1 | 0.67 | 7 | 3.2 | 12.7 | 270 |
| 1C X 6 | 3.1 | 1 | 0.67 | 8 | 3.2 | 13.3 | 310 |
| 1C X 10 | 4.1 | 1 | 0.67 | 10 | 3.2 | 14.2 | 380 |
| 1C X 16 | 5.1 | 1 | 0.85 | 16 | 3.2 | 15.6 | 520 |

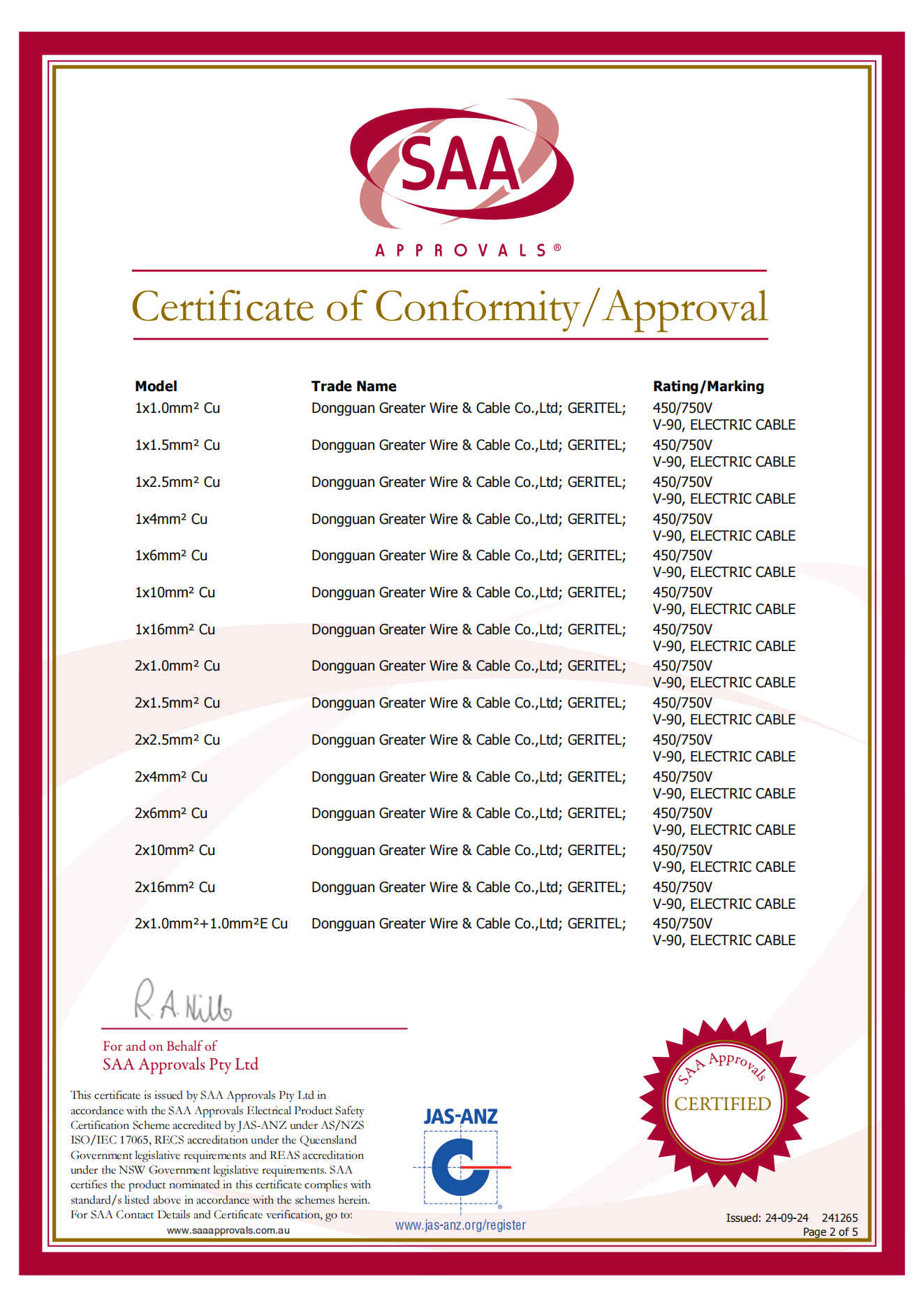

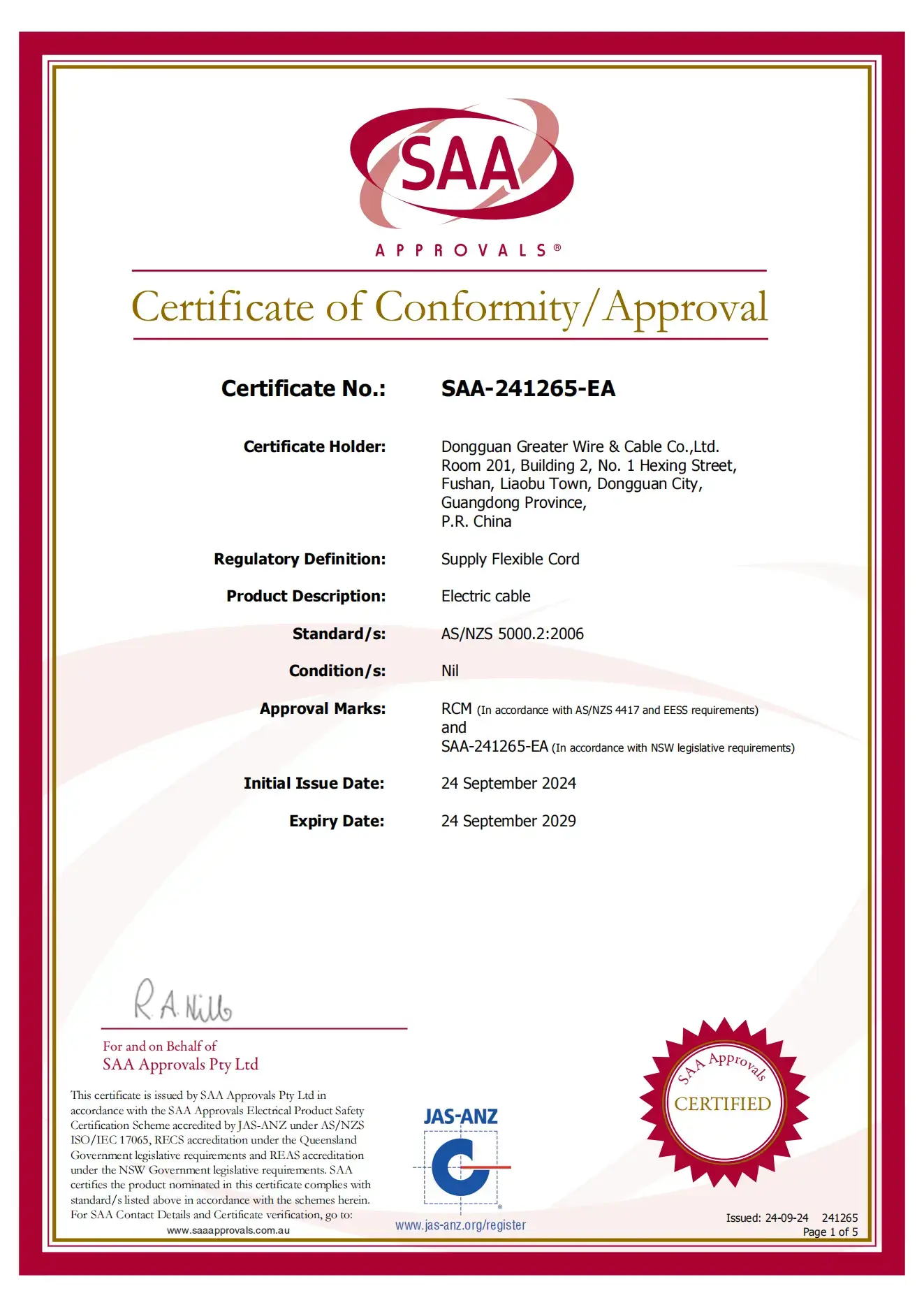

Certification
Neutral screened cable has successfully obtained SAA certification. It meets stringent industry requirements in terms of electrical safety, structural design, and performance stability, and complies with relevant cable standards such as AS/NZS.
Anti-Interference
High Conductivity
Stable Performance
Good Structural Continuity
APPLICATIONS
PVC neutral screened cables are commonly used in power distribution, meter-to-distribution panel connections, and equipment power supply lines in industrial, commercial, and civil buildings, conforming to relevant AS/NZS standards.
Low-Voltage Power Distribution Systems
Used for power distribution lines within buildings or areas, providing stable power transmission while ensuring reliable grounding and operational safety through a neutral shielding layer.
Commercial Buildings
Suitable for main power supply and branch lines in shopping malls, office buildings, and other similar locations, effectively reducing the risk of failure and meeting standardized installation requirements.
Industrial Plants
Provides continuous power support for production equipment and distribution cabinets; the neutral shielding structure can withstand fault currents, improving overall electrical safety.
Distribution Panel
Commonly used for power connections between metering devices and the main distribution panel, ensuring the continuity and compliance of the electrical system's grounding.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional Australia cable manufacturer, We are a wire and cable manufacturing factory with over 30 years of manufacturing experience, focusing on the research, development, production, and optimization of wires and cables.
Packaging Information
Neutral screened cables are available in three packaging methods: coiled, plastic reel, and wooden reel.

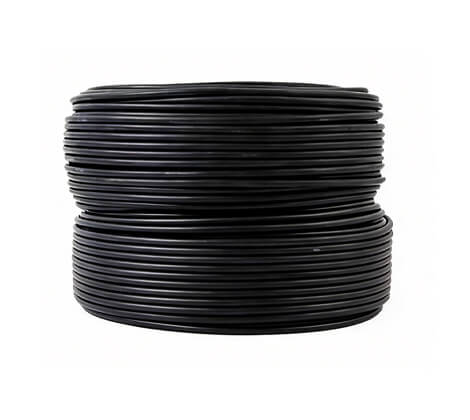

Coiled
Plastic Reel
Wooden Reel
