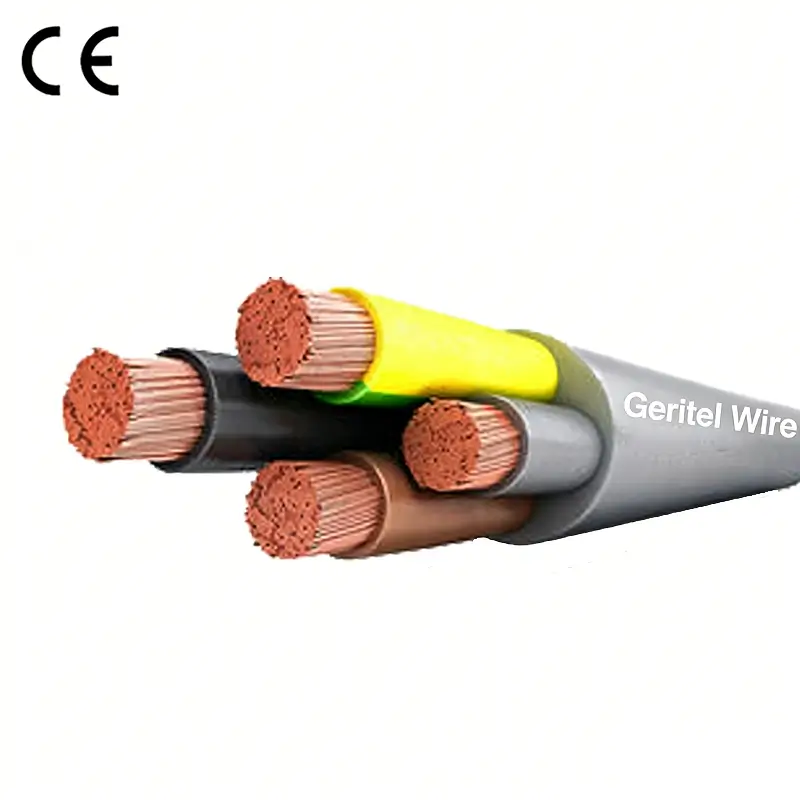

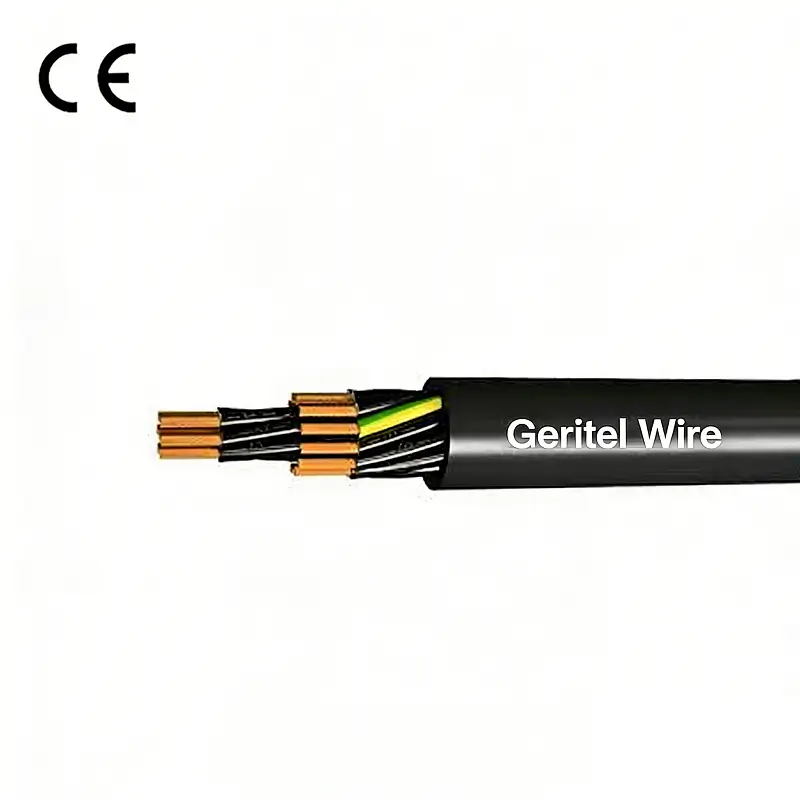

VV-K Cable
Conductor：
Class 5 Flexible Copper Conductor
Insulation：
PVC
Jacket：
PVC
Rated Voltage：
0.6/1kV
Temperature range：
-40ºC to +70ºC
Standard：
IEC 60502-1 & IEC 60228
Description
Download
Conductor
Class 5 Flexible Copper Conductor
Insulation and Sheath
PVC Insulation & PVC Sheath
No. of Conductor
1 core / 2 core / 3 core / 4 core / 5 core / more
Temperature Rating
-40ºC to +70ºC

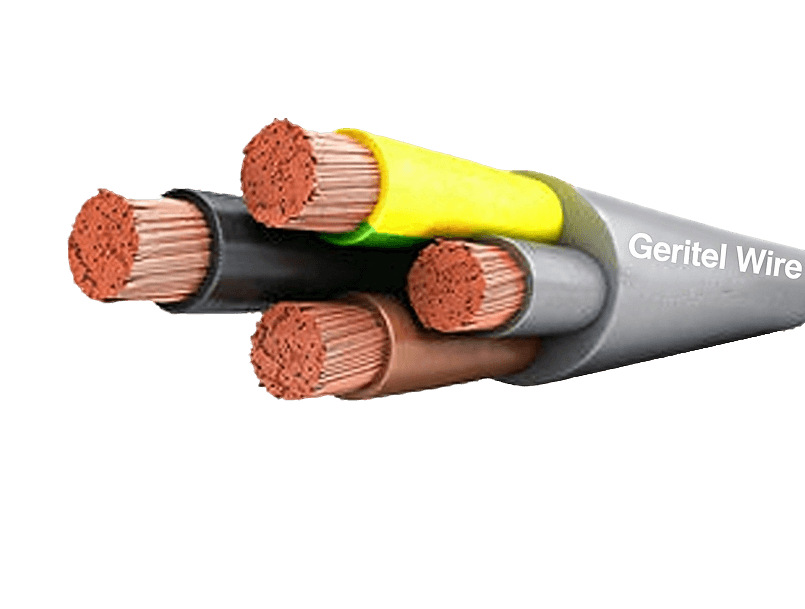

VV-K Cable
VV-K cable is a low-voltage power cable for fixed installations, featuring copper conductors, polyvinyl chloride (PVC) insulation, and a sheath, with a rated voltage of 0.6/1kV.
VV-K Cable
VVV-K cable is suitable for fixed installations in industrial plants, building power distribution, conduit laying, and cable tray wiring, ensuring long-term stable operation.

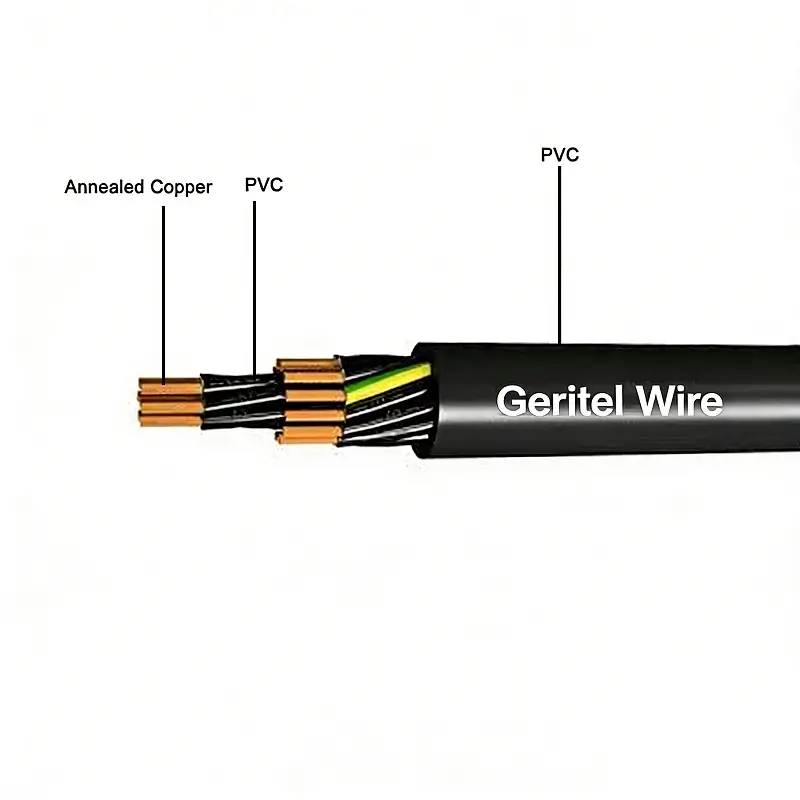

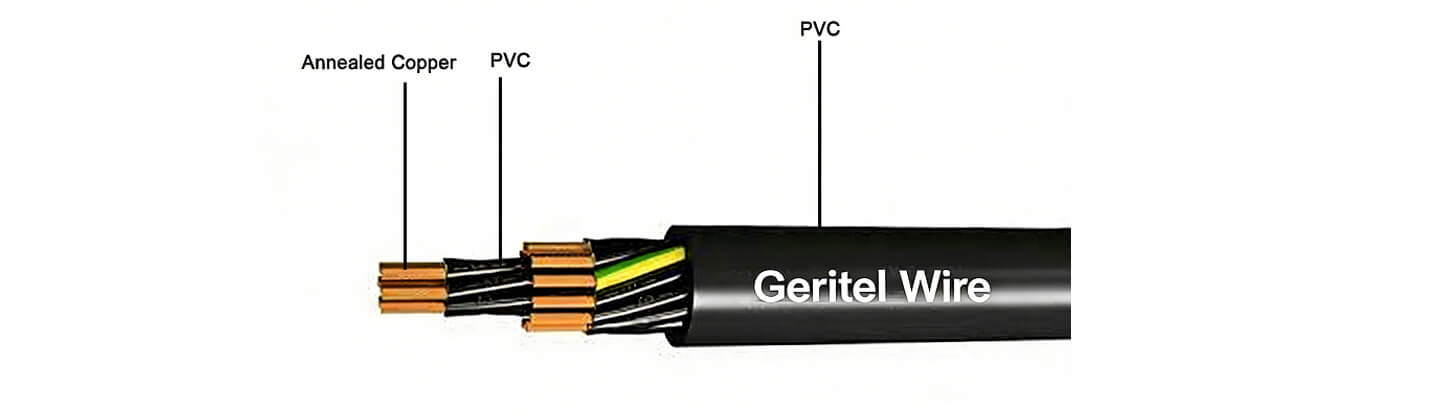

Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 0.6/1kV
Insulated : PVC
Standards : IEC 60502-1 & IEC 60228
Outer Jacket : PVC
Temperature range ：
-40ºC to +70ºC
Advantages of flexible cable
VV-K cable utilizes high-quality copper conductors, offering excellent conductivity and low resistance loss. Simultaneously, the PVC insulation and sheath materials possess properties such as heat resistance, corrosion resistance, flame retardancy, and aging resistance.
| Cross-section (mm2 ) | Diameter (mm) | Weight (kg/km) | Open Air (A) | Buried (A) | Voltage drop (V/A · km) |
| 1x10 | 8.8 | 155 | 60 | 50 | 3.97 |
| 1x16 | 9.8 | 215 | 82 | 64 | 2.51 |
| 1x25 | 11.6 | 315 | 110 | 82 | 1.62 |
| 1x35 | 12.7 | 415 | 137 | 98 | 1.15 |
| 1x50 | 14.6 | 570 | 167 | 116 | 0.802 |
| 2x1.5 | 8.4 | 100 | 22 | 22 | 31.9 |
| 2x2.5 | 9.7 | 140 | 30 | 29 | 19.2 |
| 2x4 | 11.6 | 210 | 40 | 37 | 11.9 |
| 2x6 | 12.7 | 265 | 51 | 46 | 7.92 |
| 2x10 | 14.6 | 380 | 70 | 60 | 4.58 |
| 2x16 | 16.5 | 530 | 94 | 64 | 2.9 |
| 3x1.5 | 8.9 | 120 | 22 | 22 | 31.9 |
| 3x2.5 | 10.3 | 170 | 30 | 29 | 19.2 |
| 3x4 | 12.4 | 255 | 40 | 37 | 11.9 |
| 3x6 | 13.6 | 325 | 51 | 46 | 7.92 |
| 3x10 | 15.8 | 485 | 70 | 60 | 4.58 |
| 3x16 | 18 | 680 | 80 | 64 | 2.51 |
| 4x1.5 | 9.7 | 145 | 18.5 | 18 | 27.6 |
| 4x2.5 | 11.3 | 210 | 25 | 24 | 16.6 |
| 4x4 | 13.5 | 310 | 34 | 30 | 10.3 |
| 4x6 | 14.9 | 405 | 43 | 38 | 6.86 |
| 4x10 | 17.4 | 605 | 60 | 50 | 3.97 |
| 4x16 | 20.2 | 895 | 80 | 64 | 2.51 |
| 5x1.5 | 10.5 | 175 | 18.5 | 18 | 27.6 |
| 5x2.5 | 12.3 | 250 | 25 | 24 | 16.6 |
| 5x4 | 14.9 | 370 | 34 | 30 | 10.3 |
| 5x6 | 16.5 | 490 | 43 | 38 | 6.86 |
| 5x10 | 19.3 | 745 | 60 | 50 | 3.97 |
| 5x16 | 22.3 | 1.08 | 80 | 64 | 2.51 |
| 6x1.5 | 9.5 | 155 | 22 | 22 | 31.9 |
| 6x2.5 | 11.4 | 235 | 30 | 29 | 19.2 |
| 7x1.5 | 9.5 | 170 | 22 | 22 | 31.9 |
| 7x2.5 | 11.4 | 260 | 30 | 29 | 19.2 |
| 7x4 | 14.9 | 430 | 40 | 37 | 11.9 |
| 7x6 | 16.6 | 585 | 51 | 46 | 7.92 |
| 8x1.5 | 10.3 | 195 | 22 | 22 | 31.9 |
| 8x2.5 | 12.5 | 300 | 30 | 29 | 19.2 |
| 10x1.5 | 11.5 | 235 | 22 | 22 | 31.9 |
| 10x2.5 | 14.1 | 365 | 30 | 29 | 19.2 |
| 12x1.5 | 11.9 | 270 | 22 | 22 | 31.9 |
| 12x2.5 | 14.3 | 415 | 30 | 29 | 19.2 |
| 12x6 | 21.3 | 940 | 51 | 46 | 7.92 |
| 12x10 | 27.3 | 1.585 | 70 | 60 | 4.88 |
| 14x1.5 | 13 | 315 | 22 | 22 | 31.9 |
| 14x2.5 | 16 | 490 | 30 | 29 | 19.2 |
| 16x1.5 | 13.8 | 355 | 22 | 22 | 31.9 |
| 16x2.5 | 17.2 | 555 | 30 | 29 | 19.2 |
| 19x1.5 | 14.5 | 405 | 22 | 22 | 31.9 |
| 19x2.5 | 17.9 | 635 | 30 | 29 | 19.2 |
| 24x1.5 | 16.7 | 505 | 22 | 22 | 31.9 |
| 24x2.5 | 20.6 | 790 | 30 | 29 | 19.2 |
| 27x1.5 | 17.4 | 550 | 22 | 22 | 31.9 |
| 30x1.5 | 18.2 | 605 | 22 | 22 | 31.9 |
| 37x1.5 | 19.8 | 740 | 22 | 22 | 31.9 |
| 44x1.5 | 21.9 | 870 | 22 | 22 | 31.9 |
| 52x1.5 | 23.4 | 1020 | 22 | 22 | 31.9 |
| 61x1.5 | 25.4 | 1210 | 22 | 22 | 31.9 |
Certification
VV-K cable has passed multiple international certifications. Certified wires and cables perform more stably under high load or complex environments, effectively reducing system failures caused by overheating, insulation aging, or short circuits, and improving the overall reliability of the electrical system.
Highly Flexible
Flame Retardant
Mechanical Durability
Multiple Certificated
APPLICATIONS
VV-K cable boasts a compact structure and high mechanical strength, providing reliable electrical performance and safety, making it a commonly used fixed wiring cable in industrial and building power systems.
Building
VV-K cables are widely used in main power distribution and branch circuits in residential and commercial buildings, providing stable low-voltage power transmission for lighting, sockets, and basic power equipment.
Industrial Plants
In industrial plants, VV-K cables are suitable for fixed installation in cable trays or cable troughs to connect distribution cabinets to production equipment, ensuring long-term continuous operation.
Control Cabinets
VV-K cables are commonly used for power connections between control cabinets and external equipment; their stable insulation performance meets the safety requirements of control systems.
Distribution Boxes
VV-K cables are commonly used for fixed power supply connections from distribution boxes to terminal equipment such as air conditioners, fans, and water pumps, offering stable operation and convenient maintenance.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. We implement a strict raw material selection system. Conductors use high-purity copper or aluminum materials, and insulation and sheath materials come from a stable and reliable supply system, ensuring the electrical performance, durability, and safety of our wires and cables from the source.
Packaging Information
VV-K cables are typically offered in three packaging options: coiled, plastic reel, and wooden reel.
