Unarmored Power Cable
Conductor：
Class 2 Stranded Copper Conductor
Insulation：
XLPE (Cross-Linked Polyethylene)
Jacket：
PVC (Polyvinyl Chloride)
Rated Voltage：
0.6/1kV
Temperature range：
Fixed: -25°C to +90°C
Standard：
IEC 60502 / IEC 60227 / IEC 60502-1
Description
Download
Conductor
Class 2 Stranded Copper Conductor

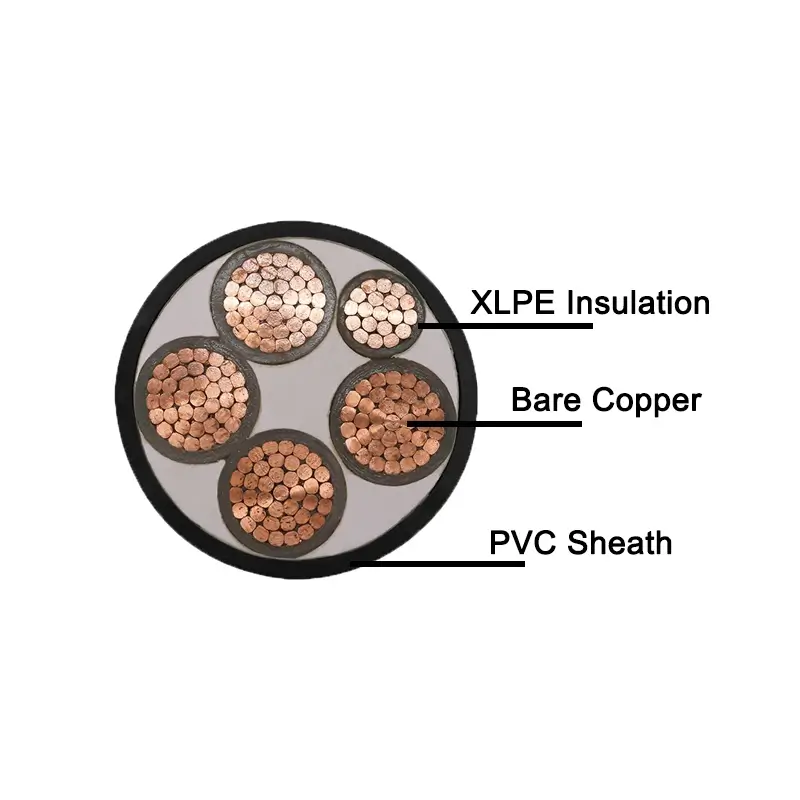

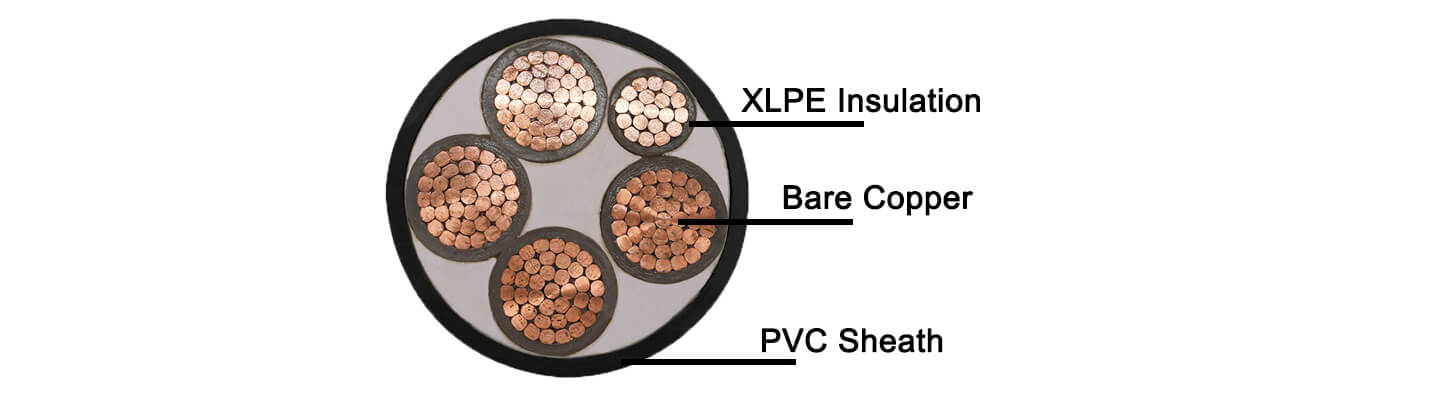

Insulation and Sheath
XLPE (Cross-Linked Polyethylene) Insulation & PVC (Polyvinyl Chloride) Sheath
No. of Conductor
2 Core/3 Core/4 Core/5 Core/3+1 Cores/3+2 Cores/4+1 Cores
Temperature Rating
-25°C to +90°C

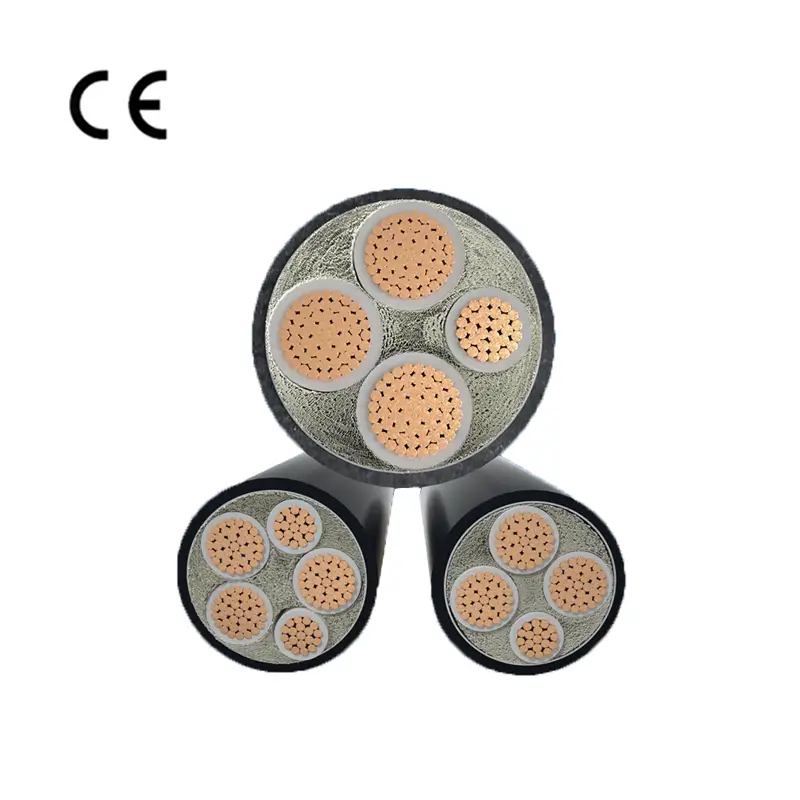

Unarmored Cable
0.6/1 kV unarmored cable delivers reliable low-voltage power distribution with excellent electrical insulation, heat resistance, flexibility, and durability for indoor and protected installations.

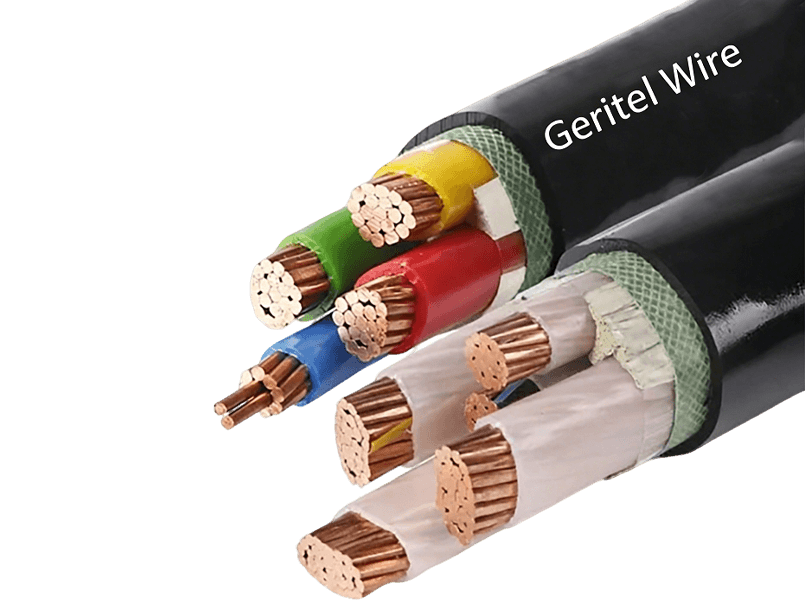

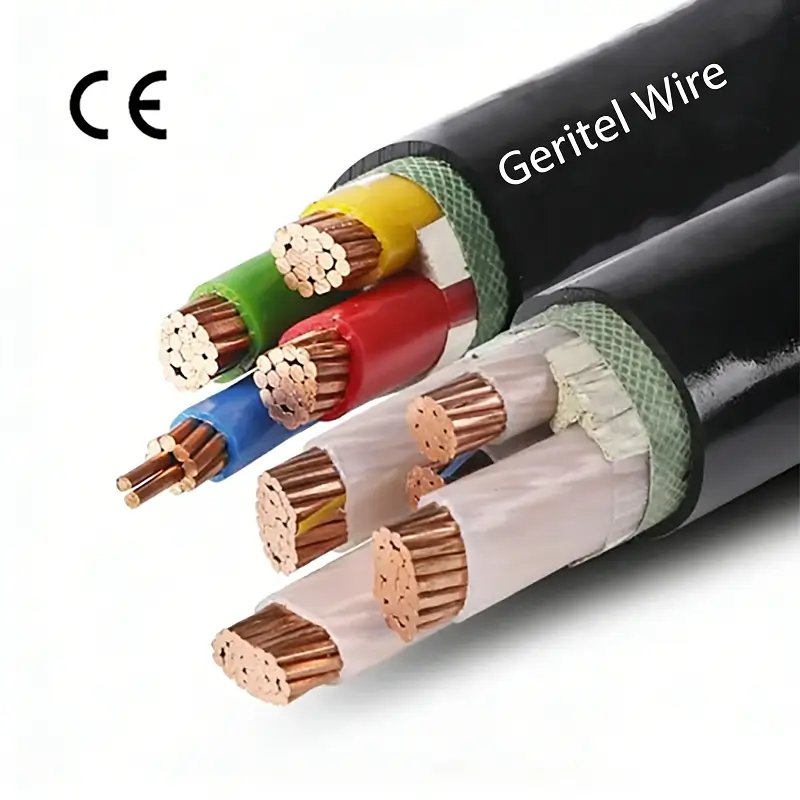

Unarmored Cable
Unarmored cable is lightweight, flexible, and easy to install, it suitable for fixed installation indoors or in protected environments.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 0.6/1kV
Insulated : XLPE (Cross-Linked Polyethylene)
Standards : IEC 60502 / IEC 60227 / IEC 60502-1
Outer Jacket : PVC (Polyvinyl Chloride)
Temperature range ：-25°C to +90°C
Advantages of cable
Unarmored cable is a low-voltage power cable rated at 0.6/1kV. It uses copper or aluminum conductors, PVC or XLPE insulation and sheathing, but does not have a metallic armor layer.
| No. X Nominal Cross Section of Conductor | Nominal Diameter of Conductor | Nominal Thickness of Insulation | Nominal Thickness of Inner Sheath | Nominal Thickness of PVC Sheath | Approx. Overall Diameter |
| No. X mm 2 | mm | mm | mm | mm | mm |
| 3 X 25 | 6 | 2.5 | 1.2 | 1.9 | 37.9 |
| 3 X 35 | 6.9 | 2.5 | 1.3 | 2 | 41.5 |
| 3 X50 | 8.2 | 2.5 | 1.3 | 2 | 44.3 |
| 3 X 70 | 9.7 | 2.5 | 1.4 | 2.1 | 47.9 |
| 3 X 95 | 11.3 | 2.5 | 1.4 | 2.2 | 51.6 |
| 3 X 120 | 12.8 | 2.5 | 1.5 | 2.4 | 55.4 |
| 3 X 150 | 14.2 | 2.5 | 1.5 | 2.5 | 58.6 |
| 3 X 185 | 15.9 | 2.5 | 1.5 | 2.6 | 62.5 |
| 3 X 240 | 18.3 | 2.6 | 1.6 | 2.7 | 68.5 |
| 3 X 300 | 20.4 | 2.8 | 1.7 | 2.9 | 74.5 |
| 3 X 400 | 23.2 | 3 | 1.9 | 3.2 | 83.6 |
| 3 X 500 | 26.4 | 3.2 | 2.1 | 3.4 | 93 |
Certification
Unarmored Cable has passed multiple international certifications. Certified cables are subject to regular factory audits and random inspections during the manufacturing process. This continuous monitoring mechanism contributes to the long-term consistency of wire and cable quality.
Highly Flexible
Flame Retardant
Mechanical Durability
Multiple Certificated
APPLICATIONS
Unarmored cable meets the requirements of power distribution and control wiring in residential, commercial, and industrial buildings, and is widely used in conduits, cable trays, and cable ducts.
Residential
Used for main and branch power distribution lines in apartments, villas, or residential buildings, laid in conduits or cable trays to ensure a safe and stable power supply for household appliances, lighting, and sockets.
Commercial Buildings
Suitable for low-voltage power distribution in offices, office buildings, or shopping malls, providing reliable and neat indoor wiring from distribution boxes to power sockets and lighting equipment on each floor.
Industrial
Provides low-voltage power to equipment in light industrial workshops or small production lines, such as machine control cabinets, conveyor belts, and lighting systems, supporting safe and efficient operation.
Cable Trays
Lay along walls or ceilings within building cable trays, low-voltage power transmission without additional mechanical protection, while facilitating future maintenance and repair.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. We support a variety of customization needs, including conductor structure, insulation materials, color, printing content, and packaging methods, flexibly matching different national standards and project applications.
Packaging Information
Unarmored cable is available in two packaging options: small wooden reels and large wooden reels.
Small Wooden Reel
Large Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
