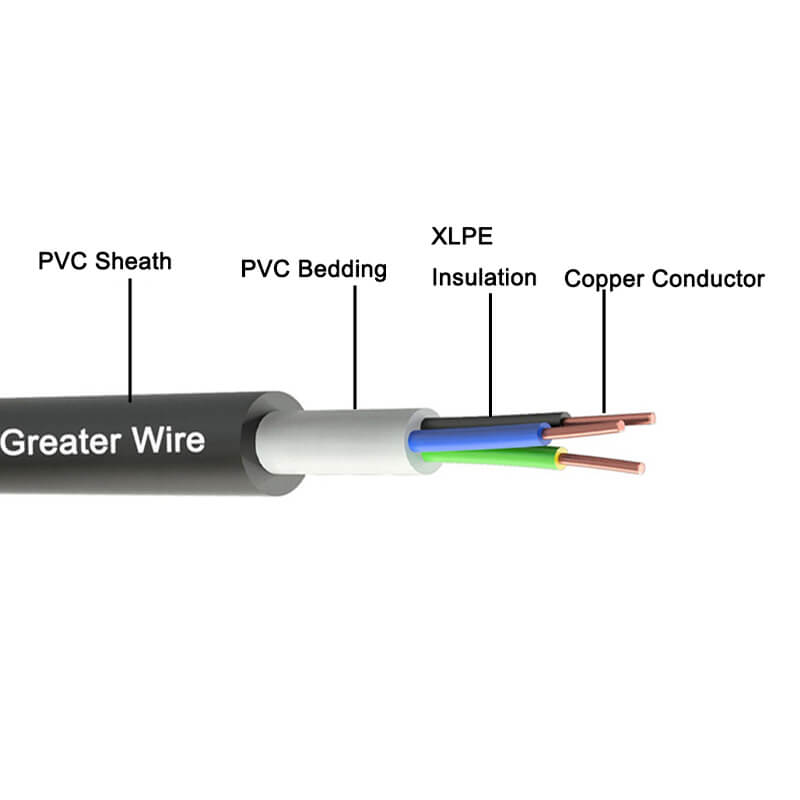

U-1000 R2V Cable
Conductor：
Class 1 Solid or Class 2 Stranded Copper
Insulation：
XLPE (Cross-Linked Polyethylene)
Bedding：
PVC (Polyvinyl Chloride)
Jacket：
PVC (Polyvinyl Chloride)
Rated Voltage：
0.6/1kV
Temperature range：
-25°C to +90°C
Standard：
NF C 32-321, IEC 60502-1, NF C 32-070 C2
Description
Download
Conductor
Class 1 Solid or Class 2 Stranded Copper
Insulation and Sheath
XLPE (Cross-Linked Polyethylene) Insulation & PVC (Polyvinyl Chloride) Sheath
No. of Conductor
2 core / 3 core / 4 core / 5 core / 7 core and above
Temperature Rating
During Installation: -10°C to +50ºC
Fixed Installation: -25°C to +90°C
U-1000 R2V Cable
U-1000 R2V cable conforms to 0.6/1 kV low-voltage power distribution systems, can operate continuously at temperatures up to 90 °C, and can withstand high short-circuit thermal stress. It offers excellent mechanical protection, abrasion and aging resistance, and flame retardant properties, ensuring long-term safe operation in fixed installation environments.
U-1000 R2V Cable
U-1000 R2V cable possesses heat resistance, aging resistance, and reliable insulation characteristics, with a long-term permissible operating temperature up to 90 °C.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 0.6/1kV
Insulated : XLPE (Cross-Linked Polyethylene)
Standards : NF C 32-321, IEC 60502-1, NF C 32-070 C2
Outer Jacket : PVC (Polyvinyl Chloride)
Temperature range ：
-15ºC to +90ºC
Advantages of flexible cable
U-1000 R2V cable features XLPE insulation and a PVC sheath, making it suitable for 0.6/1 kV low-voltage fixed-lay power transmission. It boasts excellent electrical insulation performance and good heat and aging resistance.
| No. Of Cores |
Nominal Cross Sectional Area mm2 |
Nominal Thickness Of Insulation mm |
Nominal Thickness Of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight Kg/Km |
| 1 | 1.5 | 0.7 | 1.1 | 6.6 | 45 |
| 1 | 2.5 | 0.7 | 1.1 | 7 | 55 |
| 1 | 4 | 0.7 | 1.1 | 7.6 | 75 |
| 1 | 6 | 0.7 | 1.1 | 8.2 | 100 |
| 1 | 10 | 0.7 | 1.1 | 9.2 | 140 |
| 1 | 16 | 0.7 | 1.4 | 10.5 | 205 |
| 1 | 25 | 0.9 | 1.4 | 12.5 | 315 |
| 1 | 35 | 0.9 | 1.4 | 13.5 | 400 |
| 1 | 50 | 1 | 1.4 | 15 | 530 |
| 1 | 70 | 1.1 | 1.4 | 17 | 725 |
| 1 | 95 | 1.1 | 1.5 | 19 | 985 |
| 1 | 120 | 1.2 | 1.5 | 21 | 1260 |
| 1 | 150 | 1.4 | 1.6 | 23 | 1520 |
| 1 | 185 | 1.6 | 1.6 | 25.5 | 1940 |
| 1 | 240 | 1.7 | 1.7 | 28.5 | 2310 |
| 1 | 300 | 1.8 | 1.8 | 31 | 3200 |
| 1 | 400 | 2 | 1.9 | 34.2 | 3931 |
| 1 | 500 | 2.2 | 2 | 38 | 5020 |
| 1 | 630 | 2.4 | 2.3 | 44 | 5324 |
| 2 | 1.5 | 0.7 | 1.8 | 10.5 | 115 |
| 2 | 2.5 | 0.7 | 1.8 | 11.5 | 145 |
| 2 | 4 | 0.7 | 1.8 | 13 | 195 |
| 2 | 6 | 0.7 | 1.8 | 14 | 265 |
| 2 | 10 | 0.7 | 1.8 | 16 | 390 |
| 2 | 16 | 0.7 | 1.8 | 18.5 | 560 |
| 2 | 25 | 0.9 | 1.8 | 22 | 850 |
| 2 | 35 | 0.9 | 1.8 | 24.5 | 1080 |
| 3 | 1.5 | 0.7 | 1.8 | 11 | 130 |
| 3 | 2.5 | 0.7 | 1.8 | 12.5 | 170 |
| 3 | 4 | 0.7 | 1.8 | 13.5 | 230 |
| 3 | 6 | 0.7 | 1.8 | 15 | 325 |
| 3 | 10 | 0.7 | 1.8 | 17 | 485 |
| 3 | 16 | 0.7 | 1.8 | 19.5 | 705 |
| 3 | 25 | 0.9 | 1.8 | 23.5 | 1080 |
| 3 | 35 | 0.9 | 1.8 | 26 | 1390 |
| 3 | 50 | 1 | 1.8 | 29 | 1840 |
| 3 | 70 | 1.1 | 1.9 | 34 | 2540 |
| 3 | 95 | 1.1 | 2 | 38.5 | 3430 |
| 3 | 120 | 1.2 | 2.1 | 42.5 | 4440 |
| 3 | 150 | 1.4 | 2.3 | 47.5 | 5380 |
| 3 | 185 | 1.6 | 2.4 | 55 | 6920 |
| 3 | 240 | 1.7 | 2.6 | 59.5 | 8420 |
| 3 | 300 | 1.8 | 2.8 | 66 | 11300 |
| 3+E | 50+1x35 | 1 | 1.8 | 31.1 | 2160 |
| 3+E | 70+1x50 | 1.1 | 2 | 36.2 | 3010 |
| 3+E | 95+1x50 | 1.1 | 2.1 | 40.6 | 3960 |
| 3+E | 120+1x70 | 1.2 | 2.2 | 45.4 | 5160 |
| 3+E | 150+1x70 | 1.4 | 2.3 | 49.5 | 6150 |
| 3+E | 185+1x70 | 1.6 | 2.5 | 54.4 | 7780 |
| 3+E | 240+ 1x95 | 1.7 | 2.7 | 61.5 | 9550 |
| 4 | 1.5 | 0.7 | 1.8 | 12 | 150 |
| 4 | 2.5 | 0.7 | 1.8 | 13 | 205 |
| 4 | 4 | 0.7 | 1.8 | 14.5 | 280 |
| 4 | 6 | 0.7 | 1.8 | 16 | 390 |
| 4 | 10 | 0.7 | 1.8 | 18.5 | 590 |
| 4 | 16 | 0.7 | 1.8 | 21 | 870 |
| 4 | 25 | 0.9 | 1.8 | 25.5 | 1365 |
| 4 | 35 | 0.9 | 1.8 | 28.5 | 1760 |
| 4 | 50 | 1 | 1.9 | 32.5 | 2460 |
| 4 | 70 | 1.1 | 2 | 37.5 | 3442 |
| 4 | 95 | 1.1 | 2.1 | 42.5 | 4690 |
| 4 | 120 | 1.2 | 2.3 | 47.5 | 6119 |
| 4 | 150 | 1.4 | 2.4 | 52.5 | 7405 |
| 4 | 185 | 1.6 | 2.6 | 59 | 8820 |
| 4 | 240 | 1.7 | 2.8 | 66.5 | 11865 |
| 4 | 300 | 1.8 | 3 | 75.5 | 14716 |
| 5 | 1.5 | 0.7 | 1.8 | 12.5 | 225 |
| 5 | 2.5 | 0.7 | 1.8 | 13.5 | 290 |
| 5 | 10 | 0.7 | 1.8 | 19 | 775 |
| 5 | 16 | 0.7 | 1.8 | 21.5 | 1135 |
| 5 | 25 | 0.9 | 1.8 | 27 | 1780 |
| 5 | 35 | 0.9 | 1.8 | 34 | 2069 |
| 5 | 50 | 1 | 1.9 | 36 | 2755 |
| 5 | 70 | 1.1 | 2 | 43 | 3925 |
| 5 | 95 | 1.1 | 2.1 | 47 | 5336 |
| 7 | 1.5 | 0.7 | 1.8 | 13.5 | 220 |
| 7 | 2.5 | 0.7 | 1.8 | 15 | 310 |
| 12 | 1.5 | 0.7 | 1.8 | 17 | 370 |
| 12 | 2.5 | 0.7 | 1.8 | 19.5 | 525 |
| 19 | 1.5 | 0.7 | 1.8 | 19.5 | 560 |
| 19 | 2.5 | 0.7 | 1.8 | 22.5 | 745 |
| 24 | 1.5 | 0.7 | 1.8 | 22.5 | 745 |
| 24 | 2.5 | 0.7 | 1.8 | 22.5 | 710 |
| 27 | 1.5 | 0.7 | 1.8 | 23.5 | 1000 |
| 27 | 2.5 | 0.7 | 1.8 | 26 | 1000 |
| 37 | 1.5 | 0.7 | 1.8 | 25.5 | 972 |
| 37 | 2.5 | 0.7 | 1.8 | 29.5 | 1350 |
Certification
U-1000 R2V cable has passed multiple international certifications. In long-term use, certified wires and cables experience slower performance degradation and have a longer service life. From a total life cycle cost perspective, this can actually help customers reduce overall wiring costs.
Highly Flexible
Flame Retardant
Mechanical Durability
Multiple Certificated
APPLICATIONS
U-1000 R2V cable is suitable for fixed-lay applications in building power distribution, industrial facilities, and basic power systems. It can be installed in cable trays, conduits, or exposed on walls.
Building
Suitable for main and branch power distribution in residential and commercial buildings, meeting 0.6/1 kV low-voltage power supply requirements, ensuring stable and reliable long-term operation.
Industrial Plants
Used for fixed installation between equipment and distribution cabinets in factory workshops. XLPE insulation can withstand high operating temperatures, suitable for continuous load conditions.
Cable Trays
Can be directly laid on cable trays. The PVC outer sheath provides good mechanical protection, suitable for centralized wiring environments.
Public Buildings
Widely used in low-voltage power distribution networks of public facilities such as schools, hospitals, and office buildings, ensuring power supply safety and reliability.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. The factory has a professional testing laboratory capable of performing various tests, including conductor resistance, voltage resistance, insulation thickness, aging, and flame retardancy. The cables demonstrate stable and reliable performance in real-world applications.
Packaging Information
U-1000 R2V cables are typically offered in three packaging options: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
