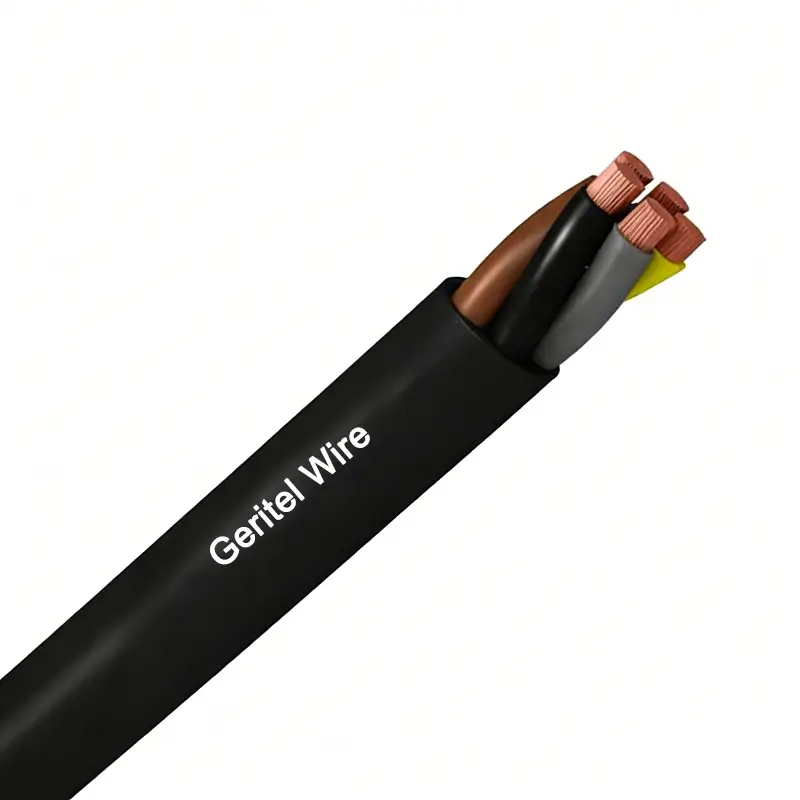

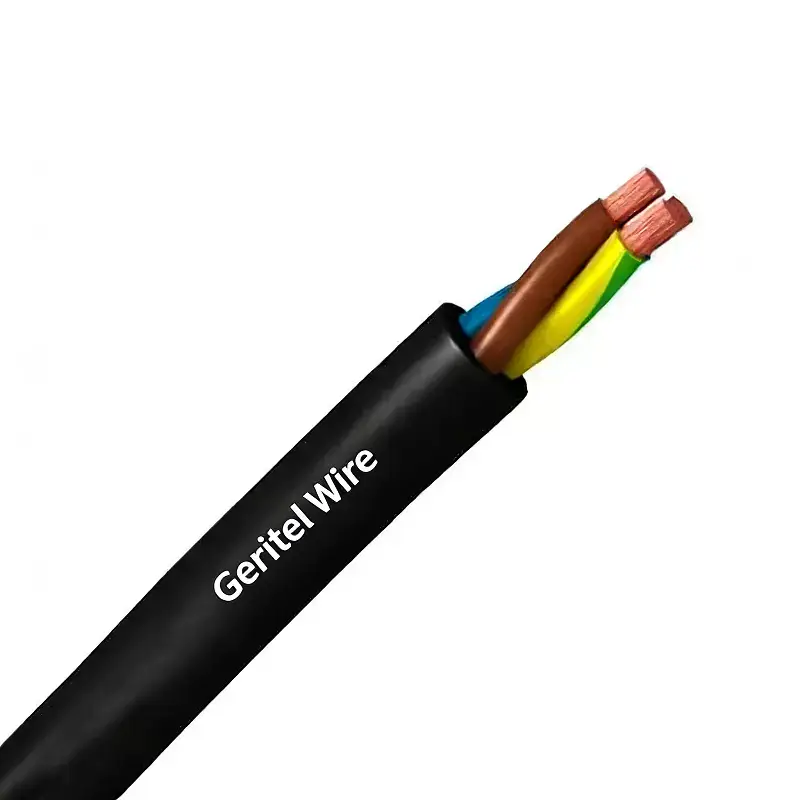

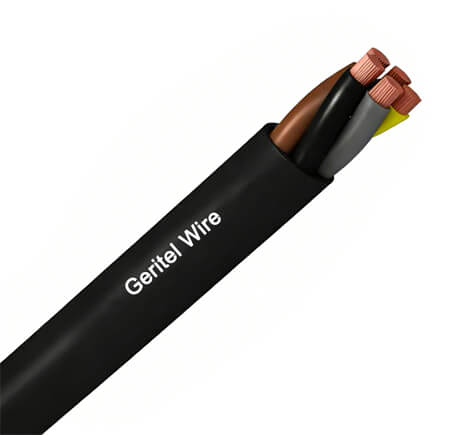

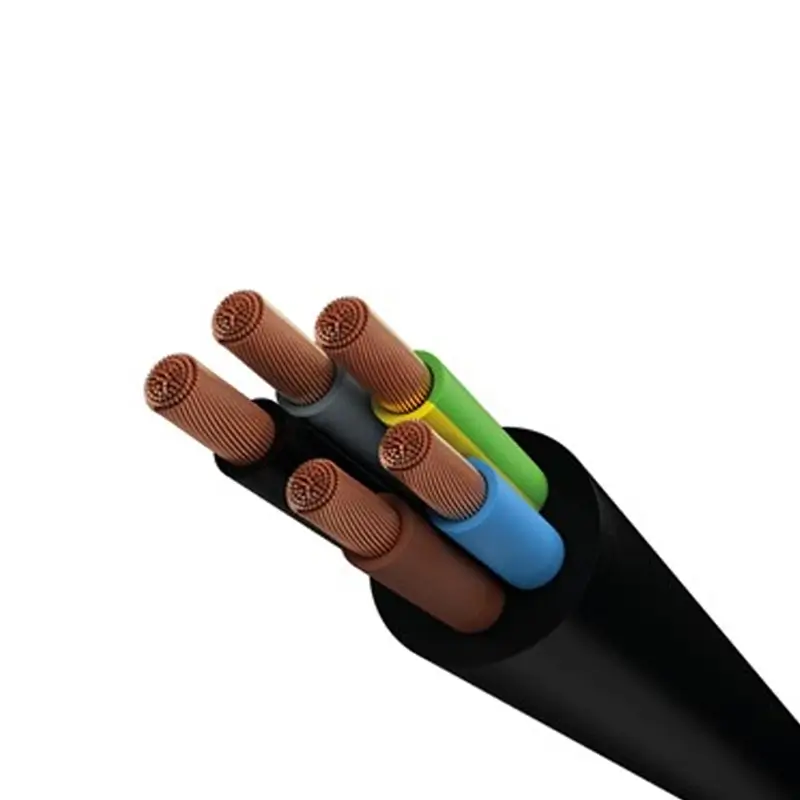

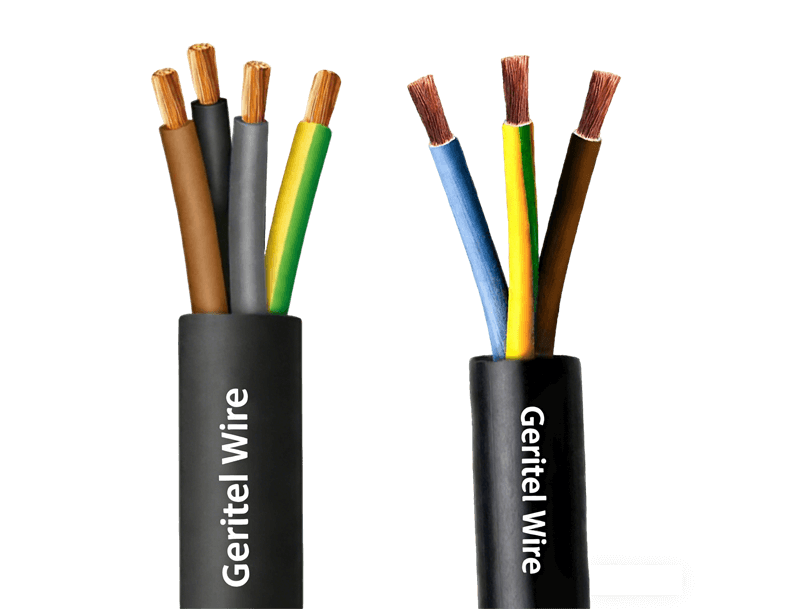

RV-K Cable
Conductor：
Class 5 Flexible Copper Conductor
Insulation：
XLPE (Cross-Linked Polyethylene)
Jacket：
PVC (Polyvinyl Chloride)
Rated Voltage：
0.6/1kV
Temperature range：
-15ºC to +90ºC
Standard：
IEC 60502-1, UNE 21123-2
Description
Download
Conductor
Class 5 Flexible Copper Conductor
Insulation and Sheath
XLPE (Cross-Linked Polyethylene) Insulation & PVC (Polyvinyl Chloride) Sheath
No. of Conductor
2 core / 3 core / 4 core / 5 core / 7 core and above
Temperature Rating
-15ºC to +90ºC
RV-K Cable
RV-K cable maintains stable electrical performance even at a rated voltage of 0.6/1 kV, with a long-term permissible conductor operating temperature up to 90 °C. It also exhibits good current-carrying capacity and heat resistance.
RV-K Cable
RV-K cable is a low-voltage flexible power cable conforming to IEC/UNE standards, suitable for indoor and outdoor fixed installations and power distribution in buildings and industrial settings.

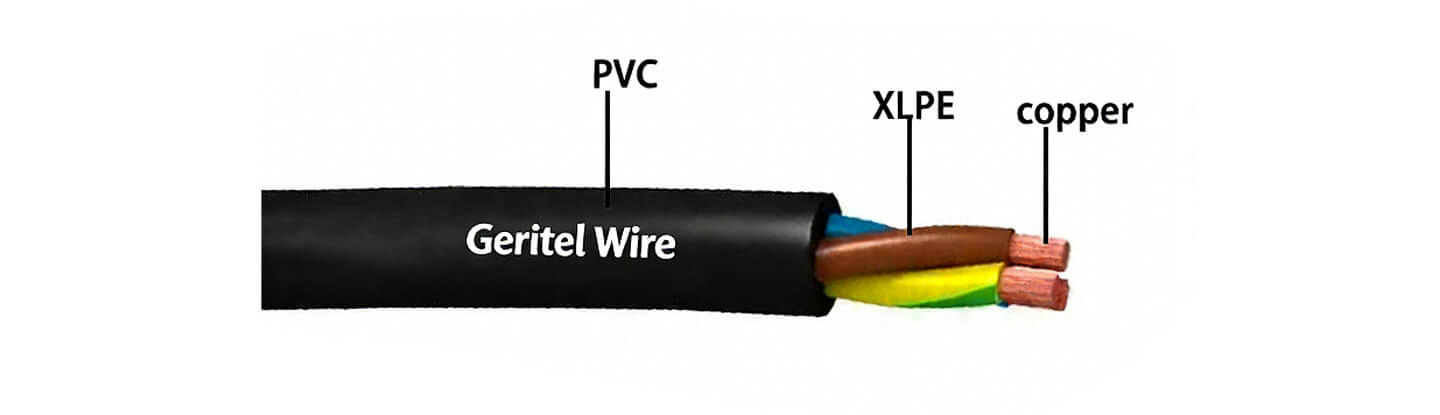

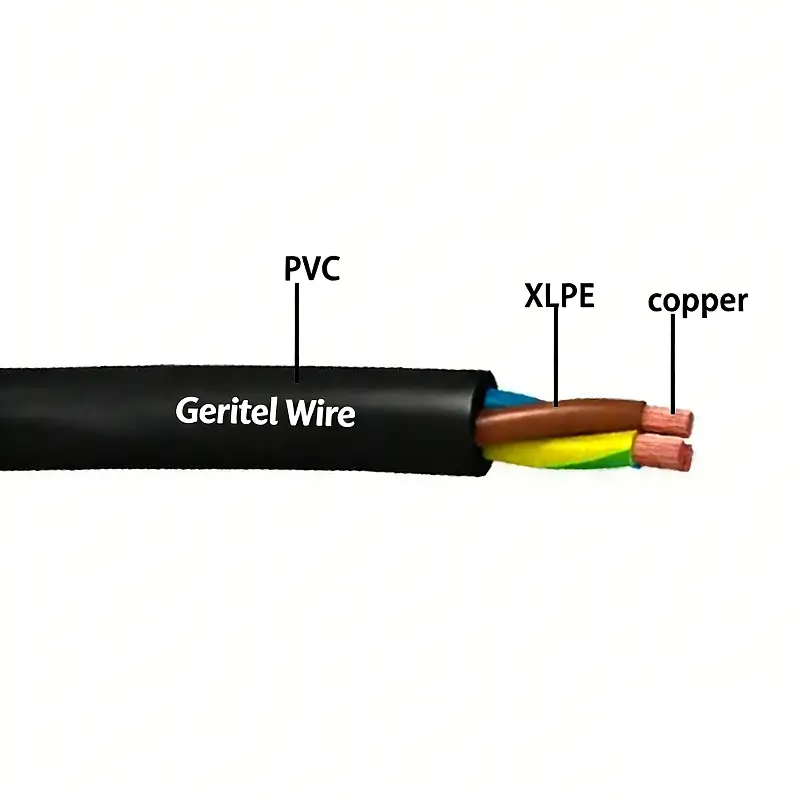

Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 0.6/1kV
Insulated : XLPE (Cross-Linked Polyethylene)
Standards : IEC 60502-1, UNE 21123-2
Outer Jacket : PVC (Polyvinyl Chloride)
Temperature range ：
-15ºC to +90ºC
Advantages of flexible cable
RV-K cable boasts excellent overall electrical and mechanical properties. Utilizing Class 5 multi-strand soft copper conductors, it offers high flexibility, facilitating bending and laying, making it particularly suitable for complex wiring environments.
| No. Of Cores | Nominal Cross Sectional Area | Number Wires In Conductor mm2 |
Nominal Thickness Of Insulation mm |
Nominal Overall Diameter mm |
Nominal Weight Kg/Km |
| 1 | 1.5 | 24 | 0.7 | 5.7 | 45 |
| 1 | 2.5 | 40 | 0.7 | 6.2 | 57 |
| 1 | 4 | 48 | 0.7 | 6.7 | 74 |
| 1 | 6 | 72 | 0.7 | 7.3 | 95 |
| 1 | 10 | 68 | 0.7 | 8.3 | 141 |
| 1 | 16 | 116 | 0.7 | 9.2 | 197 |
| 1 | 25 | 182 | 0.9 | 11 | 293 |
| 1 | 35 | 224 | 0.9 | 12 | 386 |
| 1 | 50 | 324 | 1 | 13.6 | 535 |
| 1 | 70 | 304 | 1.1 | 15.3 | 703 |
| 1 | 95 | 416 | 1.1 | 17 | 925 |
| 1 | 120 | 544 | 1.2 | 19.2 | 1138 |
| 1 | 150 | 640 | 1.4 | 21 | 1428 |
| 1 | 185 | 800 | 1.6 | 22.9 | 1742 |
| 1 | 240 | 1088 | 1.7 | 25.9 | 2266 |
| 1 | 300 | 1344 | 1.8 | 28.8 | 2833 |
| 1 | 400 | 1760 | 2 | 34.4 | 3620 |
| 1 | 500 | 2376 | 2.2 | 37.4 | 4864 |
| 2 | 1.5 | 24 | 0.7 | 8.7 | 103 |
| 2 | 2.5 | 40 | 0.7 | 9.5 | 132 |
| 2 | 4 | 48 | 0.7 | 10.6 | 176 |
| 2 | 6 | 72 | 0.7 | 11.7 | 227 |
| 2 | 10 | 68 | 0.7 | 13.6 | 334 |
| 2 | 16 | 116 | 0.7 | 15.7 | 472 |
| 2 | 25 | 182 | 0.9 | 18.9 | 709 |
| 2 | 35 | 224 | 0.9 | 21.4 | 955 |
| 2 | 50 | 324 | 1 | 23 | 1162 |
| 2 | 70 | 304 | 1.1 | 24.9 | 1604 |
| 2 | 95 | 416 | 1.1 | 27.9 | 2085 |
| 2 | 120 | 544 | 1.2 | 31.5 | 2649 |
| 2 | 150 | 640 | 1.4 | 34.7 | 3269 |
| 2 | 185 | 800 | 1.6 | 43.6 | 3962 |
| 2 | 240 | 1088 | 1.7 | 16.3 | 5231 |
| 3 | 1.5 | 24 | 0.7 | 9.9 | 134 |
| 3 | 2.5 | 40 | 0.7 | 11 | 177 |
| 3 | 4 | 48 | 0.7 | 12.1 | 238 |
| 3 | 6 | 72 | 0.7 | 13.4 | 311 |
| 3 | 10 | 68 | 0.7 | 15.5 | 474 |
| 3 | 16 | 116 | 0.7 | 17.5 | 671 |
| 3 | 25 | 182 | 0.9 | 21.3 | 1017 |
| 3 | 35 | 224 | 0.9 | 23.5 | 1340 |
| 3 | 50 | 324 | 1 | 27 | 1867 |
| 3 | 70 | 304 | 1.1 | 30.8 | 2484 |
| 3 | 95 | 416 | 1.1 | 34.3 | 3246 |
| 3 | 120 | 544 | 1.2 | 39.2 | 4064 |
| 3 | 150 | 640 | 1.4 | 43.1 | 5092 |
| 3 | 185 | 800 | 1.6 | 47.3 | 6233 |
| 3 | 240 | 1088 | 1.7 | 53.8 | 8133 |
| 4 | 1.5 | 24 | 0.7 | 10.7 | 157 |
| 4 | 2.5 | 40 | 0.7 | 11.9 | 210 |
| 4 | 4 | 48 | 0.7 | 13.1 | 287 |
| 4 | 6 | 72 | 0.7 | 14.5 | 377 |
| 4 | 10 | 68 | 0.7 | 17 | 584 |
| 4 | 16 | 116 | 0.7 | 19.1 | 834 |
| 4 | 25 | 182 | 0.9 | 23.4 | 1269 |
| 4 | 35 | 224 | 0.9 | 25.9 | 1683 |
| 4 | 50 | 324 | 1 | 30 | 2372 |
| 4 | 70 | 304 | 1.1 | 34.3 | 3157 |
| 4 | 95 | 416 | 1.1 | 38.1 | 4134 |
| 4 | 120 | 544 | 1.2 | 43.9 | 5188 |
| 4 | 150 | 640 | 1.4 | 47.9 | 6479 |
| 4 | 185 | 800 | 1.6 | 52.8 | 7964 |
| 4 | 240 | 1088 | 1.7 | 60.1 | 10388 |
| 5 | 1.5 | 24 | 0.7 | 11.5 | 183 |
| 5 | 2.5 | 40 | 0.7 | 12.8 | 247 |
| 5 | 4 | 48 | 0.7 | 14.2 | 338 |
| 5 | 6 | 72 | 0.7 | 15.8 | 448 |
| 5 | 10 | 68 | 0.7 | 18.5 | 697 |
| 5 | 16 | 116 | 0.7 | 20.9 | 1003 |
| 5 | 25 | 182 | 0.9 | 25.7 | 1531 |
| 5 | 35 | 224 | 0.9 | 28.5 | 2037 |
| 5 | 50 | 324 | 1 | 33.2 | 2893 |
| 5 | 70 | 304 | 1.1 | 38 | 3851 |
| 5 | 95 | 416 | 1.1 | 42.5 | 5071 |
| 5 | 120 | 544 | 1.2 | 48.6 | 6325 |
| 5 | 150 | 640 | 1.4 | 53.3 | 7936 |
Certification
RV-K cable has passed multiple international certifications. Certified cables, having passed relevant certifications such as flame retardancy, can effectively reduce smoke and toxic gas release in emergency situations such as fires.
Highly Flexible
Flame Retardant
Mechanical Durability
Multiple Certificated
APPLICATIONS
RV-K cable demonstrates reliable resistance to abrasion, impact, moisture, and chemical corrosion, and has passed flame retardant testing (IEC/EN 60332-1-2). With AD8 waterproof rating, RV-K cable can operate safely in humid environments and even under short-term or long-term immersion conditions. It is suitable for various installation methods, including indoor, outdoor, conduit, and underground installations, offering stable overall performance and a long service life.
Industrial Plants
RV-K cable is used for main power lines and equipment power supply circuits within factories. Its highly flexible structure facilitates installation in cable trays and complex wiring paths, ensuring stable equipment operation.
Commercial Buildings
In office buildings, shopping malls, and other buildings, RV-K cable is suitable as a fixed power supply line, meeting the dual requirements of safety and flexibility for indoor and outdoor power distribution.
Cable Trays
RV-K cable is commonly laid in cable trays and cable reels for centralized power supply of large facilities. The PVC sheath provides good mechanical protection and flame retardant properties.
Water Treatment Plants
In high-humidity or even water-prone environments, RV-K cable, with its AD8 waterproof rating, can be safely used to power pumps and auxiliary equipment.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. Our factory is equipped with multiple modern wire and cable production lines, including high-speed wire drawing machines, annealing equipment, precision extruders, and automatic cable assembly equipment.
Packaging Information
RV-K cables are typically offered in three packaging options: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
