NYY-J PVC Powr Cable
Conductor：
Class 1 Solid or Class 2 Stranded Copper
Insulation：
PVC (Polyvinyl Chloride)
Filler：
PVC (Polyvinyl Chloride)
Jacket：
PVC (Polyvinyl Chloride)
Rated Voltage：
0.6/1kV
Temperature range：
Fixed: -15℃to +70℃; Flexed: -5℃ to +50℃
Standard：
IEC 60502-1, VDE 0276-603, HD 603, IEC 60228
Description
Download
Conductor
Class 1 solid copper conductor / Class 2 stranded copper conductor
Insulation and Sheath
PVC Insulation & PVC Sheath
No. of Conductor
2 core / 3 core / 4 core / 5 core / 7 core and above
Temperature Rating
Fixed: -15℃to +70℃
Flexed: -5℃ to +50℃
NYY-J Cable
NYY-J is a 0.6/1 kV rated copper conductor PVC insulated and PVC sheathed power cable with an internal yellow-green grounding core. It is robust, flame-retardant, reliable, and suitable for indoor, outdoor, and underground fixed installation.
NYY-J
NYY-J cable is widely used in low-voltage fixed power system cabling, suitable for indoor, outdoor, underground conduit, or concrete installation.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 0.6/1kV
Insulated : PVC (Polyvinyl Chloride)
Standards : IEC 60502-1, VDE 0276-603, HD 603, IEC 60228
Outer Jacket : PVC (Polyvinyl Chloride)
Temperature range ：Fixed: -15ºC to +70ºC Flexed: -5ºC to +50ºC
Advantages of flexible cable

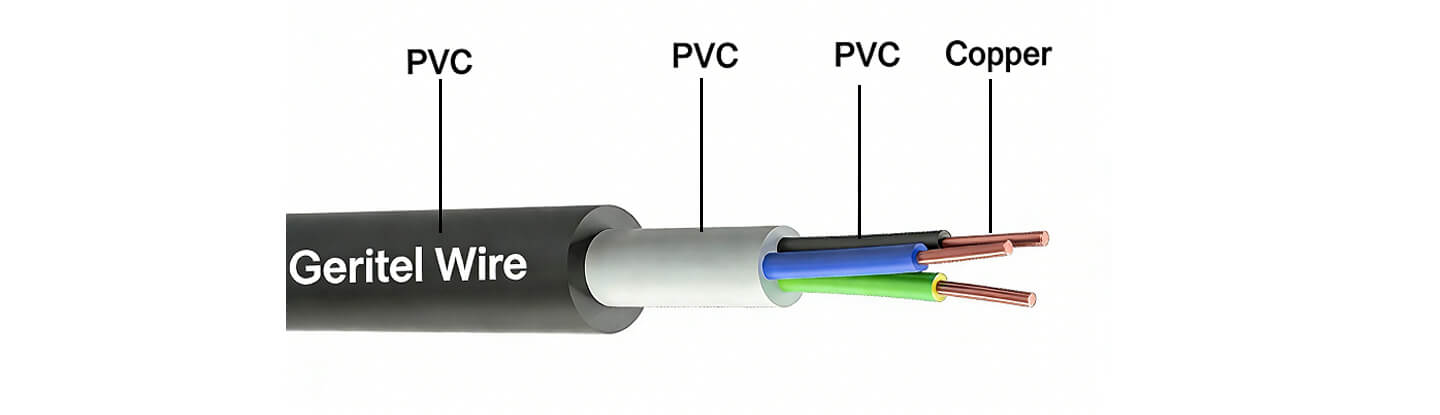

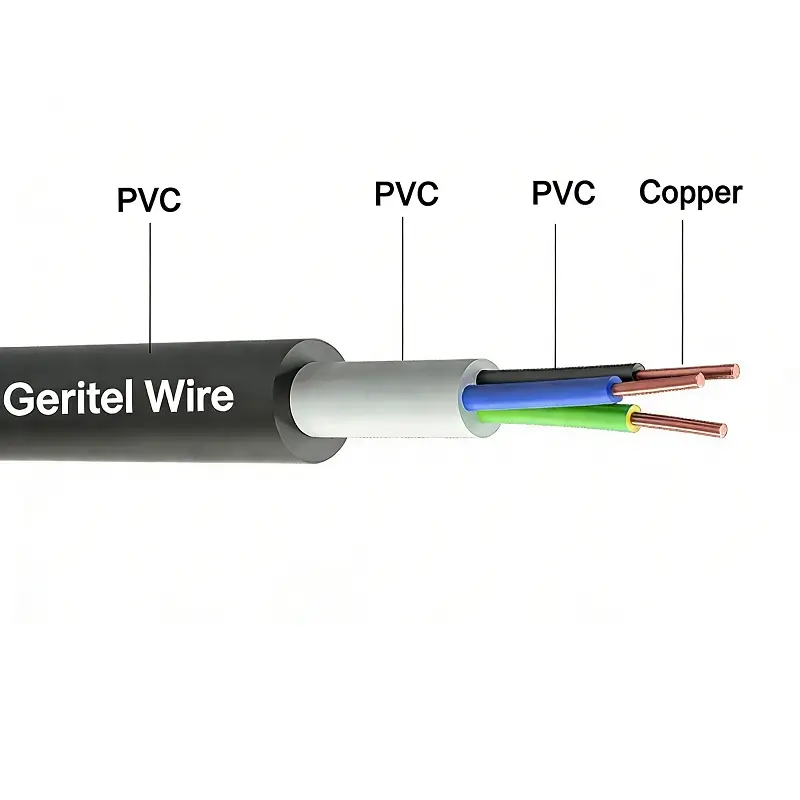

NYY-J cable uses round copper conductors (solid or stranded), with PVC insulation. The multi-core cable has PVC filler inside, covered with a black PVC sheath, and equipped with a yellow-green grounding cable.
2 core: Blue, Brown
3 core: Green/Yellow , Blue , Brown
4 core: Green/Yellow , Brown , Black , Grey
5 core: Green/Yellow , Brown , Black , Grey , Blue
| No.Of Cores | Nominal Cross Sectional Area | Nominal Thickness Of Insulation | Nominal Thickness Of Sheath | Nominal Overall Diameter | Nominal Weight |
| mm2 | mm | mm | mm | kg/km | |
| 1 | 2.5 | 0.8 | 1.4 | 6.15 | 62 |
| 1 | 4 | 1 | 1.4 | 7.5 | 85 |
| 1 | 6 | 1 | 1.4 | 7.5 | 108 |
| 1 | 10 | 1 | 1.4 | 8.6 | 155 |
| 1 | 16 | 1 | 1.4 | 9.6 | 218 |
| 1 | 25 | 1.2 | 1.4 | 11.1 | 318 |
| 1 | 35 | 1.2 | 1.4 | 12.1 | 414 |
| 1 | 50 | 1.4 | 1.4 | 13.7 | 552 |
| 1 | 70 | 1.4 | 1.4 | 15.5 | 750 |
| 1 | 95 | 1.6 | 1.5 | 17.6 | 1020 |
| 1 | 120 | 1.6 | 1.6 | 19.3 | 1259 |
| 1 | 150 | 1.8 | 1.6 | 21 | 1546 |
| 1 | 185 | 2 | 1.7 | 23.2 | 1913 |
| 1 | 240 | 2.2 | 1.8 | 26.2 | 2471 |
| 1 | 300 | 2.4 | 2 | 29.2 | 3097 |
| 2 | 1.5 | 0.8 | 1.8 | 10 | 147 |
| 2 | 2.5 | 0.8 | 1.8 | 10.7 | 179 |
| 2 | 4 | 1 | 1.8 | 13 | 268 |
| 2 | 6 | 1 | 1.8 | 14.2 | 337 |
| 2 | 10 | 1 | 1.8 | 16.2 | 472 |
| 2 | 16 | 1 | 1.8 | 18.2 | 644 |
| 3 | 1.5 | 0.8 | 1.8 | 10.4 | 166 |
| 3 | 2.5 | 0.8 | 1.8 | 11.3 | 212 |
| 3 | 4 | 1 | 1.8 | 13.1 | 299 |
| 3 | 6 | 1 | 1.8 | 15 | 402 |
| 3 | 10 | 1 | 1.8 | 17.1 | 570 |
| 3 | 16 | 1 | 1.8 | 19.2 | 789 |
| 3 | 25 | 1.2 | 1.8 | 22.1 | 1141 |
| 3 | 35 | 1.2 | 1.8 | 24.1 | 1462 |
| 3 | 50 | 1.4 | 1.8 | 27.6 | 1964 |
| 3 | 70 | 1.6 | 2.1 | 36.3 | 3635 |
| 3 | 95 | 1.6 | 2.2 | 40 | 4488 |
| 4 | 1.5 | 0.8 | 1.8 | 11.6 | 198 |
| 4 | 2.5 | 0.8 | 1.8 | 12.1 | 252 |
| 4 | 4 | 1 | 1.8 | 15.1 | 391 |
| 4 | 6 | 1 | 1.8 | 16.5 | 465 |
| 4 | 10 | 1 | 1.8 | 18.6 | 702 |
| 4 | 16 | 1 | 1.8 | 21.1 | 992 |
| 4 | 25 | 1.2 | 1.8 | 24.2 | 1431 |
| 4 | 35 | 1.2 | 1.8 | 26.6 | 1861 |
| 4 | 50 | 1.4 | 1.9 | 30.9 | 2535 |
| 4 | 70 | 1.4 | 2.1 | 35.1 | 3441 |
| 4 | 95 | 1.6 | 2.2 | 40.4 | 4691 |
| 4 | 120 | 1.6 | 2.4 | 44.2 | 5757 |
| 4 | 150 | 1.8 | 2.5 | 48.5 | 7095 |
| 4 | 185 | 2 | 2.7 | 53.9 | 8810 |
| 4 | 240 | 2.2 | 2.9 | 61.1 | 11400 |
| 5 | 1.5 | 10.8 | 1.8 | 12 | 232 |
| 5 | 2.5 | 10.8 | 1.8 | 13.1 | 302 |
| 5 | 4 | 1 | 1.8 | 16.6 | 477 |
| 5 | 6 | 1 | 1.8 | 18.2 | 618 |
| 5 | 10 | 1 | 1.8 | 20.3 | 853 |
| 5 | 16 | 1 | 1.8 | 23.1 | 1212 |
| 5 | 25 | 0.8 | 1.8 | 26.6 | 280 |
| 7 | 1.5 | 1 | 1.8 | 16.6 | 477 |
| 7 | 2.5 | 0.8 | 1.8 | 14.1 | 368 |
| 12 | 1.5 | 0.8 | 1.8 | 16.6 | 475 |
| 12 | 2.5 | 0.8 | 1.8 | 18.2 | 628 |
| 14 | 1.5 | 0.8 | 1.8 | 17.1 | 515 |
| 19 | 1.5 | 0.8 | 1.8 | 18.9 | 648 |
| 19 | 2.5 | 0.8 | 1.8 | 20.3 | 843 |
| 27 | 1.5 | 0.8 | 1.8 | 22.6 | 895 |
Certification
NYY-J cable has passed multiple international certifications. Electrical wires and cables meet international or regional standards in terms of safety, electrical performance, and material stability. This reduces safety risks during use and minimizes potential maintenance issues and accidents.
Highly Flexible
Flame Retardant
Mechanical Durability
Multiple Certificated
APPLICATIONS
NYY-J cable features a robust PVC sheath and a yellow-green grounding core. The cable exhibits excellent mechanical strength and safe grounding protection during long-term operation, while also possessing flame-retardant and fire-resistant properties, making it ideal for environments requiring safe and reliable fixed installation.
Building Construction
Used for main power distribution and branch lines in residential and commercial buildings, ensuring stable power supply and providing reliable grounding protection.
Industrial
Suitable for fixed installation in factory workshops, providing safe and continuous power transmission to production equipment and control systems.
Underground Power Supply
Can be directly buried underground or laid in conduits in underground cable channels, meeting the long-term operation requirements of low-voltage power.
Distribution Cabinets
Used for fixed connections between distribution cabinets, switch cabinets, and electrical equipment; structurally stable and easy to install.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. We are a wire and cable manufacturing factory with over 30 years of manufacturing experience, focusing on the research, development, production, and optimization of wires and cables.
Packaging Information
NYY-J cables are typically offered in three packaging options: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
Global Certification
