N2XH XLPE Cable
Conductor：
Class 1 Solid or Class 2 Stranded Copper
Insulation：
XLPE (Cross-Linked Polyethylene)
Jacket：
LSZH (Low Smoke Zero Halogen) Sheath
Rated Voltage：
0.6/1kV
Temperature range：
-30°C to +90°C
Standard：
VDE 0274 Part 604, VDE0276 Part 604, HD 604 S1, IEC 60364, EN 60228, EN 62230
Description
Download
Conductor
Class 1 solid copper conductor / Class 2 stranded copper conductor
Insulation and Sheath
XLPE (Cross-Linked Polyethylene) Insulation & LSZH (Low Smoke Zero Halogen) Sheath
No. of Conductor
1 core / 2 core / 3 core / 4 core / 5 core
Temperature Rating
-30°C to +90°C

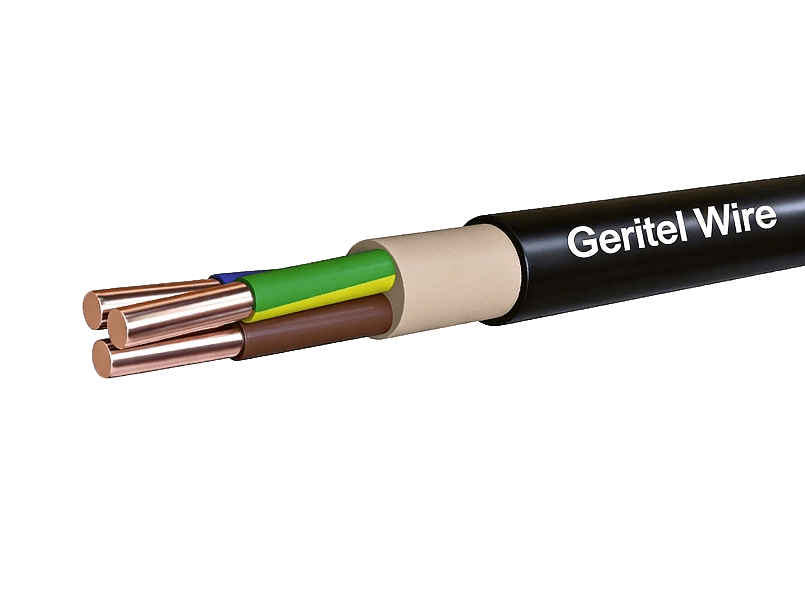

N2XH XLPE Cable
N2XH XLPE 0.6/1kV cable offers excellent electrical and thermal properties, is resistant to high temperatures (up to 90°C for fixed installations), resistant to mechanical stress, flame-retardant, and low-smoke halogen-free.

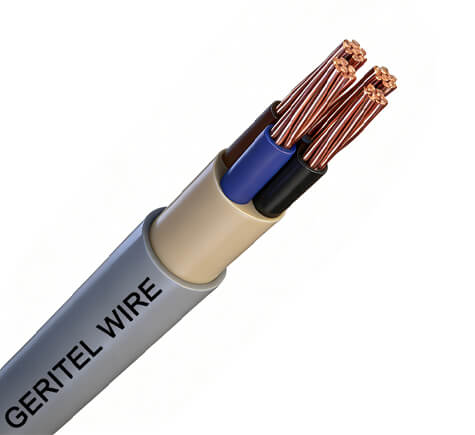

N2XH Cable
N2XH cable reduces smoke and harmful gas emissions in fire or emergency situations while providing long-term reliable power transmission.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 0.6/1kV
Insulated : XLPE (Cross-Linked Polyethylene)
Standards : VDE 0274 Part 604, VDE0276 Part 604, HD 604 S1, IEC 60364, EN 60228, EN 62230
Outer Jacket : LSZH (Low Smoke Zero Halogen)
Temperature range ：
-30°C to +90°C
Advantages of flexible cable

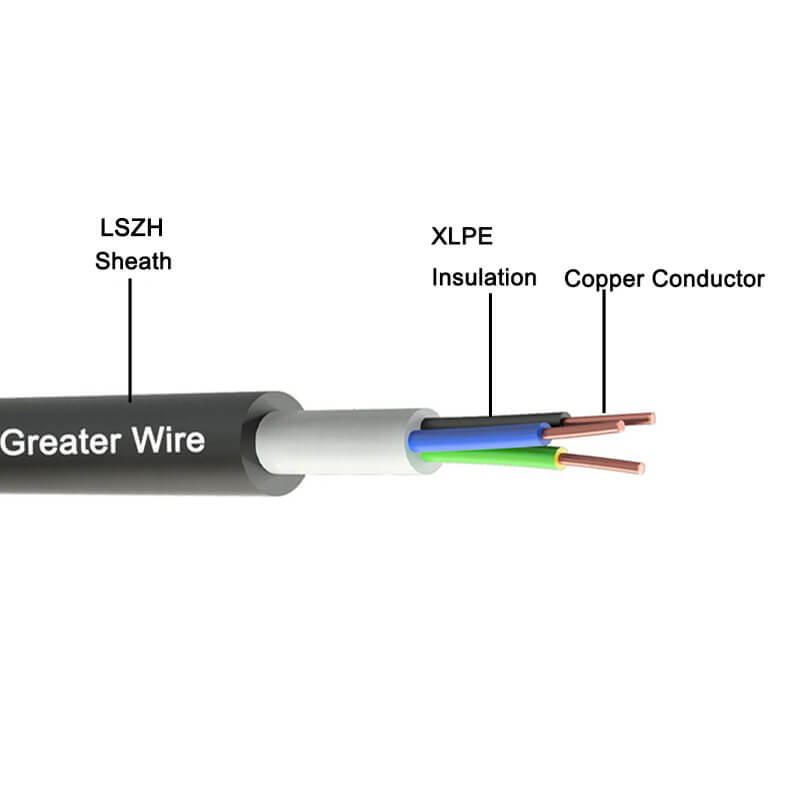

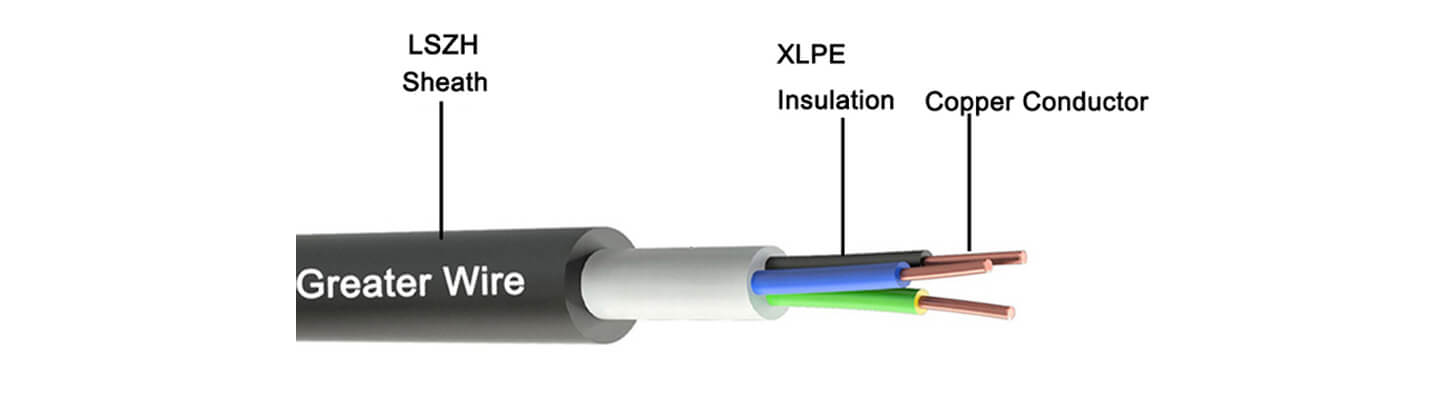

N2XH XLPE 0.6/1kV cable consists of a copper conductor, an XLPE insulation layer, and a low-smoke halogen-free flame-retardant (FRNC/LSZH) sheath. The multi-core cable uses clear color markings for identification and is suitable for fixed installations and locations with high safety requirements.
| No. Of Cores |
Nominal Cross Sectional Area mm2 |
Nominal Thickness Of Insulation mm |
Nominal Thickness Of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 1 | 16 | 0.7 | 1.8 | 9.8 | 216 |
| 1 | 25 | 0.9 | 1.8 | 11.5 | 318 |
| 1 | 35 | 0.9 | 1.8 | 12.6 | 415 |
| 1 | 50 | 1 | 1.8 | 14.1 | 543 |
| 2 | 1.5 | 0.7 | 1.8 | 10.1 | 145 |
| 2 | 2.5 | 0.7 | 1.8 | 10.9 | 179 |
| 2 | 4 | 0.7 | 1.8 | 11.8 | 226 |
| 2 | 6 | 0.7 | 1.8 | 12.8 | 284 |
| 2 | 6 | 0.7 | 1.8 | 13.1 | 295 |
| 3 | 1.5 | 0.7 | 1.8 | 10.5 | 162 |
| 3 | 2.5 | 0.7 | 1.8 | 11.4 | 205 |
| 3 | 4 | 0.7 | 1.8 | 12.4 | 265 |
| 3 | 6 | 0.7 | 1.8 | 13.4 | 338 |
| 4 | 1.5 | 0.7 | 1.8 | 11.3 | 188 |
| 4 | 2.5 | 0.7 | 1.8 | 12.2 | 240 |
| 4 | 4 | 0.7 | 1.8 | 13.3 | 314 |
| 4 | 6 | 0.7 | 1.8 | 14.5 | 408 |
| 5 | 1.5 | 0.7 | 1.8 | 12.1 | 218 |
| 5 | 2.5 | 0.7 | 1.8 | 13.1 | 281 |
| 5 | 4 | 0.7 | 1.8 | 14.3 | 372 |
| 5 | 6 | 0.7 | 1.8 | 15.6 | 486 |
| 7 | 1.5 | 0.7 | 1.8 | 12.9 | 260 |
| 7 | 2.5 | 0.7 | 1.8 | 14 | 342 |
| 7 | 4 | 0.7 | 1.8 | 15.4 | 461 |
| 10 | 1.5 | 0.7 | 1.8 | 15.6 | 357 |
| 10 | 2.5 | 0.7 | 1.8 | 17.2 | 475 |
| 10 | 4 | 0.7 | 1.8 | 19 | 646 |
| 12 | 1.5 | 0.7 | 1.8 | 16.1 | 394 |
| 12 | 2.5 | 0.7 | 1.8 | 17.6 | 528 |
| 14 | 1.5 | 0.7 | 1.8 | 16.8 | 436 |
| 14 | 2.5 | 0.7 | 1.8 | 18.5 | 592 |
| 16 | 4 | 0.7 | 1.8 | 23 | 971 |
| 19 | 1.5 | 0.7 | 1.8 | 18.4 | 543 |
| 19 | 2.5 | 0.7 | 1.8 | 20.3 | 746 |
| 24 | 1.5 | 0.7 | 1.8 | 21.2 | 675 |
| 24 | 2.5 | 0.7 | 1.8 | 23.4 | 931 |
| 30 | 1.5 | 0.7 | 1.8 | 22.3 | 788 |
| 30 | 2.5 | 0.7 | 1.8 | 26.3 | 1164 |
| 40 | 1.5 | 0.7 | 1.8 | 24.6 | 995 |
| 40 | 2.5 | 0.7 | 1.9 | 27.5 | 1416 |
Certification
N2XH cable has passed multiple international certifications. Certified cables have stricter material selection criteria; from conductor purity to insulation and sheath formulations, all must meet standard requirements, ensuring the cable's conductivity, mechanical strength, and long-term operation from the source.
Highly Flexible
Flame Retardant
Mechanical Durability
Multiple Certificated
APPLICATIONS
N2XH XLPE 0.6/1kV cable is suitable for fixed wiring, power distribution systems, cable trays, and conduit installations in buildings, industrial facilities, and public places.
Commercial Buildings
N2XH cables are widely used in low-voltage power distribution systems in office buildings and shopping malls. Their low-smoke, halogen-free characteristics enhance the safety of personnel evacuation during fires.
Hospitals
Used in hospital power distribution systems, they reduce the release of toxic gases during fires, meeting stringent requirements for safety and reliability.
Subways
Commonly used for fixed installations in station halls and equipment areas, the low-smoke, halogen-free sheath helps reduce the risk of smoke in enclosed spaces.
Airport Terminals
Suitable for low-voltage power distribution in densely populated areas, meeting the requirements for low-smoke, halogen-free cables in public infrastructure.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. Our wires and cables also cover building wiring, industrial control cables, flexible cables, rubber cables, silicone cables, solar cables, and other types of cables, widely used in various application scenarios such as residential, commercial, industrial, and new energy.
Packaging Information
N2XH cables are typically offered in three packaging options: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
