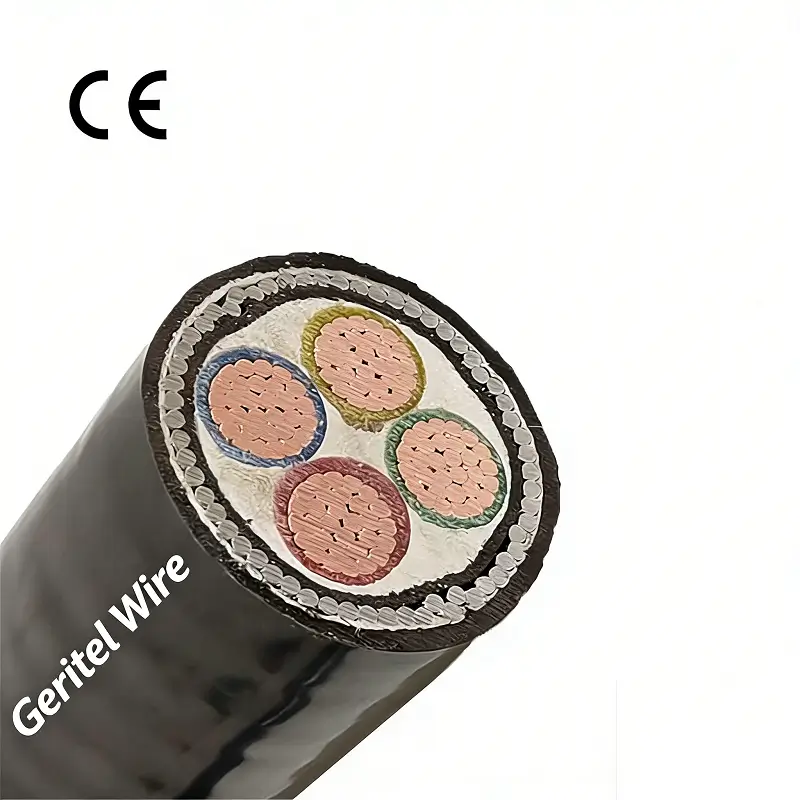

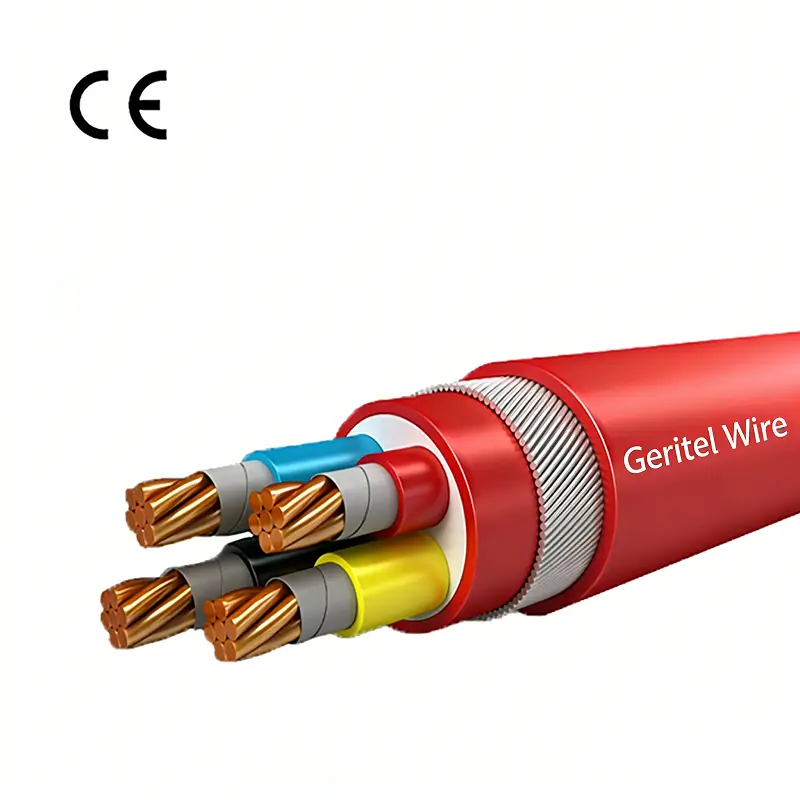

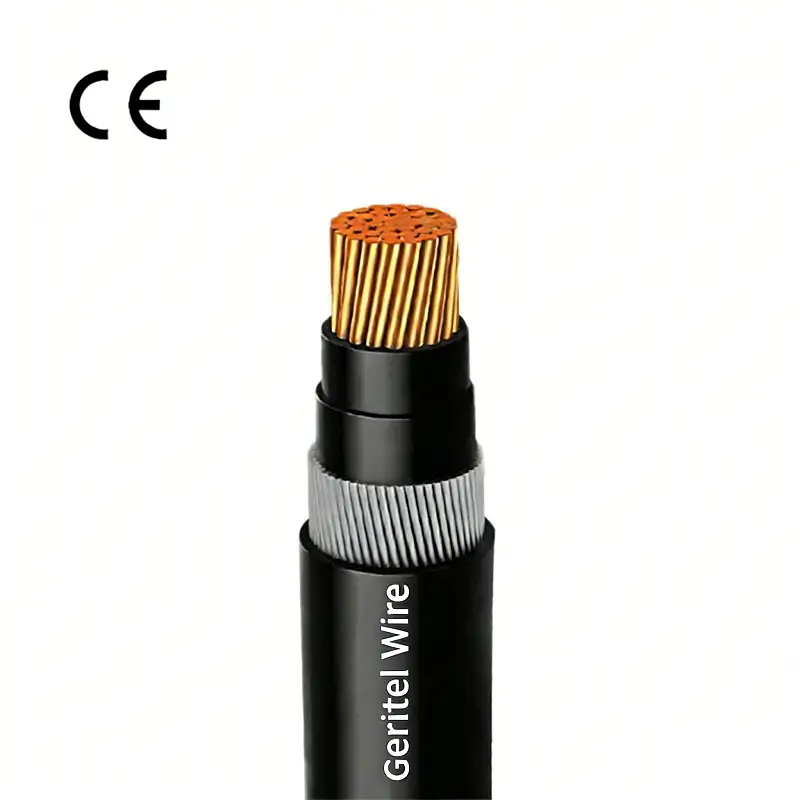

SWA Armored Cable

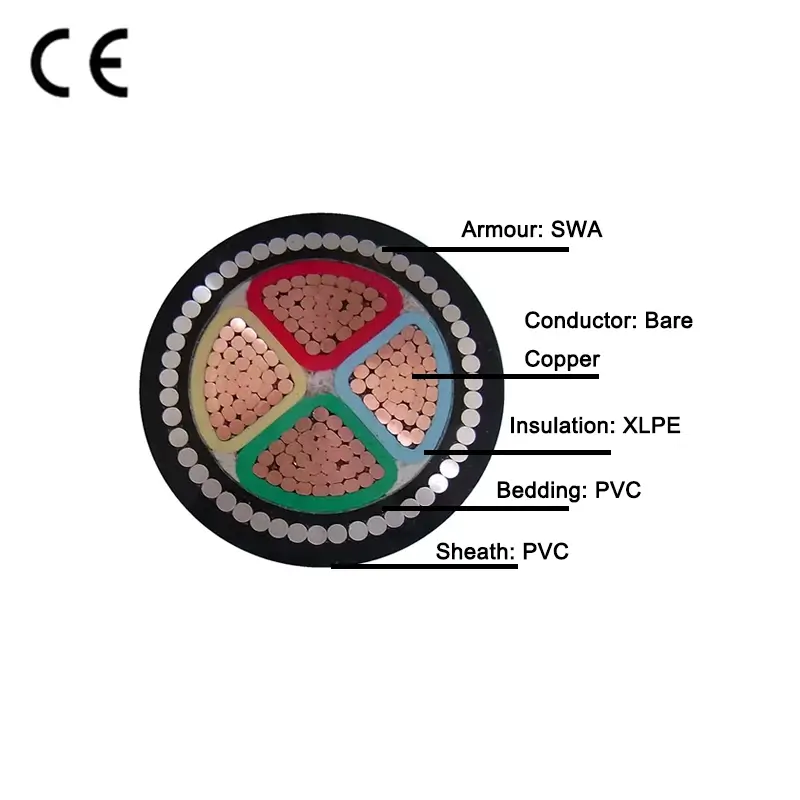

Conductor：
Class 2 Stranded Copper Conductor
Insulation：
XLPE (Cross-Linked Polyethylene)
Bedding：
PVC (Polyvinyl Chloride)
Armour：
SWA (Steel Wire Armour)
Jacket：
PVC (Polyvinyl Chloride)
Rated Voltage：
0.6/1kV
Temperature range：
Fixed: -25°C to +90°C
Standard：
BS 5467, IEC/EN 60502-1, IEC/EN 60228
Description
Download
Conductor
Class 2 Stranded Copper Conductor
Insulation and Sheath
XLPE (Cross-Linked Polyethylene) Insulation & PVC (Polyvinyl Chloride) Sheath
No. of Conductor
2 Core/3 Core/4 Core/5 Core/3+1 Cores/3+2 Cores/4+1 Cores
Temperature Rating
-25°C to +90°C
SWA Armored Cable
SWA (Steel Wire Armored) cable is a widely used steel wire armored power cable in low- and medium-voltage power distribution systems, offering excellent mechanical protection.

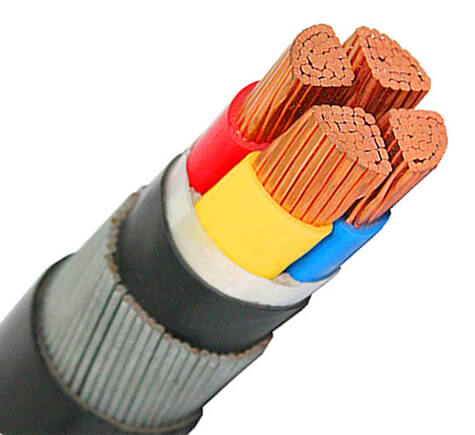

SWA Cable
SWA cable is suitable for fixed installations, especially for direct underground burial, outdoor installations, and industrial environments.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 0.6/1kV
Insulated : XLPE (Cross-Linked Polyethylene)
Standards : BS 5467, IEC/EN 60502-1, IEC/EN 60228
Outer Jacket : PVC (Polyvinyl Chloride)
Temperature range ：-25°C to +90°C
Advantages of flexible cable

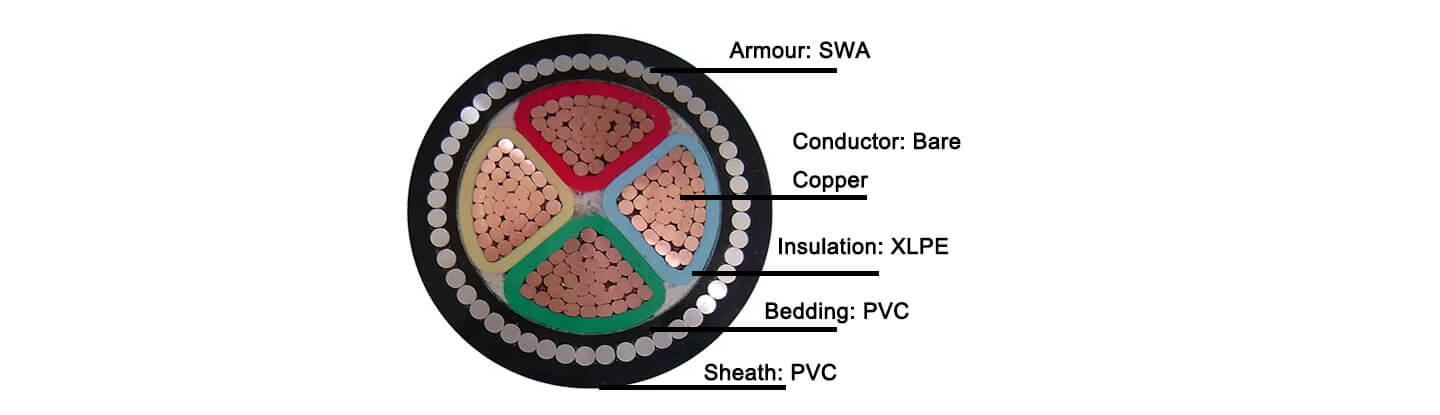

SWA cables typically use copper or aluminum conductors, combined with PVC or XLPE insulation, and a stranded steel wire armor layer outside the insulation layer, effectively resisting external impact, compression, and tensile stress.
| No. Of Cores | Nominal Cross Sectional Area mm2 |
Nominal Thickness Of Insulation mm |
Nominal Diameter mm |
Nominal Weight Kg/Km |
|
| Under Armour | Overall | ||||
| 2 | 1.5 | 0.6 | 7.3 | 12.1 | 302 |
| 2 | 2.5 | 0.7 | 8.5 | 13.6 | 346 |
| 2 | 4 | 0.7 | 9.4 | 14.7 | 410 |
| 2 | 6 | 0.7 | 10.5 | 15.9 | 499 |
| 2 | 10 | 0.7 | 12.3 | 18 | 648 |
| 2 | 16 | 0.7 | 14.3 | 20.4 | 978 |
| 2 | 25 | 0.9 | 14.7 | 20.4 | 1290 |
| 2 | 35 | 0.9 | 16.8 | 23.3 | 1500 |
| 2 | 50 | 1 | 19 | 25.8 | 1890 |
| 2 | 70 | 1.1 | 22 | 29 | 2450 |
| 2 | 95 | 1.1 | 25.1 | 33.1 | 3300 |
| 2 | 120 | 1.2 | 27.9 | 36.1 | 4020 |
| 2 | 150 | 1.4 | 30.9 | 39.3 | 4750 |
| 3 | 1.5 | 0.6 | 7.8 | 12.6 | 330 |
| 3 | 2.5 | 0.7 | 9.2 | 14.1 | 390 |
| 3 | 4 | 0.7 | 10 | 15.3 | 464 |
| 3 | 6 | 0.7 | 11.2 | 16.6 | 568 |
| 3 | 10 | 0.7 | 13.1 | 19.5 | 866 |
| 3 | 16 | 0.7 | 15.3 | 21.6 | 1152 |
| 3 | 25 | 0.9 | 18.9 | 23.6 | 1800 |
| 3 | 35 | 0.9 | 21.3 | 25.7 | 2230 |
| 3 | 50 | 1 | 21.7 | 28.5 | 2490 |
| 3 | 70 | 1.1 | 25.2 | 32.2 | 3290 |
| 3 | 95 | 1.1 | 28.8 | 37 | 4440 |
| 3 | 120 | 1.2 | 32 | 40.4 | 5470 |
| 3 | 150 | 1.4 | 35.9 | 45.5 | 6930 |
| 3 | 185 | 1.6 | 40 | 49.8 | 8350 |
| 3 | 240 | 1.7 | 44.9 | 55.1 | 10400 |
| 3 | 300 | 1.8 | 49.8 | 60.2 | 12600 |
| 3 | 400 | 2 | 55.8 | 66.6 | 14600 |
| 4 | 1.5 | 0.6 | 8.5 | 13.3 | 365 |
| 4 | 2.5 | 0.7 | 9.9 | 15 | 438 |
| 4 | 4 | 0.7 | 11 | 16.4 | 532 |
| 4 | 6 | 0.7 | 12.3 | 18.7 | 764 |
| 4 | 10 | 0.7 | 14.5 | 21.1 | 1013 |
| 4 | 16 | 0.7 | 17 | 23.4 | 1360 |
| 4 | 25 | 0.9 | 21 | 26.1 | 2160 |
| 4 | 35 | 0.9 | 23.6 | 28.6 | 2690 |
| 4 | 50 | 1 | 25 | 32 | 3130 |
| 4 | 70 | 1.1 | 29.5 | 37.7 | 4500 |
| 4 | 95 | 1.1 | 33.3 | 41.7 | 5600 |
| 4 | 120 | 1.2 | 37.5 | 47.1 | 7400 |
| 4 | 150 | 1.4 | 41.6 | 51.4 | 8780 |
| 4 | 185 | 1.6 | 46.4 | 56.6 | 10630 |
| 4 | 240 | 1.7 | 52.6 | 63 | 13390 |
| 4 | 300 | 1.8 | 58 | 68.8 | 16290 |
| 4 | 400 | 2 | 65.4 | 78.1 | 19800 |
| 5 | 1.5 | 0.6 | 9.7 | 14.3 | 410 |
| 5 | 2.5 | 0.7 | 11.7 | 16.1 | 470 |
| 5 | 4 | 0.7 | 13 | 17.8 | 710 |
| 5 | 6 | 0.7 | 14.5 | 20 | 876 |
| 5 | 10 | 0.7 | 17.2 | 22.9 | 1165 |
| 5 | 16 | 0.7 | 20 | 26.6 | 1742 |
| 5 | 25 | 0.9 | 24.7 | 31.5 | 2323 |
| 5 | 35 | 0.9 | 27.8 | 34.8 | 2932 |
| 5 | 50 | 1 | 32.4 | 40.4 | 4192 |
| 7 | 1.5 | 0.6 | 10.2 | 15.2 | 470 |
| 7 | 2.5 | 0.7 | 12.3 | 17.1 | 600 |
| 7 | 4 | 0.7 | 13.6 | 19.1 | 881 |
| 12 | 1.5 | 0.6 | 13.7 | 19.4 | 780 |
| 12 | 2.5 | 0.7 | 16.3 | 22.4 | 1000 |
| 19 | 1.5 | 0.6 | 16.2 | 22.2 | 1000 |
| 19 | 2.5 | 0.7 | 19.9 | 26.6 | 1540 |
| 27 | 1.5 | 0.6 | 20 | 26.7 | 1500 |
| 27 | 2.5 | 0.7 | 24 | 30.7 | 1950 |
| 37 | 1.5 | 0.6 | 22.3 | 29 | 1800 |
| 37 | 2.5 | 0.7 | 26.9 | 33.8 | 2350 |
Certification
SWA cable has passed multiple international certifications. Certified wires and cables offer greater transparency in their technical parameters and performance indicators, allowing customers to clearly compare different products and avoid making incorrect choices due to information asymmetry.
Highly Flexible
Flame Retardant
Mechanical Durability
Multiple Certificated
APPLICATIONS
SWA cable provides a degree of grounding protection and complies with multiple international and British standards (such as BS 5467 and IEC 60502), a reliable and durable cable solution in power transmission and distribution, infrastructure, and building construction.
Direct Burial
SWA cables can be directly buried. Their steel wire armor effectively resists soil pressure, rock crushing, and external mechanical damage, ensuring long-term operational reliability.
Sewage Treatment Plants
Suitable for humid and corrosive environments, with appropriate sheath materials, ensuring continuous power supply to pumps and control systems.
Industrial Plants
In factory and heavy industrial environments, SWA cables can withstand mechanical shock and vibration, and are used for main power lines and fixed equipment power supply.
Tunnel Engineering
In road lighting, tunnel power supply, and transportation infrastructure, SWA cables can withstand mechanical damage during construction and operation.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. With a mature production and quality control system, our wires and cables have served over 80 countries and regions, and we are familiar with the product specifications, certifications, and packaging and labeling requirements of different countries.
Packaging Information
SWA cable is available in two packaging options: small wooden reels and large wooden reels.
Small Wooden Reel
Large Wooden Reel
