STA Armored Cable
Conductor：
Class 2 Stranded Copper Conductor
Insulation：
XLPE (Cross-Linked Polyethylene)
Bedding：
PVC (Polyvinyl Chloride)
Armour：
Galvanized Steel Tape)
Jacket：
PVC (Polyvinyl Chloride)
Rated Voltage：
0.6/1kV
Temperature range：
-25°C to +90°C
Standard：
IEC 60502, IEC 60228, IEC 60332
Description
Download
Conductor
Class 2 Stranded Copper Conductor
Insulation and Sheath
XLPE (Cross-Linked Polyethylene) Insulation & PVC (Polyvinyl Chloride) Sheath
No. of Conductor
2 Core/3 Core/4 Core/5 Core/3+1 Cores/3+2 Cores/4+1 Cores
Temperature Rating
-25°C to +90°C

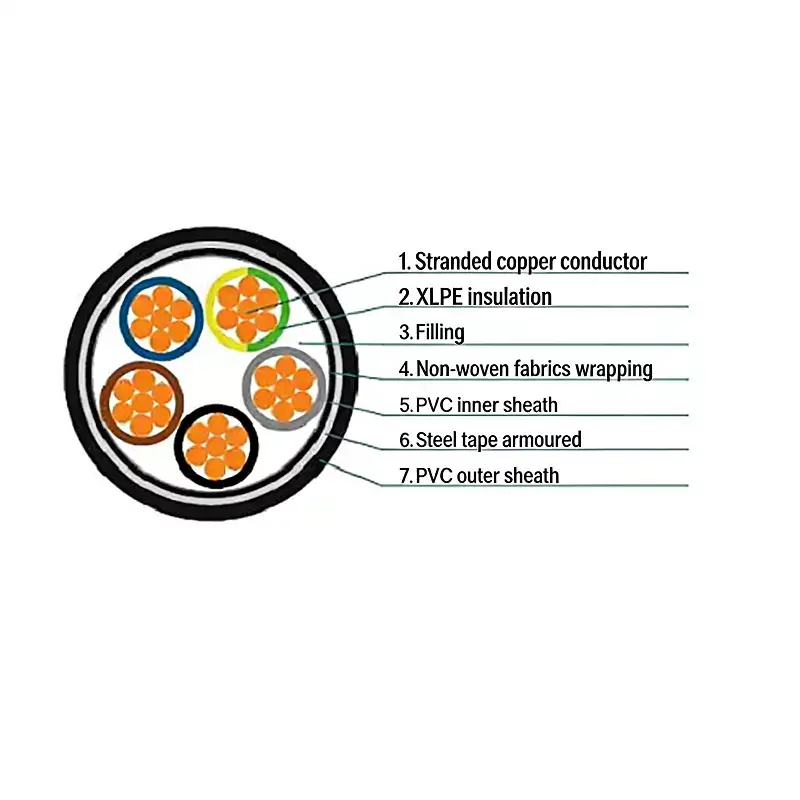

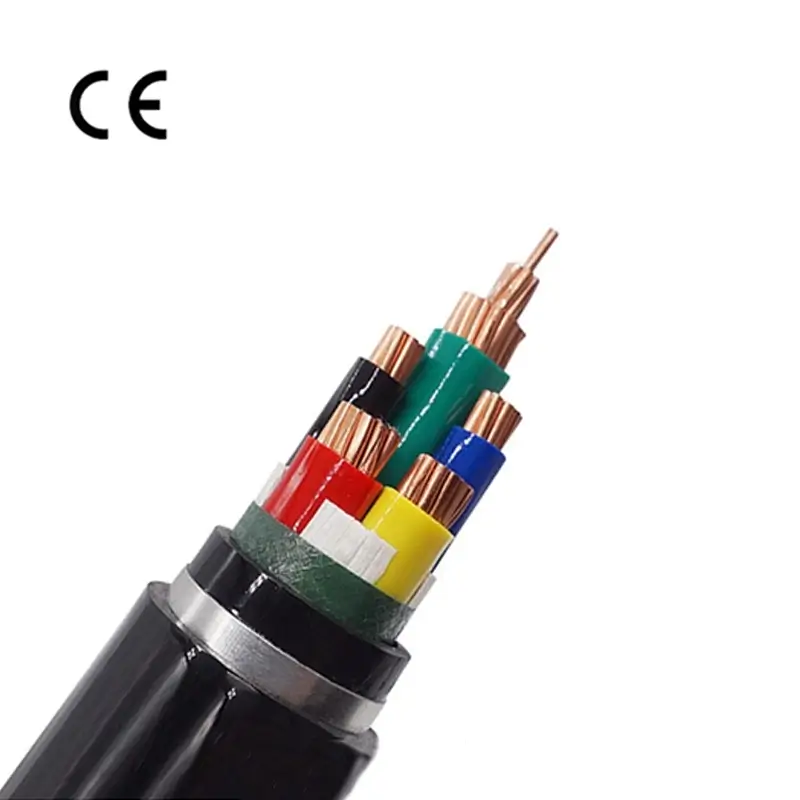

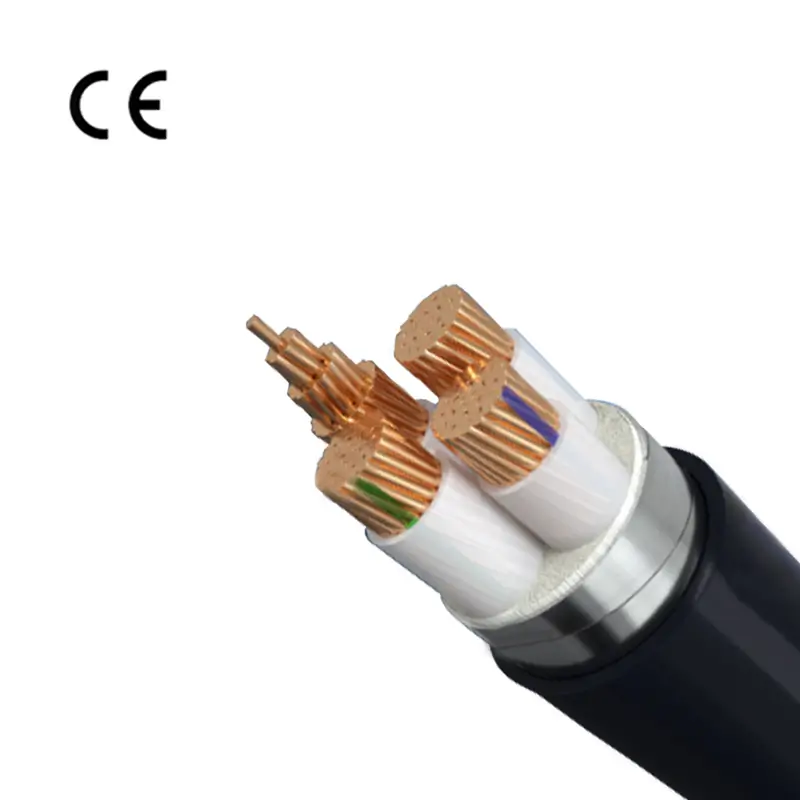

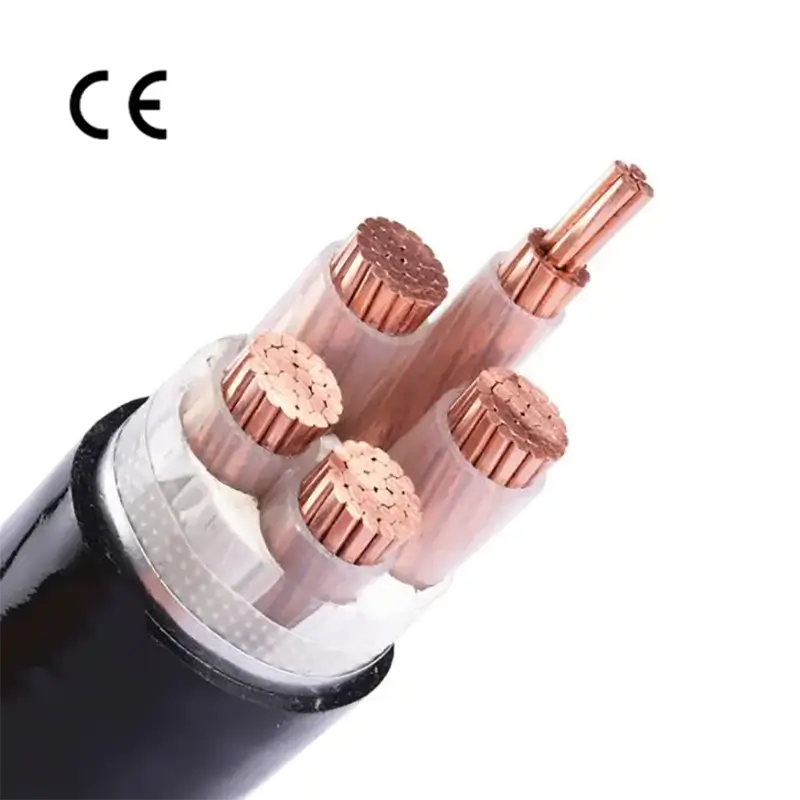

STA Armored Cable
STA cable is a low-voltage power cable with a galvanized steel tape armor structure. It has good mechanical protection performance and is suitable for underground and fixed installation in industrial and power distribution systems.

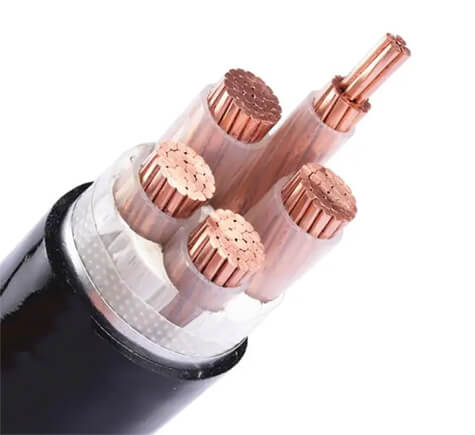

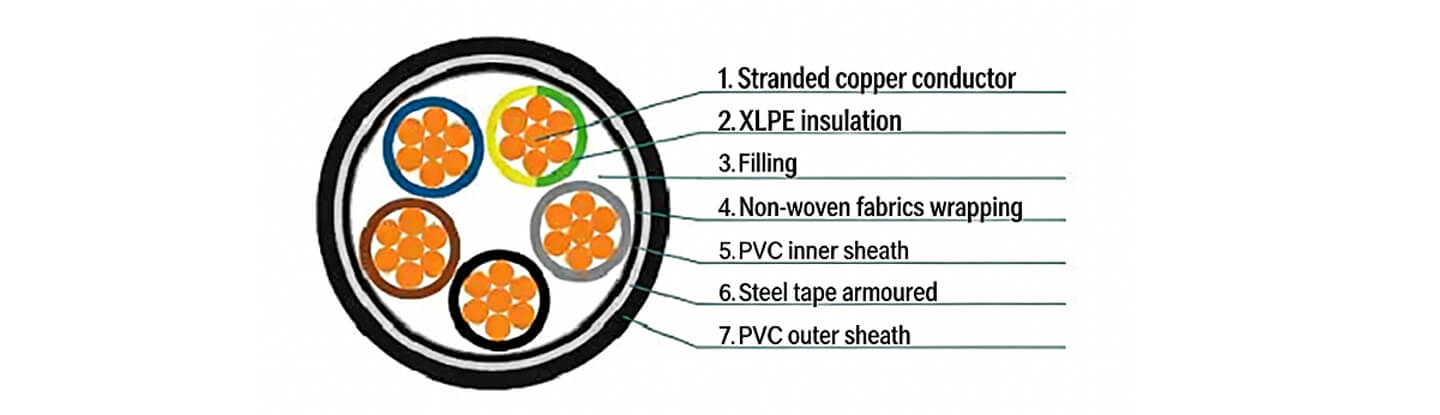

STA cable
STA cable is a low-voltage power cable with a galvanized steel tape armor structure, specifically for fixed installations and applications.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 0.6/1kV
Insulated : XLPE (Cross-Linked Polyethylene)
Standards : IEC 60502, IEC 60228, IEC 60332
Outer Jacket : PVC (Polyvinyl Chloride)
Temperature range ：-25°C to +90°C
Advantages of flexible cable
STA cable typically uses a copper or aluminum conductor as its core, combined with XLPE insulation and PVC inner and outer sheaths, ensuring good electrical performance while providing excellent resistance to pressure and impact.
| Nom. Cross-section of conductor | Insulation Thickness | Inner Covering Thickness | Steel Tape Thickness | Sheath Thickness | Approx. O.D. | Approx Weight | Max. D.C. Resistance of Conductor (20°C) |
| mm2 | mm | mm | mm | mm | mm | kg/km | Ω/km |
| 2x4 | 0.7 | 1.2 | 2x0.2 | 1.8 | 15 | 433 | 4.61 |
| 2×6 | 0.7 | 1.2 | 2x0.2 | 1.8 | 16 | 500 | 3.08 |
| 2×10 | 0.7 | 1.2 | 2x0.2 | 1.8 | 19 | 673 | 1.83 |
| 2×16 | 0.7 | 1.4 | 2x0.2 | 1.8 | 21 | 857 | 1.15 |
| 2×25 | 0.9 | 1.4 | 2x0.2 | 1.8 | 24 | 1173 | 0.727 |
| 2×35 | 0.9 | 1.6 | 2x0.2 | 1.8 | 25 | 1449 | 0.524 |
| 2×50 | 1 | 1.6 | 2x0.2 | 1.8 | 26 | 1877 | 0.387 |
| 2×70 | 1.1 | 1.8 | 2x0.2 | 1.8 | 27 | 2454 | 0.268 |
| 2×95 | 1.1 | 1.8 | 2x0.2 | 1.9 | 30 | 2483 | 0.193 |
| 2×120 | 1.2 | 2 | 2x0.2 | 2 | 33 | 4213 | 0.153 |
| 2×150 | 1.4 | 2 | 2x0.5 | 2.2 | 38 | 5087 | 0.124 |
Certification
STA cable has passed multiple international certifications. Certified electrical wires and cables represent a comprehensive embodiment of safety, quality, compliance, and long-term value, making them a more trustworthy choice for engineering projects and commercial applications.
Highly Flexible
Flame Retardant
Mechanical Durability
Multiple Certificated
APPLICATIONS
The steel tape armor of STA cable makes it particularly suitable for direct underground burial, pipeline installation, and industrial environments, effectively preventing external pressure and construction damage. The rated voltage is generally 0.6/1kV, and it is widely used in industrial plants, power distribution systems, energy facilities, and infrastructure projects.
Industrial Plants
In industrial plants with concentrated heavy equipment and high risk of mechanical impact, STA cable provides stable and safe power transmission.
Cable Tunnels
Steel tape armor effectively prevents cable damage from compression or contact with foreign objects in cable trenches and tunnels.
Substations
STA cable is commonly used for low-voltage power connections within substations or between power distribution equipment.
Building
Suitable for laying under building foundations, basements, or floors, resisting the mechanical stress of concrete structures.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. Our wires and cables are widely used in building wiring, distribution cabinets, internal equipment connections, industrial machinery, photovoltaic systems, infrastructure, and other fields, possessing excellent versatility and adaptability.
Packaging Information
STA cable is available in two packaging options: small wooden reels and large wooden reels.
Small Wooden Reel
Large Wooden Reel
