IMSA Emergency Vehicle Preemption Cable

Geritel Wire is a professional wires and cables manufacturer. We supply wires and cables for projects worldwide, including universities, airports, commercial buildings, hospitals, and more.

Conductor：

Tinned Copper

Insulation：

LDPE

Jacket：

PVC

Rated Voltage：

600V

Temperature Range：

-75°C to +75°C

Standard：

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

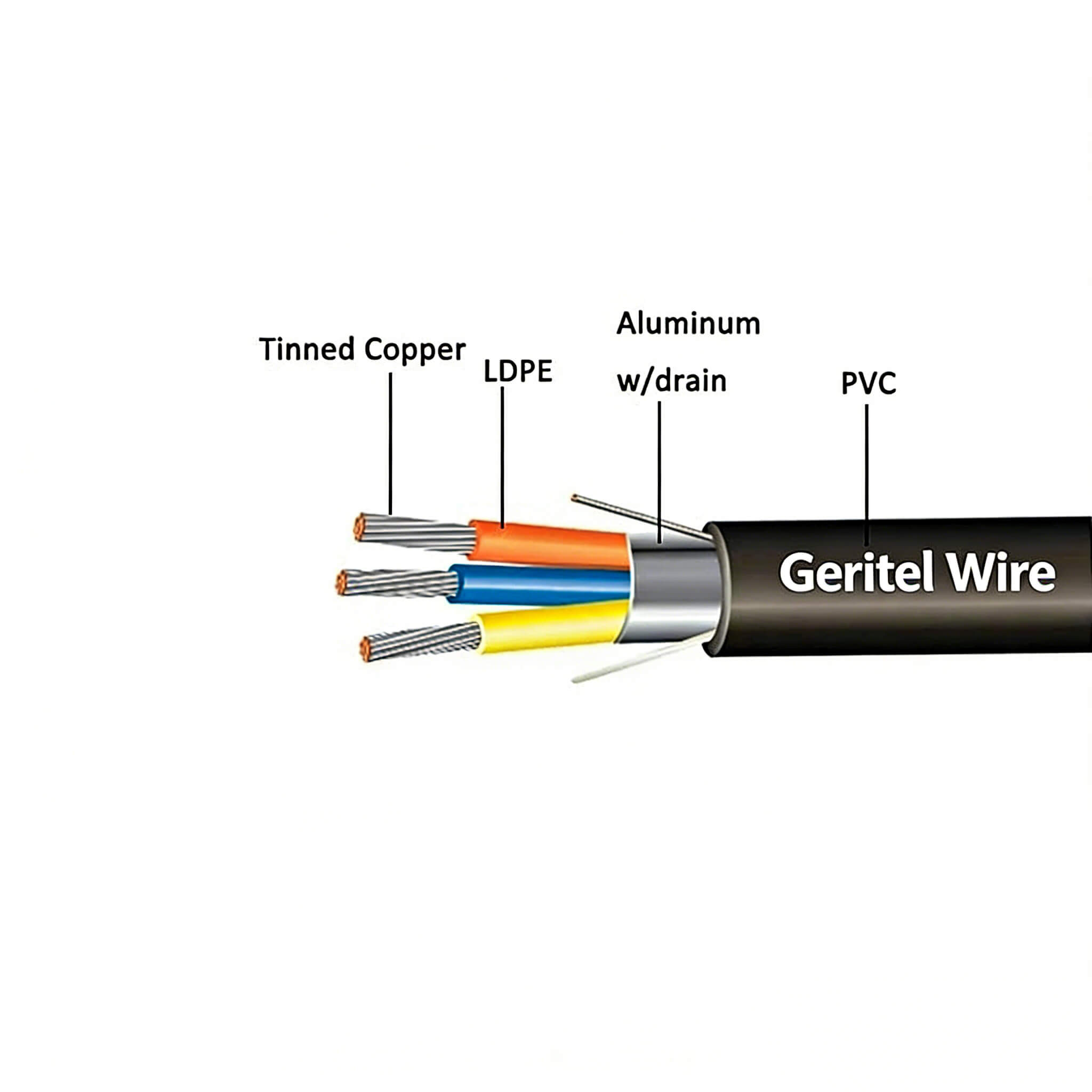

MSA Signal Cable Manufacturer

3 Core Royal Cord

Conductor

Stranded Tinned Copper per ASTM B-8, B-33

3 Core Royal Cord

Insulation and Sheath

LDPE Insulation & PVC Sheath

3 Core Royal Cord

Shield

Aluminum W/Drain

2 Core Royal Cord

Temperature Rating

-75°C to +75°C

Emergency Vehicle Preemption Cable

Emergency vehicle preemption cable reliably transmits vehicle detection or signal priority information to traffic controllers, enabling intelligent switching of traffic lights at intersections. The cable is rated at 600V and has a wide temperature range of -75°C to +75°C, making it suitable for various extreme environments and long-term outdoor installations.

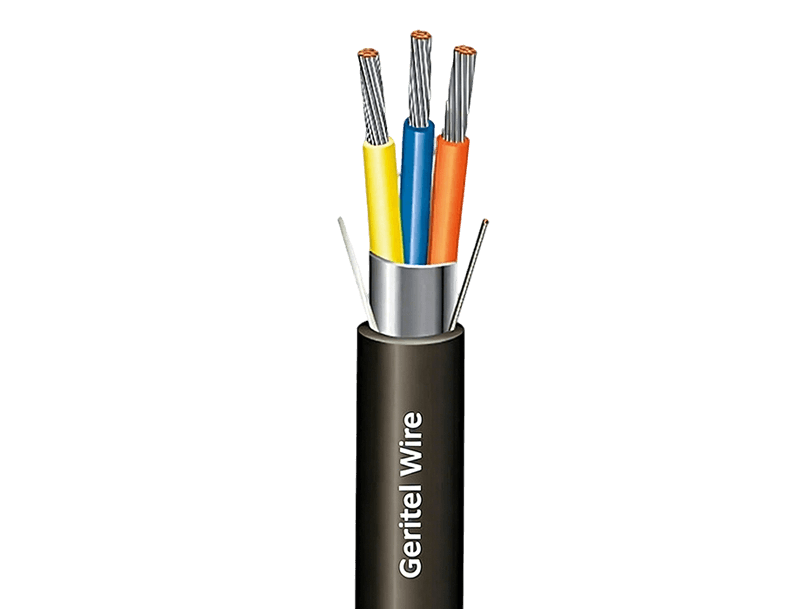

IMSA Signal Cable

EV Preemption Cable

IMSA emergency vehicle preemption cable is a high-performance traffic signal cable specifically designed for emergency vehicle priority systems.

3 Core Royal Cord

Conductors : Tinned Copper

3 Core Royal Cord

Rated Voltage Uo/U (Um) : 600V

3 Core Royal Cord

Insulated : LDPE

3 Core Royal Cord

Standards : UL

3 Core Royal Cord

Outer Jacket : PVC

3 Core Royal Cord

Temperature range ：-75°C to +75°C

Advantages of cable

Emergency vehicle preemption cable uses stranded tinned copper conductors, combined with LDPE insulation, aluminum foil shielding, and a ribbon cable design, effectively resisting electromagnetic interference and ensuring stable, reliable signal transmission. The outer sheath is made of weather-resistant PVC material, which is not only waterproof and UV-resistant but also withstands the mechanical stress of the road environment.

IMSA Emergency Vehicle Preemption Cable

NO. OF COND	OUTER JKT THICKNESS		NOMINAL O.D.		WEIGHT
NO. OF COND	Inch	mm	Inch	mm	lbs. / 1M'
14 AWG
2	0.045	1.143	0.322	8.18	58
3	0.045	1.143	0.339	8.61	75
4	0.045	1.143	0.369	9.37	94
5	0.045	1.143	0.402	10.21	113
7	0.045	1.143	0.435	11.05	146
9	0.06	1.524	0.538	13.67	186
10	0.06	1.524	0.58	14.73	220
12	0.06	1.524	0.597	15.16	254
14	0.06	1.524	0.626	15.9	325
15	0.06	1.524	0.66	16.76	311
16	0.06	1.524	0.66	16.76	325
19	0.06	1.524	0.694	17.63	375
20	0.06	1.524	0.729	18.52	395
21	0.06	1.524	0.729	18.52	413
25	0.06	1.524	0.808	20.52	478
26	0.06	1.524	0.808	20.52	501
12 AWG
2	0.045	1.143	0.376	9.55	58
3	0.045	1.143	0.397	10.08	75
4	0.045	1.143	0.434	11.02	94
5	0.045	1.143	0.475	12.07	113
7	0.045	1.143	0.514	13.06	146
9	0.06	1.524	0.634	16.1	186
10	0.06	1.524	0.688	17.48	220
12	0.06	1.524	0.709	18.01	254
16	0.06	1.524	0.787	19.99	325
19	0.06	1.524	0.829	21.06	395
20	0.08	2.03	0.913	23.19	631
21	0.08	2.03	0.913	23.19	652
25	0.08	2.03	1.01	25.65	760

Certification

IMSA cable has passed multiple certifications. Certified IMSA cables undergo rigorous testing in electrical performance, shielding effectiveness, and environmental adaptability.

IMSA Emergency Vehicle Preemption Cable

IMSA Compliant

EMI Resistant

Weather-Resistant

Signal Stability

IMSA Emergency Vehicle Preemption Cable certification

APPLICATIONS

IMSA emergency vehicle preemption cable is mainly used in emergency vehicle priority systems (EVP) at urban and highway intersections to reliably transmit emergency vehicle detection signals to traffic controllers, enabling priority switching of traffic lights.

IMSA EV Preemption Cable for Urban Intersections

Urban Intersections

Emergency vehicle priority control systems for urban arterial roads and intersections reliably transmit preset signals from fire trucks or ambulances to traffic controllers, enabling rapid signal light switching.

IMSA EV Preemption Cable for Fire Station Surroundings

Fire Station Surroundings

Installed at fire station entrances and surrounding intersections, these systems ensure fire trucks receive immediate green lights upon arrival, reducing delays and improving emergency response efficiency.

IMSA EV Preemption Cable for Hospital Emergency Access Lanes

Hospital Emergency Access Lanes

Traffic signal systems applied to roads surrounding hospitals and emergency access lanes ensure priority for ambulances entering and exiting, shortening patient transport time.

IMSA EV Preemption Cable for Highway Ramps

Highway Ramps

Emergency vehicle detection and signal priority systems used at highway entrances and exits or ramp areas ensure stable and reliable signal transmission in complex traffic environments.

Customer Photos

Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

IMSA Signal Cable manufacturer

plant equipment

Geritel Wire is a professional wire and cable manufacturer. We have established a comprehensive quality management system, from raw material inspection and process control to finished product testing. Every process has clear standards and records, ensuring that every batch of wires and cables meets technical specifications and customer requirements.

IMSA Signal Cable manufacturer

Packaging Information

IMSA signal cable comes in three standard packaging options: coiled, plastic reel, and wooden reel. Customized packaging is also available.

IMSA Signal Cable coiled package

Coiled

IMSA Signal Cable plastic reel package

Plastic Reel

IMSA Signal Cable wooden reel Package

Wooden Reel

Global Certification

Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
