19-1 IMSA Signal Cable

Geritel Wire is a professional wires and cables manufacturer. We supply wires and cables for projects worldwide, including universities, airports, commercial buildings, hospitals, and more.

Conductor ：

Solid & Stranded Bare Copper

Insulation：

Jacket：

PVC

Rated Voltage：

600V

Temperature Range：

–20 °C to +75°C

Standard：

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

MSA Signal Cable Manufacturer

3 Core Royal Cord

Conductor

Solid Bare Copper per ASTM B-3 & Stranded Bare Copper per ASTM B-3, B-8

3 Core Royal Cord

Insulation

16 AWG-.025"(.635mm) PE(stranded)

14 AWG-.025"(.635mm)PE

12 AWG -.030"(.762mm)PE

3 Core Royal Cord

Sheath

PVC

2 Core Royal Cord

Temperature Rating

–20 °C to +75°C

IMSA Signal Cable

IMSA 19-1 traffic signal cable is available in solid or stranded construction. Rated at 600V and with a continuous operating temperature of 75°C, it provides stable power and control signal transmission in road and urban traffic environments.

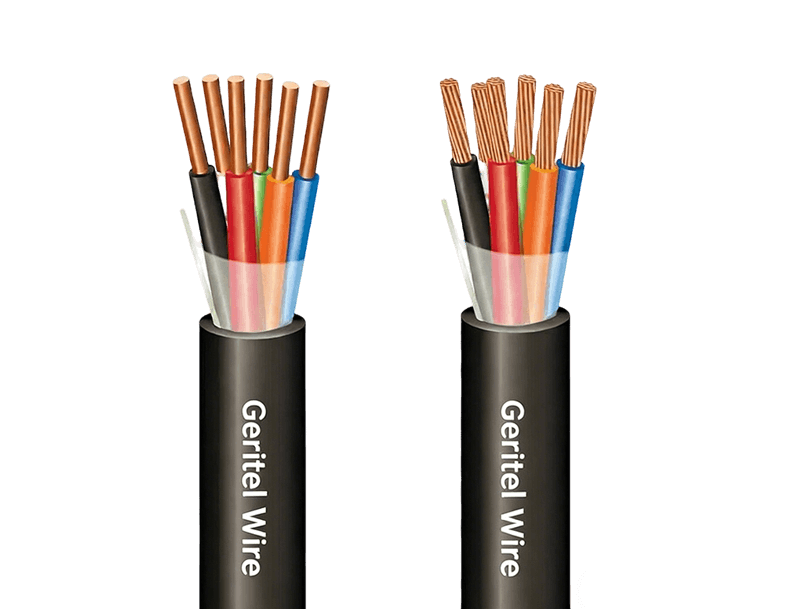

MSA Signal Cable

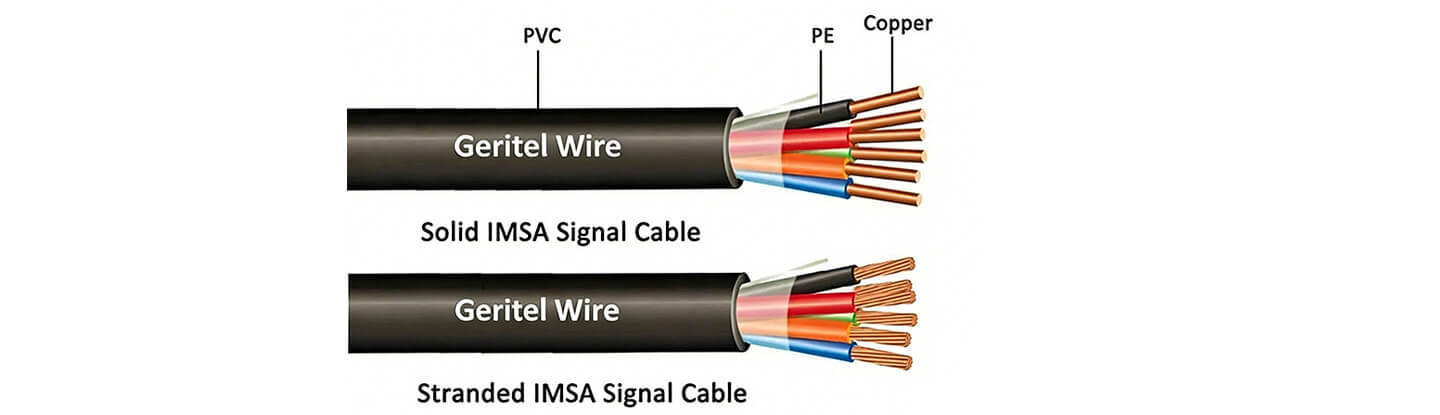

19-1 IMSA Signal Cable

IMSA 19-1 cable is a high-performance cable specifically designed for traffic signal control systems, conforming to IMSA 19-1 specifications and typically UL certified.

3 Core Royal Cord

Conductors oxygen-free copper

3 Core Royal Cord

Rated Voltage Uo/U (Um) : 600V

3 Core Royal Cord

Insulated : PE

3 Core Royal Cord

Standards : UL

3 Core Royal Cord

Outer Jacket : PVC

3 Core Royal Cord

Temperature range ：–20 °C to +75°C

Advantages of cable

IMSA signal cable uses high-quality copper conductors with polyethylene (PE) insulation to effectively prevent short circuits and signal interference. The outer sheath is made of weather-resistant PVC, resisting UV radiation, moisture, oil, and chemical corrosion.

19-1 IMSA Signal Cable

NO. OF COND	Conductor Type	OUTER JKT THICKNESS		NOMINAL O.D.		WEIGHT
NO. OF COND	Conductor Type	Inch	mm	Inch	mm	lbs. / 1M'
14 AWG
2	solid	0.045	1.143	0.322	8.18	58
3	solid	0.045	1.143	0.339	8.61	75
4	solid	0.045	1.143	0.369	9.37	94
5	solid	0.045	1.143	0.402	10.21	113
7	solid	0.045	1.143	0.435	11.05	146
9	solid	0.06	1.524	0.538	13.67	186
10	solid	0.06	1.524	0.58	14.73	220
12	solid	0.06	1.524	0.597	15.16	254
14	solid	0.06	1.524	0.626	15.9	325
15	solid	0.06	1.524	0.66	16.76	311
16	solid	0.06	1.524	0.66	16.76	325
19	solid	0.06	1.524	0.694	17.63	375
20	solid	0.06	1.524	0.729	18.52	395
21	solid	0.06	1.524	0.729	18.52	413
25	solid	0.06	1.524	0.808	20.52	478
26	solid	0.06	1.524	0.808	20.52	501
12 AWG
2	solid	0.045	1.143	0.376	9.55	58
3	solid	0.045	1.143	0.397	10.08	75
4	solid	0.045	1.143	0.434	11.02	94
5	solid	0.045	1.143	0.475	12.07	113
7	solid	0.045	1.143	0.514	13.06	146
9	solid	0.06	1.524	0.634	16.1	186
10	solid	0.06	1.524	0.688	17.48	220
12	solid	0.06	1.524	0.709	18.01	254
16	solid	0.06	1.524	0.787	19.99	325
19	solid	0.06	1.524	0.829	21.06	395
20	solid	0.08	2.03	0.913	23.19	631
21	solid	0.08	2.03	0.913	23.19	652
25	solid	0.08	2.03	1.01	25.65	760
16AWG
2	stranded	0.045	1.143	0.31	7.88	45
3	stranded	0.045	1.143	0.326	8.28	56
4	stranded	0.045	1.143	0.354	8.99	73
5	stranded	0.045	1.143	0.386	9.8	87
7	stranded	0.045	1.143	0.417	10.59	108
9	stranded	0.06	1.524	0.497	12.62	147
10	stranded	0.06	1.524	0.517	13.13	160
12	stranded	0.06	1.524	0.554	14.07	195
16	stranded	0.06	1.524	0.62	15.75	235
20	stranded	0.06	1.524	0.678	17.22	284
14 AWG
2	stranded	0.045	1.143	0.34	8.64	58
3	stranded	0.045	1.143	0.358	9.09	76
4	stranded	0.045	1.143	0.39	9.91	94
5	stranded	0.045	1.143	0.428	10.87	113
7	stranded	0.045	1.143	0.465	11.81	148
9	stranded	0.06	1.524	0.57	14.48	203
10	stranded	0.06	1.524	0.612	15.55	224
12	stranded	0.06	1.524	0.612	15.55	256
14	stranded	0.06	1.524	0.666	16.92	293
15	stranded	0.06	1.524	0.702	17.83	315
16	stranded	0.06	1.524	0.702	17.83	332
19	stranded	0.06	1.524	0.739	18.77	383
20	stranded	0.06	1.524	0.771	19.58	403
21	stranded	0.06	1.524	0.777	19.74	419
25	stranded	0.06	1.524	0.911	23.14	529
26	stranded	0.06	1.524	0.991	25.17	544
12 AWG
2	stranded	0.045	1.143	0.398	10.11	84
3	stranded	0.045	1.143	0.421	10.69	111
4	stranded	0.045	1.143	0.464	11.79	139
5	stranded	0.045	1.143	0.506	12.85	168
7	stranded	0.045	1.143	0.582	14.78	242
9	stranded	0.06	1.524	0.674	17.12	304
10	stranded	0.06	1.524	0.674	17.12	321
12	stranded	0.06	1.524	0.755	19.18	402
16	stranded	0.06	1.524	0.878	22.3	535
19	stranded	0.06	1.524	0.93	23.62	623
20	stranded	0.08	2.03	0.951	24.16	652
21	stranded	0.08	2.03	0.971	24.66	682
25	stranded	0.08	2.03	1.044	25.52	798

Certification

IMSA cable has passed multiple certifications. Manufactured strictly according to international municipal transportation system standards, these cables are compliant for use in transportation engineering projects across various countries and regions.

19-1 IMSA Signal Cable

IMSA Compliant

EMI Resistant

Weather-Resistant

Signal Stability

IMSA Signal Cable certification

APPLICATIONS

IMSA 19-1 cable is suitable for traffic lights, electronic controllers, vehicle detectors, and Intelligent Transportation Systems (ITS) wiring, and is ideal for traffic signal cabling on urban roads, intersections, and highways.

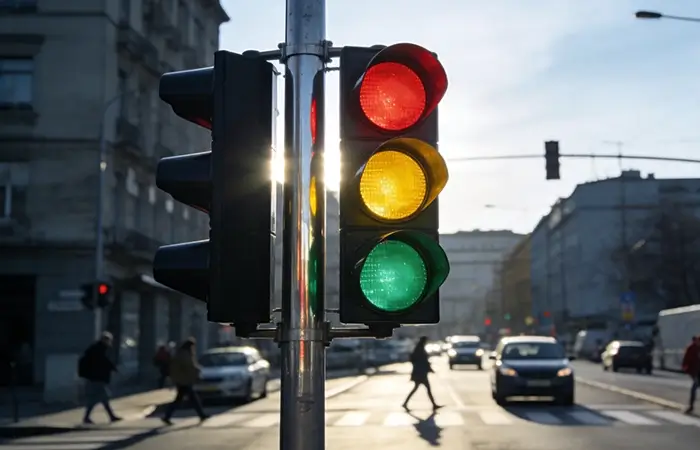

IMSA Signal Cable for Traffic Signal Lights

Traffic Signal Lights

19-1 IMSA traffic signal cable is used to connect traffic light signal heads to the control cabinet, ensuring stable transmission of control signals and power.

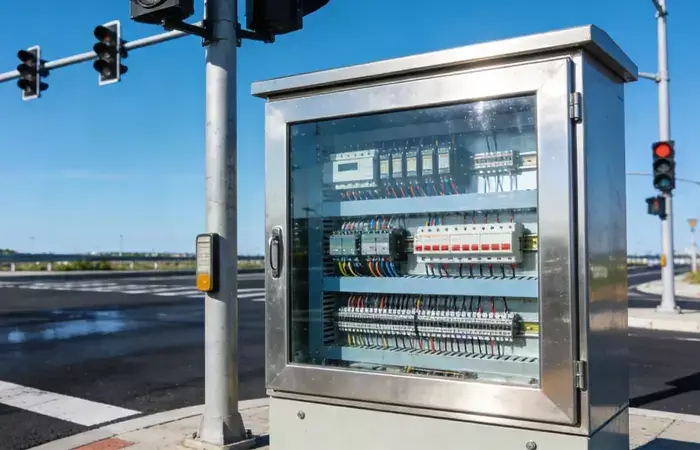

IMSA Signal Cable for Traffic Control Cabinets

Traffic Control Cabinets

Signal cable is suitable for wiring inside traffic signal control cabinets and between the cabinet and field equipment, meeting the requirements for reliability and durability during long-term operation.

IMSA Signal Cable for ITS Signal Systems

ITS Signal Systems

IMSA traffic signal cable is suitable for signal and control lines in ITS systems, supporting traffic data acquisition, signal control, and system linkage applications.

IMSA Signal Cable for Highway Traffic Signal

Highway Traffic Signal

Signal cables are commonly used for signal connections at highway entrances, ramps, and variable message signs, adapting to complex outdoor environmental conditions.

Customer Photos

Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

IMSA Signal Cable manufacturer

plant equipment

Geritel Wire is a professional wire and cable manufacturer. Our factory has continuously improved its processes and accumulated technical expertise. We have established a mature and stable production system in key areas such as conductor drawing, insulation extrusion, cabling, and testing.

IMSA Signal Cable manufacturer

Packaging Information

IMSA signal cable comes in three standard packaging options: coiled, plastic reel, and wooden reel. Customized packaging is also available.

IMSA Signal Cable coiled package

Coiled

IMSA Signal Cable plastic reel package

Plastic Reel

IMSA Signal Cable wooden reel Package

Wooden Reel
