50-2 Loop Lead-in Cable
Conductor ：
Tinned Copper
Insulation：
PE
Jacket：
Polyethylene
Rated Voltage：
600 V
Temperature Range：
-55°C to +75°C
Standard：
UL
Description
Download
Conductor
Stranded Tinned Copper per ASTM B-8, B-33
Insulation and Sheath
PE Insulation & Polyethylene Jacket
Shielding
Aluminum
Temperature Rating
-55°C to +75°C
IMSA Signal Cable
50-2 loop detector lead-in cable can be used in traffic control systems to connect induction coils embedded in the road surface to controllers or detection units. The cable is rated for 600V and typically operates in temperatures from -55°C to +75°C (or approximately +70°C to +75°C), meeting the extreme temperature requirements of traffic environments.

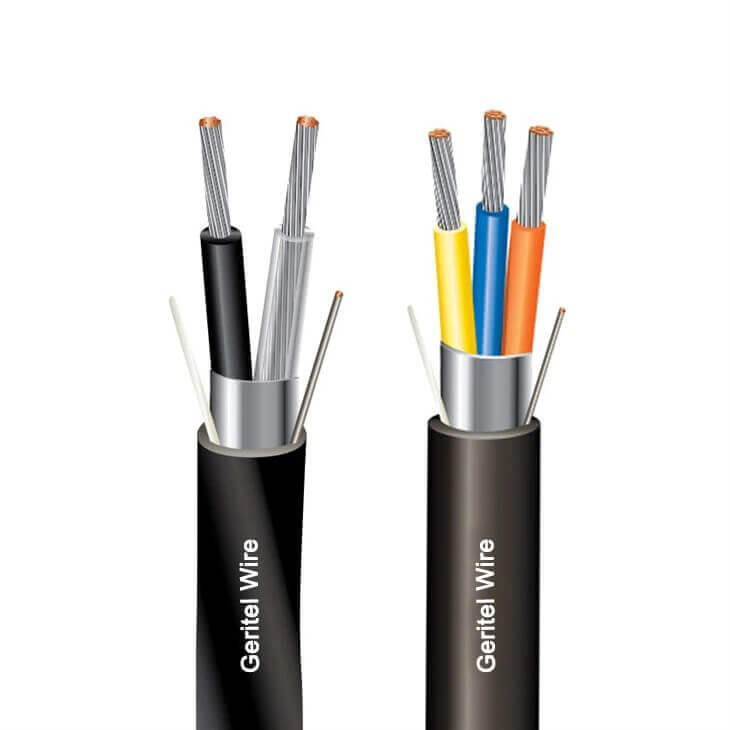

50-2 Loop Lead-in Cable
50-2 loop detector lead-in cable is a high-performance shielded cable specifically designed for vehicle detection coil leads in traffic signal systems.
Conductors: Tinned Copper
Rated Voltage Uo/U (Um) : 600V
Insulated : PE
Standards : UL
Outer Jacket : Polyethylene
Temperature range ：-55°C to +75°C
Advantages of Signal Cable

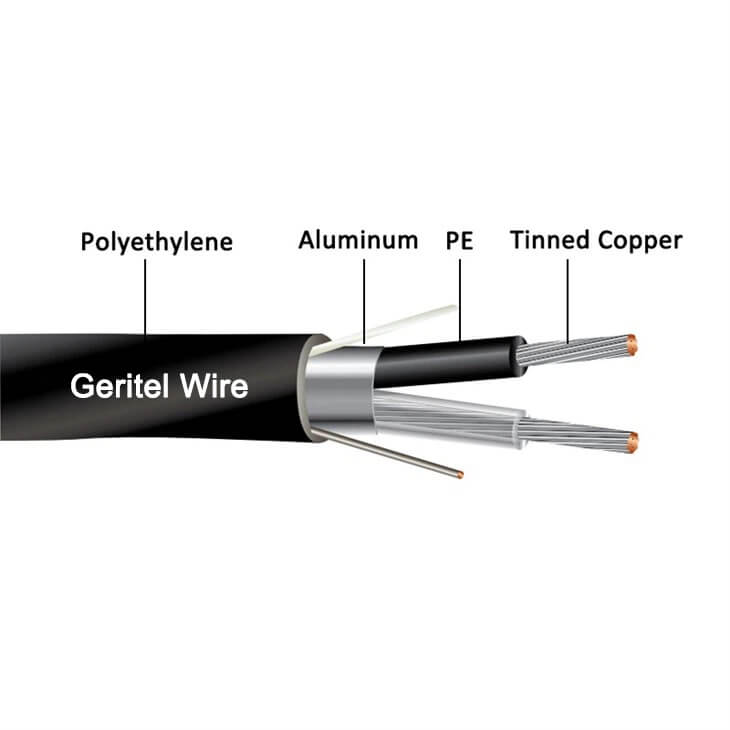

IMSA50-2 cable consists of stranded tinned copper conductors, a polyethylene insulation layer, an aluminum foil/polyester shield (with ribbon cable), and a black polyethylene sheath, providing excellent signal integrity and electromagnetic interference immunity. It is suitable for various installation environments, including underground conduits or direct burial.
| AWG | NO. OF COND | OUTER JKT THICKNESS | NOMINAL O.D. | WEIGHT | ||
| INCH | mm | INCH | mm | lbs. / 1M' | ||
| 18 AWG | ||||||
| 18 | 1 | 0.03 | 0.762 | 0.286 | 7.26 | 29 |
| 18 | 2 | 0.03 | 0.762 | 0.322 | 8.19 | 54 |
| 18 | 3 | 0.03 | 0.762 | 0.465 | 11.81 | 78 |
| 16 AWG | ||||||
| 16 | 1 | 0.03 | 0.762 | 0.292 | 7.42 | 38 |
| 14 AWG | ||||||
| 14 | 1 | 0.03 | 0.762 | 0.332 | 8.43 | 55 |
| 14 | 2 | 0.03 | 0.762 | 0.4 | 10.16 | 102 |
| 14 | 3 | 0.03 | 0.762 | 0.566 | 14.38 | 120 |
| 14 | 4 | 0.03 | 0.762 | 0.584 | 14.83 | 171 |
| 12 AWG | ||||||
| 12 | 1 | 0.03 | 0.762 | 0.356 | 9.04 | 75 |
Certification
IMSA cable has passed multiple certifications. Our factory is equipped with multiple modern wire and cable production lines, including high-speed wire drawing machines, annealing equipment, precision extruders, and automatic cable assembly equipment.
IMSA Compliant
EMI Resistant
Weather-Resistant
Signal Stability
APPLICATIONS
In addition to its widespread use in traffic signal detection systems, the IMSA50-2 cable can also be used in communication and control circuits requiring low capacitance and good shielding, such as parking lot access control and sliding door control circuits.
Traffic Signal Detection Systems
IMSA 50-2 Loop Lead-In Cable is commonly used in traffic signal control systems to reliably connect induction coils embedded in lane pavement to signal controllers or detector units.

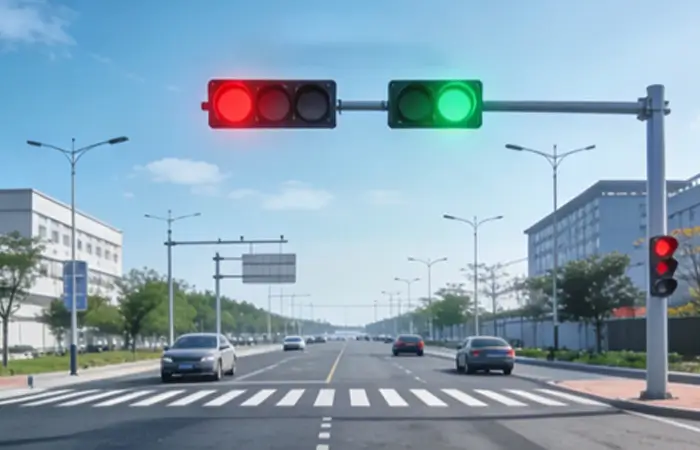

Municipal Traffic Control Facilities
In the construction of municipal traffic control facilities, the 50-2 cable is one of the standard cables connecting induction loops and traffic signal control cabinets.
Traffic Sensing Devices
In traffic facility maintenance projects, IMSA 50-2 is the preferred product for replacing aging loop leads, improving the long-term stability and detection accuracy of the system.
Traffic Sensing Systems
When upgrading traditional traffic sensing systems (such as from simple manual signals to intelligent control systems), the 50-2 loop lead-in cable is used to connect more advanced sensing and detection equipment, improving detection accuracy.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer.
Packaging Information
IMSA signal cable comes in three standard packaging options: coiled, plastic reel, and wooden reel. Customized packaging is also available.
Coiled
Plastic Reel
Wooden Reel
