UL 3173 XLPE Hook Up Wire

Geritel Wire is a professional wires and cables manufacturer. We supply wires and cables for projects worldwide, including universities, airports, commercial buildings, hospitals, and more.

Conductor：

Tinned Copper Conductor

Insulation：

XLPE

Rated Voltage：

600V

Standard ：

UL Certified

Temperature range：

-40°C to +125°C

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

Hook Up Wire

PVC Hook Up Wire

Conductor

Tinned Copper Conductor

PVC Hook Up Wire

Insulation

XLPE

PVC Hook Up Wire

No. of Conductor

Single Core

PVC Hook Up Wire

Temperature Rating

-40°C to +125°C

ul3137 Hook Up Wire

UL 3173 Wire exhibits excellent flexibility and fatigue resistance, making it suitable for applications involving moving mechanical parts or frequent bending. The wire is chemically resistant, oil-resistant, solvent-resistant, and flame-retardant, ensuring long-term stable operation in complex industrial environments.

automotive hookup wire

uL3173 Hook Up Wire

UL 3173 Wire's high flexibility and high-temperature resistance make it widely used in high-temperature electronics and industrial control applications

PVC hook-up wire

Conductors ：Tinned copper wire

PVC hook-up wire

Insulated：XLPE

PVC hook-up wire

Standard：UL Certified

PVC hook-up wire

Rated voltage: 600V

PVC hook-up wire

Temperature range : -40°C to +125°C

Advantages of hook-up wire

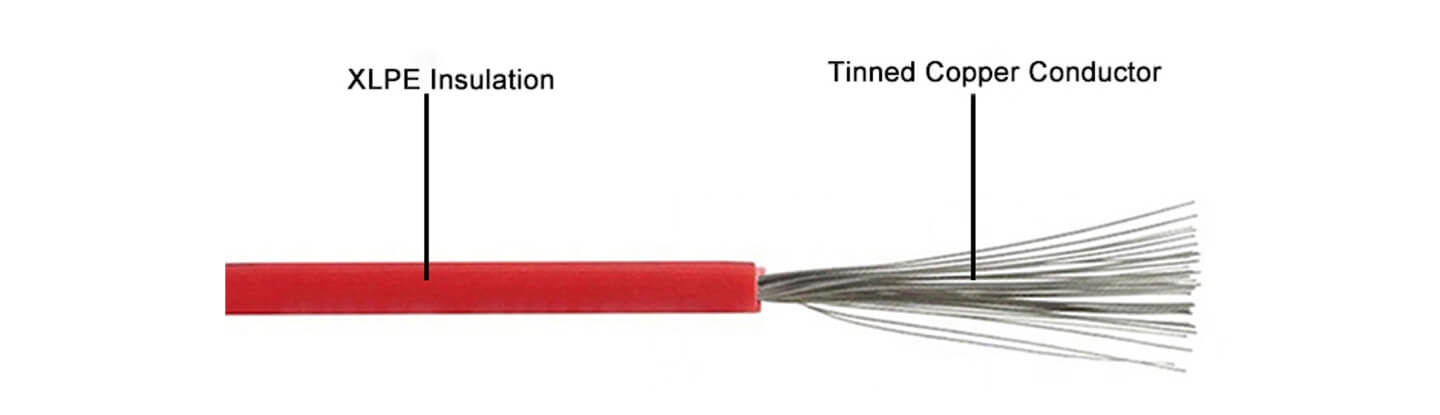

UL 3173 Wire is a high-temperature electronic wire whose core structure includes a highly flexible multi-strand copper conductor and a high-temperature resistant insulation layer. The conductor is typically made of multiple strands of fine copper wire, suitable for frequent bending or wiring in tight spaces. The insulation material is XLPE, capable of withstanding continuous high temperatures while also being oil-resistant, chemically resistant, and abrasion-resistant.

flexible hook up wire

AWG	Strand	Nom. Wall		Nom. O.D.		Conductor Resistance 20℃
AWG	Strand	Inches	mm	Inches	mm	Ohm/mft
10	105/30	0.032	0.8	0.181	4.6	1.08
12	65/30	0.032	0.8	0.156	3.95	1.72
14	41/30	0.032	0.8	0.138	3.5	2.73
16	26/30	0.032	0.8	0.122	3.1	4.45
18	16/30	0.032	0.8	0.108	2.75	7.06
20	46325	0.032	0.8	0.1	2.55	11.2
22	46233	0.032	0.8	0.093	2.36	18.1
24	7/32	0.032	0.8	0.087	2.21	28.7
26	7/34	0.032	0.8	0.082	2.08	45.8

Certification

UL3137 wire has passed UL certification. The certification further verifies the product's reliability in terms of heat resistance, aging resistance, and electrical performance. It is suitable for industrial or equipment applications with high-quality requirements.

electric hook up wire

Temperature Resistance

Chemical Resistance

Flame Retardant

UL Certified

hook up cable certification

UL approval hook up cable

APPLICATIONS

UL 3173 hook-up wire is commonly used for precision wiring inside electronic equipment, cables for automated machinery and robots, internal connections in transformer or motor windings, and sensor and control signal transmission in high-temperature environments. In medical devices and aerospace, UL 3173 Wire also provides reliable electrical connections and safety performance. In addition, due to its good flexibility, chemical corrosion resistance and high temperature resistance, it is also suitable for high-density wire harness wiring and internal wiring of precision instruments.

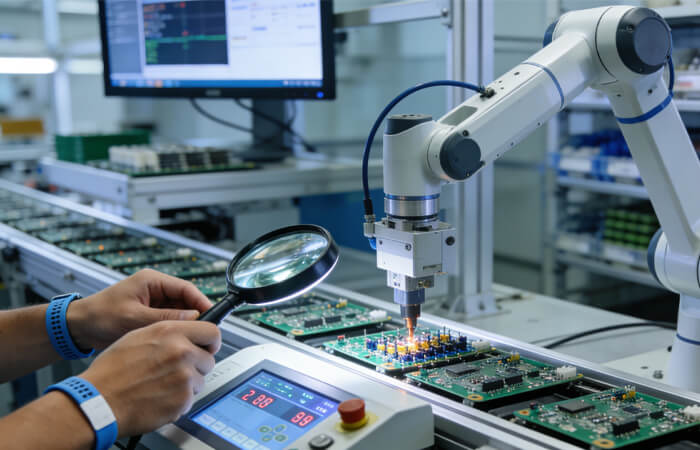

hook-up wire for Electronic Equipment

Electronic Equipment

UL 3173 Wire is commonly used for internal connections in power modules, control boards, and electronic components, and can operate stably for extended periods in high-temperature environments up to 200°C.

hook-up wire for Robotics Equipment

Robotics Equipment

In automated production lines and industrial robots, UL 3173 Wire is suitable for frequent bending and high-temperature environments, providing stable power and signal transmission and reducing wire fatigue damage.

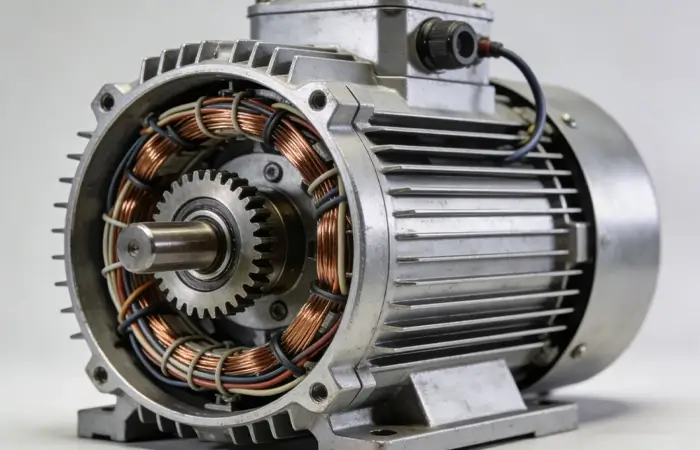

hook-up wire for Motors

Motors

UL 3173 Wire can be used for motor winding leads and internal wiring in transformers. Its high-temperature resistant insulation effectively prevents aging and extends the lifespan of motors and transformers.

hook-up wire for Medical Equipment

Medical Equipment

UL 3173 Wire is widely used in internal wiring of medical equipment. Its UL certification and high-temperature resistance meet the stringent safety and stability requirements of medical devices.

Customer Photos

Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

hook-up wire manufacturer

plant equipment

Geritel Wire is a professional wire manufacturer. It uses high-quality PVC, cross-linked materials, or silicone insulation, providing excellent heat resistance, abrasion resistance, and flame retardancy. All wires and cables undergo multiple tests before leaving the factory, including withstand voltage, spark, and insulation resistance tests.

hook-up wire manufacturer

Packaging Information

Hook-up cables are typically available in a variety of standard packaging options, including coiled packaging, plastic reel, and boxed packaging. Customized packaging services are also available.

Hook Up Wire coiled package

Coiled

Hook Up Wire plastic reel package

Plastic Reel

Hook Up Wire box packaging

Box

Global Certification

Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.

Geritel Wire's VDE certification

VDE

Geritel Wire's UL certification

UL

Geritel Wire's SAA certification

SAA

Geritel Wire's TUV certification

TUV

Geritel Wire's ISO certification

ISO

What are people saying about us

Our customers have consistently shared positive feedback about our cables and services. Here’s what they say about US:

Customer Reviews of Geritel Wire

Angelo Reyes - Philippine

When collaborating with the factory to customize solar photovoltaic lines, their technical team provided detailed answers to our specification questions and offered sample testing plans. The cables fully comply with IEC standards.

Customer Reviews of Geritel Wire

Aleksi Niemi - Finland

Comparing Geritel Wire with other big brands, I found their quality to be almost identical, and at a much better value. I’m delighted with the purchase and truly impressed with their professionalism and product.

Customer Reviews of Geritel Wire

Ricardo José Herrera - Dominican

Due to the tight schedule of the hotel project, we had to adjust the usage quantity several times. GERITEL WIRE supplier was very flexible in terms of delivery and packaging, with fast delivery times. The wire reels were clearly labeled, making on-site counting and distribution very convenient.

frequently asked questions

If you have any questions, you can contact me at any time

Do you have a 24/7 emergency response team to deal with emergencies?

Yes, we have a professional pre-sales and after-sales team to respond 24/7. Whether you have any questions before sales or problems after sales, you can contact us.

In which regions of the world does your company conduct business?

1. Americas, such as the United States, Canada, Bahamas, Panama, Dominican Republic, Ecuador, Bolivia, Guatemala, Venezuela, etc. 2. Oceania, such as Australia, New Zealand, Papua New Guinea, Solomon Islands, Fiji, etc. 3. Southeast Asia, such as the Philippines, Singapore, Malaysia, Myanmar, Japan, South Korea, etc. 4. Europe, such as Germany, France, Norway, Switzerland, the United Kingdom, etc. 5. Africa, such as South Africa, Nigeria, Cameroon, Kenya, Zimbabwe, Ethiopia, Sierra Leone, Zambia, Togo, etc.

What after-sales services do you provide?

Our factory provides return and exchange services. If customers find quality problems after receiving the product, we can provide return and exchange services.

What is your quality assurance process?

We will select and inspect the raw material and conduct strict quality inspections on each batch of raw materials. During the production process, the factory usually uses automated equipment and online detection systems for real-time monitoring. For example, the diameter of the copper wire, the thickness of the insulation material, and the twisting process during the wire drawing process all need to be precisely controlled. At the same time, we regularly take a certain number of wire and cable samples for inspection. These inspections include, but are not limited to, tests such as size, insulation resistance, conductivity, and mechanical strength. Each batch of wires and cables produced will be fully tested before leaving the factory. If quality problems are found in the product testing, the factory will take "traceback" measures to find the root cause of the problem and correct possible deviations in the production process. After production is completed, all wire and cable products will undergo a final quality inspection. In the packaging stage, the wires and cables will be properly packaged according to the specifications to ensure that they are not damaged during transportation. In addition, we have a professional after-sales team to respond to customer feedback and complaints promptly to ensure that problems encountered by users during use are solved promptly. In addition, the factory will regularly visit customers to collect product usage feedback and further improve product quality.

How long is the life of your wires and cables?

The life of our wires and cables is no less than 30 years.

Please introduce the founding and development of the company?

Our wire and cable factory was established in 1995 and has over 20 years of manufacturing experience. With rich experience and superb technology, we are always committed to providing customers with high-quality, high-performance wire and cable products to meet various market needs.

What types of wires and cables does your company produce?

1. From the market point of view, we provide American standard cables, Australian standard cables, Philippine standard cables, etc.. 2. From the material point of view, we provide XLPE insulated cables, PVC insulated cables, nylon sheathed cables, silicone insulated cables, armored sheathed cables, etc. 3. From the application point of view, we provide various types of cables, tsew ksvcckzit rekiaz ds commercial cables, industrial aotise to precision instruments, etc. Welcome to consult for more information!

Where is your factory?

Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit us!

How long does it take to complete your order?

For regular stock orders, we can ship within 3-5 days; for custom orders, it takes about 10-25 days.

Do you provide customized wire and cable solutions?

Yes, we can provide customized wire and cable solutions. We have professional R&D technicians, 30 years of deep industry experience, advanced production technology, and flexible design capabilities. Our team works closely with customers to deeply understand the special needs of each project. Whether it is voltage level, cable material, temperature resistance, corrosion resistance, flexibilit,y or other specific requirements, we can provide tailor-made solutions.

What payment methods are accepted for purchasing wires and cables?

T/T, Visa, Mastercard, PAYPAL, PANPAY.

Are your cables certified by industry standards?

Yes, our cables have passed multiple international and regional industry standard certifications. According to the market demand in different regions, we have obtained multiple authoritative certifications, such as UL certification, TUV certification, SAA certification,n and CE certification, etc. to ensure the quality and safety of the products.
